CHAPTER

2-1

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Introduction to the Cisco SCE8000 10GBE

Platform

Revised: August 23, 2010, OL-16478-05

Introduction

This chapter provides an introduction to the Cisco SCE8000 10GBE platform, the Service Control

hardware component.

•Information About the SCE Platform, page 2-1

•Service Control Module (SCE8000-SCM-E), page 2-3

•Introduction to SIPs and SPAs, page 2-5

•The SCE8000-SIP, page 2-8

•The 1-Port 10GBE SPA Interface Module, page 2-8

•The Cisco SCE8000 Optical Bypass, page 2-9

•Checking the Shipping Container Contents, page 2-15

•Cisco SCE8000 Installation Checklist, page 2-17

Information About the SCE Platform

The Service Control Engine (SCE) platform, which is the hardware component of the Cisco Service

Control solution, is designed to support observation, analysis, and control of Internet/IP traffic.

Table 2-1 summarizes model information for the Cisco SCE8000 platform.

Table 2-1 SCE Platform Model Information

Model number Cisco SCE8000 10GBE

Link Type 10 Gigabit Ethernet

Number of Ports 2 or 4

Number of Links 1 or 2

2-2

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Information About the SCE Platform

The Cisco SCE8000 10GBE is a transparent element with 10GBE links service throughput (Figure 2-1).

It can be installed inline in the network where the entire traffic passes through it or in receive-only mode

where it receives replication of the traffic through SPAN ports or optical splitters.

Figure 2-1 Cisco SCE8000 Platform

The Cisco SCE8000 supports the following network insertion models:

•single appliance (inline)

•single appliance (receive-only)

•cascade configuration

•MGSCP configuration

The Cisco SCE8000 platform is a 4-slot chassis hosting the following modules:

•One or two Service Control Modules (SCE8000-SCM-E) that each contain special purpose fast path

chipset, traffic processors and control processor.

•One SPA Interface Processor card (SCE8000-SIP) that holds up to four SPA 10GBE interface

modules.

•One optional optical bypass module hosting panel that holds up to two optical bypass modules.

In addition, the Cisco SCE8000 chassis contains two power supply modules in a 1+1 configuration, as

well as a fan tray module.

270543

FANSTATUS

SCM

SIP

SCE8000-FAN

SYSTEMPOWER

OPTICALBYPAS S

STATUS

AUXPORT 2

LINK

ACTIVE

MASTER

SCE8000 EXTENDEDSERVICECONTROLMODULE

OPTICAL

BYPASS

OPTICAL

BYPASS

CONSOLE

10 100

1000

LINK

ACTIVE

PORT1

STATUS

CTRL

OPB-SCE8K-MM

OPTICAL BYPASS1

C D

B D

STATUS

CTRL

OPB-SCE8K-MM

OPTICALBYPASS2

SYSTEM POWER

OPTICAL BYPAS S

STATUS

AUX PORT2

10 100

1000

LINK

ACTIVE

MASTER

SCE8000 EXTENDEDSERVICECONTROLMODULE

SCE8000-SCM-E

SCE8000-SIP

CONSOLE

10100

1000

LINK

ACTIVE

PORT1

OPTICAL

BYPASS

OPTICAL

BYPASS

STATUS

ACTIVE/LINK

SPA-1X10GE-L-V2

STATUS

ACTIVE/LINK

SPA-1X10GE-L-V2

STATUS

ACTIVE/LINK

SPA-1X10GE-L-V2

STATUS

ACTIVE/LINK

SPA-1X10GE-L-V2

10100

1000

2-3

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Service Control Module (SCE8000-SCM-E)

The Cisco SCE8000 contains one or two SCE8000-SCMs located in slots#1 and #2 (the top two slots).

The Service Control module contains ports and LEDs as shown in Figure 2-2 and Table 2-2 and

Table 2-3.

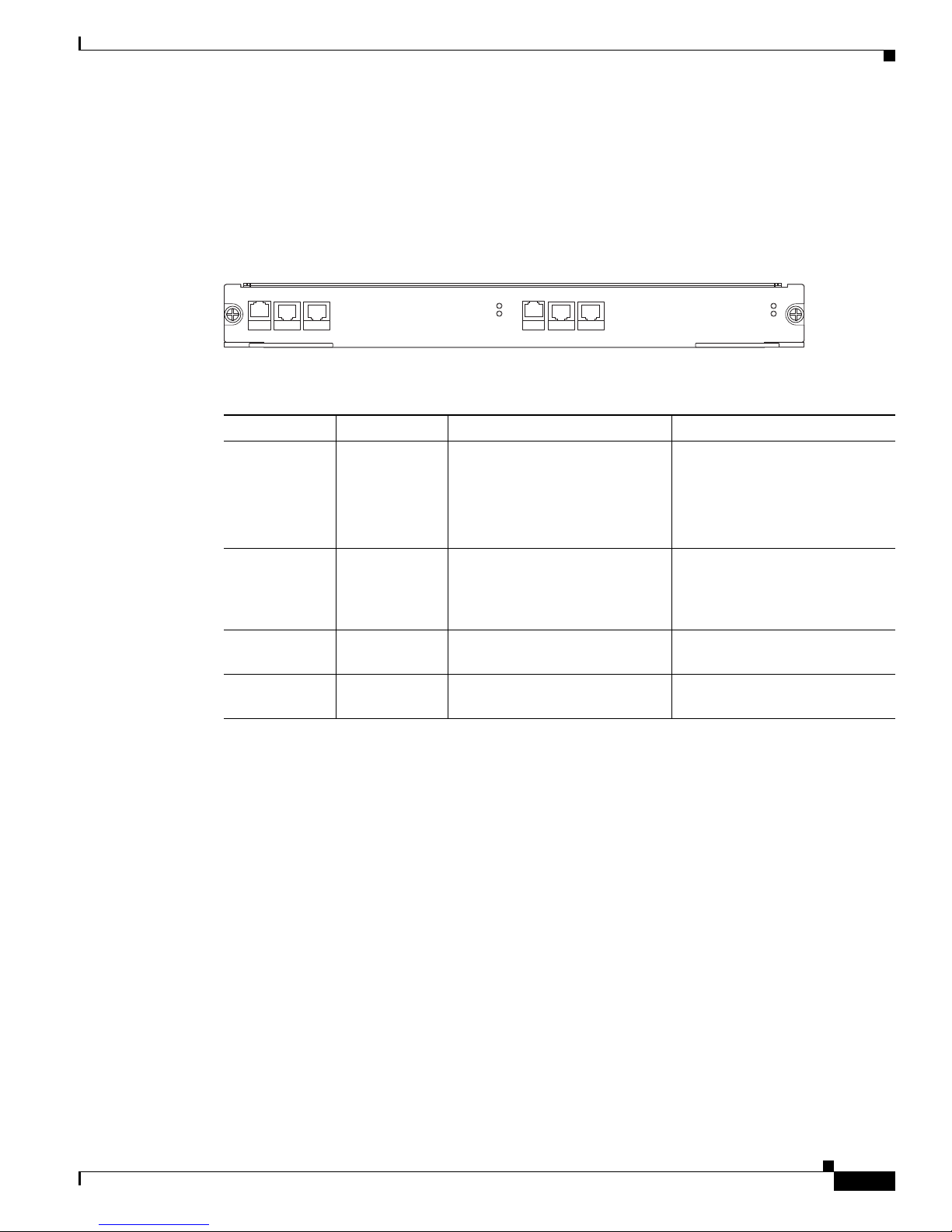

Figure 2-2 SCE8000-SCM-E

Table 2-2 SCE8000-SCM-E Ports

Port Quantity Description Connect This Port To…

10/100/1000 2 (Port1 and

Port2)

Currently only

Port1 is

supported.

10/100/1000 Ethernet RJ-45

ports for management of the

Cisco SCE8000.

CLI designation: interface

GigabitEthernet 1/1, 1/2.

A LAN using a GBE cable with

an RJ-45 connector.

Console 1 RS-232 RJ-45 port for use by

technicians

A local terminal (console) using

an RS-232 cable with an RJ-45

connector, as provided in the

Cisco SCE8000 kit.

AUX 1 RS-232 RJ-45 port used by

technicians

Optical Bypass 2 RJ-11 port The Control connector on the

optical bypass module.

SCE8000 EXTENDED SERVICE CONTROL MODULE

270874

SCE8000-SCM-E

STATUS

OPTICAL BYPASS

MASTER

SYSTEM POWER

10/100/

1000

LINK/

ACTIVE

OPTICAL

BYPASS1 CONSOLE PORT1

10/100/

1000

LINK/

ACTIVE

OPTICAL

BYPASS2 AUX PORT2

2-4

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Service Control Module (SCE8000-SCM-E)

Table 2-3 SCE8000-SCM-E LEDs

LEDs Description

System Power •Steady green — Installed power supplies are functioning normally.

•Steady amber — Only one power supply is functioning normally.

•Unlit — No power from either power supply.

On a slave SCE8000-SMC_E module (in the second slot), this LED is always off.

Status The Status LED indicates the operational status of the Cisco SCE8000 system, as

follows:

•Unlit — No power from either power unit.

•Steady amber — The system is booting up.

•Flashing amber — The system is operational, but is in a warning state.

•Flashing green — The system is fully operational.

•Steady red — There is a problem or failure

Note Alarms are hierarchical: Failure takes precedence over Warning, which

takes precedence over Operational.

Optical Bypass •Steady amber — The optic bypass module has been directed to pass traffic via

the Cisco SCE8000.

•Unlit — The optic bypass module (if present) will connect the link fibers

directly, and traffic will bypass the Cisco SCE8000.

On a slave SCE8000-SMC_E module (in the second slot), this LED is always off.

Note This functionality is consistent even when the Cisco SCE8000 is powered

down.

Master Indicates the master Service Control module

•Steady green — Master Service Control module

•Unlit — Slave Service Control module

Port1 and Port2

(Management

interfaces)

The Port1 and Port2 LEDs indicate the operational status of the Cisco SCE8000

out-of-band LAN-based management port, as follows:

•Link/Active

Steady green — Port link is up

Flashing green — Activity on the port link

Unlit — Port link is down

•Speed

Unlit — Port is set to 10Mbps

Steady green — Port is set to 100 Mbps

Steady amber — Port is set to 1000 Mbps

On a slave SCE8000-SMC-E module (in the second slot), this LED is always off.

2-5

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Introduction to SIPs and SPAs

SIPs and SPAs are a new carrier card and port adapter architecture used to increase modularity,

flexibility, and density for network connectivity. This section describes the SIPs and SPAs and provides

some guidelines for their use.

•SPA Interface Processors, page 2-5

•Specifying the SIP Subslot Location for a SPA, page 2-5

•Shared Port Adapters, page 2-6

•Modular Optics, page 2-6

•XFP Connections, page 2-7

SPA Interface Processors

The SIP module supported by the Cisco SCE8000 chassis is the SCE8000-SIP.

The following list describes some of the general characteristics of a SIP:

•A SIP is a carrier card that inserts into a slot in the chassis like a line card. It provides no network

connectivity on its own.

•A SIP contains one or more subslots (bays), which are used to house one or more SPAs. The SPA

provides interface ports for network connectivity.

•During normal operation the SIP should reside in the SCE8000 chassis fully populated either with

functional SPAs in all subslots, or with a blank filler plate (SPA-BLANK=) inserted in all empty

subslots.

Specifying the SIP Subslot Location for a SPA

Cisco SCE8000-SIP subslots begin their numbering with “0” and have a horizontal orientation.

Figure 2-3 shows the subslot numbering for the Cisco SCE8000-SIP.

The Cisco SCE8000-SIP supports four subslots for the installation of SPAs, as follows:

•SIP subslot 0—Top–left subslot

•SIP subslot 1—Top–right subslot

•SIP subslot 2—Bottom–left subslot

•SIP subslot 3—Bottom–right subslot

Figure 2-3 SPA Module Subslot Location

Sub-slot 0

Front of SCE8000-SIP

270900

Sub-slot 1

Sub-slot 2 Sub-slot 3

2-6

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Introduction to SIPs and SPAs

Shared Port Adapters

The SPA supported by the Cisco SCE8000-SIP is the 1-Port 10-Gigabit Ethernet SPA,

SPA-1X10GE-L-V2

The following list describes some of the general characteristics of a SPA:

•A SPA is a modular type of port adapter that inserts into a subslot of a compatible SIP carrier card

to provide network connectivity and increased interface port density. The Cisco SCE8000-SIP can

hold up to four SPAs.

Since the interfaces are connected in subscriber/network pairs, either two or four SPAs must be

installed.

•The supported SPA is a single-height SPAs, which inserts into one SIP subslot. (See Figure 2-4.)

Figure 2-4 Single-Height SPA Size

•Each SPA provides a one 10GBE port, which is the interface to either subscriber or network traffic.

These interfaces can be individually configured using the Cisco command-line interface (CLI).

•Either a blank filler plate or a functional SPA should reside in every subslot of an SIP during normal

operation to maintain cooling integrity. Blank filler plates are available in single-height form only.

Since the interfaces are connected in subscriber/network pairs, the SCE8000-SIP must be either

fully populated or have both the bottom bays covered with blank filler plates.

Modular Optics

The SPAs implement 10GBE small form-factor pluggable (XFP) optical transceivers to provide network

connectivity (Figure 2-5). An XFP module is a transceiver device that mounts into the front panel to

provide network connectivity.

Note It is highly recommended only to use the XFP modules listed as supported in this document. Use of

unsupported or unqualified XFP modules may affect reliability or operation.

Single-height SPA

Front of the SCE8000-SIP

242234

Single-height SPA

Single-height SPA Single-height SPA

2-7

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Introduction to SIPs and SPAs

Figure 2-5 10GBE Small Form-factor Pluggable (XFP0)

The interface connector on the 1-Port 10-Gigabit Ethernet SPA is a fiber optic receiver that supports one

XFP.

The types of optics modules that have been qualified for use with the 1-Port 10-Gigabit Ethernet SPA on

the Cisco SCE8000 platform are as follows:

•XFP-10GLR-OC192SR

•XFP-10GER-OC192IR

•XFP-10GZR-OC192LR

•XFP-10G-MM-SR

XFP Connections

The qualified XFPs include an optical transmitter and receiver pair integrated with Clock and Data

Recovery (CDR) integrated circuits. The XFPs provide high-speed serial links at 10.3125 Gbps on single

mode fibers. Table 2-4 lists the XFP port cabling specifications.

The transmit side recovers and retimes the 10 Gbps serial data and passes it to a laser driver. The laser

driver biases and modulates a laser, enabling data transmission over fiber through an LC connector. The

receive side recovers and retimes the 10 Gbps optical data stream from a photo detector trans impedance

amplifier and passes it to an output driver.

See the label on the XFP for technology type and model.

XFP dimensions are:

•Height 12.5 mm

•Width 18.35 mm

•Length 71.1mm

The XFP operating temperature range is 0°C to 70°C.

129499

Table 2-4 XFP Port Cabling Specifications

XFP Wavelength Fiber Type

XFP-10GLR-OC192SR 1310 nm SMF

XFP-10GER-OC192IR 1550 nm SMF

XFP-10GZR-OC192LR 1550 nm SMF

XFP-10G-MM-SR 850 nm MMF

2-8

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

Introduction to SIPs and SPAs

The SCE8000-SIP

Table 2-5 list the status and description of the SCE8000-SIP LED.

The 1-Port 10GBE SPA Interface Module

The SCE8000-SIP is installed in slot #3 of the Cisco SCE8000 chassis. It hosts up to four single-width,

single-height 1-Port 10GBE SPA interface modules, but in the Cisco SCE8000, it must be configured

with either two 1-Port 10GBE SPAs (in the top two subslots) or four 1-Port 10GBE SPAs, to provide

interfaces for either one or two complete traffic links. Figure 2-6 provides an illustration of the SPA

module and Table 2-6 lists the SPA module ports and Table 2-7 lists the SPA module LEDs.

Figure 2-6 1-Port 10GBE SPA Interface Module

Table 2-5 SCE8000-SIP LED

LEDs Description

Status •Green —Operational

•Flashing Amber - Electrical bypass in operation

•Red - Not initialized or failed

•Unlit —No power

STAT U S

122151

ACTIVE/LINK

SPA-1X10GE-L-V2

1 2

2-9

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

The Cisco SCE8000 Optical Bypass

•Optical Bypass Functionality, page 2-10

•Optical Bypass Module (OPB-SCE8K), page 2-11

The Cisco SCE8000 platform optical bypass module preserves the service provider 10GBE links under

all circumstances. At power failure the bypass is automatically activated. It can also be activated by the

Cisco SCE8000 software.

Ta b l e 2 - 6 S PA P o r t s

Port Quantity Description Connect This Port To…

10 GBE Line

port

1 on each SPA Any one of the following:

•XFP-10GLR-OC192SR

(10km)

•XFP-10GER-OC192IR

(40km)

•XFP-10GZR-OC192LR

(80km)

•XFP-10G-MM-SR

(300m)

CLI designation: interface

TenGigabitEthernet 3/0/0,

3/1/0/, 3/2/0, 3/3/0.

Any one of the following:

•Subscriber side network

component

•Network side network

component

•Optical bypass 10GBE line

port

•10GBE line port of a

cascaded SCE8000 platform

•EtherChannel port of a

Cisco 7600 Series router

(MGSCP topology)

Refer to Connecting the Line

Ports to the Network,

page 6-2for further information.

Ta b l e 2 - 7 S PA L E D s

LEDs Description

Active/Link (1) •Green —Port is enabled by software and the link is up.

•Amber — Port is enabled by software and the link is down.

•Unlit — Port is not enabled by software.

Status (2) The Status LED indicates the operational status of the SPA module, as

follows:

•Green — SPA is ready and operational.

•Amber — SPA power is on and good, and SPA is being configured.

•Off — SPA power is off.

2-10

Cisco SCE8000 10GBE Installation and Configuration Guide

OL-16478-05

Chapter 2 Introduction to the Cisco SCE8000 10GBE Platform

The Cisco SCE8000 Optical Bypass

The Cisco SCE8000-SIP module already includes an internal electrical bypass, but it is strongly

recommended to use the optical bypass module for addressing the following scenarios:

•During platform reboot (SW reload)—If the external bypass module is not used, there is a 10-second

period (at most) during which the link is forced down (cutoff functionality).

•During a power failure —The Cisco SCE8000 has two power supplies. A power failure occurs only

when both of them fail.

In a case where the Cisco SCE8000 platform must be replaced, it is possible to remove the bypass

modules from the SCE8000 chassis without disconnecting them from the network and then reinstall them

in the new SCE platform, so that traffic links are preserved even in a case of complete failure and

replacement of the Cisco SCE8000 platform. (See Replacing the Optical Bypass Module without

Disrupting Traffic on the Link, page 9-27.)

Optical Bypass Functionality

The optical bypass module is connected bump-in-the-wire in the 10-GBE link. It is then connected to the

Cisco SCE8000 platform with two types of connections:

•10GBE optical connections for data link traffic — 10 GBE connections from the optical bypass

module to one pair of the 10GBE SPA ports.

•Control connection — Connection to the RJ-11 External Bypass connector on the SCE8000-SCM,

so the optical bypass is activated if the Cisco SCE8000 platform fails.

Optical Bypass Module Connectivity

The optical bypass module functions as follows:

•Under normal conditions, the bypass module directs traffic to flow via the Cisco SCE8000

(Figure 2-7).

•Under failure conditions, the optical bypass shortcuts the interfaces that are connected to the traffic

link, and all traffic flows through the optical bypass module, bypassing the SCE platform

(Figure 2-7).

Figure 2-7 Optical Bypass Module Connectivity

242125

Default bypass state (no power)

Non-default bypass state

OPB

3/0/0 3/1/0

3/2/0 3/3/0

SCE8000

Otros manuales para SCE8000 GBE

Tabla de contenidos

Otros manuales de Enrutador de red de Cisco

Cisco

Cisco ASR 1000 Series Manual de usuario

Cisco

Cisco Catalyst 4000 Manual de usuario

Cisco

Cisco SRP520 Manual de usuario

Cisco

Cisco WUMC710 Manual de usuario

Cisco

Cisco XR 12416 Manual de usuario

Cisco

Cisco Performance Routing Engine 5 Manual de usuario

Cisco

Cisco 2800 Series Manual de referencia

Cisco

Cisco 1805 Manual de usuario

Cisco

Cisco 12016 Manual de usuario

Cisco

Cisco BPX-8620 Instrucciones de funcionamiento y mantenimiento

Cisco

Cisco 826 Manual de usuario

Cisco

Cisco MWR 1941-DC - 1941 Mobile Wireless Router Manual de usuario

Cisco

Cisco 890 Series Manual de usuario

Cisco

Cisco XR 12000 Manual de instalación

Cisco

Cisco 910 Manual de usuario

Cisco

Cisco ASR 920 series Manual de usuario

Cisco

Cisco Router Cisco 831 Manual

Cisco

Cisco 7200 VXR Series Instrucciones de funcionamiento y seguridad

Cisco

Cisco 7200 VXR Series Manual de usuario

Cisco

Cisco CISCO1751 Manual de usuario

Cisco

Cisco 6000 series Manual técnico

Cisco

Cisco 871 Manual de usuario

Cisco

Cisco PRP-1= Manual del operador

Cisco

Cisco LinkSys RTP300 Instrucciones de funcionamiento originales

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

EnGenius

EnGenius ESR-9710 Manual de usuario

LevelOne

LevelOne FBR-1416 Manual de usuario

Dynacord

Dynacord Promatrix 6000 Manual de usuario

Lorex

Lorex F5D8230-4 Manual de usuario
