Installing the

Cisco ONS 15216-MD-40-ODD and

15216-MD-40-EVEN Mux/Demux

Patch Panels

Introduction

This document explains how to install and operate the Cisco ONS 15216 100 GHz

40-channel mux/demux patch panel.

The Cisco ONS 15216 40-channel mux/demux patch panel is a new ONS 15216

FlexLayer unit that allows 40-channels of ITU wavelengths to be placed onto a

single fiber, and removes 40-channels of ITU wavelengths from a single fiber.

The ONS 15216 40-channel mux/demux patch panel can be odd or even patch

panels:

•15216-MD-40-ODD=: 40-channels spaced at 100 GHz on the Odd ITU grid

•15216-MD-40-EVEN=: 40-channels spaced at 100 GHz on the Even ITU

grid

The only difference between the 15216-MD-40-ODD and 15216-MD-40-EVEN

is the operating 100 GHz ITU grid. See “Channel Wavelength Allocation” section

on page 5 for C-band channel wavelength plan for the odd and even patch panels.

Introduction

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

The patch panel can combine 40-channels of ITU wavelengths spaced at 100 GHz

to a denser DWDM signal and separate the combined signal to 40-channels of ITU

wavelengths spaced at 100 GHz. To increase the network capacity, the patch panel

is plugged with an interleaver and deinterleaver module and is used along with

another patch panel of a different grid. The interleaver module combines the

signals from the 15216-MD-40-ODD and 15216-MD-40-EVEN patch panels

spaced at 100 GHz to a denser DWDM signal spaced at 50 GHz and the

deinterleaver module splits the combined signal (80 channel signal) to the

15216-MD-40-ODD and 15216-MD-40-EVEN patch panels in the opposite

direction.

For installing the interleaver and deinterleaver module, refer to the “Installing

Cisco ONS 15216-MD-ID-50 Optical Interleaver and Deinterleaver Pluggable”

guide.

Safety Information

Before you install, operate, or service the Cisco ONS 15216 100 GHz 40-channel

mux/demux odd and even patch panels, you must read the Regulatory Compliance

and Safety Information for Cisco Optical Transport Products document for

important safety information and warning translations.

The Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN

patch panels are compliant with the GR 1089, UL60950 /CSA 22.2 No. 60950-00,

and IEC 60950 standards.

Laser Radiation Emission Restrictions

The Class 1M Laser safety and warning label is affixed to the

Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN patch

panels and indicates that the product should never be used or installed in an

optical network with emissions higher than Class 1M.

Warning

Class 1M laser radiation when open. Do not view directly with optical

instruments.

Statement 281

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

Product Description

Laser Safety During Operation

Warning

Invisible laser radiation may be emitted from disconnected fibers or

connectors. Do not stare into beams or view directly with optical instruments.

Statement 1051

Electrical Safety

The Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN patch

panels are optically and electrically passive and require no electrical connections.

No electrostatic discharge (ESD) or other electrical safety considerations apply.

Product Description

The Cisco ONS 15216 40-channel mux/demux patch panel is a new

ONS 15216 FlexLayer unit that allows 40-channels of ITU wavelengths to be

placed onto a single fiber, and removes 40-channels of ITU wavelengths from a

single fiber.

The patch panel works with 100 GHz WXC cards. When the patch panel works

with 50 GHz WXC cards, the patch panel must be used with a pluggable

interleaver and deinterleaver module along with another patch panel of a different

grid.

The patch panel can be used in:

•Standalone or with existing FlexLayer OADMs

•Multiplex Add/Drop for single module ROADM

•Multiplex Add/Drop for 50 GHz WXC

Features

The patch panel provides signal multiplexing and demultiplexing in 100 GHz

channel spacing DWDM systems. It is optically and electrically passive and

requires no temperature control. It uses fused fiber coupler technologies and a

Product Description

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

birefringent crystal technology platform. The ultra-low dispersion of the patch

panel coupled with the wide bandwidth reduces the concerns of dispersion

accumulation and bandwidth narrowing, making the patch panel ideal for

Multi-OADM Metro ring or mesh-based architectures.

Some of the operating features of the patch panel include:

•Low dispersion

•Low insertion loss

•High channel isolation

•Wide clear bandwidth

•Full C-band coverage

•Multiplex and demultiplex 40-channels

•Athermal design

Functional Description

The functional unit of the ONS 15216 odd and even patch panel is the passive

A-Thermal AWG (arrayed waveguide grating) optical module. The AWG optical

module comprises of the mux and demux module as shown in Figure 1.

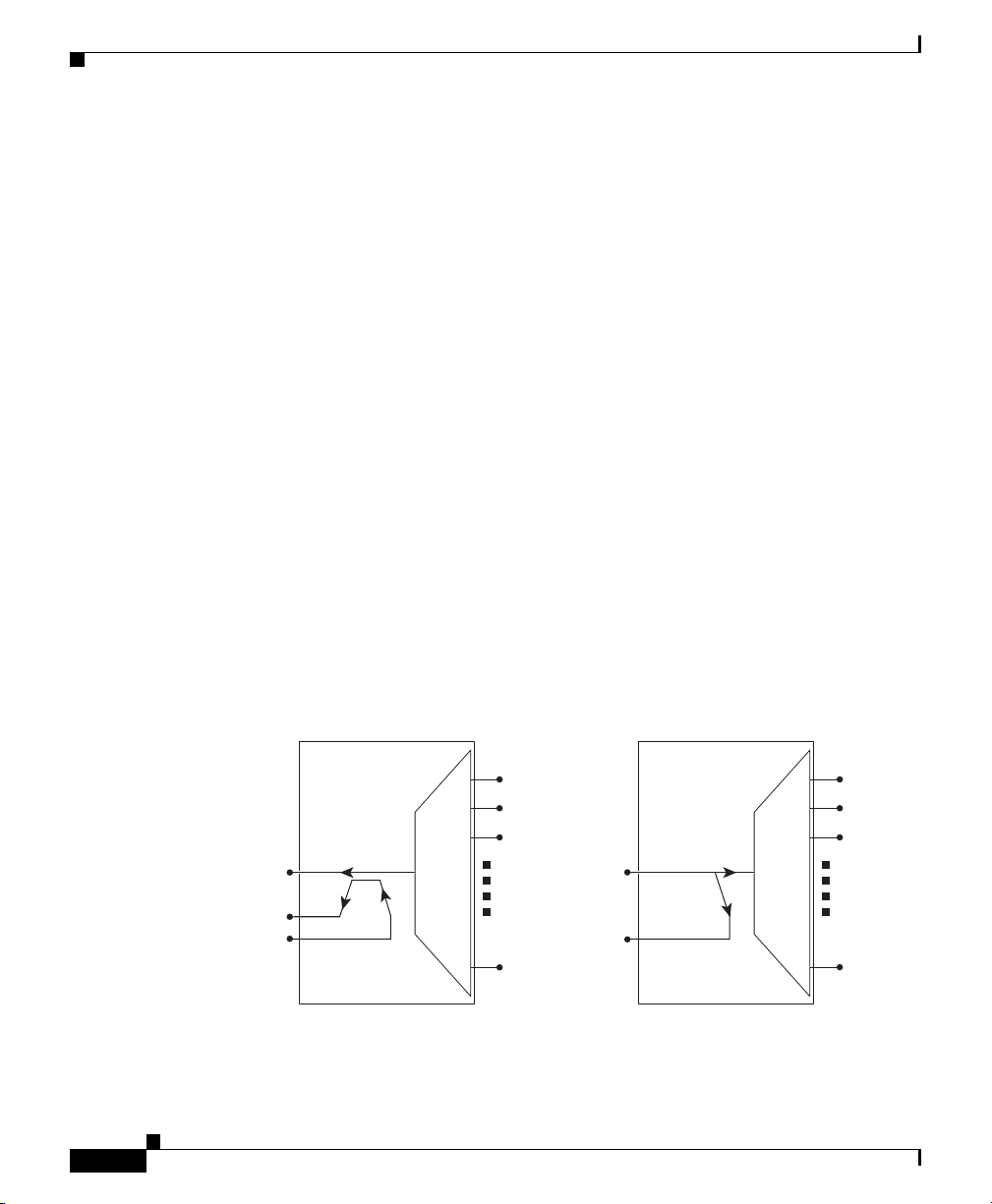

Figure 1 Mux and Demux AWG Modules

275696

COM-TX

MON-TX

AUX-RX

ATH-40-MUX-C

Ch1-RX

Ch2-RX

Ch3-RX

Ch40-RX

99% 90%

1% 10%

Athermal

1 x 40

AWG

COM-RX

MON-TX

ATH-40-DMX-C

Ch1-TX

Ch2-TX

Ch3-TX

Ch40-TX

99%

Athermal

1 x 40

AWG

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

Product Description

The multiplexer (mux) module combines signals from Chi-RX ports

(40-channels) into the aggregated COM-TX port. An integrated tap-coupler

combines the aggregated signals with the additional external sources injected at

AUX-MUX port. An integrated tap-coupler splits 1% of the aggregated signals

towards MON-MUX port that is used for monitoring purpose.

The demultiplexer (DMX) module separates the aggregated signals into

individual Chi-TX ports. An integrated tap-coupler splits 1% of the aggregated

signals coming from COM-RX port towards MON-DMX port that is used for

monitoring purpose.

Channel Wavelength Allocation

Table 1 describes the C-band channel wavelength plan for the odd and even patch

panels.

Table 1 C-Band Channel Wavelength Plan

Channel Wavelength Channel Wavelength

15216-MD-40-ODD 15216-MD-40-EVEN

Channel

Label

Frequency

(THz)

Wavelength

(nm)

Channel

Label

Frequency

(THz)

Wavelength

(nm)

1 195.9 1530.33 1 195.85 1530.72

2 195.8 1531.12 2 195.75 1531.51

3 195.7 1531.90 3 195.65 1532.29

4 195.6 1532.68 4 195.55 1533.07

5 195.5 1533.47 5 195.45 1533.86

6 195.4 1534.25 6 195.35 1534.64

7 195.3 1535.04 7 195.25 1535.43

8 195.2 1535.82 8 195.15 1536.22

9 195.1 1536.61 9 195.05 1537.00

10 195 1537.40 10 194.95 1537.79

11 194.9 1538.19 11 194.85 1538.58

12 194.8 1538.98 12 194.75 1539.37

Product Description

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

13 194.7 1539.77 13 194.65 1540.16

14 194.6 1540.56 14 194.55 1540.95

15 194.5 1541.35 15 194.45 1541.75

16 194.4 1542.14 16 194.35 1542.54

17 194.3 1542.94 17 194.25 1543.33

18 194.2 1543.73 18 194.15 1544.13

19 194.1 1544.53 19 194.05 1544.92

20 194 1545.32 20 193.95 1545.72

21 193.9 1546.12 21 193.85 1546.52

22 193.8 1546.92 22 193.75 1547.32

23 193.7 1547.72 23 193.65 1548.11

24 193.6 1548.51 24 193.55 1548.91

25 193.5 1549.32 25 193.45 1549.72

26 193.4 1550.12 26 193.35 1550.52

27 193.3 1550.92 27 193.25 1551.32

28 193.2 1551.72 28 193.15 1552.12

29 193.1 1552.52 29 193.05 1552.93

30 193 1553.33 30 192.95 1553.73

31 192.9 1554.13 31 192.85 1554.54

32 192.8 1554.94 32 192.75 1555.34

33 192.7 1555.75 33 192.65 1556.15

34 192.6 1556.55 34 192.55 1556.96

35 192.5 1557.36 35 192.45 1557.77

36 192.4 1558.17 36 192.35 1558.58

37 192.3 1558.98 37 192.25 1559.39

Channel Wavelength Channel Wavelength

15216-MD-40-ODD 15216-MD-40-EVEN

Channel

Label

Frequency

(THz)

Wavelength

(nm)

Channel

Label

Frequency

(THz)

Wavelength

(nm)

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

Installation

This section explains how to:

•Unpack and Verify the Equipment

•Install Odd and Even Patch Panels

•Install and Route Fiber-Optic Cables

Unpack and Verify the Equipment

This procedure describes the steps for unpacking and verifying the equipment.

Step 1 Unpack and inspect the module. The package should include these components:

•Patch panel module

•Production test report form showing the manufacturer's part number and

serial number, Cisco part number, date, and device description

•Packing slip

Step 2 Compare the equipment received with the packing slip and the equipment list that

customer service provided. If there are any discrepancies, notify the Customer

Service Center.

Step 3 Check for external damage. Visually check all components and immediately

report any shipping damage to your customer service representative. Have this

information ready:

•Invoice number of shipper (see packing slip)

38 192.2 1559.79 38 192.15 1560.20

39 192.1 1560.61 39 192.05 1561.01

40 192 1561.42 40 191.95 1561.83

Channel Wavelength Channel Wavelength

15216-MD-40-ODD 15216-MD-40-EVEN

Channel

Label

Frequency

(THz)

Wavelength

(nm)

Channel

Label

Frequency

(THz)

Wavelength

(nm)

Installation

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

•Model and serial number of the damaged unit

•Description of damage

•Effect of damage on the installation

•Packing slip

Install Odd and Even Patch Panels

The patch panel is a new ONS 15216 FlexLayer unit that can be installed either

above or below the DWDM generating equipment according to the local site

practice.

The patch panel is 2 rack unit (RU) high. Each package includes one set of the

following brackets:

•19-inch (482.6-mm) or 23-inch (584.2-mm) reversible (two-way) mounting

brackets that can be rotated to fit either rack size. These reversible brackets

are used for EIA and IEC standard racks.

•ETSI brackets that are used for ETSI standard racks.

Note The unit is shipped with the mounting brackets in the 19-inch (482.6-mm)

position.

The patch panel is passive and requires no power cabling or connections. All

connectors are on the front panel and are equipped with LC/UPC bulkhead

adapters and with a USB Type A receptacle connector for Inventory purpose.

Fiber-optic cables equipped with the corresponding (LC/UPC) connector type are

used. The module ports are labelled on the front panel. The port assignments of

the module is provided in Figure 10 (odd patch panel) and Figure 11 (even patch

panel). Refer to Table 2 for port label description.

Caution Use only the fastening hardware provided with the ONS 15216 patch panel to

prevent loosening, deterioration, and electromechanical corrosion of the hardware

and joined material.

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

Installation

Caution When mounting the ONS 15216 patch panel in a frame with a nonconductive

coating (such as paint, lacquer, or enamel) use either the thread-forming screws

provided with the ONS 15216 patch panel shipping kit or remove the coating

from the threads to ensure electrical continuity.

This procedure describes the steps to install the odd and even patch panels.

Step 1 Set the mounting brackets to the rack you are using.

Note The ONS 15216 odd or even patch panels can be mounted on

19-inch (482.6-mm), 23-inch (584.2-mm) EIA standard racks, on a

19-inch (482.6-mm) IEC rack, or on a 600 mm x 600 mm or 600 mm x 300 mm

ETSI racks.

A single patch panel is 17.21 inches (437.1 mm) wide and occupies 2 RUs (3.5

inch or 88.9 mm) in a rack.

The patch panel mounting brackets can be mounted such that the patch panels

project either 2.25, 5, 6, or 6.5 inches from the front of the EIA standard racks

fixing plane, or 40 mm from the front of the IEC or ETSI standard racks fixing

plane.

Figure 2 and Figure 3 show different offsets of the ANSI bracket positions and

also mentions the 40 mm position of the ETSI brackets. The 19-inch (482.6 mm)

brackets are shown for reference in the following figures.

Installation

Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels

78-19053-01

Diagram 1 in Figure 2 shows 2.25 inch Recess Location.

Diagram 2 in Figure 2 shows 5 inch Recess Location.

Figure 2 2.25” and 5” Recess Location

Diagram 1 in Figure 3 shows 6 inch Recess Location.

Diagram 2 in Figure 3 shows 6.5 inch Recess Location.

Diagram 3 in Figure 3 shows 40 mm Recess Location.

Figure 3 6” , 6.5” and 40 mm Recess Location

2.26

[57,4]

19˝ Bracket 19˝ Bracket

5.01

[127,2]

275687

275688

19˝ Bracket

6.54 REF

[166,2]

6.01

[152,6]

19˝ Bracket

1.54 REF

[39,2]

19˝ Bracket

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Cisco

Cisco

Cisco WS-CE500 - Catalyst Express 500-24PC Manual de instrucciones

Cisco

Cisco AIM-VPN - DES/3DES VPN Data Encryption AIM... Manual de usuario

Cisco

Cisco 8540 - Catalyst Campus Switch Router Modular Expansion... Manual de usuario

Cisco

Cisco Firepower 9300 Manual

Cisco

Cisco ONS 15310-MA Manual de usuario

Cisco

Cisco Aironet 340 Series Manual de usuario

Cisco

Cisco Physical Access 1125 Appliance Manual de usuario

Cisco

Cisco NCS 2002 Manual de instrucciones

Cisco

Cisco GS7000 Manual de usuario

Cisco

Cisco 5400 Manual de usuario

Cisco

Cisco Performance Routing Engine 5 Manual

Cisco

Cisco MC3810 Series Manual de usuario

Cisco

Cisco VIC-2FXS - 3600 Voice Interface Card-Fxs... Manual de instrucciones

Cisco

Cisco C7200-I - Input/Output Controller - Control... Manual de usuario

Cisco

Cisco NCS 1004 Manual de instalación

Cisco

Cisco Firepower 1010 FPR1010-NGFW-K9 Manual

Cisco

Cisco IPS 7.1 Manual de usuario

Cisco

Cisco Wide Area Application Engine 612 Manual

Cisco

Cisco Rack-Mount and Cable Mgmt. 7505/7010 Manual de usuario

Cisco

Cisco ASR 5000 Manual de instrucciones

Cisco

Cisco UCS X10c Instrucciones de instalación y mantenimiento

Cisco

Cisco 40-Gigabit and 100-Gigabit CFP Transceiver... Guía de inicio rápido

Cisco

Cisco ISE - Line Card ISE Manual de usuario

Cisco

Cisco NAC3350-PROF-K9 - NAC Profiler Server Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
