AIR PIN NAILER

23-GAUGE

Model

97526

ASSEMBLY AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of

Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein. Tools required for

assembly and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10g

Page 2

SKU 97526 For technical questions, please call 1-800-444-3353.

SPECIFICATIONS

Fastener Type/Gauge Headless Pins, 23 Gauge

Magazine Capacity 100 Pins

Operating Pressure 60-100 PSI; 120 PSI Max.

Air Consumption 5.5 CFM @ 90 PSI

Air Inlet 1/4” - 18 NPT

Pin Length Settings 1/2”, 5/8”, 3/4”, 7/8”, 1’”

Accessories

1 1/4”-18 NPT Air Coupler

1 3mm Hex Wrench

1 4mm Hex Wrench

Tool Oil

Net weight 2 lb.

Save This Manual

You will need this manual for

the safety warnings and precautions,

assembly, operating, inspection,

maintenance and cleaning procedures,

parts list and assembly diagram. Keep

your invoice with this manual. Write the

invoice number on the inside of the front

cover. Write the product’s serial number in

the back of the manual near the assembly

diagram, or write month and year of

purchase if product has no serial number.

Keep this manual and invoice in a safe

and dry place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL

INSTRUCTIONS

Failure to follow all instructions

listed below may result in serious

injury.

SAVE THESE INSTRUCTIONS

1. Use compressed air only: Clean,

dry, regulated compressed air at

no more than 100 PSI. Never use

oxygen, carbon dioxide, combustible

gases, or any other bottled gas as a

power source for this tool.

2. Keep your work area clean and

well lit. Cluttered benches and dark

areas invite accidents.

3. Use protection: Always wear ANSI-

approved safety eye goggles, dust

mask/respirator, work gloves, hard

toed shoes, long sleeve shirt and

long pants when using or servicing

this Air Nailer.

4. Do not operate power tools in

explosive atmospheres, such as in

the presence of ammable liquids,

gases, or dust. Power tools create

sparks which may ignite the dust or

fumes.

5. Keep bystanders, children, and

visitors away while operating a

power tool. Distractions can cause

you to lose control. Protect others

in the work area from debris such as

chips and sparks. Provide barriers or

shields as needed.

6. Stay alert. Watch what you are

doing, and use common sense

when operating a power tool. Do

not use a power tool while tired

or under the inuence of drugs,

alcohol, or medication. A moment

of inattention while operating power

tools may result in serious personal

injury.

7. Dress properly. Do not wear loose

clothing or jewelry. Contain long

hair. Keep your hair, clothing, and

gloves away from moving parts.

Loose clothes, jewelry, or long hair

can be caught in moving parts.

Page 3

SKU 97526 For technical questions, please call 1-800-444-3353.

8. Avoid accidental starting. Carrying

power tools with your nger on the

Trigger (27) invites accidents.

9. Be sure all tools and/or

attachments used with this Air

Nailer are secure before plugging

in or turning on the air supply.

10. Be careful when connecting/

disconnecting air supply. It

is recommended to use quick

disconnects (not included) rather than

screw-on air connections.

11. Always disconnect the air supply

when this Air Nailer is not being

used.

12. Use ONLY the attachments that

come with this Air Nailer. Using

or altering other parts/attachments

could damage this tool or cause

personal injury.

13. Remove adjusting keys or

wrenches before turning the power

tool on. A wrench or a key that is

left attached to a moving part of the

power tool may result in personal

injury.

14. Do not overreach. Keep proper

footing and balance at all times.

Proper footing and balance enables

better control of the power tool in

unexpected situations.

15. Use clamps (not included) or

other practical ways to secure and

support the workpiece to a stable

platform. Holding the work by hand

or against your body is unstable and

may lead to loss of control.

16. Do not force the tool. Use the

correct tool for your application.

The correct tool will do the job better

and safer at the rate for which it is

designed. Do not force the tool and

do not use the tool for a purpose for

which it is not intended.

17. Do not use the Air Nailer if the

Trigger (27) does not turn it on

or off. Any tool that cannot be

controlled with the Power Switch is

dangerous and must be replaced.

18. Disconnect the air supply before

making any adjustments, changing

accessories, or storing the tool.

Such preventive safety measures

reduce the risk of starting the tool

accidentally. Always unplug the

tool from its air supply before

performing any inspection,

maintenance, or cleaning

procedures.

19. Store idle tools out of reach of

children and other untrained

persons. Tools are dangerous in

the hands of untrained users. Never

allow children to come in contact with

this product.

20. Maintain tools with care. Keep

cutting tools sharp and clean.

Properly maintained tools with a

sharp cutting edge are less likely to

bind and are easier to control. Do not

use a damaged tool. Tag damaged

tools “Do not use” until repaired.

21. Check for misalignment or binding

of moving parts, breakage of

parts, and any other condition that

may affect the tool’s operation. If

damaged, have the tool serviced

before using. Many accidents are

caused by poorly maintained tools.

Page 4

SKU 97526 For technical questions, please call 1-800-444-3353.

SERVICE

1. Tool service must be performed

only by qualied repair personnel.

Service or maintenance performed by

unqualied personnel could result in

a risk of injury.

2. When servicing, use only identical

replacement parts. Follow

instructions in the “Inspection,

Maintenance, And Cleaning”

section of manual. Use of

unauthorized parts or failure to follow

instructions may create a risk of

injury.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on

the Air Nailer. These carry important

information. If unreadable or missing,

contact Harbor Freight Tools for a

replacement.

2. Maintain a safe working

environment. Make sure there is

adequate surrounding workspace.

Do not use this product in a damp or

wet location.

3. When using this Air Nailer, always

maintain a rm grip on the tool

with both hands to resist starting

torque.

4. Avoid unintentional starting. Make

sure you are prepared to begin work

before turning on the air supply or

pressing the Trigger (27).

5. Never lay the tool down until it has

come to a complete stop. Moving

parts can grab the surface and pull

the tool out of your control.

6. Never leave this Air Nailer

unattended when it is plugged into

an air supply. Turn off the tool, and

unplug it from an air supply before

leaving.

7. WARNING: This product contains

or, when used, produces a

chemical known to the State of

California to cause cancer and

birth defects or other reproductive

harm. (California Health & Safety

Code § 25249.5, et seq.)

Page 5

SKU 97526 For technical questions, please call 1-800-444-3353.

UNPACKING AND SET UP

When unpacking, check to make sure

that the item is intact and undamaged. If

any parts are missing or broken, please

call Harbor Freight Tools at the number

shown on the cover of this manual as soon

as possible.

NOTE: READ ALL INSTRUCTIONS

BEFORE USING THIS PRODUCT

Note: For additional information regarding

the parts listed in the following pages,

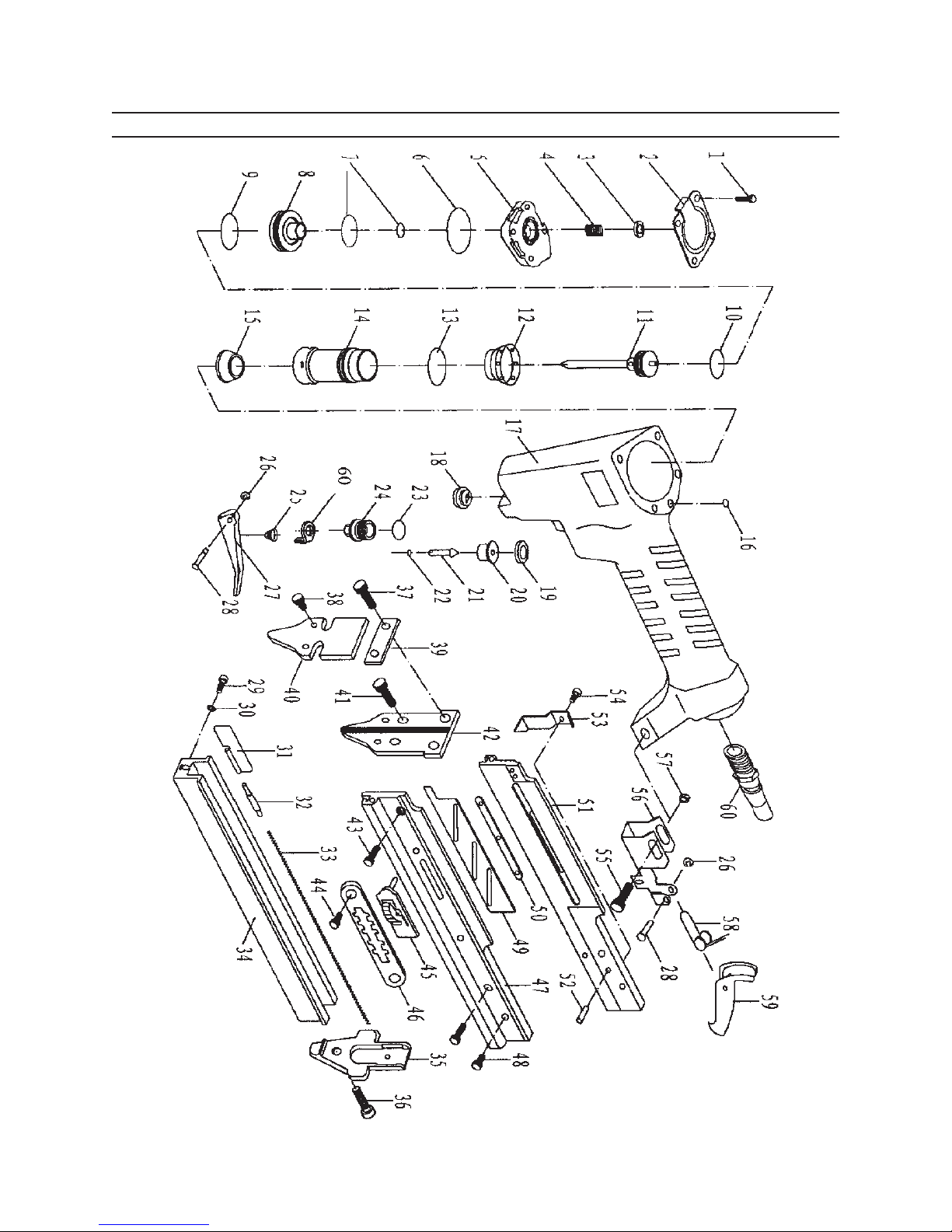

refer to the Assembly Diagram on

page 9 of this manual.

WARNING! Make sure the tool is

unplugged from its air supply before

making any adjustments to the tool.

Also make sure the Magazines (47

and 51) are empty before set up or

maintenance.

Quick

Coupler

Recommended Air Line Components

Regulator with

Pressure Gauge

Quick

Coupler Air Hose

on Reel

Valve FilterOiler

Coupler

Plug

Tool

Air

Compressor

Coupler

Plug

NOTE: For best service, you should

incorporate an oiler, regulator, and

in-line lter as shown above. Hoses,

couplers, oilers, regulators and lters

are all available at Harbor Freight

Tools.

If you are not using an automatic

oiler system, before operation add a

few drops of Pneumatic Tool Oil (not

included) to the airline connection.

Add a few drops after each hour of

continual use.

Set the air pressure range on the

regulator so that it is between 60 and

100 PSI. Do not exceed 100 PSI.

LOADING THE NAILER

1. Depress upper tip of the Click Lever

(59). The Side Cover (34) will pop

open.

2. Insert a row of fasteners (not

included) into the Upper Right

Magazine (47/51). Make sure the

pointed ends of the fasteners are

loaded with the points downward.

Also make sure fasteners are not

dirty or damaged.

3. Slide the Side Cover (34) back over

the Upper Magazine (47/51) and

press the upper tip of the Click Lever

(59) in ward to lock Side Cover (34)

in place.

Page 6

SKU 97526 For technical questions, please call 1-800-444-3353.

Rev 10f

OPERATION INSTRUCTIONS

1. Before use, add a few drops of

pneumatic tool oil (not included) into

the Inlet.

2. Attach the Air Coupler (61) to Air

Inlet using pipe thread seal tape (not

included). Then connect the 3/8” Air

Source Hose to the Nailer.

3. Set the working air pressure on the

regulator to between 60 and 100 PSI.

Do not exceed 100 Max. PSI.

4. Set the Adjusting Dial (46) to match

the corresponding size (1/2”, 5/8”,

3/4”, 7/8” or 1”) of the fasteners

loaded in the Nailer.

Note: When changing pin size, turn the

Adjusting Dial to the new depth size

BEFORE inserting the new pins.

5. Slide the Safety (60) to the side so

that the Trigger (27) will function.

When ready, press down on the

Trigger (27) to operate.

6. Test before rst use by driving nails

into a sample piece of wood. If the

fasteners do not achieve the desired

penetration, adjust the air pressure

to a higher setting until desired

penetration is achieved.

7. Always make sure the Bracket (40)

is ush against the workpiece during

use. Always release the Trigger (27)

once the fastener is driven into the

workpiece.

8. When ready to operate the Nailer,

press down on the Trigger (27). Make

sure the Nailer does not cycle during

use. Never use the Nailer if a cycle

occurs.

9. In case of a fastener jam, take your

nger off the Trigger (27). Rotate the

Trigger Lock/Safety (60) clockwise

or counter-clockwise. For instance,

a “6 o-clock” position will lock the

Trigger (27) and the tool will not re.

However, “3 o-clock” and “9 o-clock”

positions unlock the Trigger (27),

allowing the tool to re.

Note: There is no contact safety for the

Trigger (27). When the Trigger Lock/

Safety (60) is disengaged, the Nailer

will re.

10. Turn off the air supply and

disconnect the Nailer from the

regulator. Open the Nozzle (40) and

clear the jammed fasteners with a

pair of pliers (not included).

If a jam occurs inside the magazine,

depress the upper tip of the Click

Lever (59). The Side Cover (34)

will pop open. If needed, open the

Nozzle (40) to help clear the jam.

Once the jam is cleared, push the

Side Cover (34) back into place and

latch tight using the Click Lever (59).

Page 7

SKU 97526 For technical questions, please call 1-800-444-3353.

INSPECTION, MAINTENANCE, AND CLEANING

1. WARNING! Make sure air compressor is unplugged and that the Nailer is

disconnected from its Air Supply before performing any inspection, maintenance,

or cleaning procedures.

2. BEFORE EACH USE, inspect the general condition of this tool. Check for

loose screws, misalignment or binding of moving parts, cracked or broken parts,

damaged air hoses, and any other condition that may affect its safe operation. If

abnormal noise or vibration occurs, have the problem corrected before further use.

Do not use damaged equipment.

MAINTENANCE CHART

Maintenance Type Before

Use

After

Use Monthly

Inspect the Nailer for damage

(see #2, above) X X

Wipe off with clean, moist

cloth X X

TROUBLESHOOTING

Problem Possible Causes Probable Solutions

Air leak near top of

tool or in trigger area.

1. Loose screws.

2. Worn or damaged o-rings or seals.

1. Tighten screws.

2. See qualied service technician for

repairs.

Nailer does not

operate or operates

sluggishly

1. Inadequate air supply.

2. Inadequate lubrication.

3. Worn or damaged o-rings or seals.

1. Check screws.

2. See qualied service technician for

repairs.

Air leak near bottom

of Nailer

1. Loose screws.

2. Worn or damaged o-rings or

bumper.

1. Tighten screws.

2. See qualied service technician for

repairs.

Nailer jam frequently 1. Incorrect fasteners.

2. Damaged fasteners.

3. Magazine or Nozzle screw loose.

4. Magazine is dirty.

5. Driver is worn or damaged.

1. Check fasteners for correct size.

2. Replace with undamaged

fasteners.

3. Tighten screws.

4. Clean screws.

5. See qualied service technician for

repairs.

Other See qualied service technician for

repairs.

Page 8

SKU 97526 For technical questions, please call 1-800-444-3353.

Part Description Q’ty

1 Hex Bolt 1

2Deector 1

3 Seal 1

4 Spring 1

5 Head cap 1

6 O-RIng 1

7 O-RIng 1

8 Head Valve Piston 1

9 O-Ring 1

10 O-Ring 1

11 Piston-Driver Unit 1

12 Lining Ring 1

13 O-Ring 1

14 Cylinder 1

15 Bumper 1

16 O-Ring 1

17 Body 1

18 Nozzle 1

19 Seal 1

20 Trigger Valve Head 1

21 Trigger Plunger 1

22 O-RIng 1

23 O-Ring 1

24 Trigger Valve Guide 1

25 Spring 1

26 E-Ring 1

27 Trigger 1

28 Retainer Pin 1

29 Hex Bolt 1

30 Washer 1

31 Pusher Unit 1

Part Description Q’ty

32 Spring Holder 1

33 Spring 1

34 Side Cover 1

35 Rear Plate 1

36 Hex Bolt 1

37 Hex Bolt 1

38 Hex Bolt 1

39 Spacer 1

40 Bracket 1

41 Hex Bolt 1

42 Driver Guide 1

43 Hex Bolt 1

44 Hex Bolt 1

45 Adjust Dial 1

46 Limiting Plate 1

47 Upper Right Magazine 1

48 Hex Bolt 1

49 Guide Piece 1

50 Pusher Plate 1

51 Upper Left Magazine 1

52 Pin 1

53 Limiting Plate 1

54 Hex Bolt 1

55 Hex Bolt 1

56 Tail Hanger 1

57 Lock Nut 1

58 Spring 1

59 Click Lever 1

60 Trigger Lock/Safety 1

61 Air Coupler 1/4”-18 NPT 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS

LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL

ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR

SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR

SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE

MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS

AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL

RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL

PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR

HER INSTALLATION OF REPLACEMENT PARTS THERETO.

PARTS LIST

Page 9

SKU 97526 For technical questions, please call 1-800-444-3353.

ASSEMBLY DIAGRAM

Air Coupler (61) not shown.

Page 10

SKU 97526 For technical questions, please call 1-800-444-3353.

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not

available individually as replacement parts.

90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality

and durability standards, and warrants to the original purchaser that this product is free

from defects in materials and workmanship for the period of 90 days from the date of

purchase. This warranty does not apply to damage due directly or indirectly, to misuse,

abuse, negligence or accidents, repairs or alterations outside our facilities, criminal

activity, improper installation, normal wear and tear, or to lack of maintenance. We

shall in no event be liable for death, injuries to persons or property, or for incidental,

contingent, special or consequential damages arising from the use of our product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY

IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with

transportation charges prepaid. Proof of purchase date and an explanation of the

complaint must accompany the merchandise. If our inspection veries the defect, we

will either repair or replace the product at our election or we may elect to refund the

purchase price if we cannot readily and quickly provide you with a replacement. We will

return repaired products at our expense, but if we determine there is no defect, or that

the defect resulted from causes not within the scope of our warranty, then you must

bear the cost of returning the product.

This warranty gives you specic legal rights and you may also have other rights which

vary from state to state.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-3353

Otros manuales para Contractor 97526

Tabla de contenidos

Otros manuales de Pistola de clavos de Central Pneumatic

Central Pneumatic

Central Pneumatic 68021 Manual de instalación

Central Pneumatic

Central Pneumatic 98751 Manual de instalación

Central Pneumatic

Central Pneumatic 68021 Manual de instalación

Central Pneumatic

Central Pneumatic 68068 Instrucciones de montaje

Central Pneumatic

Central Pneumatic Professional 97512 Manual de usuario

Central Pneumatic

Central Pneumatic 94446 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 97524 Manual de usuario

Central Pneumatic

Central Pneumatic 68020 Manual de usuario

Central Pneumatic

Central Pneumatic 94446 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 97526 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 93760 Manual de usuario

Central Pneumatic

Central Pneumatic 92359 Manual de instalación

Central Pneumatic

Central Pneumatic 68019 Manual de instalación

Central Pneumatic

Central Pneumatic 69575 Instrucciones de montaje

Central Pneumatic

Central Pneumatic 68022 Manual de instalación

Central Pneumatic

Central Pneumatic 68024 Manual de instalación

Central Pneumatic

Central Pneumatic 40115 Manual de usuario

Central Pneumatic

Central Pneumatic 66872 Manual de usuario

Central Pneumatic

Central Pneumatic 96364 Manual de lista de piezas

Central Pneumatic

Central Pneumatic 93909 Manual de instalación

Central Pneumatic

Central Pneumatic Contractor 97520 Manual de usuario

Central Pneumatic

Central Pneumatic 67100 Manual de instalación

Central Pneumatic

Central Pneumatic 41164 Guía de referencia rápida

Central Pneumatic

Central Pneumatic 98733 Manual de instalación

Manuales populares de Pistola de clavos de otras marcas

Performance Tool

Performance Tool M643 Manual de usuario

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco Fusion Technology F-35XP Manual de usuario

Grizzly

Grizzly G1847 Manual de usuario

Ryobi

Ryobi R18N18G Manual de usuario

Black & Decker

Black & Decker 492848-00 Manual de usuario

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manual de usuario

Metabo HPT

Metabo HPT NR 3690DC Manual de instrucciones

Surtek

Surtek CN650 Dimensiones y guía de instalación

Makita

Makita GF600 Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco AirFree 25 Manual de usuario

Freeman

Freeman P50LSLW Manual de usuario

Aicon PRO

Aicon PRO DAC4507 Manual de usuario

DAJ

DAJ XR150A Manual de usuario

Makita

Makita AN923 Manual de usuario

Grizzly

Grizzly T20644 Manual de usuario
