2 IN 1 FLOORING CLEAT/

STAPLE NAILER

ASSEMBLY AND OPERATING

INSTRUCTIONS

Distributed exclusively by Harbor Freight Tools®.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight

Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual

product may differ slightly from the product described herein. Tools required for assembly and service may not

be included.

For technical questions or replacement parts, please call 1-800-444-3353.

94446

SKU 94446 For technical questions, please call 1-800-444-3353. Page 2

Speciﬁcations

Air Inlet 1/4”- 18 NPT

Working Air Pressure 60-125 PSI

Maximum Air Pressure 125 PSI *

Magazine Capacity 80

Air Consumption 4 CFM @ 125 PSI

Cleat Size Range 1-1/2” to 2” L-head Nails

Staple Size Range 1” to 2” Flooring Staples

*The air pressure setting must not exceed job site regulations/restrictions. The air pressure setting must

not exceed 90 PSI when being used with work pieces that have a thickness of less than 1-3/4”.

Save This Manual

You will need the manual for the safety warnings and precautions, assembly instructions,

operating and maintenance procedures, parts list and diagram. Keep your invoice with this

manual. Write the invoice number on the inside of the front cover. Keep the manual and

invoice in a safe and dry place for future reference.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be followed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this tool!

Keep work area clean1. . Cluttered areas invite injuries.

Observe work area conditions2. . Do not use machines or power tools in damp or wet

locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically

powered tools in the presence of ﬂammable gases or liquids.

Keep children away3. . Children must never be allowed in the work area. Do not let them

handle machines, tools, extension cords, or air hoses.

Store idle equipment4. . When not in use, tools must be stored in a dry location to inhibit

rust. Always lock up tools and keep out of reach of children.

Use the right tool for the job5. . Do not attempt to force a small tool or attachment to do

the work of a larger industrial tool. There are certain applications for which this tool was

designed. It will do the job better and more safely at the rate for which it was intended. Do

not modify this tool and do not use this tool for a purpose for which it was not intended.

Dress properly6. . Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically nonconductive clothes and nonskid footwear are

recommended when working. Wear restrictive hair covering to contain long hair.

Use eye and ear protection7. . Always wear ANSI-approved impact safety goggles.Wear

a full face shield if you are producing metal ﬁlings or wood chips.Wear an ANSI-approved

dust mask or respirator when working around metal, wood, and chemical dusts and

mists.

REV 06k

SKU 94446 For technical questions, please call 1-800-444-3353. Page 3

Do not overreach8. . Keep proper footing and balance at all times. Do not reach over or

across running machines or air hoses.

Maintain tools with care9. . Keep tools clean for better and safer performance. Follow

instructions for lubricating and changing accessories. Inspect tool cords and air hoses

periodically and, if damaged, have them repaired by a qualiﬁed technician. The handles

must be kept clean, dry, and free from oil and grease at all times.

Disconnect air supply10. . Disconnect air hose when not in use.

Remove adjusting keys and wrenches11. . Check that keys and adjusting wrenches are

removed from the tool or machine work surface before plugging it in.

Avoid unintentional starting12. . Do not carry any tool while holding the trigger, whether

it is plugged in or not.

Stay alert13. . Watch what you are doing, use common sense. Do not operate any tool

when you are tired.

Check for damaged parts14. . Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting ﬁxtures; and any other condition that may affect proper operation. Any part

that is damaged should be properly repaired or replaced by a qualiﬁed technician. Do

not use the tool if any switch does not turn On and Off properly.

Guard against electric shock15. . Prevent body contact with grounded surfaces such as

pipes, radiators, ranges, and refrigerator enclosures.

Replacement parts and accessories16. . When servicing, use only identical replacement

parts. Use of any other parts will void the warranty. Only use accessories intended for

use with this tool. Approved accessories are available from Harbor Freight Tools.

Do not operate tool if under the inﬂuence of alcohol or drugs17. . Read warning labels

if taking prescription medicine to determine if your judgement or reﬂexes are impaired

while taking drugs. If there is any doubt, do not operate the tool.

Use proper size and type extension cord18. . If an extension cord is required for the air

compressor, it must be of the proper size and type to supply the correct current to the

tool without heating up. Otherwise, the extension cord could melt and catch ﬁre, or cause

electrical damage to the tool. Check your compressor’s manual for the appropriate size

cord.

Note: Performance of the compressor (if powered by line voltage) may vary depending on

variations in local line voltage. Extension cord usage may also affect tool performance.

Maintenance19. . For your safety, maintenance should be performed regularly by a qualiﬁed

technician.

Compressed air only20. . Never use combustible gases as a power source.

Warning: The warnings, cautions, and instructions discussed in this instruction

manual cannot cover all possible conditions and situations that may occur. It must be

understood by the operator that common sense and caution are factors which cannot

be built into this product, but must be supplied by the operator.

SKU 94446 For technical questions, please call 1-800-444-3353. Page 4

Unpacking

When unpacking, check to make sure the item is intact and undamaged. If any parts are

missing or broken, please call Harbor Freight Tools at the number on the cover of this

manual as soon as possible.

Setup

Floor

Stapler

1/4”-18 NPT

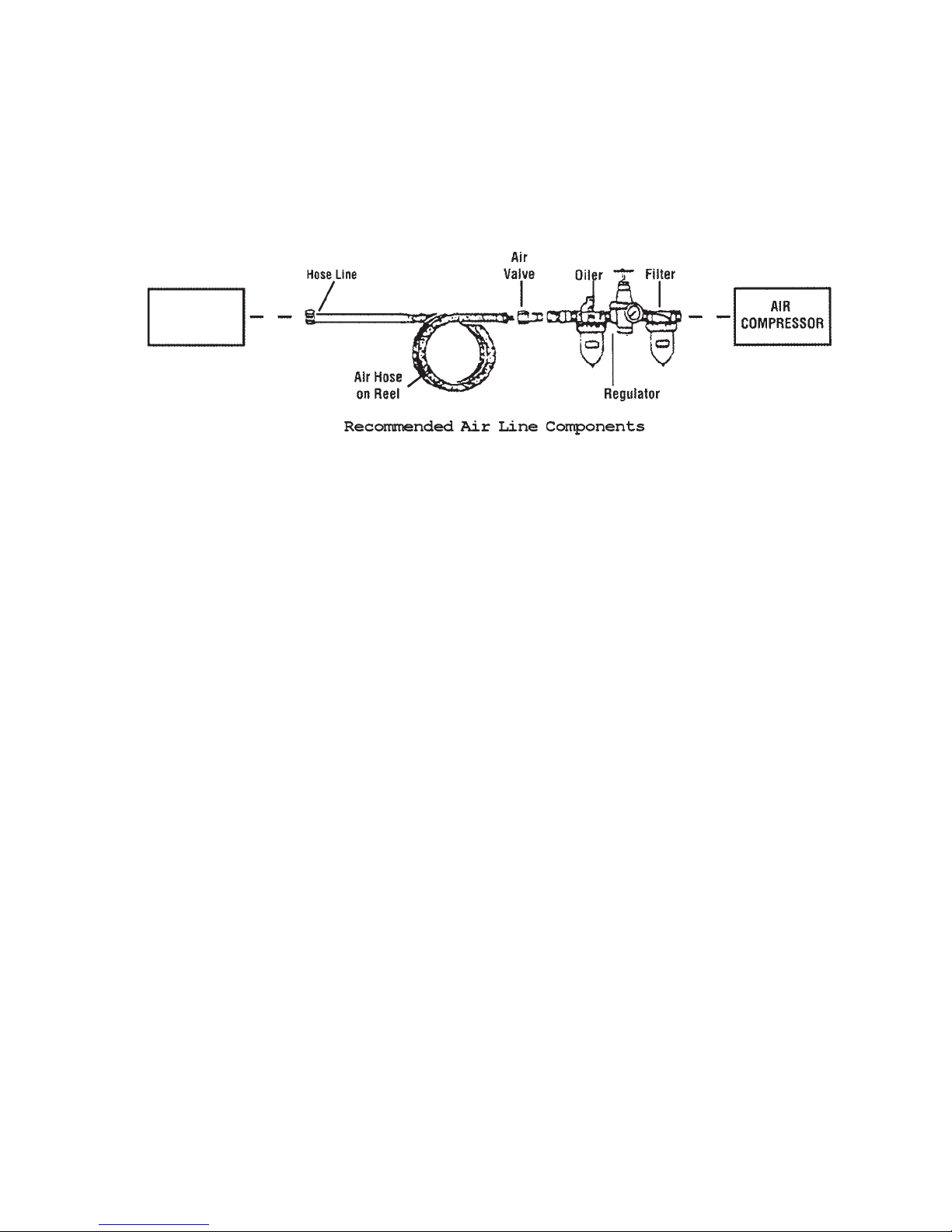

For best service you should incorporate an oiler, regulator, and inline ﬁlter, as shown in the

diagram above. Hoses, couplers, oilers, regulators, and ﬁlters are all available at Harbor

Freight Tools.

1. Wrap the Air Inlet (37) with pipe thread seal tape (not included) before threading it into

the Arm (30). Connect the 3/8” ID Air Source Hose to the Air Inlet (37).

Note: If you are not using an automatic oiler system, before each use add a few drops of

Pneumatic Tool Oil to the airline connection. Add a few drops more after each hour of

continual use.

2. Set the air pressure on your compressor to between 60-125 PSI. Do not exceed the

maximum air pressure of 125 PSI.

3. Check the air connection for leaks. Disconnect from the air source.

REV 06k

SKU 94446 For technical questions, please call 1-800-444-3353. Page 5

Loading the Tool

Warning! Disconnect the Stapler from the air compressor whenever loading or servicing. After

disconnecting the Stapler from the air compressor, there could still be enough air pressure to

ﬁre the Stapler. After the air compressor hose is disconnected, always ﬁre the Stapler into a

piece of scrap to make sure all of the air is expended.

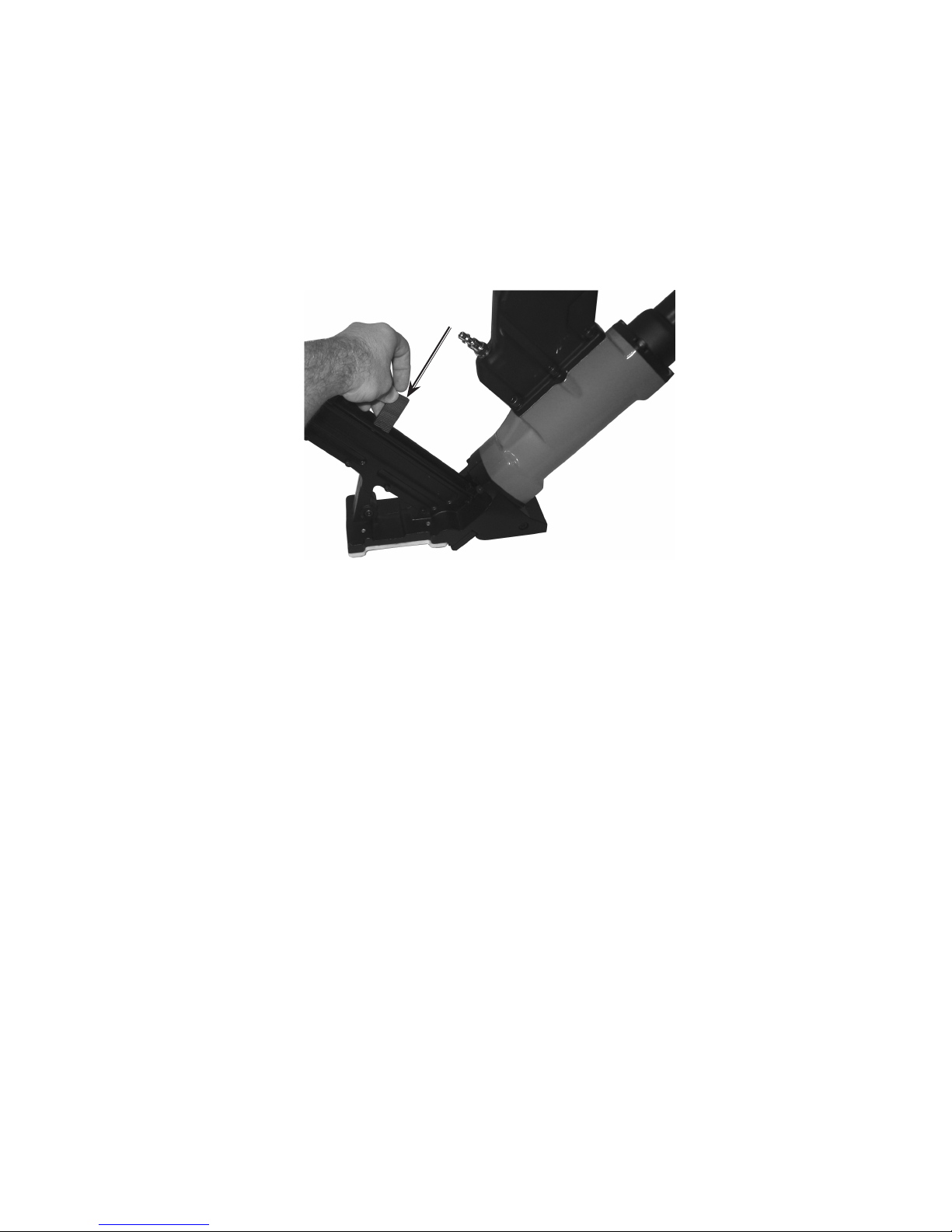

1. Grip the Sleeve (78) and pull out the Magazine Cover (72).

Caution: The Magazine Cover (72) may snap closed with force, sometimes without

warning.

Cleats

FIGURE 1

Install fasteners:

Cleats – Place the Cleats into the larger slot in the magazine so that the top of the cleat

rests on the rail in the center of the magazine. See Figure 1, above.

Staples – Place the staples over the center rail of the magazine.

Note: Only use the fastener types and sizes listed on the Speciﬁcations Chart on page 2.

3. While holding the Sleeve (78) securely, slide the Magazine Cover (72) closed.

SKU 94446 For technical questions, please call 1-800-444-3353. Page 6

Operation

1. Connect the Floor Stapler to the air hose and turn on the air compressor.

Note: Before using on a ﬂoor, test the unit on a scrap piece of wood. Adjust the driving depth

by providing more or less air pressure. Never exceed 125 PSI.

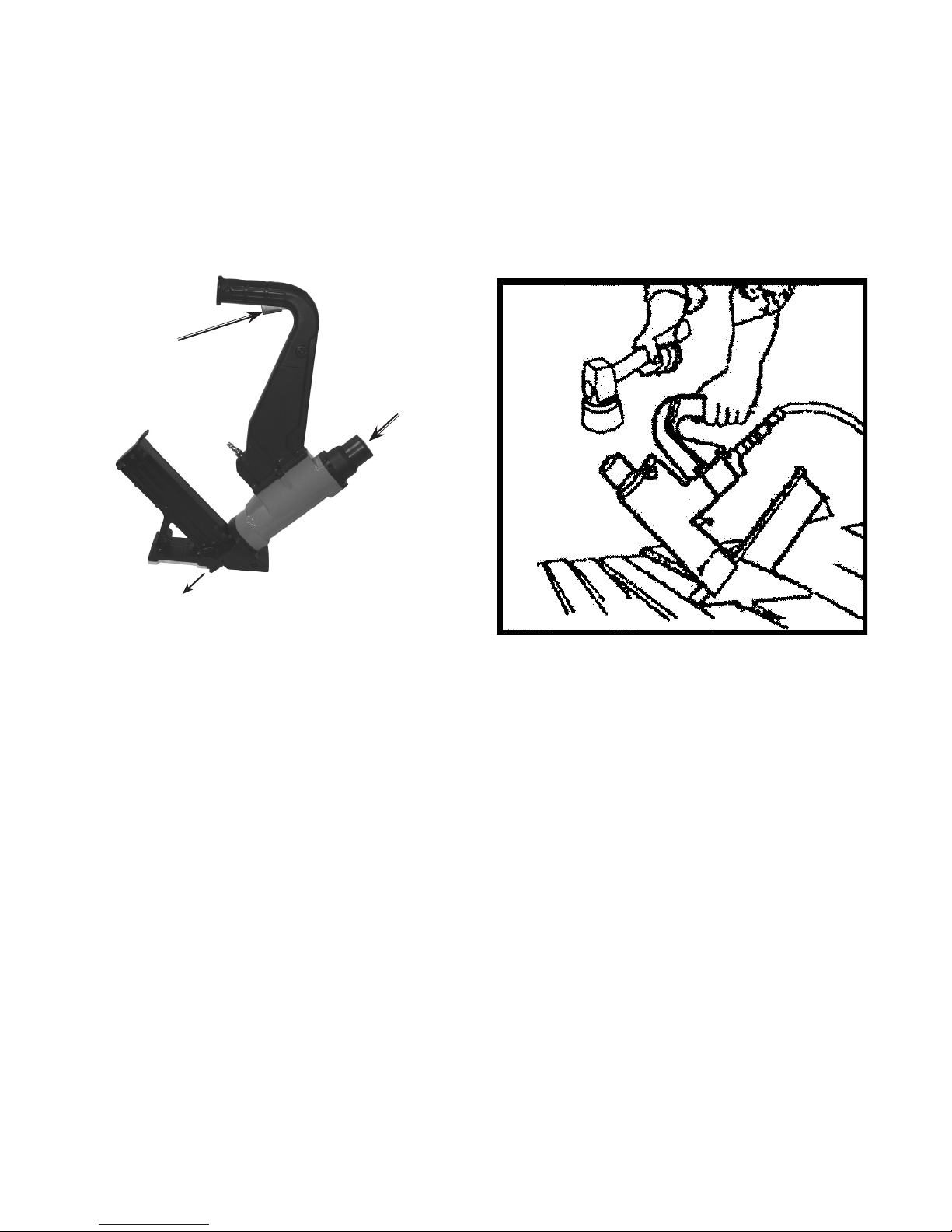

Warning! Keep your feet clear of the Stapler. Refer to Figure 2.

2. Hold the Handle (44) securely with one hand and grip the Hammer with the other

hand.

FIGURE 3

Fasteners exit the Stapler from the bottom in the

direction indicated above.

Hammer

Face (1)

(Striking this with the

Trigger (33) held causes

the stapler to ﬁre.)

Trigger (33)

(This helps prevent

unintentional ﬁring.)

FIGURE 2

Make sure the Base Plate (52) is over the Fastener target position. Press down hard

so that the Base Plate (52) is ﬁrmly contacting the ﬂoor. Then squeeze the Trigger (33)

and strike the Hammer Face (1) with the Hammer to drive out a Fastener. Lift the tool

off of the ﬂoor. See Figure 3.

4. Repeat the process until you are ﬁnished. Then, disconnect the Floor Stapler from the

air source.

Warning! After disconnecting the Stapler from the air compressor, there could still be enough

air pressure to ﬁre the Stapler. After the air compressor hose is disconnected, always

ﬁre the Stapler into a piece of scrap to make sure all of the air is expended.

REV 06k

SKU 94446 For technical questions, please call 1-800-444-3353. Page 7

Anytime any maintenance or repairs are done (including clearing jams), FIRST:

1. Disconnect the Stapler from the air hose.

2. Empty Magazine (59, 69) completely.

3. Attempt to ﬁre the Stapler into a piece of scrap wood to ensure that it is disconnected

and is incapable of ﬁring any Fasteners.

4. Always leave Magazine Cover (72) closed during maintenance. The Magazine

Cover is spring-loaded and may cause parts or a Fastener to ﬂy out of the Stapler

if it suddenly snaps closed.

Clearing Jams

1. Disconnect tool from air hose, empty Magazine (59, 69) of Fasteners, release any built-

up air pressure, and keep the magazine closed, as explained above.

2. While doing this step and the next, hold the Stapler pointed away from you and any other

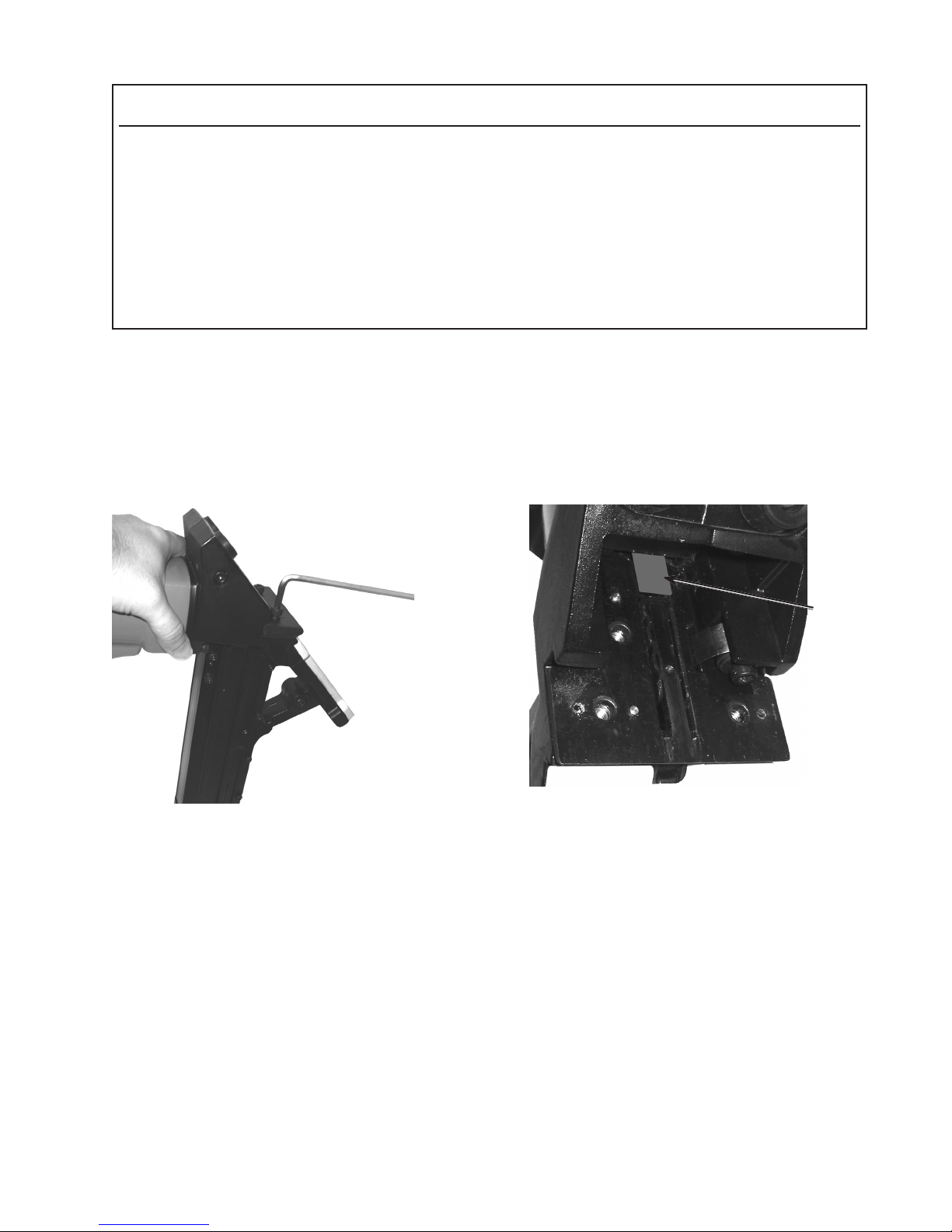

people or fragile objects. Remove all three Screws (49) and Washers (4) on the Driver

Cover (48). See Figure 4.

FIGURE 4

FIGURE 5

Driver

Blade

Carefully lift the Driver Cover (48) off and remove the jammed Fastener. Pliers may be

necessary to remove a stuck Fastener.

4. Inspect the Driver on the end of the Piston Assembly (26) for bends or breakage. If it is

damaged, do not use the tool until it is repaired by a qualiﬁed technician. See Figure

5. Lightly oil the driver and replace the Driver Cover (48). Make sure that the Driver Cover

(48) ﬁts in place ﬂush and that the Driver does not get pinched by it. Replace and se-

curely tighten all of the Screws (49) and Washers (4).

6. Reload the Stapler and reconnect it to the air hose.

7. Press the tip of the Stapler against an appropriate piece of scrap wood.

8. Test ﬁre the Stapler several times, checking for proper operation.

9. Disconnect the Stapler, remove the Fasteners, and store the Stapler in a location out of

children’s reach.

SKU 94446 For technical questions, please call 1-800-444-3353. Page 8

Troubleshooting

Note: Have the following problems repaired by a qualiﬁed service technician.

PROBLEM CAUSE SOLUTION

Air leaking in nose Loose Nose Screws1.

Bumper is cracked/worn2.

Tighten and recheck1.

Replace Bumper2.

Lack of Power, slow to cycle. Tool is too dry1.

Air Pressure is too low2.

Exhaust blocked3.

Lubricate1.

Check air supply equipment2.

Clean exhaust channel3.

Intermittent feeding or no fastener

coming out

Damaged pusher spring1.

Wrong size Fastener2.

Dirty magazine or wearplate3.

Replace Spring1.

Use correct size2.

Clean magazine and nose3.

Jammed Fastener Driver channel worn1.

Driver is broken/worn2.

Bent Fasteners3.

Replace wear plate1.

Replace driver2.

Use straight Fasteners3.

Maintenance

1. Periodically lubricate all moving parts and pivots with a light oil.

2. Wipe down the Floor Stapler with a damp cloth. Do not use harsh detergents or

solvents.

3. Check that the Base Plate (52) and the Hammer Face (1) is clear of any dirt or

debris.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL

AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO

MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS

OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT

ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED

TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING

OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO,

OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Anytime any maintenance or repairs are done, FIRST:

1. Disconnect the Stapler from the air hose.

2. Empty Magazine (59, 69) completely.

3. Attempt to ﬁre the Stapler into a piece of scrap wood to ensure that it is disconnected

and is incapable of ﬁring any Fasteners.

4. Always leave Magazine Cover (72) closed during maintenance. The Magazine

Cover is spring-loaded and may cause parts or a Fastener to ﬂy out of the Stapler

if it suddenly snaps closed.

SKU 94446 For technical questions, please call 1-800-444-3353. Page 9

Parts List

Part Description

1 Hammer Face

2 O-ring 30.3 x 2.65

3 Screw

4 Spring Washer

5 Cylinder Cap

6 Screw

7 Spring Washer

8 Actuator A

9 Snap Ring

10 Half Block

11 Bushing

12 O-ring 33.3 x 2.65

13 Actuator B

14 O-ring 57.4 x 3.5

15 Retaining Ring

16 Poppet Cap

17 O-ring 42 x 3.5

18 Plunger

19 O-ring 21 x 2

20 O-ring 14.3 x 2.5

21 Body

22 Cylinder

23 O-ring 17.5 x 2.6

24 O-ring 38.5 x 4.5

25 Poppet

26 Piston Assembly

27 O-ring 58.7 x 3.5

Part Description

28 Bumper

29 Seal

30 Arm

31 Handle A

32 Locknut

33 Trigger

34 Sleeve

35 Pin

36 Pin

37 Air Inlet

38 Spring

39 Trigger Valve Stem

40 O-ring 6.4 x 1.8

41 O-ring 11 x 1.4

42 Trigger Valve Guide

43 Screw

44 Handle B

45 Screw

46 Guide Body

47 Pin

48 Driver Cover

49 Screw

50 Pin

51 Plate

52 Base Plate

53 Screw

54 Pad

Part Description

55 Washer

56 Coil Spring

57 Spring Bracket

58 Screw

59 Magazine A

60 Washer

61 Screw

62 Screw

63 Plate

64 Limit Nut

65 Support Plate A

66 Screw

67 Spring Washer

68 Screw

69 Magazine B

70 Bushing

71 Pin

72 Magazine Cover

73 Feeder

74 Nut

75 Rail A

76 Orienting Plate

77 Rail B

78 Sleeve

79 Screw

80 Support Plate B

81 Magazine Handle

SKU 94446 For technical questions, please call 1-800-444-3353. Page 10

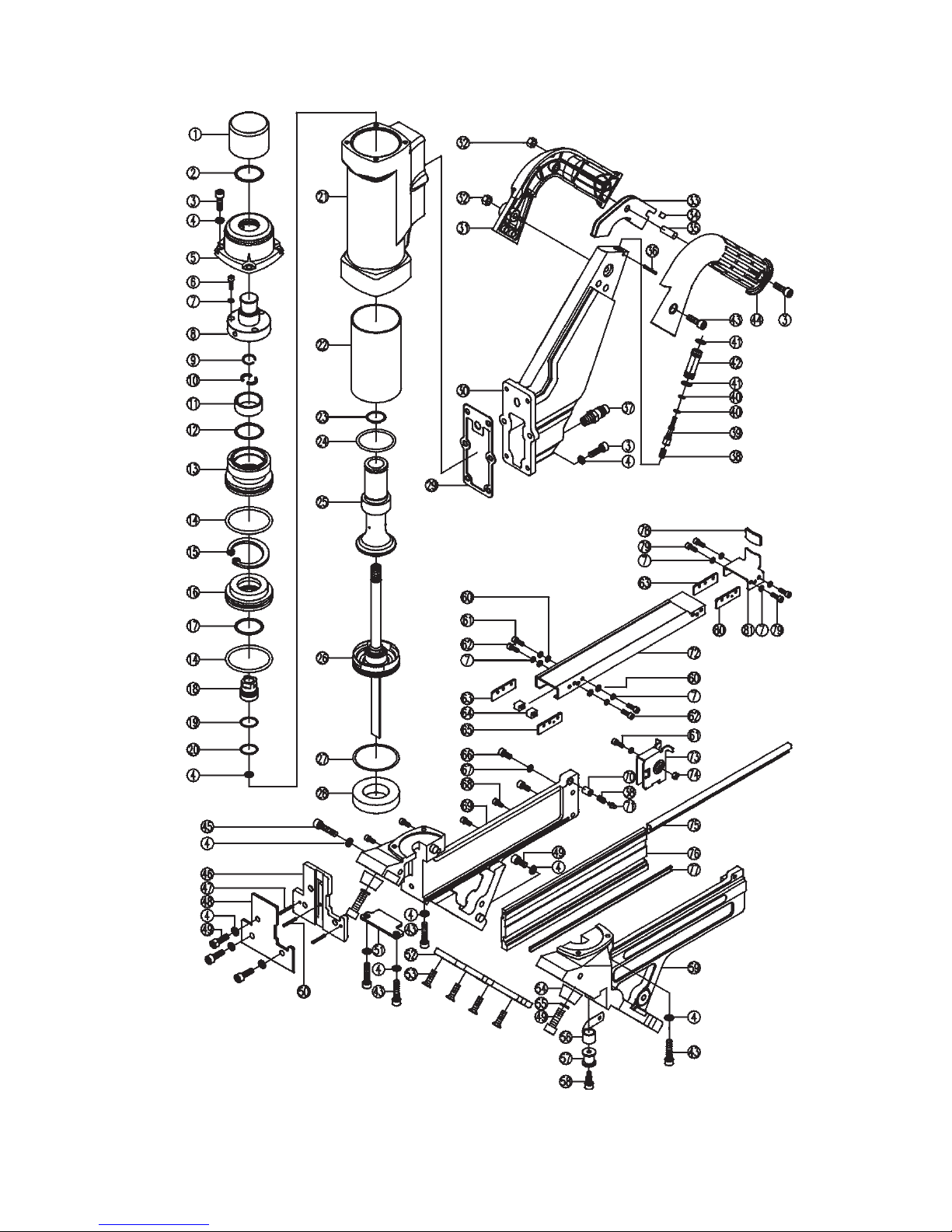

Assembly Diagram

Otros manuales para 94446

Tabla de contenidos

Otros manuales de Pistola de clavos de Central Pneumatic

Central Pneumatic

Central Pneumatic 69927 Manual de usuario

Central Pneumatic

Central Pneumatic 68024 Manual de instalación

Central Pneumatic

Central Pneumatic 93909 Manual de instalación

Central Pneumatic

Central Pneumatic 92359 Manual de usuario

Central Pneumatic

Central Pneumatic 94446 Manual de usuario

Central Pneumatic

Central Pneumatic 66872 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 97520 Manual de usuario

Central Pneumatic

Central Pneumatic 68021 Manual de instalación

Central Pneumatic

Central Pneumatic 39092 Manual de usuario

Central Pneumatic

Central Pneumatic 90193 Manual de usuario

Central Pneumatic

Central Pneumatic 68021 Manual de instalación

Central Pneumatic

Central Pneumatic Contractor 97526 Manual de usuario

Central Pneumatic

Central Pneumatic 93496 Manual de usuario

Central Pneumatic

Central Pneumatic 92917 Manual de usuario

Central Pneumatic

Central Pneumatic 93680 Manual de usuario

Central Pneumatic

Central Pneumatic 97586 Manual de usuario

Central Pneumatic

Central Pneumatic 93496 Manual de usuario

Central Pneumatic

Central Pneumatic Professional 97512 Manual de usuario

Central Pneumatic

Central Pneumatic 97525 Manual de usuario

Central Pneumatic

Central Pneumatic 46309 Manual de usuario

Central Pneumatic

Central Pneumatic Contractor 97524 Manual de usuario

Central Pneumatic

Central Pneumatic 98751 Guía del usuario

Central Pneumatic

Central Pneumatic 98751 Manual de instalación

Central Pneumatic

Central Pneumatic 4041 Manual de usuario

Manuales populares de Pistola de clavos de otras marcas

Performance Tool

Performance Tool M643 Manual de usuario

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco Fusion Technology F-35XP Manual de usuario

Grizzly

Grizzly G1847 Manual de usuario

Ryobi

Ryobi R18N18G Manual de usuario

Black & Decker

Black & Decker 492848-00 Manual de usuario

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Manual de usuario

Metabo HPT

Metabo HPT NR 3690DC Manual de instrucciones

Surtek

Surtek CN650 Dimensiones y guía de instalación

Makita

Makita GF600 Manual de usuario

Parkside

Parkside PET 25 B1 Manual de usuario

Senco

Senco AirFree 25 Manual de usuario

Freeman

Freeman P50LSLW Manual de usuario

Aicon PRO

Aicon PRO DAC4507 Manual de usuario

DAJ

DAJ XR150A Manual de usuario

Makita

Makita AN923 Manual de usuario

Grizzly

Grizzly T20644 Manual de usuario
