Cateye CC-AT200W Manual de usuario
CATEYE ADVENTURE
CC-AT200W
Quick Start
Click the button and follow the in-
structions.
START
Thank you for purchasing our cyclocomputer CATEYE ADVENTURE.
This Quick Start Manual explains how to set up the computer and how to install the
unit on your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use
as a cyclocomputer.
Before use, read the instruction manual that comes with the product
thoroughly to the end to understand the functions of this unit, and to use it
safely in a correct manner.
Next
This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trust in the text” or “Play” button to close the message.
Click the screen again to play the movie.
Next
CATEYE ADVENTURE
Quick Start Manual Contents
Click the item you wish to view.
Return to a Cover
Setting up the computer
How to install the speed sensor (Movie)
Sea level altitude correction
How to install the bracket (Movie)

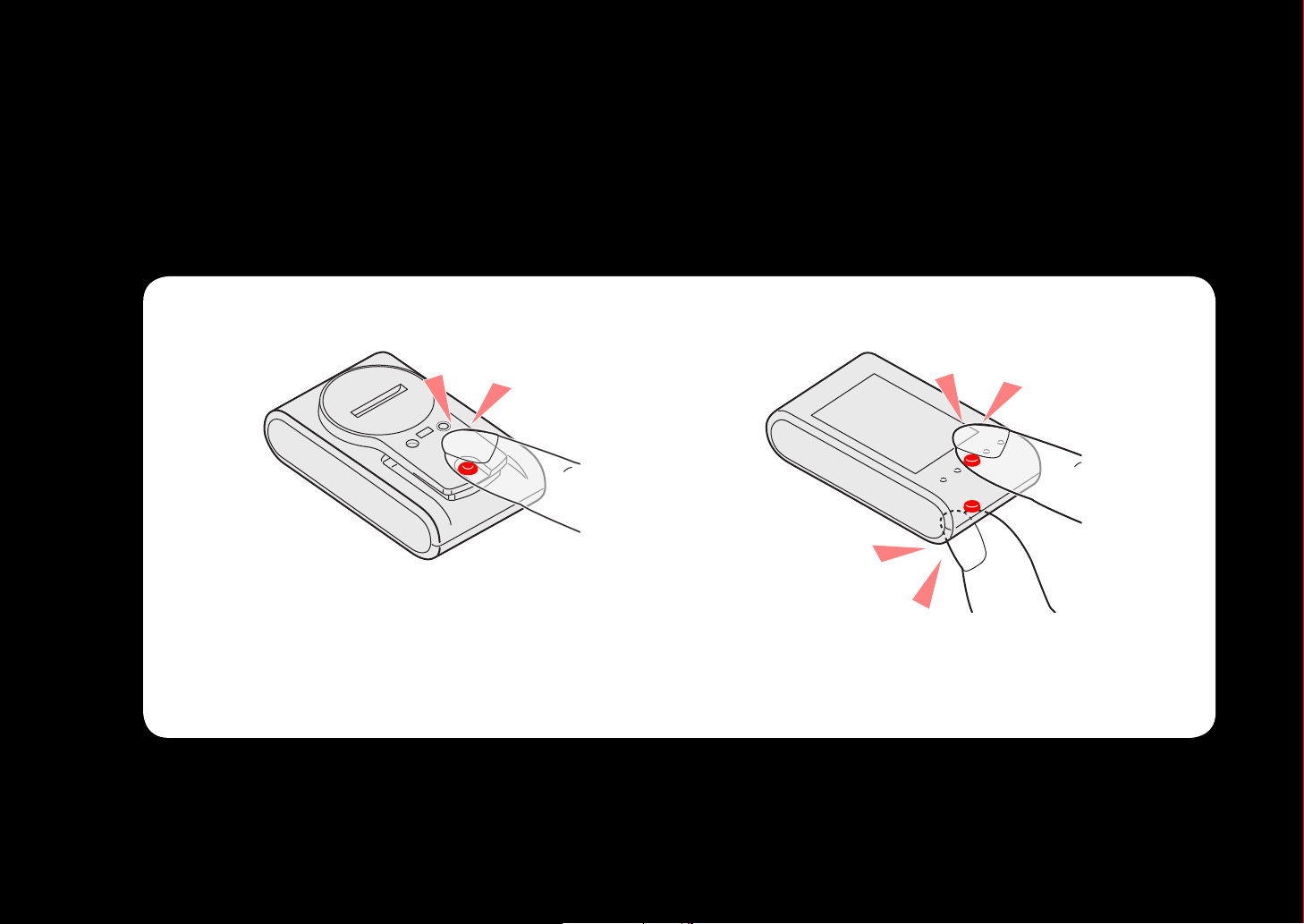

Operation of buttons
Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
Press the MODE button on the back of
the computer.
Press the SSE button on the face of the
computer and the MODE button on the
back simultaneously.
Click
Click
Click
MODE SSE +MODE
Next
CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the hour
Setting the minute
Formatting operation Formatting operation
Press the MENU button on the back of the computer
and the AC button simultaneously.
Press and hold the* MENU button until you release
the AC button.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
ACAC
MENU
MENU
Full lighting Setting the speed unit
Return to Contents
Next
Return
CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the hour
Setting the minute
Setting the speed unit
Formatting operation
Setting the speed unit
Setting the speed unit
When the MODE button is pressed, either “km/h” or “mph”
is selected for the speed unit display. Select the display of
your choice.
After selecting, press the SSE button and the MODE but-
ton simultaneously to proceed to the next step “Setting
the temperature unit”.
MODE
SSE
MODE
MODE
km/h ↔mph To the next step
(Press SSE / MODE simultaneously)
Return to Contents
Next
Return
CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the temperature unit
When the MODE button is pressed, either “°C” (Celsius)
or “°F” (Fahrenheit) is selected for the temperature unit
display. Select the display of your choice.
After selecting, press the MENU button to proceed to the
next step “Entering the tire circumference”.
Setting the tempera-
ture unit
MENU
To the next step
MODE
˚C ↔˚F
Return to Contents
Next
Return
CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Entering the tire circumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
Pressing the MODE button increases the value flashing,
and pressing the SSE button and the MODE button simul-
taneously moves to the next digit.
After entering, press the MENU button to proceed to the
next step “Searching the sensor ID”.
Entering the tire
circumference
MODE
SSE
MODE
MODE
Increase the value Move digit
(Press SSE / MODE
simultaneously)
MENU
To the next step
Return to Contents
Next
Return
Tire circum-
ference refer-
ence table
CATEYE ADVENTURE
Quick Start Manual Setting up the computer
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Searching the sensor ID
(1/2)
Entering the tire circumference
Setting the temperature unit
Setting the speed unit
Formatting operation Searching the sensor ID
Keep the computer 30 cm (12”) away from the sensor,
and press and hold the RESET button of the sensor.
A sensor ID signal is sent when you release the* RESET
button after pressing and holding it.
OK
!
RESETRESET
...
RESETRESET
NO!
Under going search
of the sensor ID
Keep about 30 cm (12”) away. Distance is too close or too far.
Return to Contents
Next
Return
Searching the
sensor ID
(Movie)
