CAS PR-II Manual de usuario

PR-IIPR-II

MANUAL

www.globalcas.com

Manual_PR2_V2

Table of contents

1. Notes on commissioning and installation............................................................ 3

Column installation (Typ PR-II P) ..........................................................................................................4

2. Overview................................................................................................................... 4

3. Display and Key Board............................................................................................. 5

PR-II B – Front display.............................................................................................................................5

PR-II B – Rear display ..............................................................................................................................5

PR-II P – Displaycover .............................................................................................................................5

4. Basic Operations...................................................................................................... 6

Turn on ......................................................................................................................................................6

Zero tracking (manual)...........................................................................................................................6

Simple weighing .....................................................................................................................................6

Tare function............................................................................................................................................7

PLU Saving & Calling-up ........................................................................................................................8

User’s Set-up Mode ................................................................................................................................8

Sales transaction ....................................................................................................................................9

5. Battery maintance ................................................................................................. 10

Low battery warning ............................................................................................................................10

6. Error massage ........................................................................................................ 10

7. Specifications ......................................................................................................... 10

With this scale you have acquired a modern, highly technical measuring instrument. CAS scales are

designed and manufactured under strict quality control to guarantee you the best performance, reliability

and durability. This manual will help you to get the maximum benet from your CAS scale. Please read it

carefully before use and keep it handy during subsequent use to nd quick solutions to problems.

ENGLISH

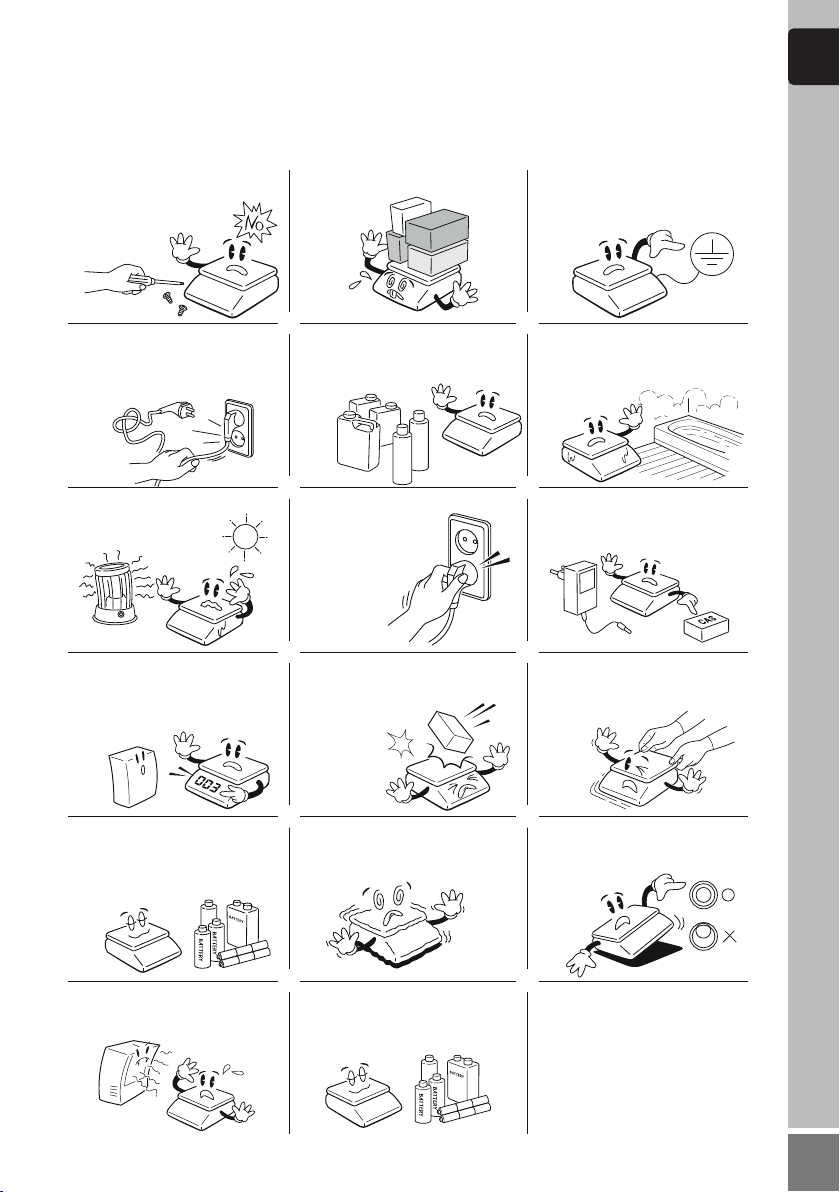

1. NOTES ON COMMISSIONING AND INSTALLATION

Make sure you use the correct mains voltage. To obtain optimum performance,

switch on the scale 30 minutes before starting work to warm it up.

Do not disassemble the scale! When

any damage or defect occurs, contact

your CAS authorized dealer

immediately for proper repair.

Do not pull by its cord when

unplugging. Damaged cord could cause

electric shock or re.

Avoid placing the scale near heater or

in direct sunlight.

Insert plug rmly to wall outlet to prevent

electric shock.

Use proper adapter. Incorrect adapter

could damage the scale.

For consistent and accurate reading

maintain periodical check by your CAS

authorized dealer.

Avoid sudden shock to the scale. Grab on the bottom of the scale when

moving.

Always remove the batteries from the

scale if it is not going to be used for a

long time. This prevents damage due to

possible leakage.

Keep the scale away from other

electromagnetic enerating devices.

This may interfere with accurate

reading.

Place the scale on rm and temperature

consistent environment.

By adjusting 4 corners of the scale, set

the scale even using the built in scale

levelling indicator.

To prevent from re occurring, do not place

or use the scale near ammable or

corrosive gas.

To reduce electric shock or incorrect

reading, do not spill water on the scale

or place it in human condition.

Do not overload beyond the maximum

weight limit.

Scale must be grounded to minimize

electricity static. This will minimize

defect or electric shock.

Only use batteries approved by CAS! There

is a risk of explosion with incorrect

batteries or rechargeable batteries.

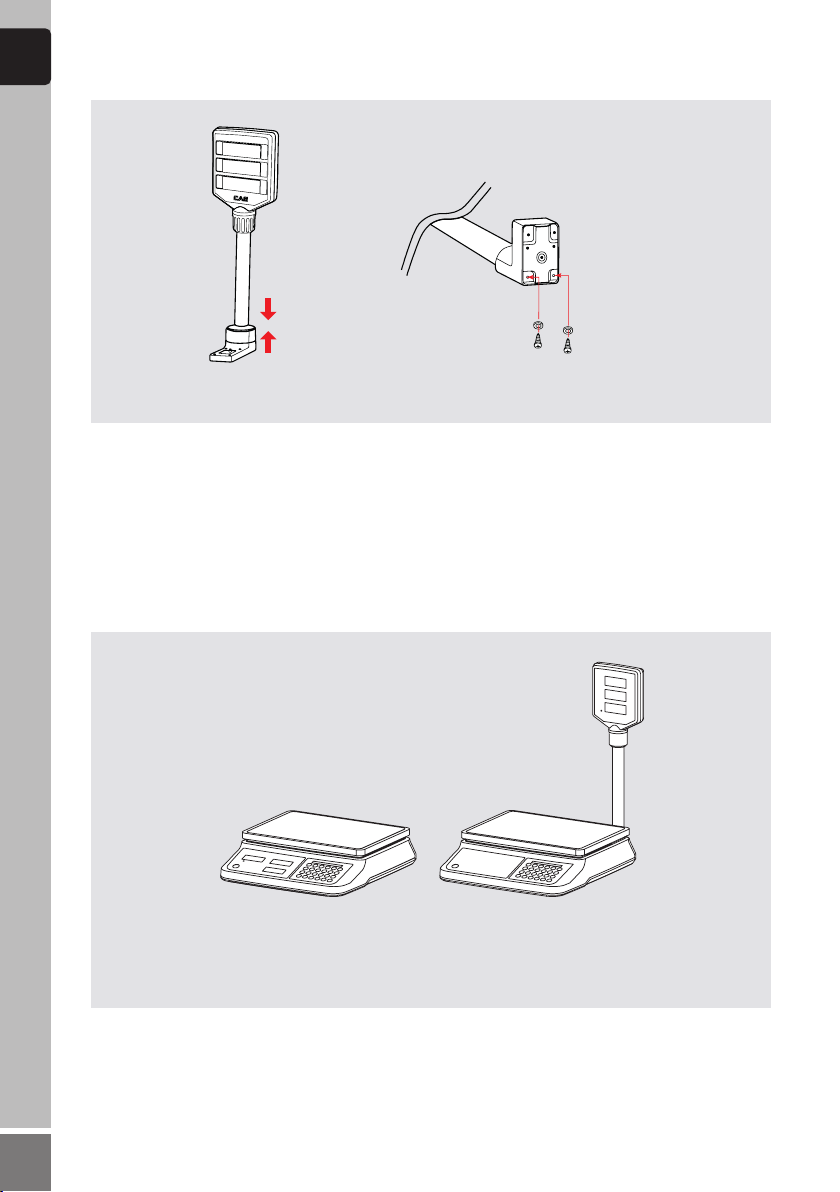

■Column installation (Typ PR-II P)

1. Slide the rod into the holder. 2. Screw the two fastening

screws into the bracket. Make sure,

that the cable is not pinched.

2. OVERVIEW

Illustration 1 Illustration 2

SCREWS

STANDHOLDER

STAND

KEYBOARD

PLATFORM

DISPLAY

STANDARD VERSION

(TYP PR-II B)

VERSION WITH HIGH DISPLAY

(TYP PR-II P)

DISPLAY

STAND

3. DISPLAY AND KEY BOARD

■PR-II B – Front display

■PR-II B – Rear display

■PR-II P – Displaycover

■KEY FUNCTIONS

KEYS FUNCTIONS

–Used to enter all the numeric data

–PLU key

Function key (Back-light, Power Save)

Used to enter PLU setting

Used to clear all the numeric price display

Used to correct the zero point

To set or clear tare value

Double zero key

+Used to change back-light setting.(OFF, ON, AUTO)

+Power Save Mode

4. BASIC OPERATIONS

■Turn on

• Turn on the [ON/OFF] switch (below the scale) Then, the display will show all the

segments and count up „9“ to „0“.

• Once the weight is stable, the „ “ is displayed.

■Zero tracking (manual)

During operation, deviations in the zero position may occur due to various inuences such as temperature

uctuations or similar. By pressing the key, the current load is adopted as the zero position.

■Simple weighing

1. Place the goods on the platform. The weight is

displayed at the top left.

2. Remove the goods from the platform.

■Tare function

Tare means the weight of container. You may use tare function when you weigh an item with container

and measure only the weight of item.

• One time tare

1. Place a container on the platter. EX)200g of tare.

2. Press

Tare key to set zero point.

• Successive tare

3. Place another container on the platter. EX: 100g of

tare.

4. Press TARE key to set zero point.

5. After weighing item remove all of the container from

the platter. EX: 300g Tara

6. Press TARE key again to set zero.

➜ NOTICE: To remove TARE funtion press “TARE” Key again after removing the container from the palt-

ter. Automatic tare clearing function may not be applied to all of PR series..

■PLU Saving & Calling-up

This section explains how to save unit price in PLU.

• Saving unit price on PLU

1. Use the number keys to enter the desired price per kilo.

EX) 199€

2. Now press and hold the PLU button you want to save

for 5 seconds. A beep conrms that the key has been

saved.EX) M1

• PLU call up

3. Press the respective PLU key to , until to call up

the item. EX) M1

The deposited price is displayed at the top right.

4. Press

key to clear PLU mode and return to the

normal weighing mode.

■User’s Set-up Mode

KEY Display FUCTION

bL-oFF Do not use a back-light

bL- on Use back-light always

ps-0 Do not use power save mode

ps-1 Use power save mode

rS-Co Continually mode

rS-PC Command mode

rS-St Stable mode

* RS232-Optional interface

■Sales transaction

• Input the unit price through the numeric key

1. Place an item on the platter and press appropriate

numeric keys to input unit price.

EX) 199 for unit price.

2. Remove the item from the platter.

3. Press

key to clear and return to the normal

weighing mode.

➜ Note: You can also place the item on the weighing platform rst and enter the unit price

on the scale in the second step.

• Input the unit price through calling up PLU

4. Press

key can call up the PLU.

EX) M1

5. Place an item on the platter.

6. Remove an item from the platter.

7. Press

key to clear PLU mode and return to the

normal weighing mode.

➜ Note: You can also place the item on the weighing platform rst and enter the desired PLU key on the

scale in the second step.

5. BATTERY MAINTANCE

■Low battery warning

• This product is a combination product dry battery and rechargeable battery.

• When the battery is low the display shows the „bAt-Lo„ sign. You need to replace the battery with a

new one. If you use a rechargeable battery, please charge it immediately, otherwise you can shorten

the life of the battery. If you still use the scale without replacing the battery the scale may provide

incorrect result on measurement.

• If the display shows „Err b“, the battery must be changed or charged, otherwise incorrect weighing

results may be delivered.

6. ERROR MASSAGE

Display Description Solution

Z-Err

The „Z-Err“ occurs when a current zero point has

shifted from the last span calibration.

Please call your CAS dealer.

Err 3

The Err 3 („oL“) is an overload error. Please remove the weight.

Err b

The Err b („bAt-Lo“) is battery low Please change new battery. If rechargeable

battery, please charge immediately.

7. SPECIFICATIONS

PR-II

Capacity

3 / 6 kg 6 / 15 kg 15 / 30 kg

Interval (e)

1 / 2 g 2 / 5 g 5 / 10 g

External Resolution

1/3000 1/3000 1/3000

MAX Tare

-2,999 kg -5,998 kg -14,995 kg

Display

6/6/6 (Weight / Unit price/ Total price); 54 × 19 mm

Symbols

ZERO, TARE, kg/lb,100g/1oz, ADD, SUM, Low Battery, AC POWER

Keys

ZERO, TARE, M1~M7 KEY, FUCTION, ADD, SUM

Platter size

330 (W) x 235 (D)[mm] / 129.92 (W) x 92.52 (D)[inch]

Dimensions

B TYPE : 341 (W) x 383 (D) x 102 (H)[mm] / 134 (W) x 151 (D) x 40 (H)[inch]

P TYPE : 341 (W) x 435 (D) x 474 (H)[mm] / 134 (W) x 171 (D) x 186 (H)[inch]

Weight

Typ B: 2,8 kg / Typ P: 3,2 kg
