Carrier TSTATCCPS701 Manual de usuario

Installation Instructions

TSTATCCPS701

TSTATBBPS701

P374-1100 Digital Thermostat

NOTE R_ _e e_ _ f,_ be_o_eS_" 1,19_e m_

HEAT

COOL

HEAT

PUMP

MULTI-STAGE• SEVENDAYPROGRAMMABLE

Form ¢M-TSTAT-I Z C_n_ets: Pnn_ m US A C,atmlo_t_ 13T_TA38

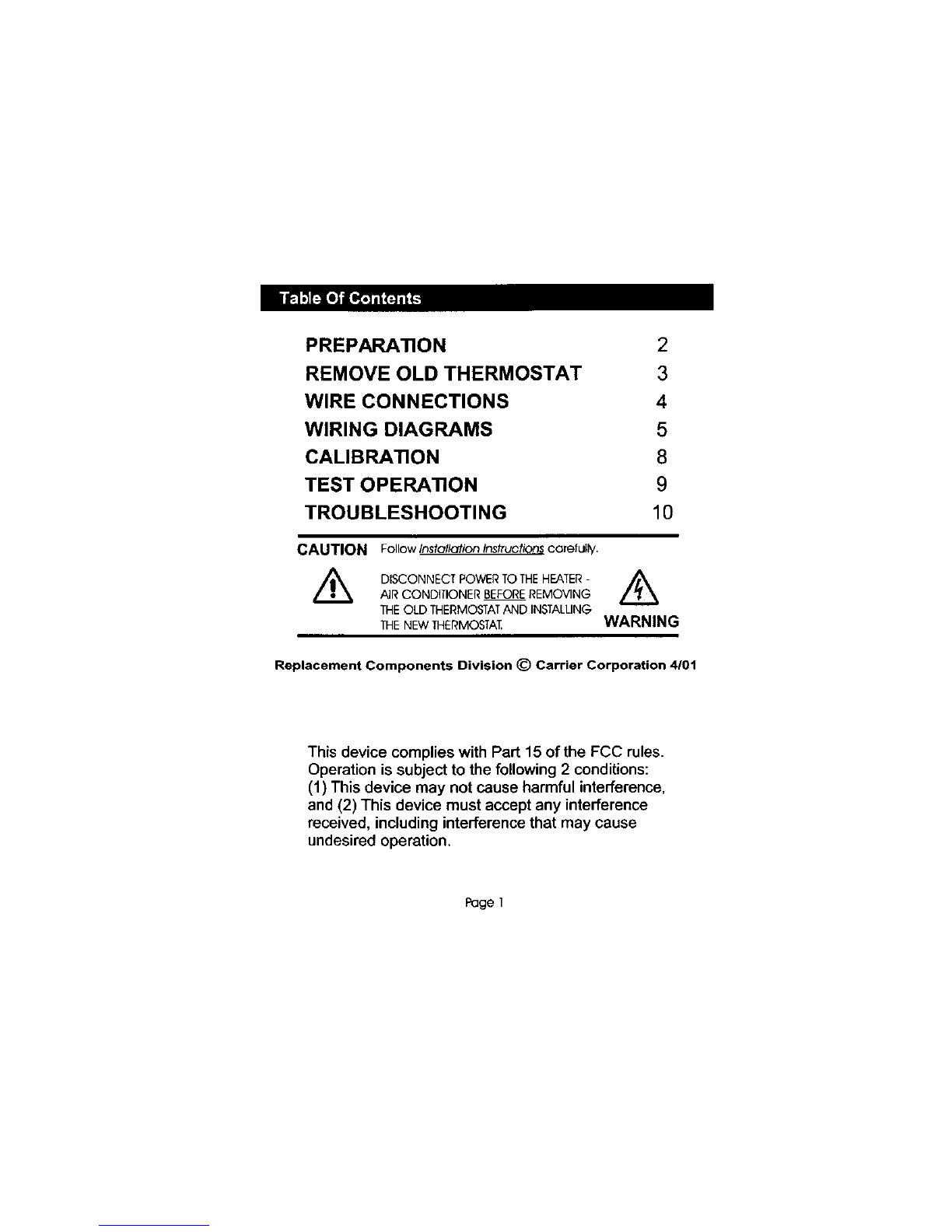

PREPARATION 2

REMOVE OLD THERMOSTAT 3

WIRE CONNECTIONS 4

WIRING DIAGRAMS 5

CALIBRATION 8

TEST OPERATION 9

TROUBLESHOOTING 10

CAUTION Follow Installation Instructionscarefutty.

DISCONNECT POWER TO THE HEATER -Ak

AIR CONDITIONER BEFOREREMOVING n_, _,

THEOLD THERMOSTATAND INSTALLING

THENEW THERMOSTAT, WARNING

Replacement Components Division _) Carrier Corporation 4/01

This device complies with Part 15 of the FCC rules.

Operation is subject to the following 2 conditions:

(1) This device may not cause harmful interference,

and (2) This device must accept any interference

received, including interference that may cause

undesired operation.

Page I

Proper installation of the thermostat will be

accomplished by following these step

by step instructions. If you are unsure

about any of these steps, call a qualified

technician for assistance.

Assemble tools

Flat Blade Wire cutter

Screwdriver & Stripper

Make sure your Heater/Air Conditioner

is working properly before beginning

installation of the thermostat.

Carefully unpack the thermostat.

Save the screws, bracket, and

instructions.

Turn off the power to the Heating/Air

Conditioning system at the main fuse

panel. Most residential systems have

a separate breaker for disconnecting

power to the furnace.

Page 2

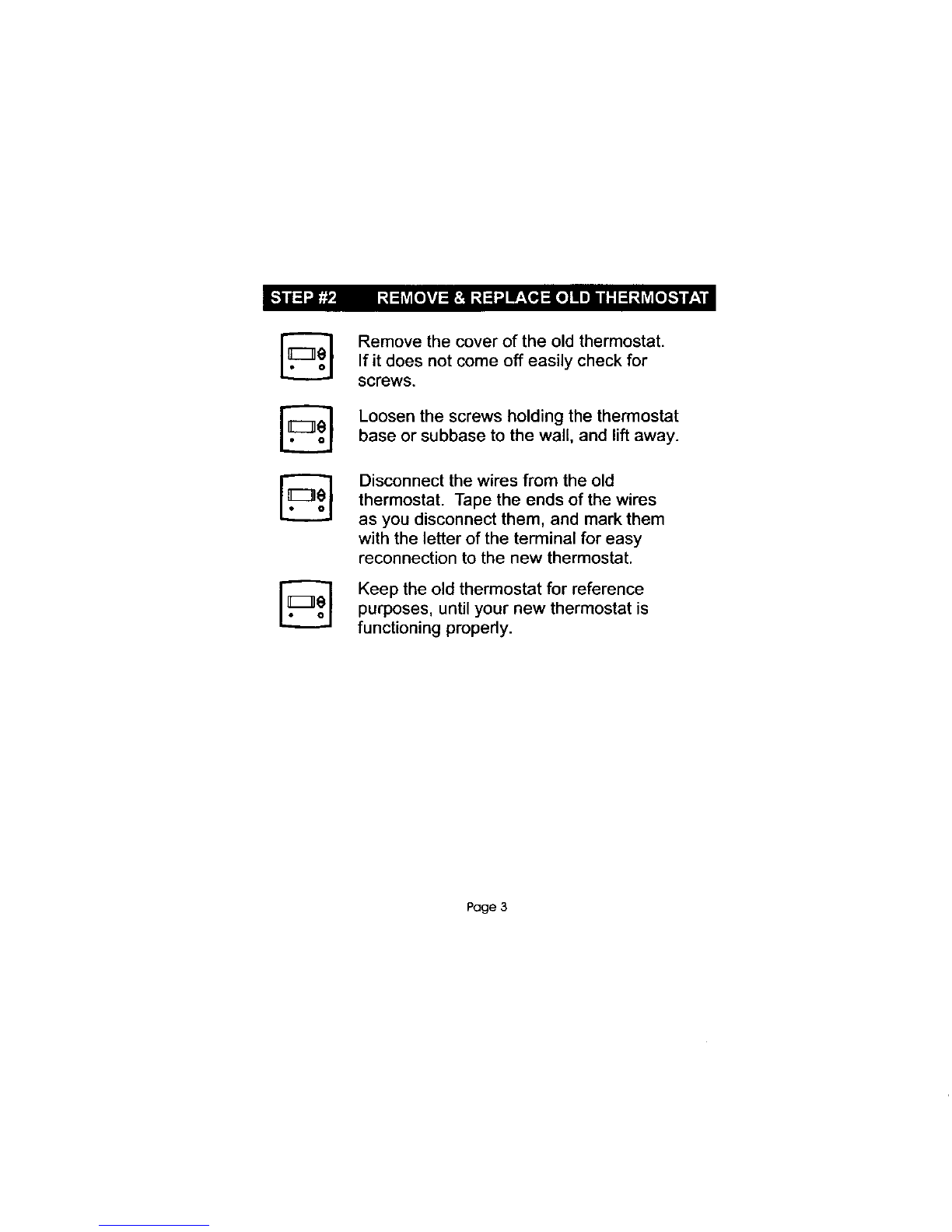

Remove the cover of the old thermostat.

If it does not come off easily check for

screws.

Loosen the screws holding the thermostat

base or subbase to the wall, and lift away.

Disconnect the wires from the old

thermostat. Tape the ends of the wires

as you disconnect them, and mark them

with the letter of the terminal for easy

reconnection to the new thermostat.

Keep the old thermostat for reference

purposes, until your new thermostat is

functioning properly.

Page 3

If the terminal designations on your old

thermostat do not match those on the

new thermostat, refer to the chart below,

or the wiring diagrams that follow.

Wire from the

old thermostat

terminal marked

GorF

Y1,YorC

W1,Wor H

Rh, R, M, Mr, A

O/B

RS+5

RS G

CK1

CK2

Function

Fan

Cooling

Heating

Power

Common

Rev. Valve

2nd Stage Cool

2nd Stage Heat

RemoteSensor*5vdc

RemoteSensor Signal

RemoteSensorGrmmd

DryContactSwitch1

DryContact Switch 2

*C may not be used on all systems.

Install on the

new thermostat

connector marked

Wl ,O,B

Wl ,O,B**

RS+5

GND

** O/B is used if your system isa Heat Pump.

Page 4

5 Wire, 1 Stage Cooling, 1 Stage Gas Heat Resldentlal Gas or ElectricHeat*,

0 ElectricCool,splitsystems& package

W2 Y2 RWl Y1 G C units

l l,..=-tat

24 vac common >_

fan relay >_

comoressor relav >_

>-<

Ist staae heat circuit >'<

24 vac return >'_

>-<

*ffusingelectricheat thisoptionmustbe

selected on duringadvancedsetup. >'<

_(2

4 Wire, 1 Stage Cooling, 1 Stage Gas Heat

O ResidentialGas orEleCtricHeat *,

W2 Y2 R Wl Y1 G C Ek_ctrlcCoo_,spl_systems&package

fan relay

comDressor relay

1st staae heat circuit

24 vac return

*If usingelectricheat this optionmustbe

se/ectedon duringadvancedsetup.

>.<

i>-<

>-<

>..<

>-<

>._

PGge5

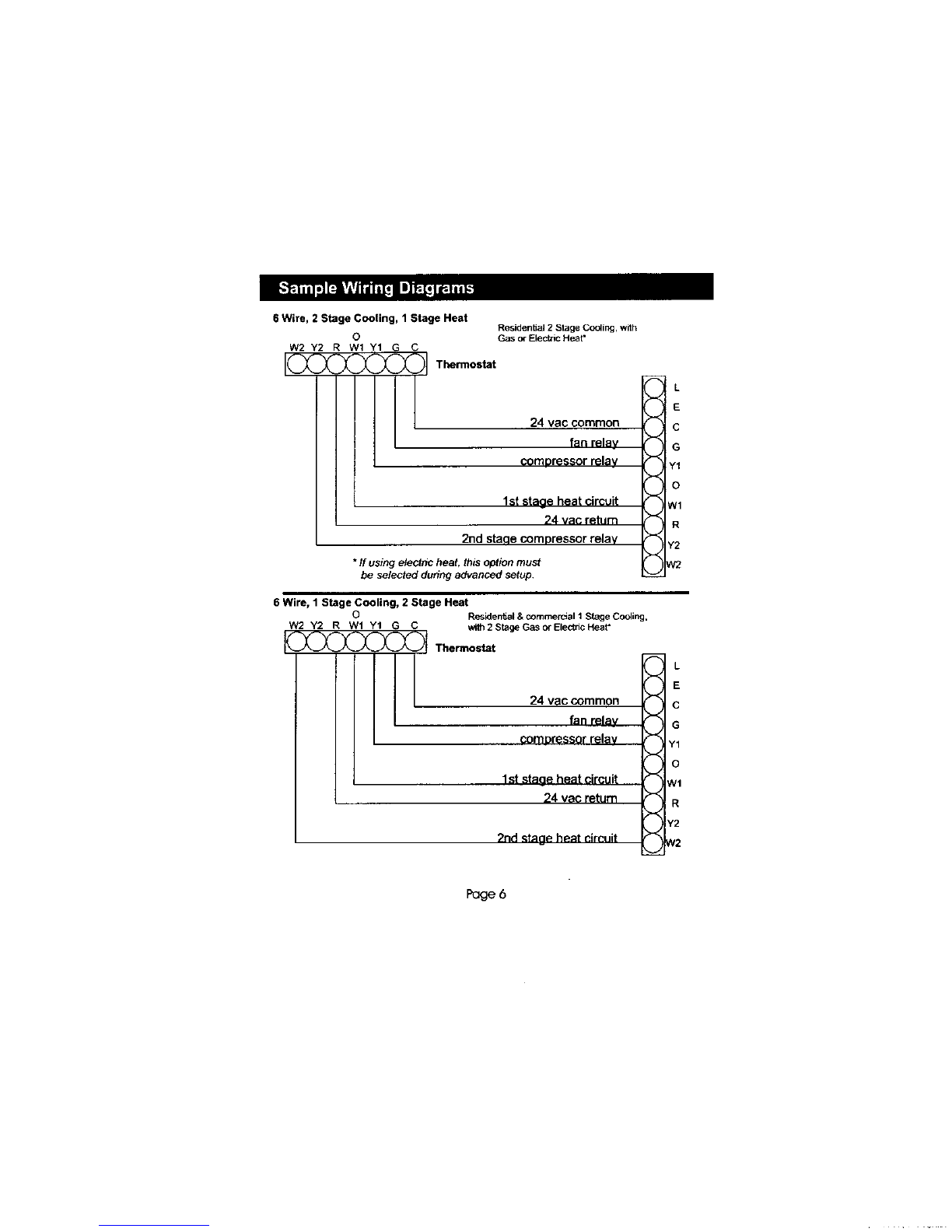

6 Wire, 2 Stage Cooling, 1 Stage Heat

W2 Y2 R W1 YI GCT,...o.tat

ResidenSal 2Stage Cooling, with

Gas c_ Electric Heat"

>'K E

24 vac common _ C

fan relay _G

COmlDressor relav _-_ Y1

_ J

Ist staoe heat circuit W1

24 vac return R

2nd staqe compressor relay >_' Y2

*If using electric heat, this option must W2

be selected during advanced setup.

6 Wire, 1 Stage Cooling, 2 Stage Heat

O R_id enlJa[& commerdal1 Stage Co_ing,

W2 Y2 R Wl Y1 G Cwith2StageGasorElecUicHeat"

_I Thermostat

24 vac common

fan relay

comDressor relav

1st stage heat circuit

24 vac return

2nd RtRn_ h_Rt _irnHit >-<

vV2

Poge 6

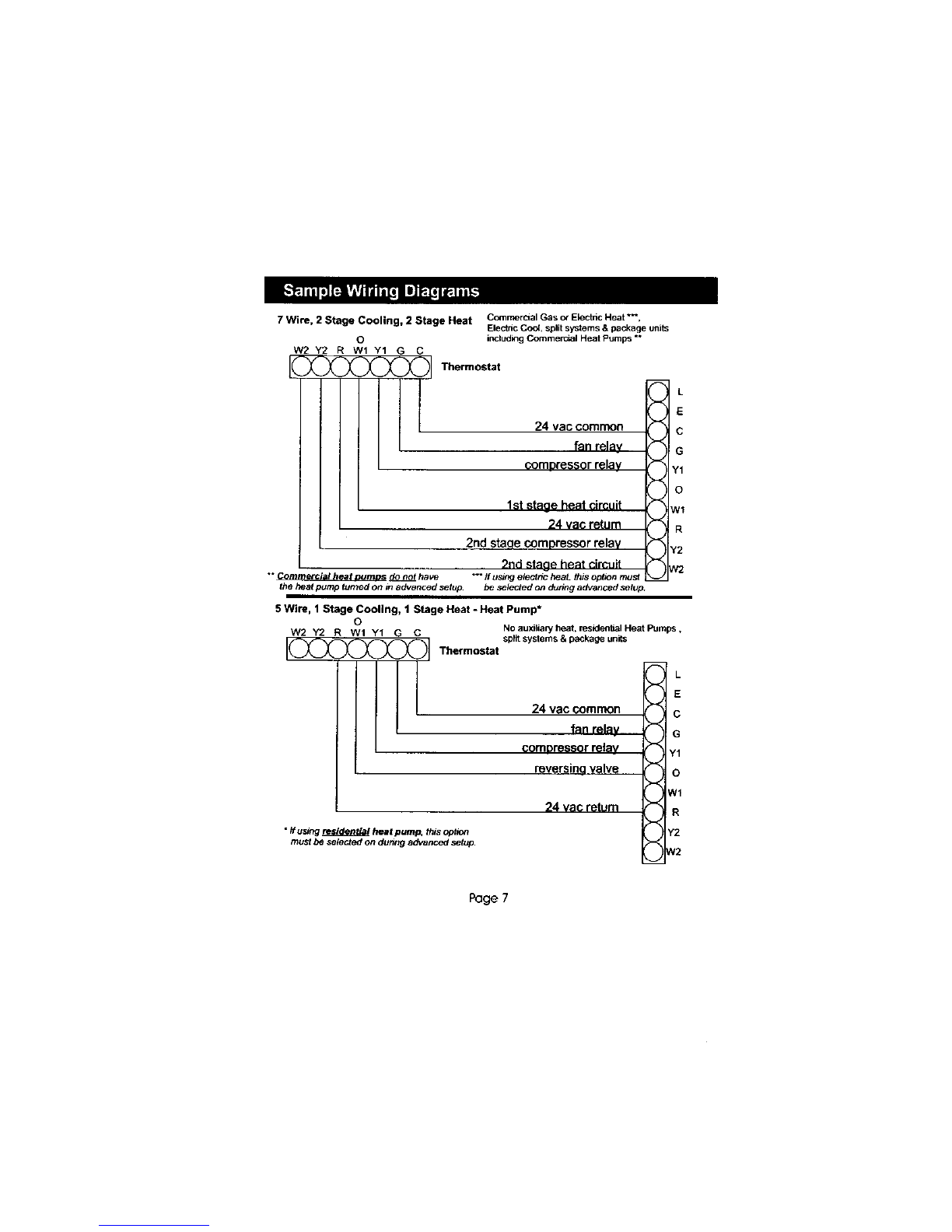

7 Wire, 2 Stage Cooling, 2 Stage Heat

W2 Y2 RWl Y1 G C

** Commercial heat oumos do not have

the heat pump fumed on in advanced setup

Comrr_rcial Gas or E_ect,c Heat *".

Electric Co_. split systems & package units

includ_g Commerc_l Heat Pumps **

Thermostat

24 vac common

f_n relay

comDressor relay

>-( G

I st stage heat circuit ;>_ wl

24 vac retum H

2nd stage compressor relay >'< Y2

2nd mt_ae hP+mt ¢.i_uit

-N2

*** /fusing electrlc heat. _is optlon rnust

be selec_d on during advanced setup+

5Wire, 1 Stage Cooling, 1 Stage Heat - Heat Pump*

W2 Y2 R WI Yl G C NoauxJliawheat. msidentialHeatPumps,

splitsystems& packageunits

_(_(_(_ _3 Thermostat

24 vac common C

mr r I Y1

reversin vlyeypJ.v___ _>_ o

•ff using _1_ heat pump. this option

must be selected on dunng advanced setup.

Page 7

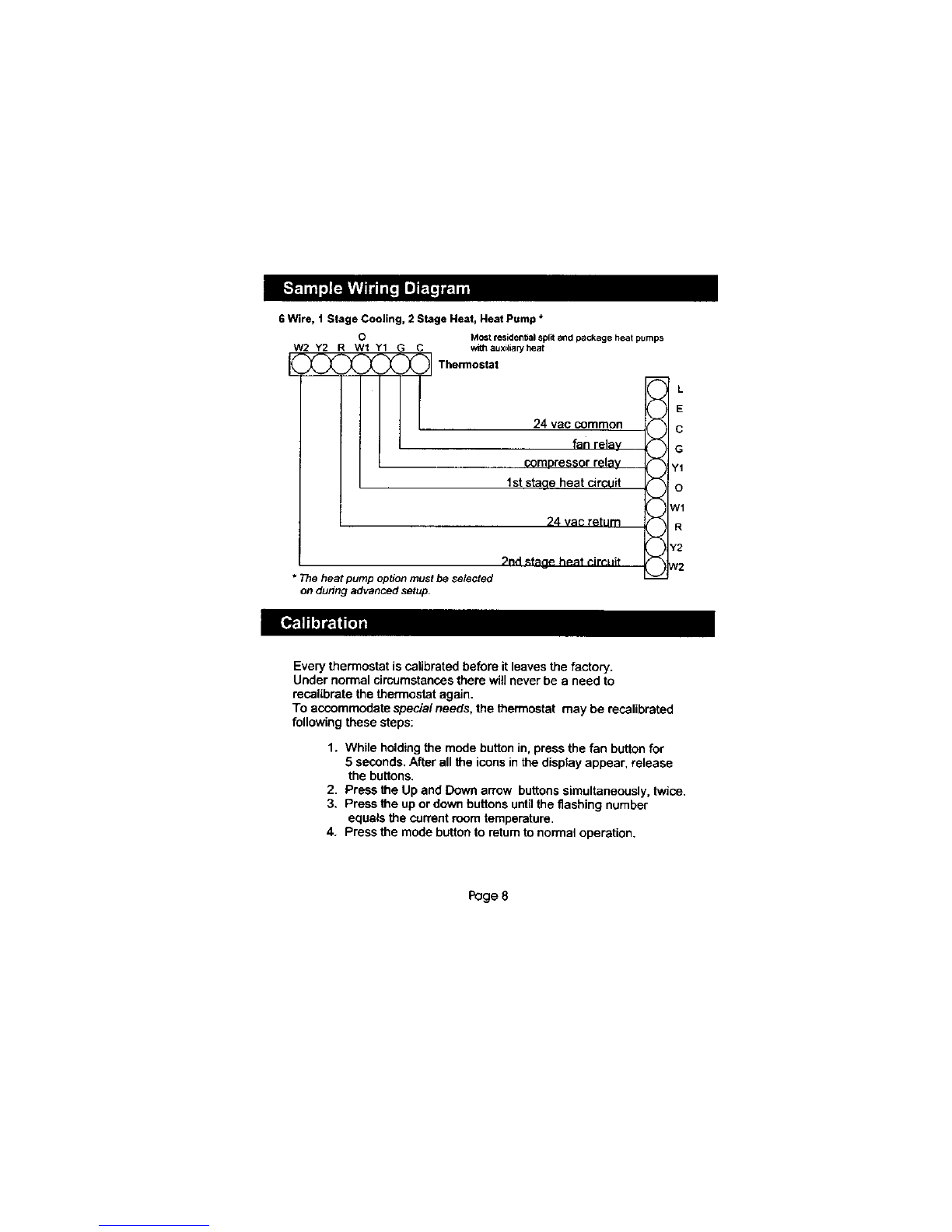

6Wire, 1 Stage Cooling, 2 Stage Heat, Heat Pump*

W2 Y2 R Wl Y1 G C Mo_,tresiden_alsplffandpackage heatpumps

withauxHmwheat

Thermostat

24 vac common

fan relay

comDressor relav

1st staqe heat circuit

24 vac return

>-<

>-.<

i>-<

?nd ._tn_n_hAnt _ir_==it _-_

*The heat pump option must be selected I

on dutfng advanced setup.

Every thermostat is calibrated before it leaves the factory.

Under normal circumstances there will never be aneed to

recalibrete the thermostat again.

To accommodate special needs, the thermostat may be recalibretad

following these steps:

1. While holding the mode button in, press the fan button for

5 seconds. After all the icons in the display appear, release

the buttons.

2. Press the Up and Down arrow buttons simultaneously, twice.

3. Press the up or down buttons untilthe flashing number

equals the current room temperature.

4. Press the mode button to retum to normal operation.

Page 8

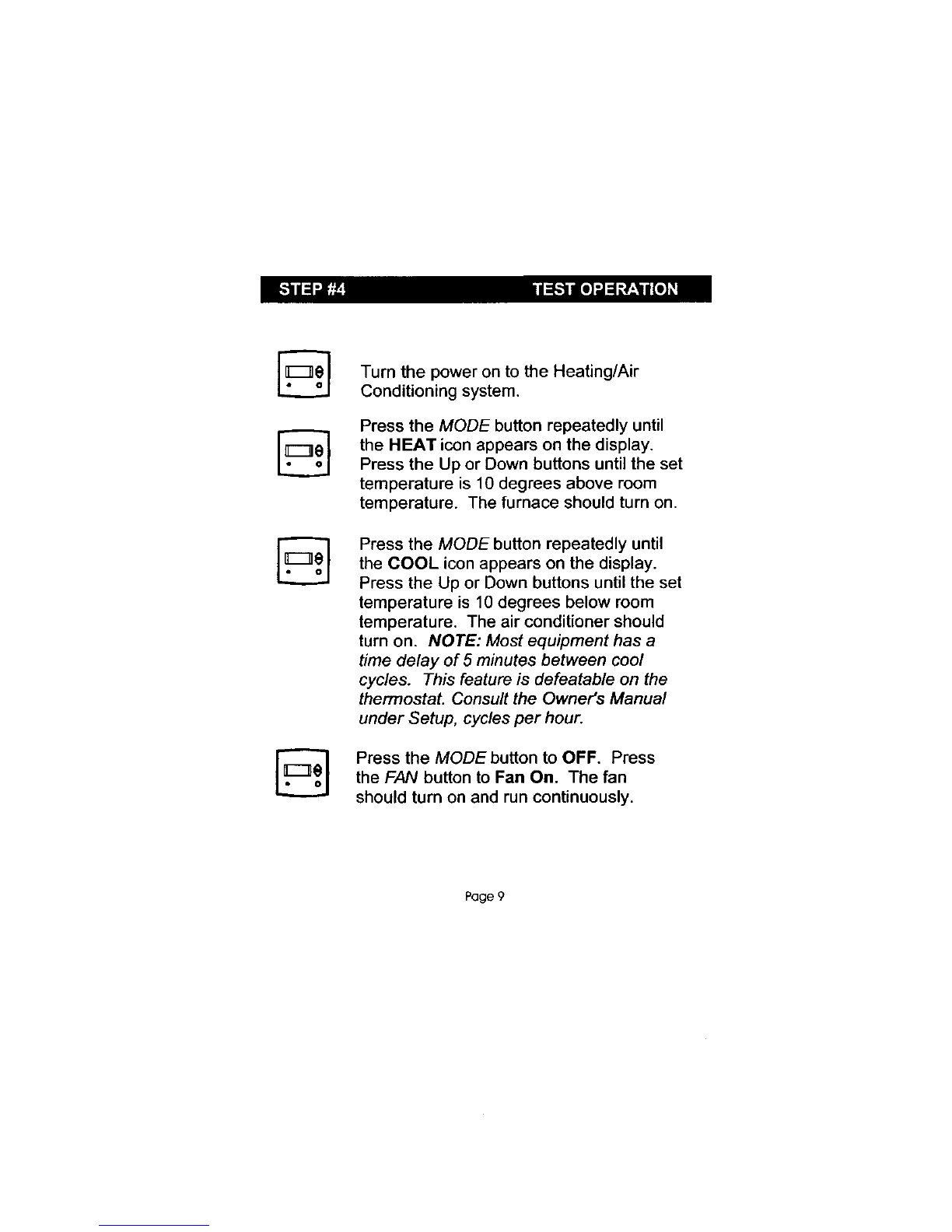

Turn the power on to the Heating/Air

Conditioning system.

Press the MODE button repeatedly until

the HEAT icon appears on the display.

Press the Up or Down buttons until the set

temperature is 10 degrees above room

temperature. The furnace should turn on.

Press the MODE button repeatedly until

the COOL icon appears on the display.

Press the Up or Down buttons until the set

temperature is 10 degrees below room

temperature, The air conditioner should

turn on. NOTE: Most equipment has a

time delay of 5 minutes between cool

cycles. This feature is defeatable on the

thermostat. Consult the Owner's Manual

under Setup, cycles per hour.

Press the MODE button to OFF. Press

the FAN button to Fan On. The fan

should turn on and run continuously.

Page 9
