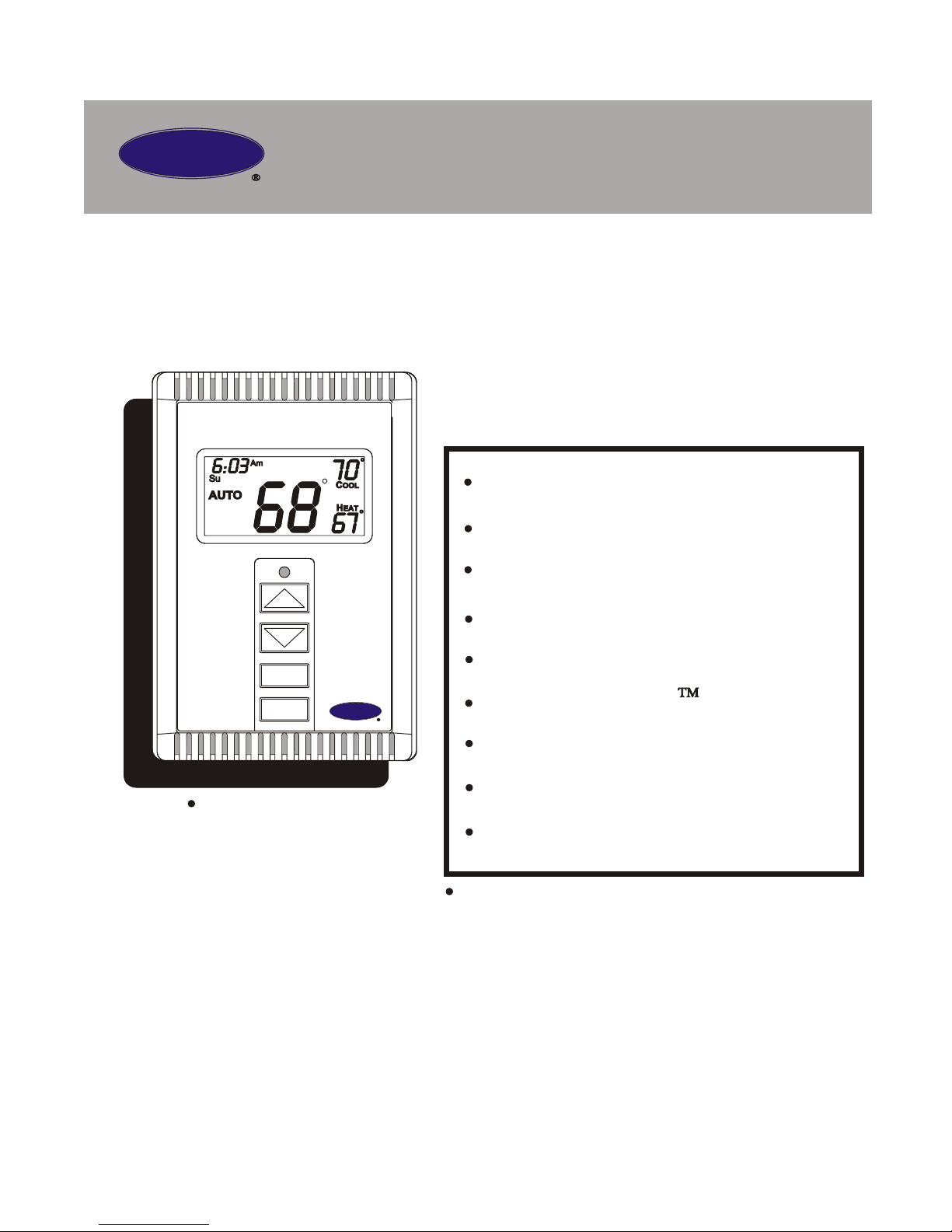

Carrier TSTATCCPRF01 Guía

Wireless Operation

7-Day Programmable

4 Time Periods Per Day

Programmable Fan

Easy To Read Display

Thermoglow Backlight

Auto Changeover

Dual Setpoint

2 Heat, 2 Cool Stages

MODE

FAN

NOTE TO INSTALLER: THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT USER.

TSTATCCPRF01 PROGRAMMABLE

DIGITAL THERMOSTAT

USER INFORMATION MANUAL FOR THE OPERATION AND

MAINTENANCE OF YOUR NEW THERMOSTAT

Carrier

Heating & Cooling

PROGRAMMABLE DIGITAL

WIRELESS THERMOSTAT

Meets California Title 24 Residential

Heat Pump & Heat Cool

Carrier

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING 4 Time Periods

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow TSTATCCPRF01 Installation Instructions

before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

TSTATCCPRF01

Important: To assure proper operation use only

AA LITHIUM batteries.

FCC ID MUH-T10013

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

Carrier

Front Panel

Page 2

Liquid Crystal Display

with Thermoglow

Up/Down Buttons

Mode Button

Fan Button

Transmission Indicator

FA N

Carrier

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

PROGRAM ON - indicates the stored program

is enabled to run. Page 6.

Clock with Day of the Week

Indicates the current time and day. This clock is

also used to program the timer periods. Page 5.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 7.

Display

Page 3

HEAT

COOL

OFF

AUTO

Fan On

Program

Locked

Setup

12:00

SMTWTFS

Day

Night

Evening

Morning

Morning, Day, Evening & Night Indication

Indicates the program time period. Page 8-11.

Setup Indication

Indicates the thermostat is in the programming

mode. Page 12.

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Locked Indication

Locked appears after the right combination of

buttons are pressed, rendering the buttons

inoperative. Page 17.

Display

Page 4

During Setup & Programming:

Pressing the Mode button

selects different flashing items.

(Represented in dark black)

Pressing the Up and Down

buttons will modify the flashing

selection.

Press the Mode button.

While holding the Mode,

press the Fan button for

2 seconds to enter Setup

screens.

Press both Mode and

Fan buttons as

above to return to

normal operation.

Quick Start Set the Clock and Go

Page 5

The Thermostat is preprogrammed from the

factory to operate 1 or 2 Stage equipment* without

the need for further programming. To optimize the

installation of this thermostat follow the instructions

in the Advanced Setup section.

* The thermostat is not preprogrammed from the

factory to operate electric heat or heat pump

systems. To control these systems, follow the

steps in the Wireless Receiver Instructions.

Setup

buttons.

To adjust the

clock or Day use

Press

MODE

Setup

12:00 i

FAN

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

AUTO will automatically select

heat or cool based on room

temperature demand.

Program On will activate the

stored timer operation.

(Morning, Day, Evening

& Night Periods)

Select Mode

Basic Operation

Page 6

HEAT

12:00

COOL

12:00

HEAT

COOL

AUTO

12:00

OFF

12:00

HEAT

COOL

ProgramOn

12:00

Day

Press

MODE

Press

MODE

Press

MODE

Press

MODE

buttons.

In any mode, adjust the

desired Set Temperature

with

Pressing the up/down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the up/down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

Fan

Operation

Page 7

Basic Operation

HEAT

COOL

AUTO

12:00

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

Press

FAN

HEAT

COOL

12:00

Fan On

Programming 4 Time Periods (Unit # 1 only)

Page 8

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press the Mode button. While holding the Mode,

press the Up button for 2 seconds to enter

time period programming.

MODE

Continued

Select the day of week

Adjust the start time

for Morning.

Adjust the heating

setpoint for Morning.

Adjust the cooling

setpoint for Morning.

(M - S)

(35 - 99 )

Start

7 30

Morning

COOL

7 30

Morning

HEAT

COOL

7 30

Morning

Use the back cover Programming

Worksheet to help with this section.

Time period programming is only available on

Unit Number 1.

Programming 4 Time Periods

Page 9

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Continued

Adjust the start time

for Evening.

Adjust the cooling

setpoint for Evening.

Adjust the start time

for Day.

Adjust the heating

setpoint for Day.

Adjust the cooling

setpoint for Day.

(35 - 99 )

Start

I0 30

Day

Start

5 30

Evening

Day

COOL

I0 30

Evening

COOL

5 30

Day

HEAT

COOL

I0 30
