Carrier Cool Share Web-Programmable Thermostat Manual de usuario

Thank you for taking an active rolein helping reduce the region’sdemand for

electricity during the summer.

Participating in Nevada Power’s Cool Share program, our central air conditioning

cycling program, lets valuable customers like you save energy – and money – while

protecting the environment, during the hot summer months.

As a Cool Share participant, you are helping to reduce the consumption of high-cost

fossil fuel and doing your share to help Nevada Power protect our environment.

To learn more please visit our website: NevadaPower.com/CoolShareor call

702-402-1111

Cool Share

Web-Programmable

Thermostat

Residential

Carrier® Thermostat

Quick Reference Guide

Installed by:

Number of Devices:

Date:

Default Password :

Comments:

08_NPLPC_Carrier Tstat (Eng).indd 1 6/24/08 11:06:33 AM

PROGRAM

ENDCHANGE DAY

COPY PREVIOUS DAY

FA N

RESET FILTERSET TIME/TEMP HOLD

MODE





















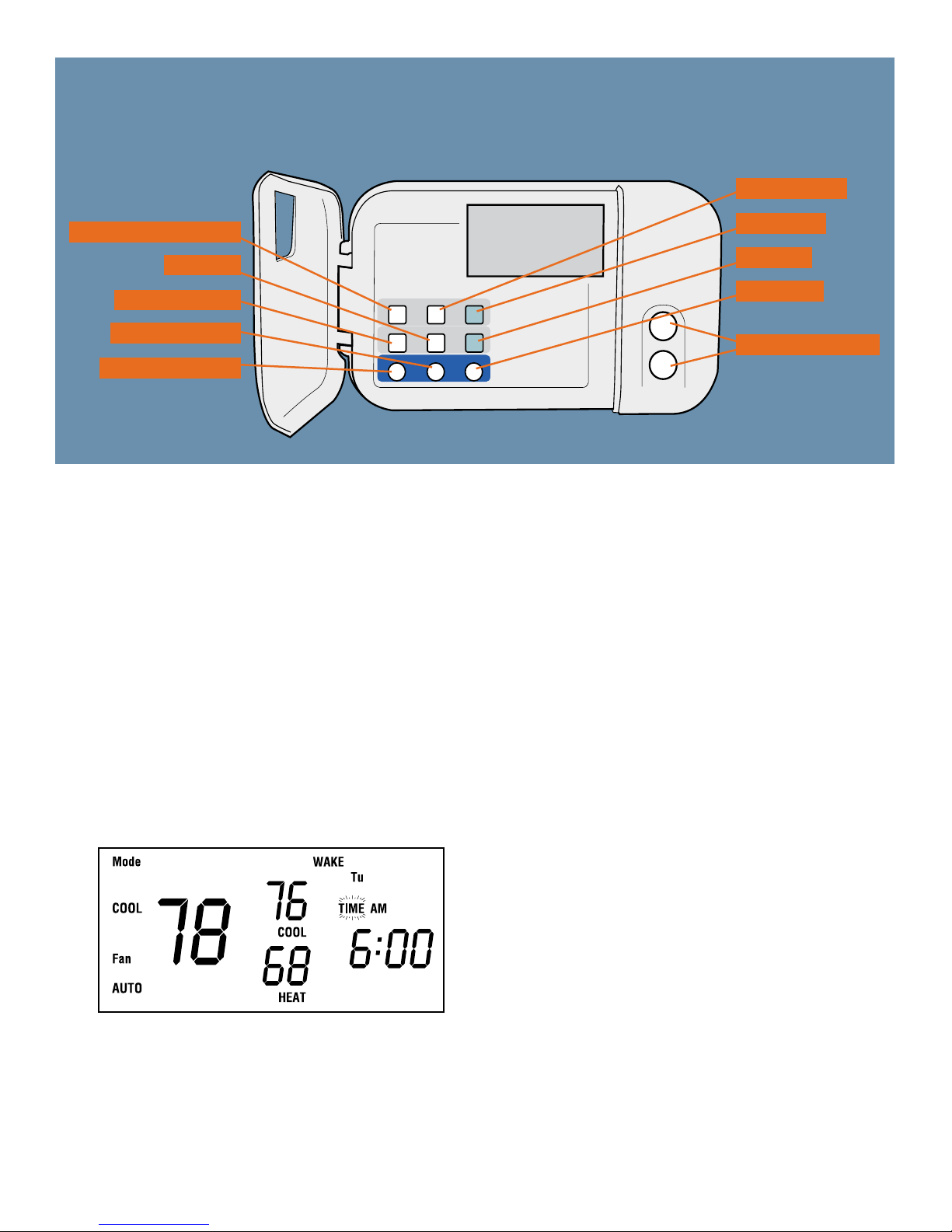

Getting to Know Your Cool Share Thermostat

Cool Share Thermostat Instructions

Setting the current day

1. Press the CHANGE DAY button. The day of the week will change.

2. Stop on the desired day. The thermostat then follows the program schedule for that day.

Setting the current time

1. Press the SET TIME/TEMP button. The word TIME ashes on the display.

2. Press the UP or DOWN buttons until the correct time is displayed. To quickly advance to the

proper time, press and hold the UP or DOWN button. To ensure accurate programming, be

sure that AM or PM is properly selected.

3. When the correct time appears on the display, press the END button.

08_NPLPC_Carrier Tstat (Eng).indd 2 6/24/08 11:06:33 AM

Setting mode operation

1. Press MODE button.

2. When the MODE button is pressed, the words OFF, HEAT, COOL, and AUTO will rotate on

the display. If you have a heat pump, the display will show OFF, HEAT, COOL, AUTO, and

EHEAT. NOTE: In AUTO mode, your system will heat or cool as needed to reach your

temperature settings. AUTO mode may be turned off. Contact your indoor weather expert

for details.

3. Continue to press the MODE button until you reach the desired setting.

Setting your comfort schedule

1. Press the PROGRAM button. The word PROGRAMMING appears on the display and the word

TIME ashes on the display. Above the clock, the word WAKE, DAY, EVE, or SLEEP will appear.

The day to be programmed is displayed with a 2-letter abbreviation: MO, TU, WE, TH, FR, SA, or

SU. NOTE: Your thermostat will always start the programming process in the current time period

and current day. You may wish to begin programming on a different day or time period. To change

the time period, press the PROGRAM button as needed until the correct time period, WAKE,

DAY, EVE, or SLEEP appears. Press the CHANGE DAY button to display the desired day.

2. Using your personalized comfort schedule as a guide, press the UP and DOWN buttons

to set the time for the indicated time period.

3. Press the SET TIME/TEMP button. The word HEAT ashes on the display. NOTE: Pressing the

SET TIME/TEMP button allows you to select between HEAT, COOL and TIME settings.

4. Press the UP and DOWN buttons to adjust the heating temperature setting to match your

personalized comfort schedule.

5. Press the SET TIME/TEMP button to select the cooling temperature setting for this time period.

The word COOL ashes on the display.

6. Press the UP and DOWN buttons to adjust the cooling temperature setting listed in your

personalized comfort schedule. NOTE: Don’t forget, your COOL setting must be at least 2°

higher than your HEAT setting. Your thermostat will automatically change your previously set

temperature to maintain that 2° difference.

7. Press the PROGRAM button to advance to the next time period. Following your personalized

comfort schedule, enter times and temperatures for DAY, EVE, and SLEEP time periods. You

have now programmed 1 day into your thermostat. At this time, you can either repeat steps

1-7 until all days of the week have been programmed, or you can copy the schedule onto the

remaining days of the week. See the section on “Copying a daily schedule” for details. NOTE:

During programming, if you have not touched a button or made an entry within 3 minutes, the

programming mode will automatically shut off. Anything you have programmed will be saved.

08_NPLPC_Carrier Tstat (Eng).indd 3 6/24/08 11:06:33 AM

8. Press the END button when you nish entering your comfort schedule. NOTE: Once you’ve

programmed your comfort schedule, the thermostat will continue operating on that program until

you enter an alternative schedule. It may be appropriate to adjust temperatures as seasons

change.

Copying a daily schedule

Typically, your Monday through Friday comfort schedule will be the same. That’s why the thermostat

includes a COPY PREVIOUS DAY button. When programming, this eliminates the need to re-enter

identical information for each day.

1. Program a daily schedule. Suggestion: Start with Monday so the following 4 days can be copied.

2. Press the CHANGE DAY button to move to the next day.

3. Press the COPY PREVIOUS DAY button. The previous day’s schedule will be entered into the

new day.

4. Continue this process by repeating steps 2 and 3.

Overriding your comfort schedule

There are 2 ways to override the existing program.

1. Pressing the HOLD button. By pressing the HOLD button, the thermostat will maintain the current

temperature settings and ignore the comfort schedule for an indenite period of time. The word

HOLD will appear in the display. Press the HOLD button a second time and the thermostat

will resume normal operation, returning the temperature settings to the programmed comfort

schedule. The thermostat will change the temperature setting as needed upon the next program

cycle. Pressing HOLD will not permanently alter your set program.

2. Pressing the UP or DOWN buttons. By pressing the UP or DOWN button, the current

temperature settings appear on the display. Pressing the UP or DOWN button again will

temporarily change the temperature setting above the ashing indicator as needed. To change

the other setting for this time period, press the SET TIME/TEMP button until the other setting

indicator ashes. Pressing the UP or DOWN button again will temporarily change the other

temperature setting as needed. The thermostat will automatically restore the comfort schedule

settings at the next programmed time.

08_NPLPC_Carrier Tstat (Eng).indd 4 6/24/08 11:06:33 AM

Cool Share Thermostat Web Interface Instructions

Logging In to Your Emi Thermostat

1. Connect to the Internet with either Microsoft® Internet Explorer (Version 5.0 or greater) or

Netscape® Navigator (Version 4.7 or greater).

2. Go to NevadaPower.com/CoolShare and click on the “New Residential Sign Ups” button to be taken to

the Homeowner/Residential page of the Cool Share program website. Click on the “CARRIER

THERMOSTAT” link. Follow the instructions to reach the Welcome screen shown in Figure 1

below

3. Click on Go to proceed to the Login screen.

NOTES: You may now receive a New User Information message informing you that you must wait

7 days after installation prior to accessing this website. This message will self close and the

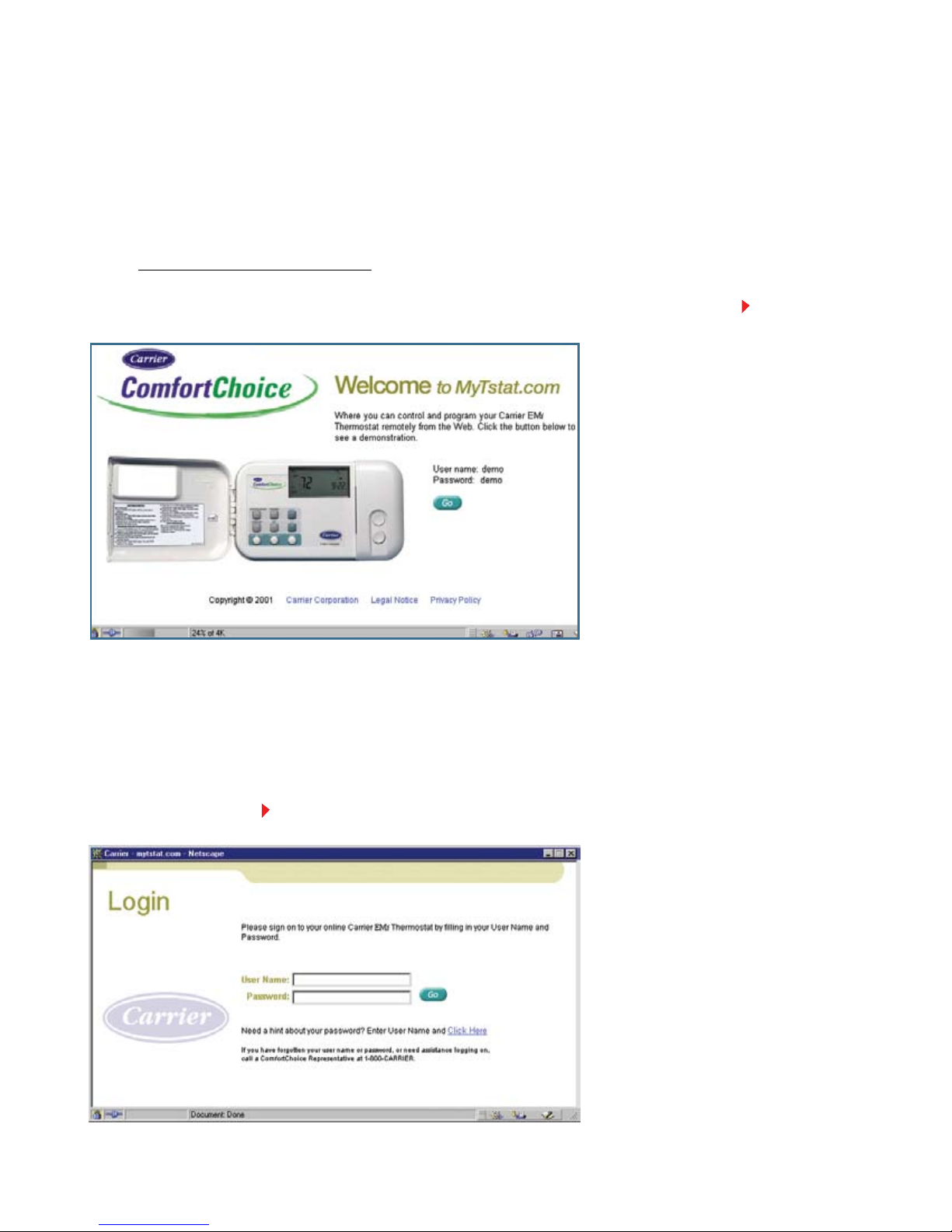

Figure 1: Welcome Screen

Figure 2: Login Screen

08_NPLPC_Carrier Tstat (Eng).indd 5 6/24/08 11:06:34 AM

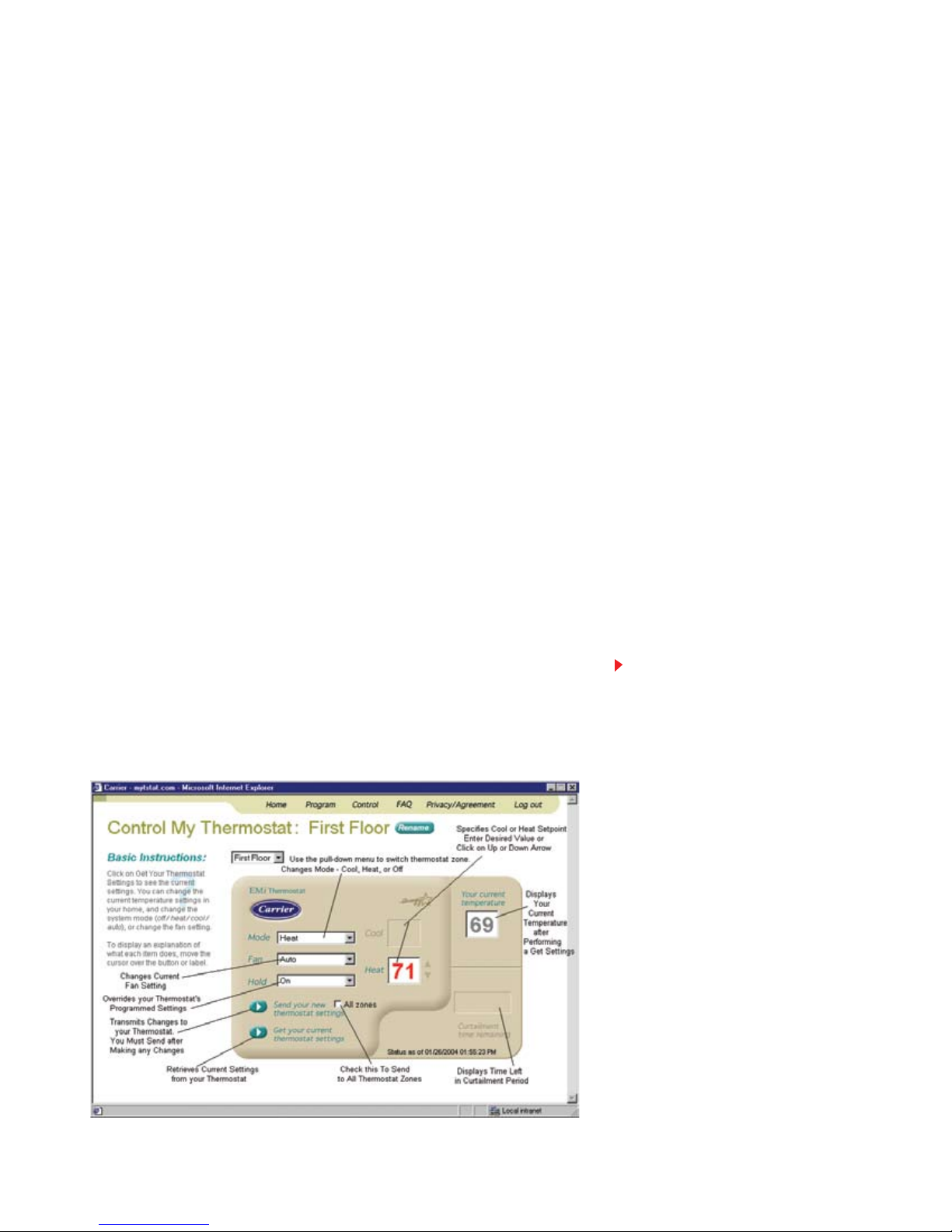

Figure 3: Control My Thermostat Screen

4. Enter your user name and password. Then, click the Go button.

NOTE: Your username will be your Premise ID. Your default password will be given to you by the installer,

and can be found on the front cover of this brochure. If this is your rst log in, you will be presented with

a Privacy and User Agreement. Read the agreement and scroll to the bottom of the page to select Agree.

You will then be prompted to change your password.

After clicking on Go, the thermostat Welcome screen will then display.

The Welcome screen is the gateway to your thermostat. From this screen you can choose to

do the

following:

• Switch or Rename your thermostat zone

• Control your thermostat

• Program your thermostat

• Change your password.

Controlling your Thermostat

Follow the instructions below to change the temperature settings in your thermostat, change the

mode (off/cool/heat/auto), or obtain the current temperature and settings from your thermostat.

1. From the Welcome screen, click the Go button, which is located to the left of

Control My Thermostat.

The Control My Thermostat screen will now display. Refer to Figure 3.

Moving the cursor over each button or label will display operating information for

each

thermostat item. For example, placing the cursor on the label “Fan” displays the following

information:

08_NPLPC_Carrier Tstat (Eng).indd 6 6/24/08 11:06:34 AM

Click on the arrow to view the Fan settings. Select the desired setting from the pull-down menu.

The normal setting for the fan is “Auto”, which runs the fan when your heating or cooling

equipment is running. To run the fan continuously, select “On”.

2. Make changes as desired, and click the “Send” button to transmit the changes to your thermostat.

3. Clicking on “Get” will retrieve current temperature and settings from your thermostat.

Programming Your Thermostat

Follow the instructions below to create a new or edit an existing thermostat schedule.

1. From the Welcome screen, click the “Go” button, which is located to the left of “Program My

Thermostat”. The Program My Thermostat screen shown in Figure 4 will now appear.

2. Click to do one of the following:

• Create new heating schedule

• Create new cooling schedule

• View/Edit an existing schedule. You must also select the name of the existing schedule

from the pull-down menu.

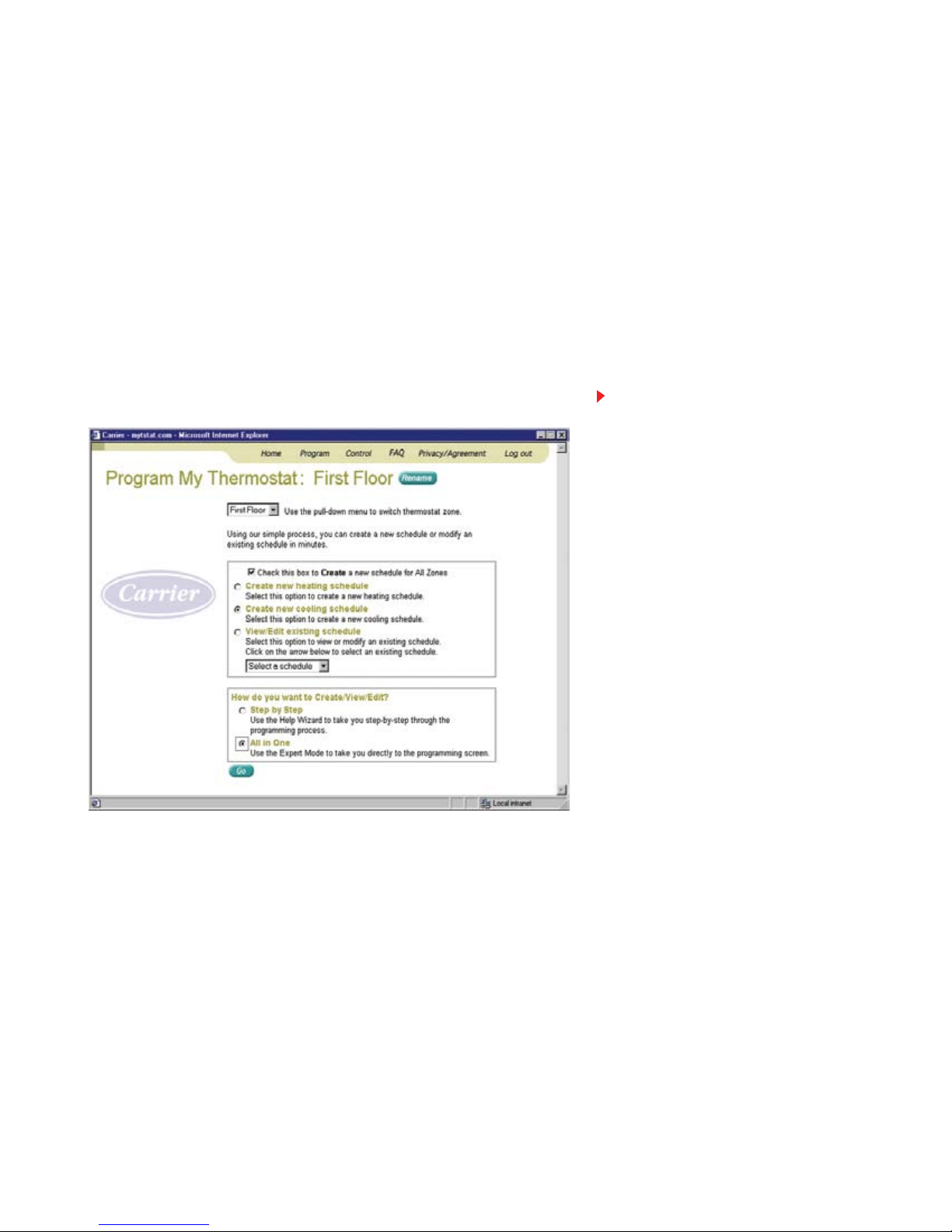

Figure 4: Program My Thermostat Screen

08_NPLPC_Carrier Tstat (Eng).indd 7 6/24/08 11:06:34 AM

3. You must now select a method for creating, viewing, or editing the schedule.

• Select “Step by Step” to use the help wizard, which will give you step-by-step assistance.

NOTE: This method is recommended if you are a novice user.

• Select “All in One” if you are a more advanced user and wish to proceed directly to the

all in one programming screen.

If you selected the Step by Step method, the “Step by Step” programming screen will display

and you will be guided through the process of setting up your weekly schedule and

accompanying temperature setpoints. Follow the prompts, clicking “Next” to proceed through

the screens.

If you selected the “All in One” method, the all in one “Program My Thermostat” screen will

display. Click to select the days of the week, drag the time arrows to select times, and click

on the up or down temperature arrow to specify temperatures.

08_NPLPC_Carrier Tstat (Eng).indd 8 6/24/08 11:06:34 AM

Is the Carrier programmable thermostat better than the one I am currently using?

Probably, yes. This is a top-of-the line thermostat, so even if you’ve recently purchased a new

thermostat, your FREE Carrier thermostat may be better.

Does this thermostat replace all of the ones I already have?

Yes. We will replace all of your thermostats with the new Carrier thermostat. You may, however, keep

your old thermostats.

Do I need to have an internet connection to use this new web-programmable Thermostat?

No. Although you can log into your thermostat from any computer, you do not need an internet

connection in order to benet from the Carrier thermostat.

What is included in my Cool Share installation?

Your Cool Share installation includes a FREE Carrier Programmable thermostat – a $300 value – as

well as a Cool Share communications module. Please note: An alternative thermostat of equal value

may be oered to customers in areas of weak signal reception.

Does that mean my home will get hot?

No. Typically, you can expect a very gradual temperature rise of up to 4°F by the end of a

conservation period. Many customers don’t even notice this.

How often will Cool Share conservation periods occur?

Conservation periods occur during times of peak electricity demand, generally on extremely hot

weekdays from June 1 to September 30 (between 1 p.m. and 7 p.m.). The program is not activated

on holidays or weekends.* You can expect about 33 conservation periods over the summer. Most

conservation periods are expected to occur between 4 p.m. and 7 p.m., lasting about three hours.

How did you calculate earnings of up to $29?

First, we assumed full participation, since you can choose not to participate in any single conservation

period. Then, your earnings or “shares” are based upon the expectation of 33 conservation periods

lasting three hours each. Nevada Power rewards $0.3333 per conservation period hour after the rst

twelve hours (four typical periods). This equates to approximately $1 per conservation period for 29

periods, hence the $29 earnings. By sharing conservation periods with us—the reliability periods—you

are helping ensure the reliability of the electrical system during the hours of maximum peak conditions.

When will I receive the Cool Share earnings?

You will receive your “shares” by a separately mailed check at the end of each cooling season, typically

in the month of October.

*In order to ensure grid reliability, Nevada Power maintains the right to activate the program at

anytime due to a critical generation emergency or record peak demand.

For more Frequently Asked Questions,

please go to NevadaPower.com/CoolShare

or call 702-402-1111.

Frequently Asked Questions About Cool Share

printed on recycled paper

08_NPLPC_Carrier Tstat (Eng).indd 9 6/24/08 11:06:34 AM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Carrier

Carrier

Carrier Performance TP-PRH-A Manual de usuario

Carrier

Carrier 33CS Manual de usuario

Carrier

Carrier ComfortVu TB-24-HM Instrucciones de funcionamiento

Carrier

Carrier EDGE Pro Manual de usuario

Carrier

Carrier Performance EDGE Manual de usuario

Carrier

Carrier A07051 Manual de usuario

Carrier

Carrier TB-PAC Manual de instrucciones

Carrier

Carrier TOTALINE Gold P274-0200-C Instrucciones y recetas

Carrier

Carrier 33CS400-01 Manual de usuario

Carrier

Carrier Performance Non-Programmable ADGE Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Carrier

Carrier Cor TP-WEM01-A Manual de usuario

Carrier

Carrier 33AW-CS1 Manual de usuario

Carrier

Carrier BASE SERIES PROGRAMMABLE THERMOSTATS TB-PAC Manual de usuario

Carrier

Carrier 53DFS250-SL Manual de usuario

Carrier

Carrier 33CS400-01 Manual de usuario

Carrier

Carrier Infinity Control Home Instrucciones de montaje

Carrier

Carrier edge Performance TP PHP01 A Series Manual de usuario

Carrier

Carrier A07048 Manual de usuario

Carrier

Carrier PROGRAMMABLE DIGITAL THERMOSTAT 53DFS250-FS Manual de usuario

Carrier

Carrier Standard Programmable Thermostat Manual de instalación

Carrier

Carrier MODULINE 37HS Hoja de datos

Carrier

Carrier TCSNAC01-A Manual de usuario

Carrier

Carrier Debonair 33CS250-01 Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario

Honeywell

Honeywell T6811 Manual de usuario
