Car Solutions QCPASS1581 Manual de usuario

Installation Manual

Multimedia Interface

for HondaAccord/Odyssey 2018-

[email protected]

car-solutions.com

Specification

Compatibility:

Honda Accord/Odyssey

2018~

Interface Input / Output specifications

Input

: LVDS IN (Car System) *1

LVDS *1

CVBS (Front Camera) *1

CVBS (Rear Camera) *1

Output

: LVDS OUT (Car System) *1

AUD

Power Spec:

Input Power:

8VDC ~ 18VDC

Consumption:

5WATT

Switch input mode:

External video sources skip function: Able to control input videos on and off

via Dip switches

Able to switch videos via the remote and button switch

Able to detect the rear view camera by CAN or rear lamp cable

* Support Multi-Touch

[email protected]

car-solutions.com

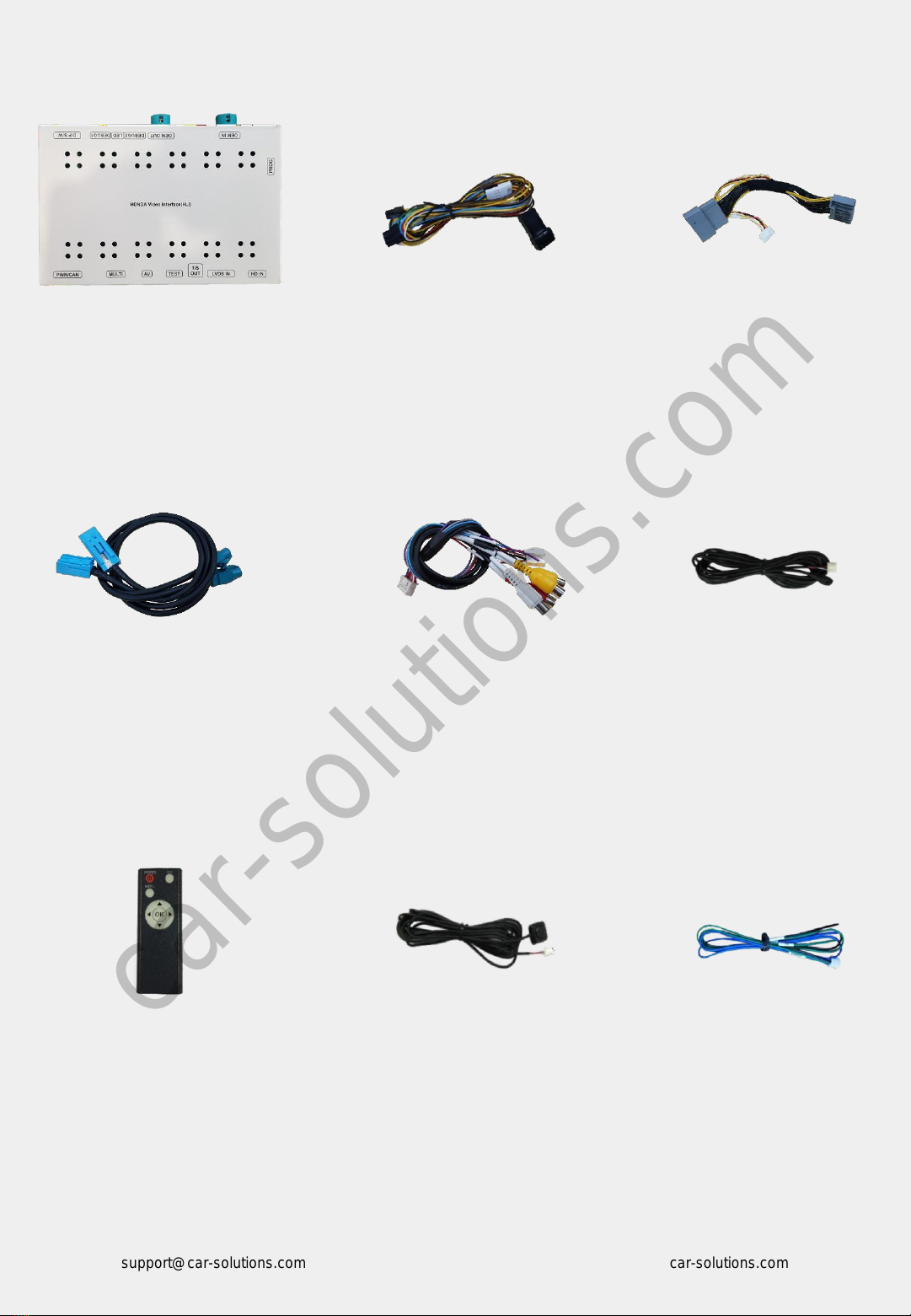

Components

Main Board

QCPASS1581

Power Cable

HPOWER0267

Accord J By J Cable

HARETC0371

LCD Cable

HLCDCA0067

HLCDCA0068

Remote CTRL.

REMOTE0001

Multi Cable

HARETC0363

Button Cable

HARETC0001

IR Cable

0002

UART Cable

HTOUCH0015

[email protected]

car-solutions.com

Odyssey Jack by Jack Cable Option

OPTION

Odyssey J By J Cable

HARETC0372

Components with Options

[email protected]

car-solutions.com

DIP Switch Settings

* ON: DOWN / OFF: UP

Please make sure to disconnect the power cable

of interface and reconnect to apply dip switch

setting whenever changing DIP switch.

FUNCTION

Dip S/W SELECT

LVDS

OFF : LVDS Mode

ON : LVDS Mode Skip

Ski

Front Camera

OFF : Ext. Front Camera Mode

ON : OEM Front Camera Mode

No Use (OFF)

Car Model

5 OFF, 6 OFF : Accord

5 ON, 6 OFF : Odyssey

5 OFF, 6 ON : CRV

Rear Camera

OFF : OEM Rear Camera Mode

ON : Ext. Rear Camera Mode

MUST SET TO ON.

[email protected]

car-solutions.com

Remote Control

Key

FUNCTION

POWER & PIP

N/C

Activating OSD menu

Making a selection, changing image display

▲

Moving upward

▼

Moving downward

◀

Moving leftward

(If you press this button 2 seconds long, you can access the

factory mode)

▶

Moving rightward

(If you press this button 2 seconds long, you can reset all the

data about user environment)

[email protected]

car-solutions.com


PARK

FUNC

UTIL

INFO

PAS TYPE : PAS ON

PAS SETUP

REAR TYPE : CAN

RADAR FUNC : OFF

Factory Settings


Setting for image display

PARK

PAS TYPE:

Select parking line type.

NOT USED: Do not use parking line

PAS ON: No Use

PAS OFF: Use fixed parking line

PAS SETUP:

Move the position of parking line.

REAR TYPE:

Choose rear camera recognition.

CAN

rea

mera

(

nst

nnec

“CAN” cable of the power cable to the “CAN” cable of the car)

LAMP

ing

rea

mera

“G

rey

ear

”

re.

(

nst

connect “Rear-C” cable of the power cable to the rear lamp of the car)

RADAR FUNC:

Enable radar senor pop-up function.


PARK

FUNC

BRIGHTNESS

UTIL

INFO

SHARPNESS

CONTRAST

SATURATION

HUE

[email protected]

car-solutions.com

Factory Settings

FUNCTION

CAR MODEL:

Auto detect (no selection)

AUTO FCAM:

Front Camera Display Setting

LVDS MODEL:

CarPlay, Navigation Model Setting

HD1 MODEL:

DTV, Navigation Model Setting

UTIL

RESET ALL:

Factory mode reset (YES/NO)

INFO

System version information


PARK

FUNC

CAR MODEL : Odyssey

AUTO FCAM : OFF

LVDS MODEL : QX-720P

UTIL

INFO

HD1 MODEL : SUNE10


PARK

FUNC

UTIL

INFO

RESET ALL : NO


PARK

FUNC

UTIL

SUB : 210709

INFO

INFORMATION

SW : 210709

HW : V1.2

[email protected]

car-solutions.com

HDMI IN *1

Rear Camera IN *1

Front Camera IN *1

Audio OUT *1

Power/CAN

Use

T/S OUT Pin#2 is

UART-TX for

UART Touch

OEM

Command

OEM

Monitor

Installation Diagram

Supplied LCD Cable

with Male

Connector

OEM LCD Cable

Supplied LCD Cable

with Female

Connector

CARPLAY

Or Android

BOX

* Please refer to the next page for Power/CAN Cable connection.

[email protected]

car-solutions.com

LCD Cable Connection

Please unplug the below highlighted OEM LCD cable from monitor.

nnec

pro

ded

emal

nnec

LCD

nnec

nterf

OEM IN port.

Connect provided LCD male connector to the monitor and interface OEM OUT

port.

Accord

Odyssey

OEM

Command

Supplied LCD Cable

with Male

Connector

OEM LCD Cable

Supplied LCD Cable

with Female

Connector

OEM

Monitor

[email protected]

car-solutions.com
