Car Solutions MB 2015 PAS-TDC2 Manual de usuario

MB 2015-PAS-TDC2

Parking Assist System

Manual

- MODEL : MB-PAS-151118

- DATE : 2017.05.12

Index

1. Main Spec

2. Block Diagram

3. Dimension

4. External Appearance

5. Connector Pin Assignment

6. Product Composition

7. DIP S/W Setting

8. Touch Control

9. OSD(On Screen Display) Control

10. Install Manual

11. Q & A

1. Main Spec.

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Analog RGB Input (Navigation System source)

- 1 x Digital RGB Input (Navigation System source)

- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

- 1 x LVDS Input. (Car Command System)

2. Output Spec.

- 1 x LCD Output (LCD Operation)

3. Power Spec.

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12Watt, Max

4. Switch Input mode

- Possible to select CAR model while switching mode by DIP S/W

- By button on the Commander in the car via CAN

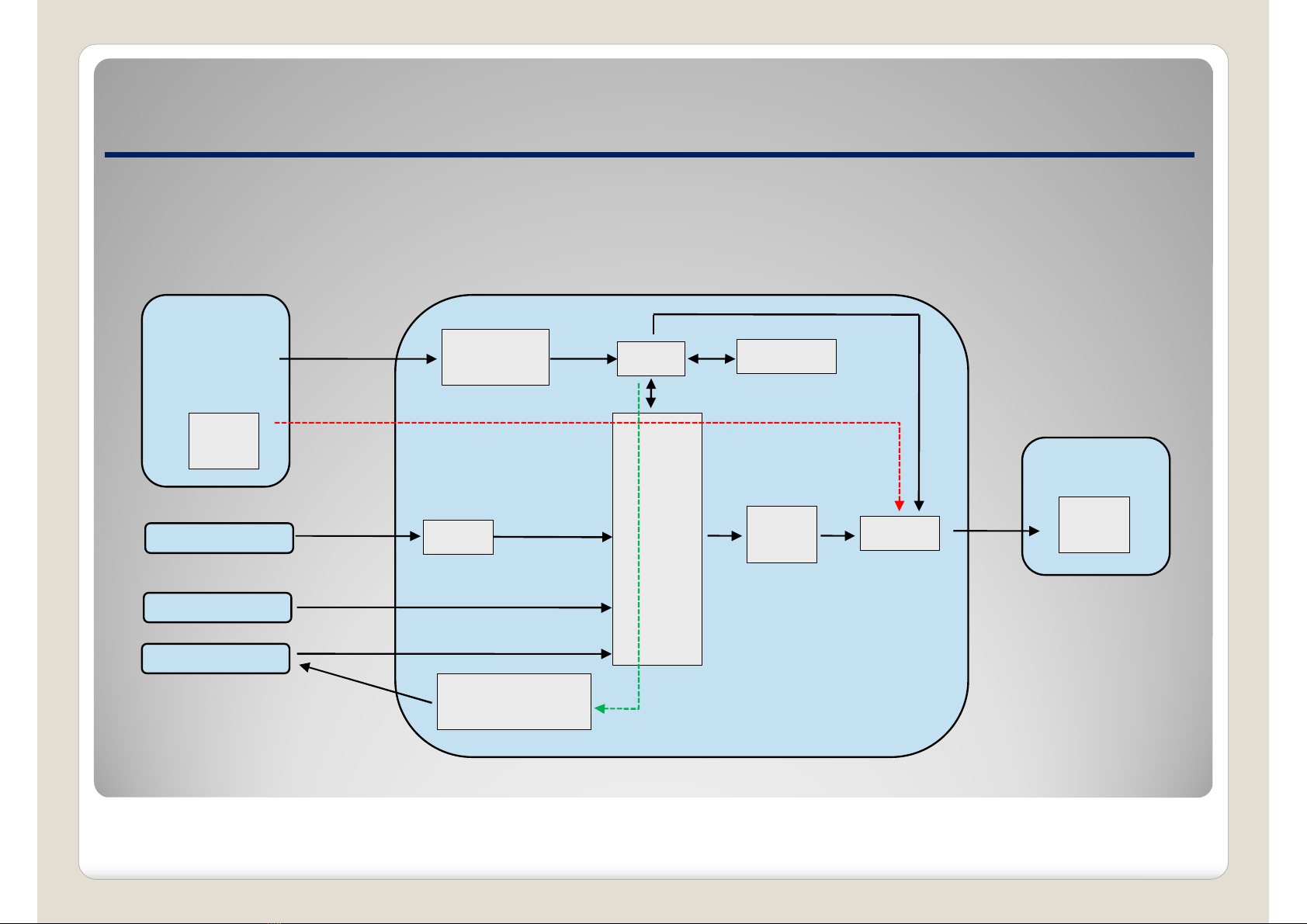

2. Block Diagram

Scaler

(PIP)

MCU

LVDS

INTERFACE

CAR

COMMAND

SYSTEM

LVDS

CAN

EEPROM

CAN

RECEIVER

LVDS

CAR

TFT-LCD

LVDS

RELAY

REAR CAMERA

POWER

REAR CAMERA

RGB+Sync

DIGITAL RGB LVDS

158mm * 83mm * 21mm

3. Dimension

158mm

83mm

21mm

* This can change under manufacturer’s circumstance

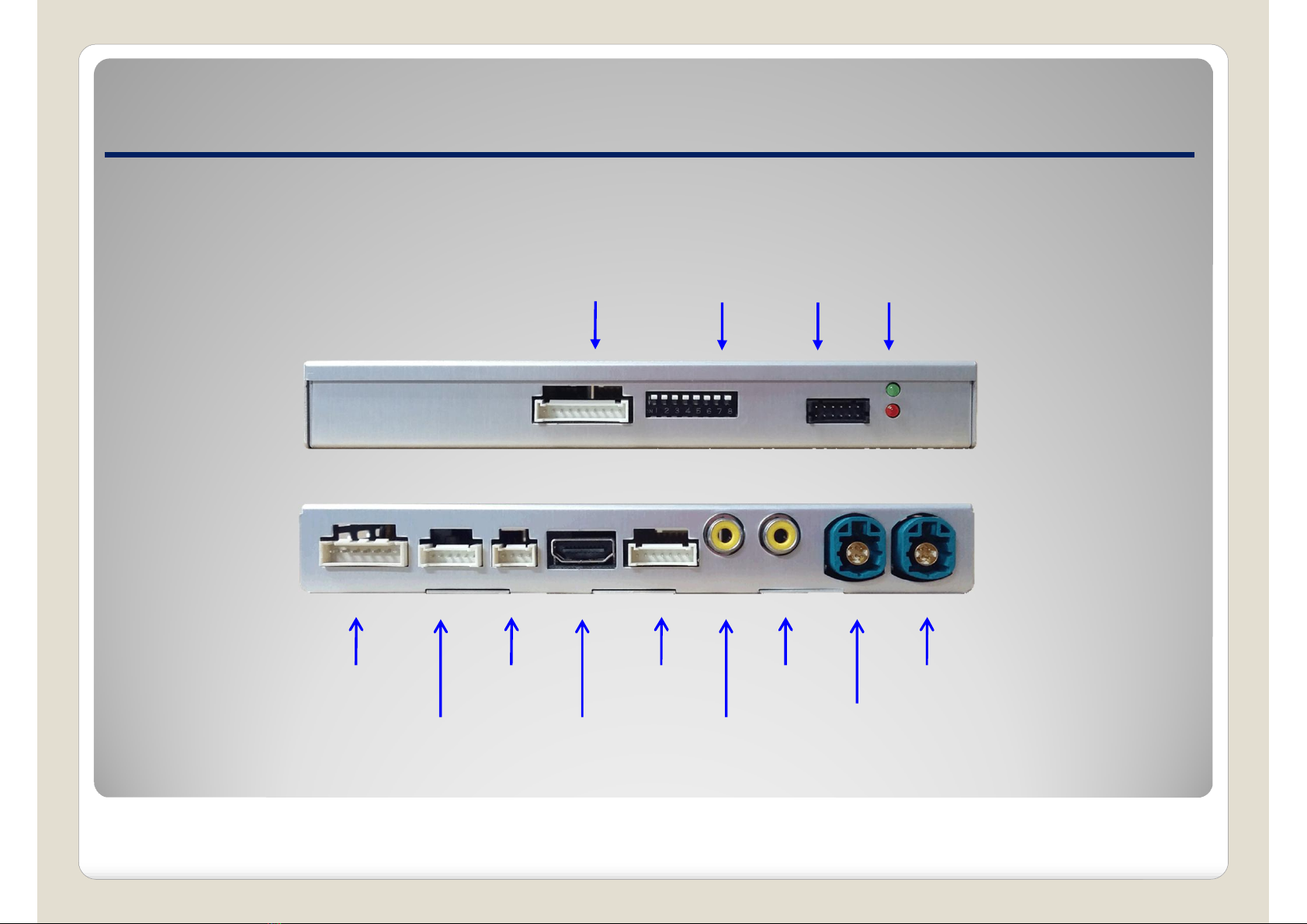

4. External Appearance

C-TOUCH

LCD-IN

LCD-OUT

LED DIP S/W PROGRAM

FRONT


REARNAVIPOWER/CAN R-TOUCH

HDMI

4. External Appearance

LEDDIP S/W

PROGRAM IMAGE

C-TOUCH

LCD-IN

LCD-OUT

FRONT

REARNAVIPOWER/CAN R-TOUCH

HDMI

5. Connector Pin Assignment

*POWER Connect

① ACC(Yellow)

② REAR_POWER (Red)

③ CAN-HIGH (Orange)

④ CAN-LOW (Green)

⑤ CAN-HIGH (Purple)

⑥ CAN-LOW (White)

⑦ GND (Black)

① ② ③ ④ ⑤ ⑥ ⑦

*NAVI Connect

① R DATA (Red)

② G DATA (Green)

③ B DATA (Blue)

④ SYNC (White)

⑤ GND (Black)

⑥ DMB IR (TX)(Green)

⑦ DVD IR (RX) (Orange)

①②③④⑤⑥⑦

*Touch Connect

① Y-

② X-

③ Y+

④ X+

① ② ③ ④

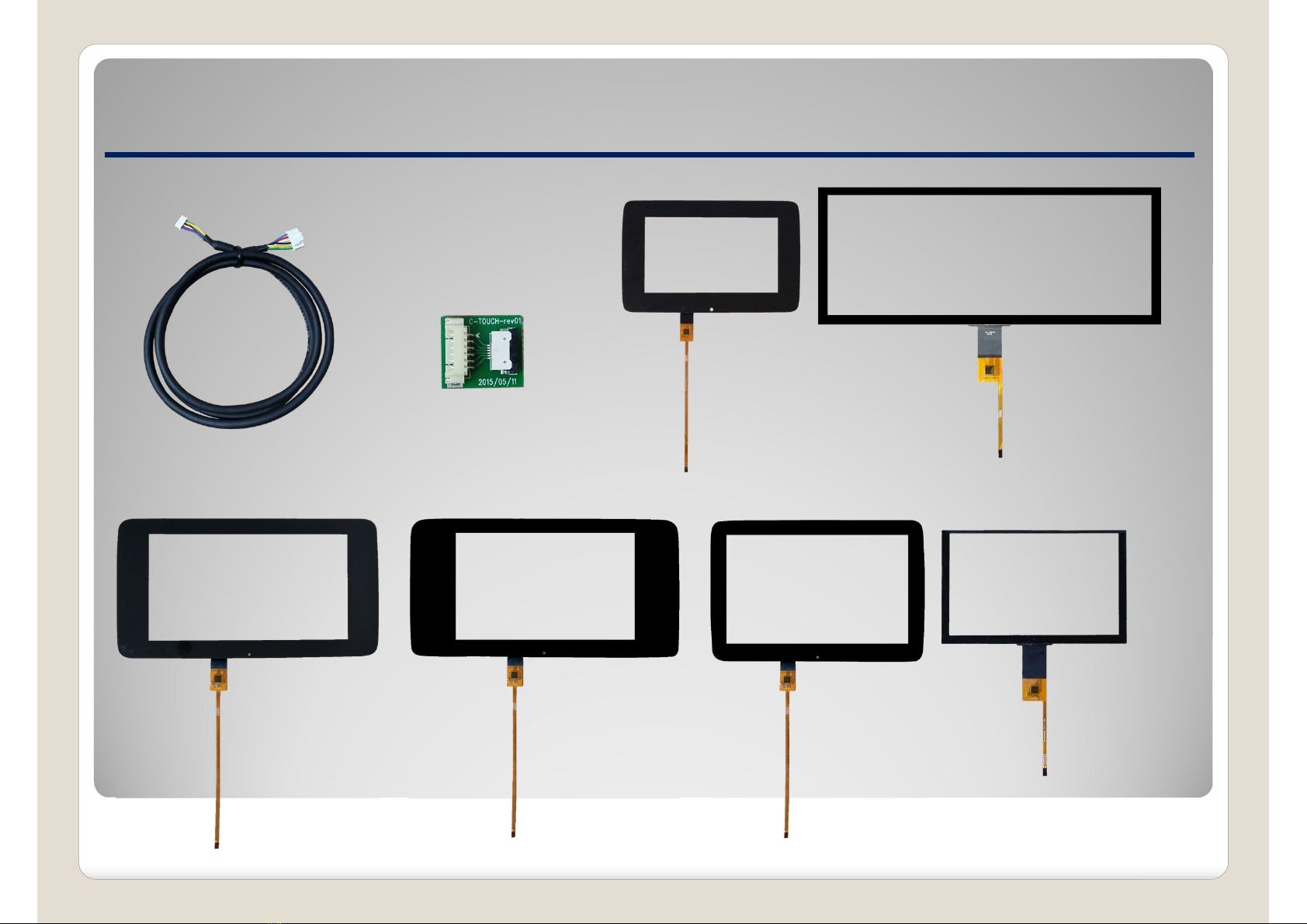

6. Product Composition

Power Cable(7pin) 1 EA

LVDS Cable 1 EA

Interface 1 EA RGB Navi Cable(7pin) 1 EA

Touch 변환 Cable(KD-900전용) 1 EA

6. Product Composition Option

Option : C 8.4 inch

Capacitive

Touch Screen

Option : TOUCH Board

Option : Touch Cable

TOUCH Option

Option : CLS 8.0 inch

Capacitive

Touch Screen

Option : CLA 8.0 inch

Capacitive

Touch Screen

Option : E 7.0 inch

Capacitive

Touch Screen

Option : S 12.2 inch

Capacitive

Touch Screen

Option : CLA 7.0 inch

Capacitive

Touch Screen
