Car Solutions BMW-PIP Manual de usuario

Updated date : 2011.07.18Updated date : 2011.07.18

Model : PIPModel : PIP--BMWBMW--STDSTD--V1 / Product code : PIPV1 / Product code : PIP--BMBM--08100810--202202

BMWBMW--PIPPIP

User manual

Model : PIPModel : PIP

BMWBMW

STDSTD

V1 / Product code : PIPV1 / Product code : PIP

BMBM

08100810

202202

For 3/5/6 series, X5, X6For 3/5/6 series, X5, X6

www.car-solutions.com [email protected]m.ua

carsolutions.com.ua

Contents

1. Before installation

1.1 Main specification

1.2 Features

1.3 System diagram

1.4 Components

1.5 Exterior

2.1.1 DIP switch

2.1.2 DIP switch

2.2 Remote controller

2.3 Keypad

2.4 OSD (on screen display)

2.5.1 FACTORY mode

2.5.2 FACTORY mode

2.6 Rear view parking guide line

2.7 CAN Wiring & Steering wheel button

1.5 Exterior

2. Setup

www.car-solutions.com 2

2.7 CAN Wiring & Steering wheel button

3. Installation

3.1 Cautions on installation

3.2 Installation diagram

3.3 Installation

4. Troubleshooting 25

2525

carsolutions.com.ua

1.1 Main specification

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Analog RGBCs (or Sync by Green)

- 1 x REAR-C Input (Rear camera source)

- 3 x A/V Input (NTST & PAL auto detection)

1 x

LCD Input

(OEM video input)

1 x

LCD Input

(OEM video input)

2. Output Spec.

- 2 x CVBS OUTPUT (Video Out for installed headrest monitors)

- 1 x Audio OUTPUT

- 1 x LCD Output(OEM video output)

- 4 x Audio Select Output (12V power comes out from 4wires of cable by AV1, AV2, AV3 & Navi modes)

3. Power Spec.

- Input Power : 8VDC ~ 18VDC

- Consumption Power : 12WATT, Max

www.car-solutions.com 3

4. Mode change

- Input Video skip : able to skip each input source via adjusting DIP switch

- Control by using the remote controller

- Able to change a mode by using toggle switch

- Able to change a mode by button on the steering wheel in the car via CAN

carsolutions.com.ua

1.2 Features

- PIP Function (Picture In Picture available only for cars with 8.8” LCD type)

- Higher Quality

- Controlling PIP function by “★” button on the steering wheel

(The products which are shipped to Japan are different)

Switching

AV source by “ “ on the steering wheel

Switching

AV source by “ “ on the steering wheel

(The products which are shipped to Japan are different)

- Easier operation with new remote control.

- Upgraded OSD Menu

- Displaying ExternalAV sources through composite, RGB

- ControllingAV sources (DVD, Navi) by I-DRV – Optional

www.car-solutions.com 4

[PIP – A/V mode][PDP – Rear Camera]

carsolutions.com.ua

1.3 System diagram

NAVIGATION Input

MCU

OSD keypad Switch for source toggle

OEM Navi Button (Can Interface)

DISPLAY

A/V 1

NAVIGATION Input

(Analog RGBCs)

REAR-C In

(Rear camera)

A/V 2

A/V 3 VIDEO

CIRCUIT VIDEO MUX

MCU

Car installation

OEM LCD

www.car-solutions.com 5

(OEM video input)

Car Screen Input

Power Input

(+8VDC ~ +18VDC)

POWER

CIRCUIT

Dip S/W

A/V OUT HEADREST

MONITOR

(Video out 2

Audio L, R1)

FMTX

carsolutions.com.ua

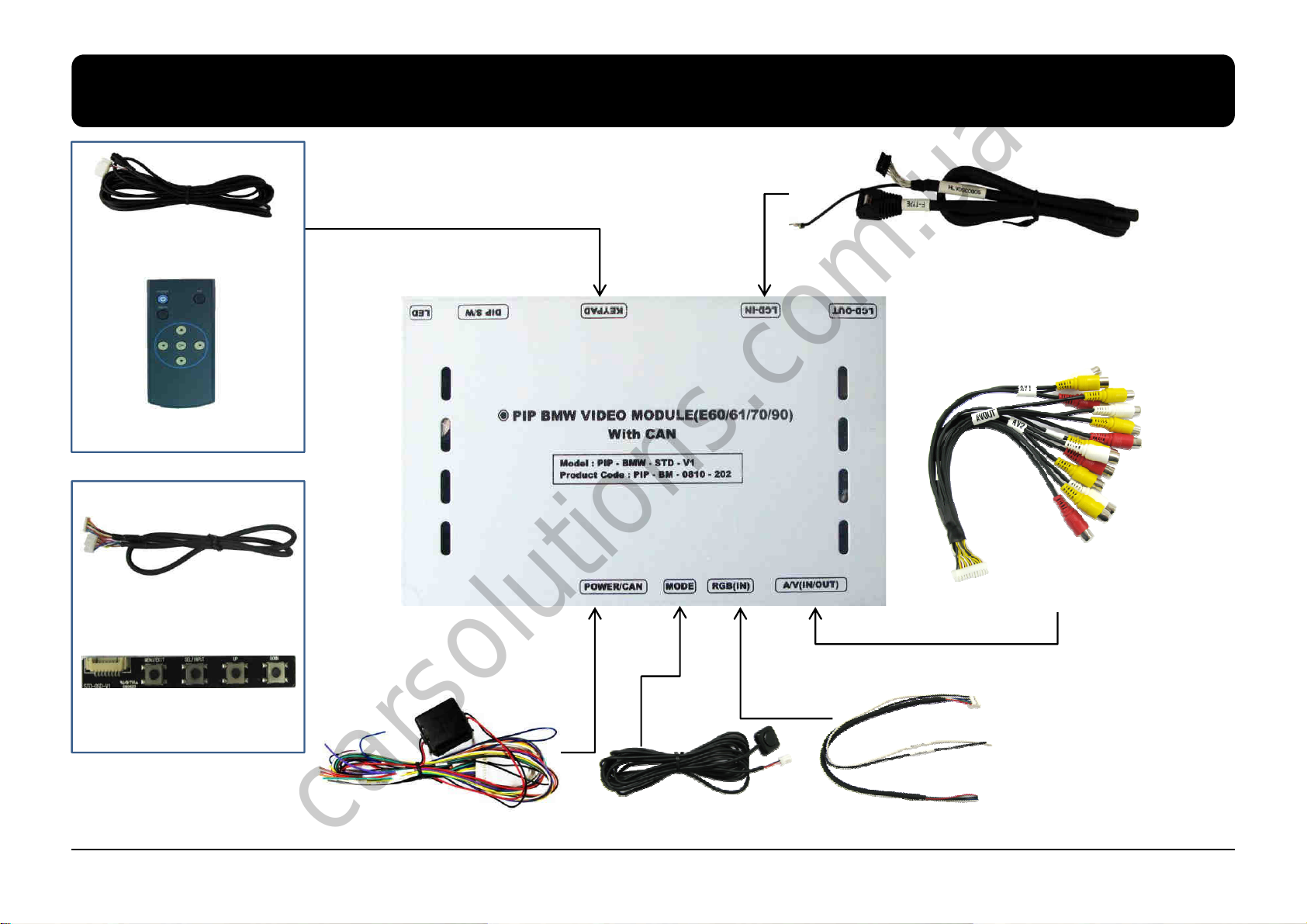

1.4 Components

LVDS cable(F-TYPE) * 1pc.

IR cable (8P) x 1pc.

AV cable * 1pc.

Cable for

OSD Keypad x 1pc.

Remote control x 1pc.

www.car-solutions.com 6

POWER cable (10P) * 1pc. MODE butto * 1pc. RGB cable * 1pc.

OSD Keypad x 1pc.

carsolutions.com.ua

1.5 Exterior

⑤⑥⑦⑧⑨

Dimensions

Horizontal length -154mm

Vertical

length

94mm

①POWER/CAN

②MODE

③RGB(IN)

④AV(IN/OUT)

⑤LCD-OUT

Vertical

length

94mm

Height - 20mm

www.car-solutions.com 7

⑥LCD-IN

⑦KEYPAD

⑧DIP S/W

① ③ ④②

⑨LED

① ③ ④②

carsolutions.com.ua

2.1.1 DIP switch

DIP # Function DIP S/W selection

1RGB Input ON : RGB input is OFF

OFF : RGB input is ON

A/V1

Input

ON : A/V1 input is OFF

OFF : A/V1 input is ON

A/V1

Input

OFF : A/V1 input is ON

3A/V2 Input ON : A/V2 input is OFF

OFF : A/V2 input is ON

4A/V3 Input ON : A/V3 input is OFF

OFF : A/V3 input is ON

5Monitor Size ON : For Cars with 6.5” LCD (Possible to use BMW 1 series)

OFF : For Cars with 8.8” LCD

Type of monitor ON : Siemens LCD (only when DIP #5 is turn ON)

OFF : Alpine LCD (only when DIP #5 is turn ON)

www.car-solutions.com 8

(Refer to next page) ON : 2009 model’s 3series (only when DIP #5 is turn OFF)

OFF : Cars with 8.8” LCD

7Rear Mode ON : External Rear Camera

OFF : OEM Rear Camera

8NOT USED

carsolutions.com.ua

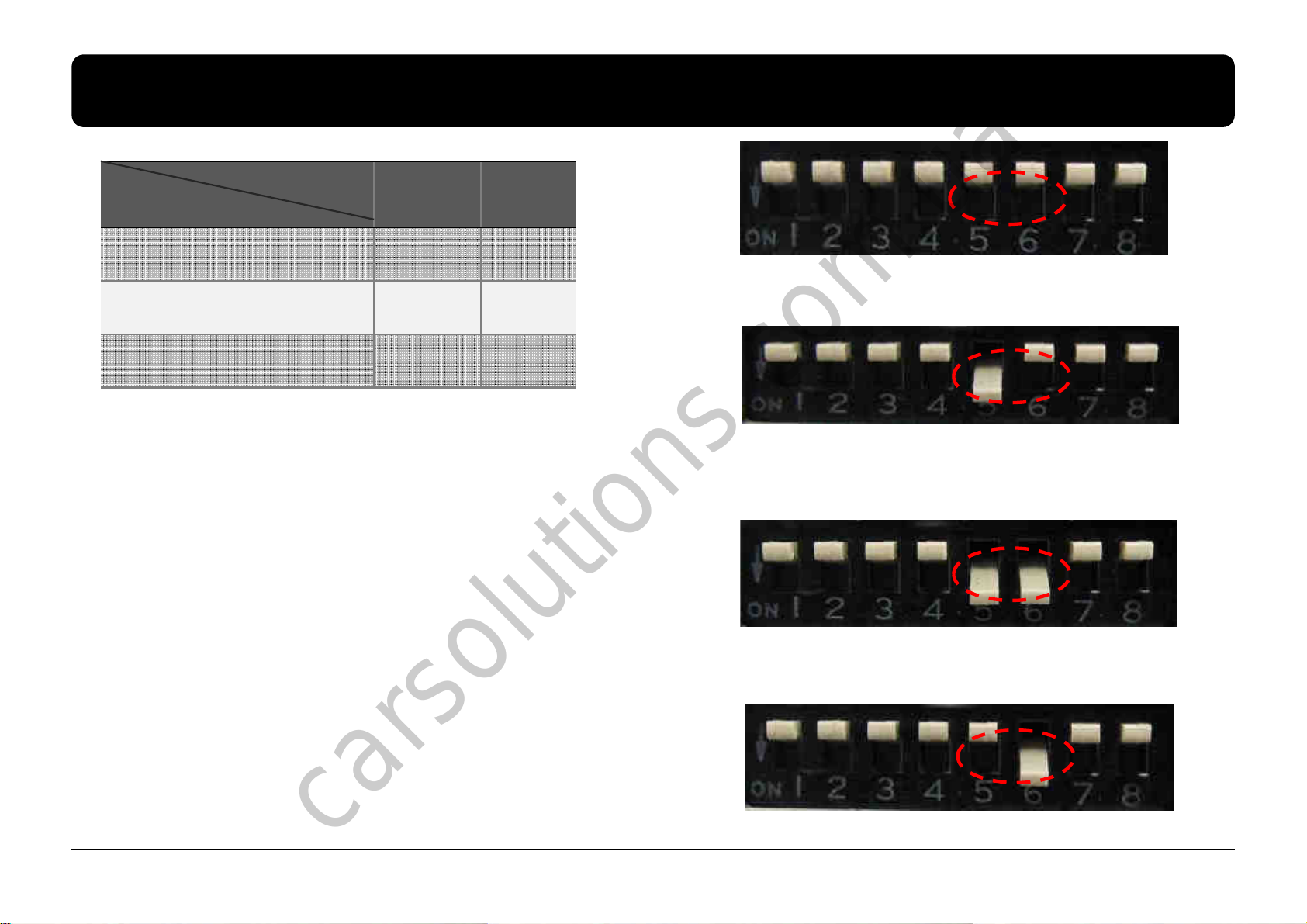

2.1.2 DIP switch

DIP #

Monitor size 5 6

E60 8.8” OFF OFF

E60

Alpine 6.5”

OFF

[E60 8.8” LCD]

E60

Alpine 6.5”

OFF

E60 Siemens 6.5” ON ON

※

※※

※DIP S/W Use Example

[BMW E60-6.5” Alpine]

-. Use Input Mode : A/V3(DVD), Navigation (RGB)

-. Rear Camera : When to be installed on CVBS 4

▷

DIP S/W : 1



OFF

[E60 Alpine 6.5” LCD]

www.car-solutions.com 9

▷

DIP S/W : 1



OFF

▷DIP S/W : 2,3 ON (INPUT MODE SKIP)

▷DIP S/W : 4 OFF (enableA/V3)

▷DIP S/W : 5 ON (6.5”Alpine)

▷DIP S/W : 6 OFF

▷DIP S/W : 7 ON (enable CVBS4)

▷DIP S/W : 8 OFF

[E60 Siemens 6.5” LCD]

[2009 Year 3 series]

carsolutions.com.ua

2.2 Remote controller

Buttons Function

POWER NOT USED

※Remote or Keypad (Optional)

PIP Activating PIP (Picture in Picture, only for cars with 8.8”)

MENU OSD Menu

OK Making a selection

▲Move UP

www.car-solutions.com 10

1010

▼Move DOWN

◀Move LEFT (Or press 2 seconds - Factory mode)

▶Move RIGHT (Or press 2 seconds - Factory Reset)

carsolutions.com.ua
