Car Solutions MB10 Series Manual de usuario

MB10

(W221 2010 MODEL)

Installation

Last Updated : 2011.08.23

MODEL : QVL-MB10-RND-V1 / Product code : MB10-RND-V1-1001-000

www.Car-Solutions.com

Contents

1 Installation diagram

2 Cautions on installation

3 Installation

www.Car-Solutions.com

[email protected]

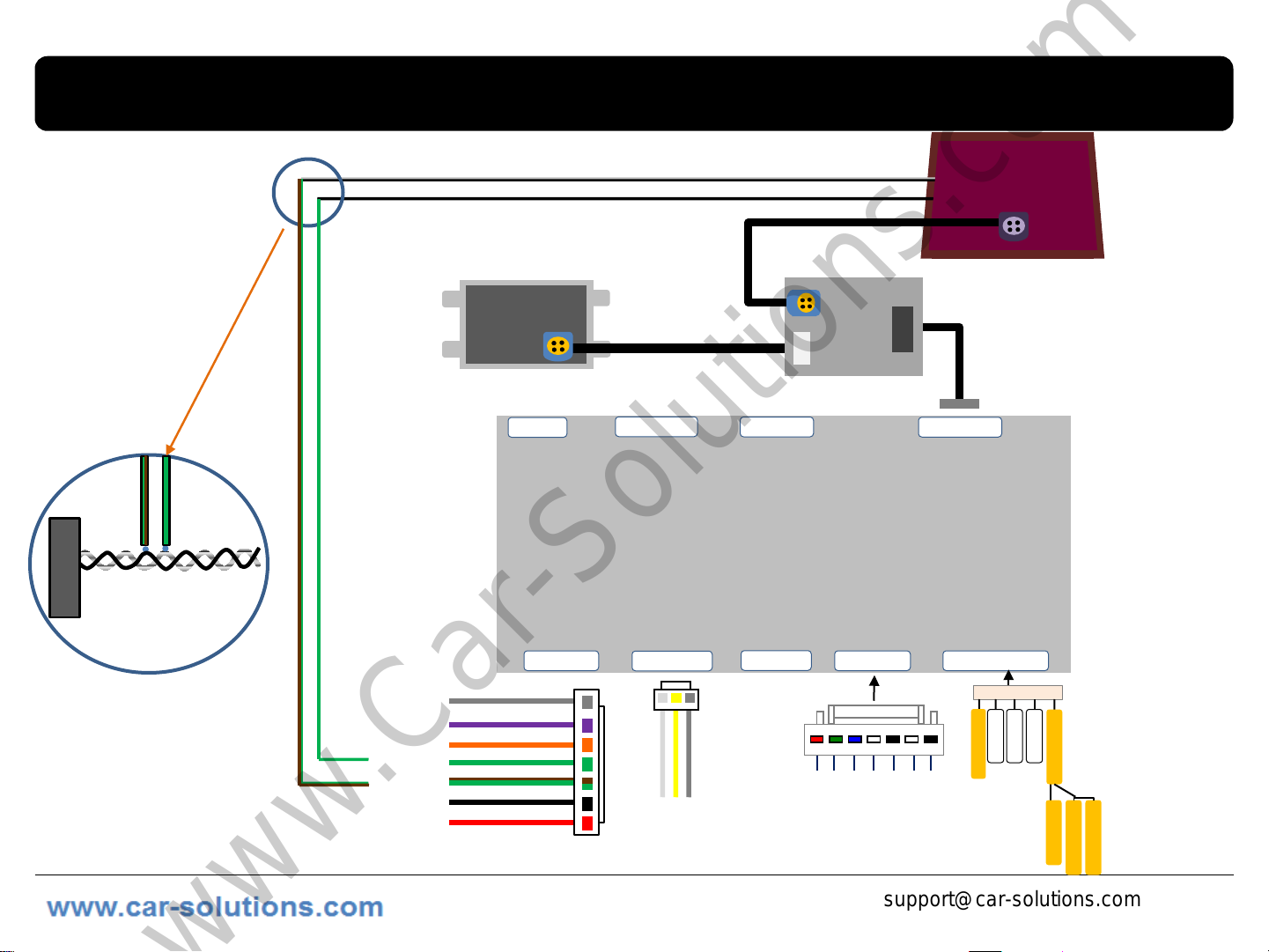

1 Installation diagram

MODE

Remote

RGB(IN) A/V(IN/OUT)

VIDEO INTERFACE (W221/W204)

DIP S/W

LED

POWER

Monitor

CAN

LVDS-OUT

Control Box

Offered LCD cable

CAN High

CAN Low

Original LCD cable

SET OUT

NAVI-SEL

AV1-SEL

REAR-SEL

TO LCD

FROM I/F

LCD-IN R DATA (red)

G DATA (green)

B DATA (blue)

N.C

SYNC (white)

GND (black)

N.C

AV1

AV2

AV3

REAR C

Audio L

Audio R

AV/OUT Video

REAR-C

SAFE

F-CAM-DET

CAN-L

CAN-H

ACC (12V ~24V)

GND

www.Car-Solutions.com

[email protected]

2 Cautions on installation

Ignition key should be taken off before starting installation, interface power connection must be

the last step in installation.

Power cable should be separated when connecting interface.

Should be no any electronic devices or magnetic pole around installation place.

All steps of installation should be done by well-trained specialist.

Dismantling without manufacturer’s permission can not be guaranteed, (No permission to break

attached label on the board.)

Kindly check all parts are in the box, when receiving the product, if anything missing, inform to the

supplier or manufacturer.

According to our sales policy, any problems caused by user’s mistake, careless can not be

guaranteed.

www.Car-Solutions.com

[email protected]

3 설치(New S, C-class)

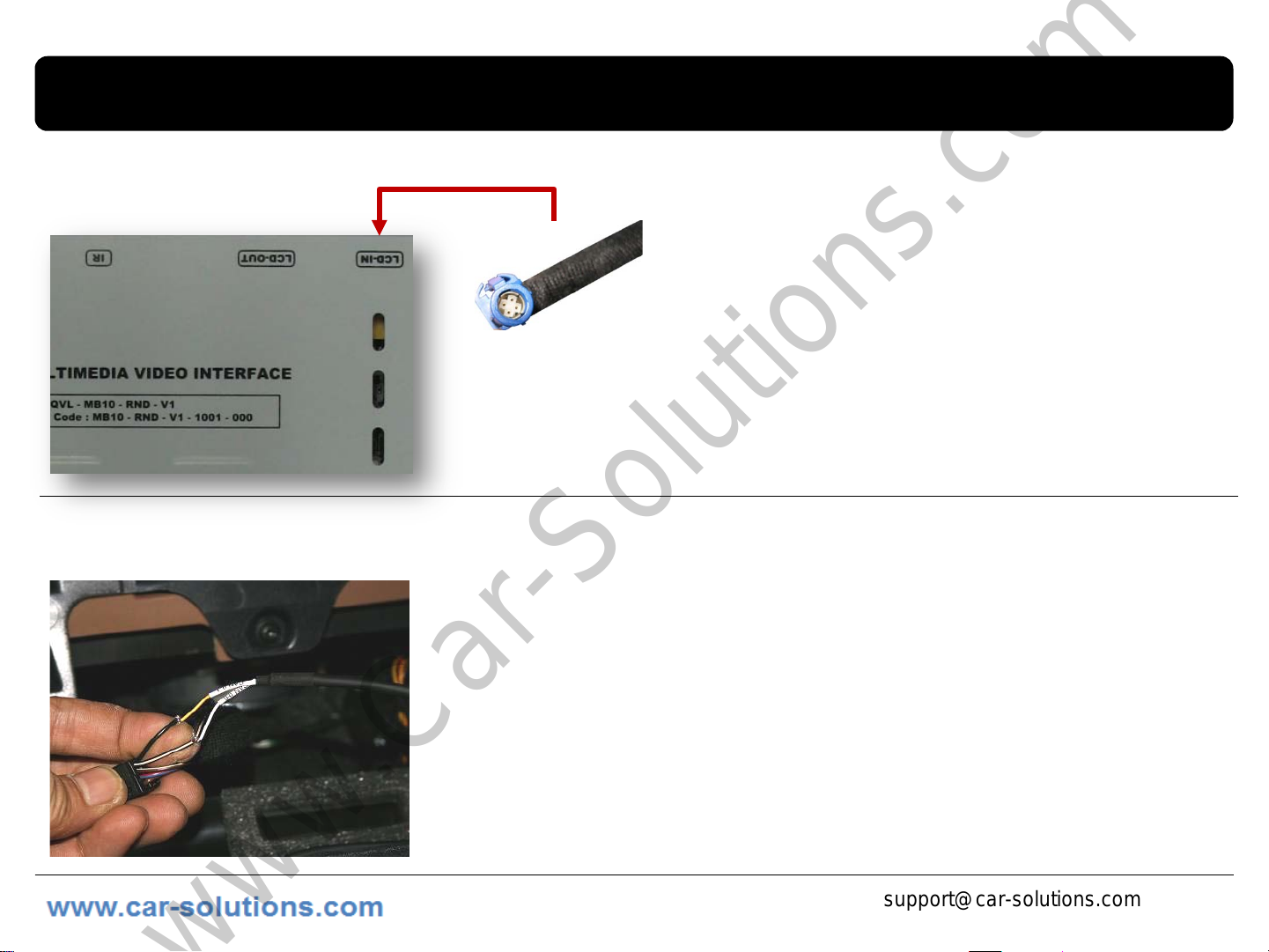

LCD IN/OUT cable connection

CAN wire connection

Connect offered CAN wires to CAN wires from car.

- White + Black : CAN High

- Black : CAN LOW

Connect the Original LCD cable into LCD-IN input of the

interface board and offered LCD-Out cable into the Monitor.

www.Car-Solutions.com

[email protected]
