Projector Monitoring Software

Ver. 1.0.0

User’s Manual

COPY

Introduction

"Projector Monitoring Software" (hereafter referred to as "this software") is a software that uniformly

manages network-connected compliant Canon Projectors, via network. Operating conditions and

maintenance information of up to 253 projectors can be monitored and managed.

This manual describes the introduction of this software, and its routine operation.

Microsoft, Windows, Windows XP, Windows Vista and .NET Framework are registered trademarks•

or trademarks of Microsoft Corporation in the United States and/or other countries.

Table of Contents

CHAPTER 1 • Introduction.................................................................................................. 3

1.1 Introduction Process.....................................................................................3

1.2 System Requirements ...................................................................................4

1.3 Installing the Software ..................................................................................4

1.4 Conguring the Network Settings of the Software..................................... 5

1.4.1 Starting the Software ......................................................................... 5

1.4.2 ConguringtheDiscoverySettings.................................................... 5

1.4.3 ConguringthePollingIntervalSettings..........................................10

CHAPTER 2 • Routine Operation ..................................................................................... 11

2.1 Running the Software.................................................................................. 11

2.2 Exiting the Software .................................................................................... 11

2.3 Main Screen.................................................................................................. 12

2.4 Using the Projector Group List ..................................................................13

2.4.1 About Projector Groups ................................................................... 13

2.4.2 Creating a Projector Group..............................................................13

2.4.3 Changing Projector Group Settings .................................................15

2.4.4 DeletingaProjectorGroup ..............................................................16

2.5 Using the Projector List .............................................................................. 17

2.5.1 ConrmingtheStatusofaProjector................................................17

2.5.2 Entering Comments ......................................................................... 18

2.5.3 DisplayingtheProjectorSettingsdialog ..........................................19

2.5.4 Setting the Projector List.................................................................. 19

2.5.5 DiscoveringProjectors.....................................................................20

2.5.6 RefreshingProjectorInformation .....................................................20

2.5.7 Setting the Protocol of a Projector ...................................................21

CHAPTER 3 • Appendix.....................................................................................................22

3.1 Troubleshooting...........................................................................................22

3.2 WUX10 Usage Precaution ...........................................................................24

3.3 LV Series Projectors Usage Precaution ....................................................24

COPY

CHAPTER1•Introduction

IntroductionCHAPTER 1

Introduction Process1.1

Prepare for introduction of this software as shown below.

1 Preparing an administrative

computer

Prepare an administrative computer that is

connected to a network. Projectors connected to

the local area network can be managed.

Ifthe networkismanagedunderasubnet,

network settings on the administrative computer

mustbeconguredtogainaccesstothetarget

projector. Contact the system administrator for

details.

▼

2 Preparing the Projector Connect a projector for management to the

network,and configureits networksettings. In

addition,youmustconguretheSNMPsettings

of the projector when using SNMP protocol. For

proceduresonconguringtheprojector,seethe

instruction manual that came with the projector.

▼

3 Installing the Software Installthis softwareontotheadministrative

computer.

(see p. 4, 1.3 Installing the Software)

▼

4 Conguring Network

Settings of the Software

Configure the protocol settings and the polling

interval settings for discovery.

(see p. 5, 1.4 Conguring the Network Settings

of the Software)

COPY

CHAPTER1•Introduction

System Requirements1.2

To install this software on a computer, following requirements must be met.

Category Essential Requirements

OS Microsoft Windows XP Professional SP2 or later,

Microsoft Windows Vista Ultimate

Supported Languages Japanese, English

CPU IntelPentium42.4GHzorbetter

Memory 1 GB or more

Display XGA or more

.NET Framework Windows XP: .NET Framework 2.0 SP1 or more

Windows Vista : .NET Framework 3.0 or more

Installing the Software1.3

Installthis softwarewith thefollowing procedures.Youmust haveauthorization asa

Computer Administrator to install programs.

Run the installer for this software.

Follow the instructions provided by the installer to proceed with the installation.

Duringinstallation, besure toregister thissoftware inWindows Firewallto allow

communication with the projector. Click [OK] if the following dialog displays.

Note

If.NETFramework versionerrordisplays,stoptheinstallation.Install-

the latest version of .NET Framework using Windows Update, and then

reinstall this software.

To uninstall this software, click the Windows [Start] menu, select [Control-

Panel], and [Add or Remove Programs]. Select the name of this software in

the list, and click [Remove].

COPY

CHAPTER1•Introduction

Conguring the Network Settings of the Software1.4

Wheninstallationofthissoftwareiscomplete,runthesoftwareandcongurethediscovery

settings of the network for discovery.

Starting the Software1.4.1

Click the Windows [Start] menu and select [All Programs], followed by

[Projector Monitoring Software] and [Projector Monitoring Software].

Main screen of this software will display.

Conguring the Discovery Settings1.4.2

Congurethenetworkrangefordiscoveringprojectors.Methodsvarydependingon"SNMP

V1/V2c/V3"and"LVSeries".Congureeachprotocolsrespectively.

For SNMP V1/V2c/V3■

When using "SNMP V1" / "SNMP V2c" / "SNMP V3", you can specify a broadcast address or

IPaddressrangefordiscovery.Selectaprotocoltypeandconguretherangefordiscovery.

CongureSNMPV1/V2c/V3withthefollowingprocedures.Congurationcanbedonewith

the same procedures. SNMP V3 is used in this example.

From[Discoverysettings]ofthe[Option]menu,selectanameofprotocol

([SNMPV1]/[SNMPV2c]/[SNMPV3])tocongure.

[Discoverysettings]dialogwilldisplay.

Place a checkmark in [Enable (Protocol Name)].

Remove a checkmark if protocol is not used for discovery.

COPY

CHAPTER1•Introduction

Tocongureabroadcastaddress,selectthe[Broadcast]tabandclickthe[New]

button.

[Specify broadcast discovery settings] dialog will display.

Note

As default, broadcast settings configured on the network card of the-

administrative computer will display in the discovery range list.

Complete the dialog with necessary information and click the [OK] button.

Category Description

Broadcast address Enter a broadcast address of the network to discover in "XXX.

XXX.XXX.XXX" form.

Community Name Enter a community name within 15 one-byte alphanumeric

characters and symbols.

Timeout Enter a number of seconds to time out, from 1 to 9.

Password

(SNMP V3 only)

Enter a password within 8 to 15 one-byte alphanumeric

characters and symbols.

Enable encryption

(SNMP V3 only)

Place a checkmark if encrypted. Remove a checkmark if not.

TospecifyanIPaddressrange,selectthe[IPaddressranges]tabandclick

the [New] button.

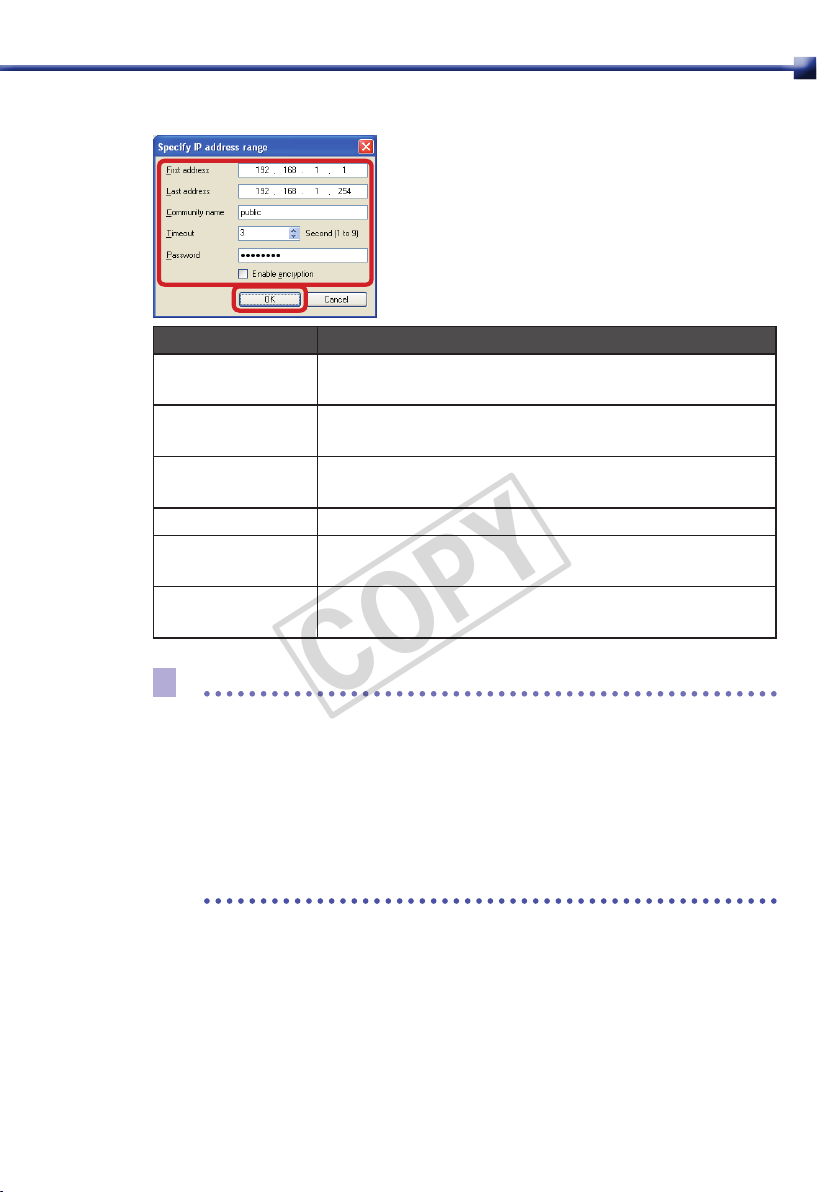

[SpecifyIPaddressrange]dialogwilldisplay.

COPY

CHAPTER1•Introduction

Complete the dialog with necessary information and click the [OK] button.

Category Description

First address EnterafirstIPaddressintherangefordiscovery,in"XXX.

XXX.XXX.XXX" form.

Last address EnteralastIPaddressintherangefordiscovery,in"XXX.XXX.

XXX.XXX" form.

Community name Enter a community name within 15 alphanumeric characters

and symbols.

Timeout Enter a number of seconds to time out, from 1 to 9.

Password

(SNMP V3 only)

Enter a password within 8 to 15 one-byte alphanumeric

characters and symbols.

Enable encryption

(SNMP V3 only)

Place a checkmark if encrypted. Remove a checkmark if not.

Note

An error message will appear and settings will not be registered if a value-

ofanentryisinvalidorinsufcient.Correctitasrequired.

Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before-

clicking the [OK] button.

To change a discovery range, select an item from the discovery range list-

andclickthe[Edit]buttontorecongurethesettings.

To delete an unnecessary discovery range, select an item from the-

discoveryrangelistandclick[Delete].

COPY

CHAPTER1•Introduction

For LV Series■

WhenusingLVseries,specifyanIPaddressoftheprojectorfordiscovery.

Note

WithLVseries,youcannotdiscoverusingbroadcastaddresses orIP-

address ranges.

WithLVseries,itisrecommendedtouseafixed IPaddressfor the-

projector.IfDHCPisconguredtoautomaticallyassignIPaddresses,you

willneedtorecongurethis softwareeverytimethe projector'sIPaddress

changes.

CongureLVserieswiththefollowingprocedures.

From[Discoverysetting]ofthe[Option]menu,select[LVseries]tocongure.

[Discoverysettings]dialogwilldisplay.

Place a checkmark in [Enable LV series].

Remove a checkmark if it is not used for discovery.

Selectthe[IPaddress]tabandclickthe[New]button.

[SpecifyIPaddress]dialogwilldisplay.

COPY

CHAPTER1•Introduction

Complete the dialog with necessary information and click the [OK] button.

Category Description

IPaddress EnteranIPaddressoftheprojector,in"XXX.XXX.XXX.XXX"form.

Port number Enteraportnumbertobeused,inone-bytenumbers.Default

value is set to "7142."

Timeout Enter a number of seconds to time out, from 1 to 9.

Note

An error message will appear and settings will not be registered if a value-

ofanentryisinvalidorinsufcient.Correctitasrequired.

Entries will be cancelled if [X] (Close) or [Cancel] button is clicked before-

clicking the [OK] button.

TochangeanIPaddress,selectanitemfromthediscoveryrangelistand-

clickthe[Edit]buttontorecongurethesettings.

TodeleteanunnecessaryIPaddress,selectanitemfromthediscovery-

rangelistandclick[Delete].

Projectorsmay doublydisplaywhentheIPaddressofaprojectoris-

changed.Inthiscase,deletetheprojectorwithanoldIPaddress.

COPY

CHAPTER1•Introduction

Conguring the Polling Interval Settings1.4.3

Defaultpolling intervalforthissoftwareissetto"Notspecied"fordiscovering projectors,

and "1 hour" for receiving status of the projector.

Change the polling interval with the following procedures.

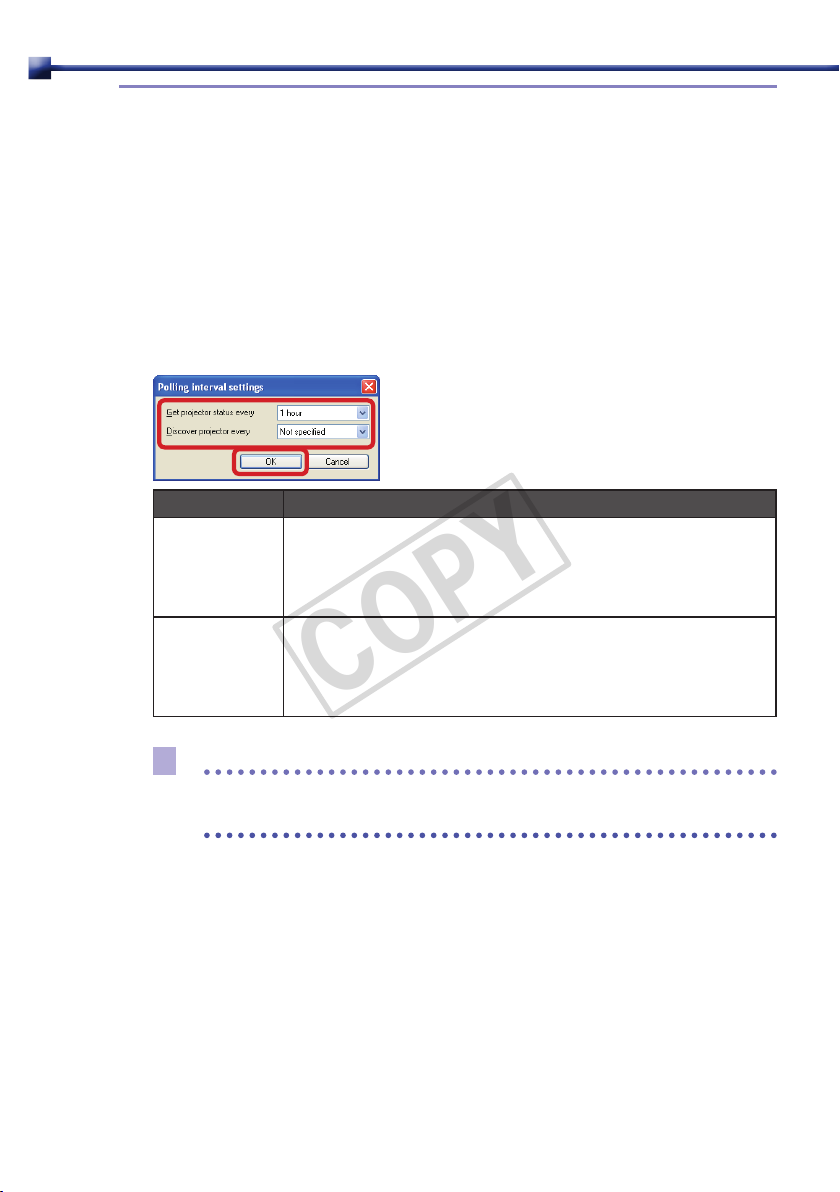

Select [Polling interval settings] from the [Option] menu.

[Polling interval settings] dialog will display.

Select a polling interval from the pop-up menu beside [Get projector status

every]and[Discoverprojectorevery],andclick[OK].

Category Description

Get projector

status every

Select a polling interval from "10 minutes/15 minutes/30 minutes/1

hour/Notspecified",forreceivingstatusoftheprojector.If"Not

specied"ischosen,pollmanuallywith[Refreshprojectorstatus]

from the [View] menu.

Discover

projector every

Select a polling interval from "1 hour/2 hour/3 hour/6 hour/12

hour/24hour/Notspecied",fordiscoveringnewprojectors. If"Not

specied"ischosen,pollmanuallywith[Discoverprojector]fromthe

[View] menu.

Note

Settings will be cancelled if [X] (Close) or [Cancel] button is clicked before-

clicking the [OK] button.

COPY

Otros manuales para REALiS SX80 Mark II D

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Software de Canon

Canon

Canon 9320A010 - EOS Rebel XSi Starter Manual de usuario

Canon

Canon 6864A001AA - PowerShot A20 2MP Digital... Manual de usuario

Canon

Canon PowerShot A520 Instrucciones de montaje

Canon

Canon VB-M40 Manual de usuario

Canon

Canon 1000D - EOS Rebel XS Transcend 8GB Memory... Manual de usuario

Canon

Canon CanoScan D646U Manual de usuario

Canon

Canon 0273B001 - Elura 90 Camcorder Manual de usuario

Canon

Canon MultiPASS C50 Guía de seguridad

Canon

Canon 70 MC - ZR70MC MiniDV Digital Camcorder Manual de usuario

Canon

Canon 0286B001 - Optura S1 Camcorder Manual de usuario

Canon

Canon CANOSCAN D660U Manual de usuario

Canon

Canon D1250U2F - CanoScan USB Flatbed Scanner Manual de usuario

Canon

Canon EOS-1D Mark II Digial Guía de inicio rápido

Canon

Canon WebView LivescopeMV Manual de usuario

Canon

Canon CanoScan FB 1200S Manual de usuario

Canon

Canon PowerShot SD430 DIGITAL ELPH WIRELESS Guía de seguridad

Canon

Canon CR-DGi Manual de usuario

Canon

Canon PowerShot S95 Guía de inicio rápido

Canon

Canon REALIS WUX10 MARK II D Manual de usuario

Canon

Canon CanoScan D646U Manual de usuario

Canon

Canon WebView Livescope Manual de usuario

Canon

Canon REALiS SX80 Mark II D Manual de instrucciones

Canon

Canon 2689B001 - DC 330 Camcorder Manual de usuario

Canon

Canon HG-10 Manual de usuario

Manuales populares de Software de otras marcas

COMPRO

COMPRO COMPROFM Manual de usuario

Muratec

Muratec OFFICEBRIDGE ONLINE Manual de usuario

Oracle

Oracle Contact Center Anywhere 8.1 Manual de usuario

Adobe

Adobe 65007312 - Photoshop Lightroom Manual

Avaya

Avaya NULL One-X for RIM Blackberry Manual de usuario

HP ProLiant BL420c Manual de usuario

PS Audio

PS Audio PowerPlay Manual del propietario

Brady

Brady LOCKOUT PRO 3.0 Manual de servicio

Avaya

Avaya Interaction Center Manual de usuario

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manual

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario

Oracle

Oracle Application 9i Manual de usuario

Acer

Acer RDM Manual de usuario

Samsung

Samsung Auto Backup Manual de usuario

Polycom

Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manual de usuario

Novell

Novell SP2 - S Manual de instrucciones

Lexmark

Lexmark Apps Manual de servicio
