Canon EOS-1D Manual de instrucciones

EOS-1D REF.NO.C12-6001

CANON Ni-MH PACK NP-E3

C50-8041,2

CANON NECK STRAP L4

C56-1731

CANON INTERFACE CABLE C50-8061

IFC-200D6

CANON DC COUPLER KIT C50-8051

DCK-E1

PARTS

CATALOG

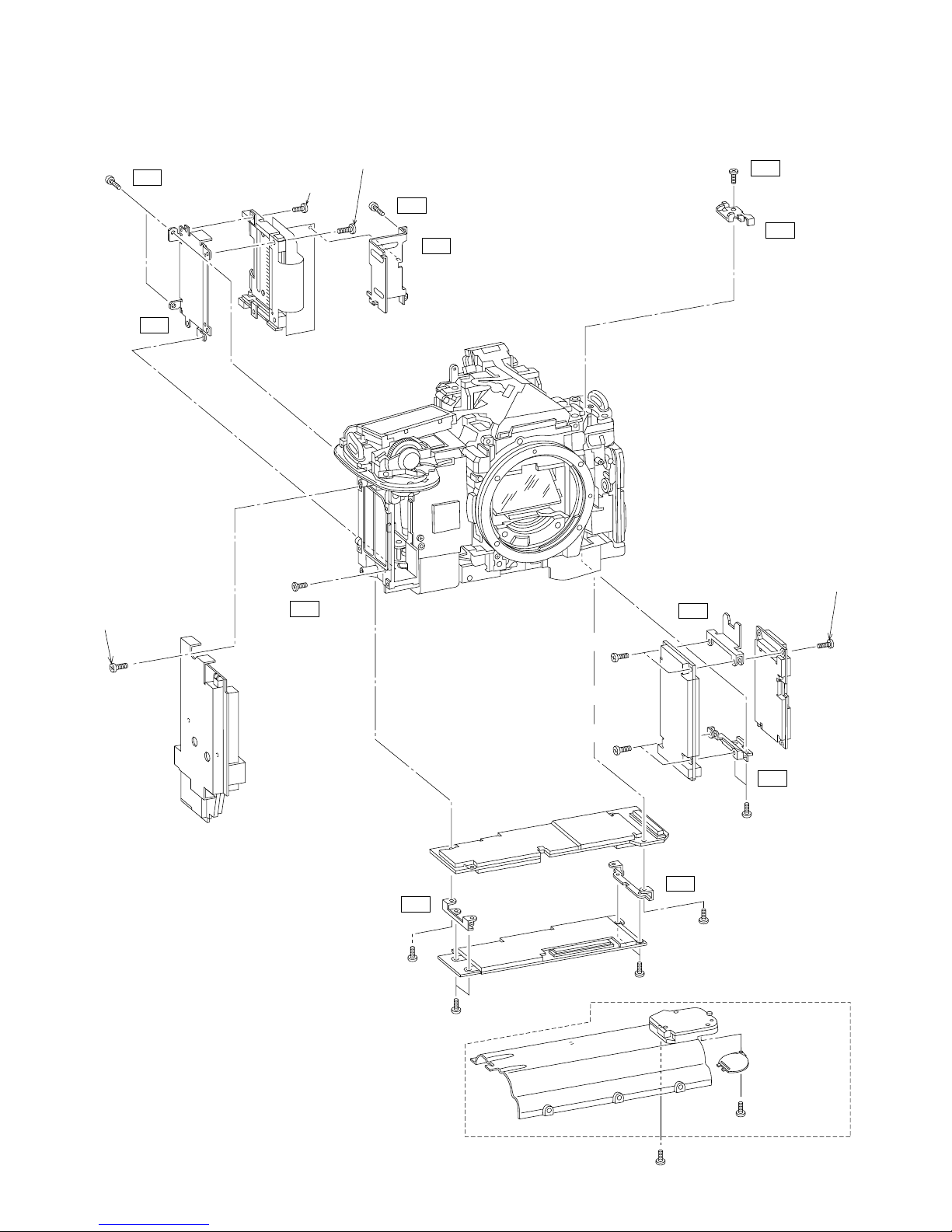

CANON DIGITAL CAMERA EOS-1D

REF. NO. C12-6001

(See Pg. 7)

(See Pg. 2)

XA1-7170-207 x2

XA1-7170-307 x4

XA1-7170-707

CB4-0038 x4

XA1-7170-457 x2

XA1-7170-707

XA1-7170-457

XA1-7170-307

CB3-0108

CB3-0203

CY3-1380

CB3-0109

CB3-0184

CB3-0146

CB3-0168

CB3-0171

CB3-0172

CB3-0167

CB3-0147

CB3-0188

(CB3-0210)

CB3-0110

CB3-0102

CB3-0123

CG2-0732

REF.NO.C12-6001

PARTS LIST

PG1

NEW PARTS No. CLAS

QTY DESCRIPTION

*CB3-0102-000 B1

COVERING, BACK

*CB3-0108-000 B1

TAPE, DOUBLE SIDED1

(

BACK

)

*CB3-0109-000 B1

TAPE, DOUBLE SIDED2

(

BACK

)

CB3-0110-000

B1TAPE, DOUBLE SIDED3 (BACK)

*CB3-0123-000 B1

COVERING, CF

*CB3-0146-000 A1 SEAL, BACK BOTTOM-TR

*CB3-0147-000 A1 SEAL, BACK BOTTOM-GR

*CB3-0167-000 B1

COVERING, FRONT

*CB3-0168-000 B1

TAPE, DOUBLE SIDED

(

FRONT

)

*CB3-0171-000 C1

CAP, TERMINAL

*CB3-0172-000 C1

CAP, PC-REMOTE

*CB3-0184-000 A1SEAL, O RING TRIPOD

*CB3-0188-000 B1

COVERING, BOTTOM

CB3-0203-000

C1CAP, BATTERY

CB3-0210-000

C2TAPE, DOUBLE SIDED (TRIPOD)

*CB4-0038-000 C 4 SCREW, CROSS-RECESS, PH

*CG2-0732-000 B1 B-CONT HOLDER UNIT

*CY3-1380-000 C1

TRIPOD PLATE UNIT

XA1-7170-207 F 2 SCREW, CROSS-RECESS, PH

XA1-7170-307 F 5 SCREW, CROSS-RECESS, PH

XA1-7170-457 F 3 SCREW, CROSS-RECESS, PH

XA1-7170-707 F 2 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1D

REF. NO. C12-6001

A 0.015 SIZE

0.03mm (003)

CB3-0060-000(XXX) detail

0.05mm (005)

0.08mm (008)

0.10mm (010)

0.12mm (012)

0.15mm (015)

0.18mm (018)

0.20mm (020)

(See detail)

(See Pg. 3)

CB3-0164 CB3-0165

CB3-0166

CB3-0073

CB3-0065

CG2-0752

CY3-1371

CG2-0731

N.S

CB3-0060-000 x3

XA1-7170-357 x3

CB3-0073 x2

REF.NO.C12-6001

PARTS LIST

PG2

NEW PARTS No. CLAS

QTY DESCRIPTION

*CB3-0060-000

(

XXX

)

WASHER, FLANGE BACK

*CB3-0065-000 C2

SPRING, LOW PASS FILTER

*CB3-0073-000 C 4 SCREW, CROSS-RECESS, PH

*CB3-0164-000 B 1 COVERING, GRIP

CB3-0165-000

B1TAPE, DOUBLE SIDED 1 GRIP

CB3-0166-000

B1TAPE, DOUBLE SIDED 2 GRIP

*CG2-0731-000 B 1 PCB ASS'Y, IMAGE

*CG2-0752-000 B 1 PCB ASS'Y, LED

*CY3-1371-000 B 1 FILTER ASS'Y, LOW PASS

XA1-7170-357 F 3 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1D

REF. NO. C12-6001

(See Pg. 9)

(See Pg. 4)

(See Pg. 8)

CB1-9282

CB1-9367

CB1-9168

CB1-9367

CB1-9373

CB1-9195

CB1-9196

CB1-9373

CB3-0038

CB1-4255

CB3-0143

CB3-0211

CB4-0038

CB1-8581

CG2-0728

CA1-9402 x2

CB1-7982 x2

XA1-7170-507 x2

CB1-7982 x2

CB3-0130 x2

REF.NO.C12-6001

PARTS LIST

PG3

NEW PARTS No. CLAS

QTY DESCRIPTION

CA1-9402-000 C2

SCREW, CROSS-RECESS, PH

CB1-4255-000 C1

SCREW, CROSS-RECESS, PH

CB1-7982-000 C6

SCREW, CROSS-RECESS, PH

CB1-8581-000 C 1 SCREW, CROSS-RECESS, PH

CB1-9168-000 C1

EYEP SH LEVER

CB1-9195-000 C1

MASK , OLC

CB1-9196-000 C1

WINDOW, OLC

CB1-9282-000 C1

SCREW, CROSS-RECESS, PH

CB1-9367-000 B2

DIAL O-RING

CB1-9373-000 C2

EYEP SLIDER

*CB3-0038-000 C1

DIAL, EYEPIECE ADJUSTING

CB3-0130-000 B 2 SHIELD, LIGHT (OLC)

*CB3-0143-000 A1 SEAL, TOP-CAP

*CB3-0211-000 C 1 SEAL, INSULATING DC/DC

*CB4-0038-000 C 3 SCREW, CROSS-RECESS, PH

*CG2-0728-000 C 1 EYEPIECE COVER UNIT

XA1-7170-507 F 4 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1D

REF. NO. C12-6001

(See Pg. 5)

(XA1-7170-357)

(CB4-0423)

CB1-2678 x2

CB4-0038 x2

XA1-7170-257 x2

XA1-7170-407 x2

XA1-7170-407 x4

XA1-7170-257 x2

XA1-7170-357 x2

XA1-7170-167 x2

N.S

CG2-0748

CG2-0709

CG2-0711

CG2-0708

CG2-0710

CG2-0713

CG2-0725

N.S

REF.NO.C12-6001

PARTS LIST

PG4

NEW PARTS No. CLAS

QTY DESCRIPTION

CB1-2678-000 C 4 SCREW, CROSS-RECESS, PH

*CB4-0038-000 C 2 SCREW, CROSS-RECESS, PH

CB4-0423-000 C 1 COVER, BATTERY

*CG2-0708-000 B1

PCB ASS'Y, D1

*CG2-0709-000 B1

PCB ASS'Y, D2

CG2-0710-000

B1PCB ASS'Y, D3

CG2-0711-000

B1PCB ASS'Y, D4

CG2-0713-000

PCB ASS'Y, DC/DC

*CG2-0725-000 C1

BATT T PLATE UNIT

*CG2-0748-000 C1

PCB ASS'Y, CF

XA1-7170-167 F 2 SCREW, CROSS-RECESS, PH

XA1-7170-257 F 6 SCREW, CROSS-RECESS, PH

XA1-7170-357 F 3 SCREW, CROSS-RECESS, PH

XA1-7170-407 F 10 SCREW, CROSS-RECESS, PH

CANON DIGITAL CAMERA EOS-1D

REF. NO. C12-6001

CB3-0228 x2

CB1-8592

CB3-0223 x2

CA1-7531 x2

XA1-1200-959 x2

XA1-7170-507 XA1-7170-307

XA1-7170-507 x2

XA1-7170-357

XA1-7200-509 x2

XA1-7140-307 N.S

N.S

CG2-0724

CG2-0722

CY3-1388

CG2-0747

CG2-0723

N.S

(See Pg. 6)

(MAIN PCB)

(See Pg. 12)

(See Pg. 10)

(See Pg. 11)
