Bushnell CORE DS-4K Manual de usuario
DS-4K MODEL #119987C / S-4K MODEL #119949C
INSTRUCTION MANUAL
CORE DS-4K / S-4K
4
PIR Sensor
Video Mic
Daytime Lens
Nighttime Lens
(only on Core DS-4K)
Control Panel
Cover
USB Port
DC In (For optional
solar panel accessory)
Battery Tray
Tripod Socket
Light Sensor
Motion
Indicator
LED IR Flash
Latch
Lock Hole
CAMERA OVERVIEW
CORE DS-4K / CORE S-4K
5
Selector
Switches
Current Mode
Time Stamp
On
Field Scan On
Battery Life Countdown Timer
SD Card
Inserted
Capacity Left
Current Images
Captured
Current Image Resolution
(Megapixels)
SD Card Slot
View
Screen
Menu
Battery Tray
Release
Power On/Off
Battery Tray
VIEWSCREEN INDICATORS
9S
6

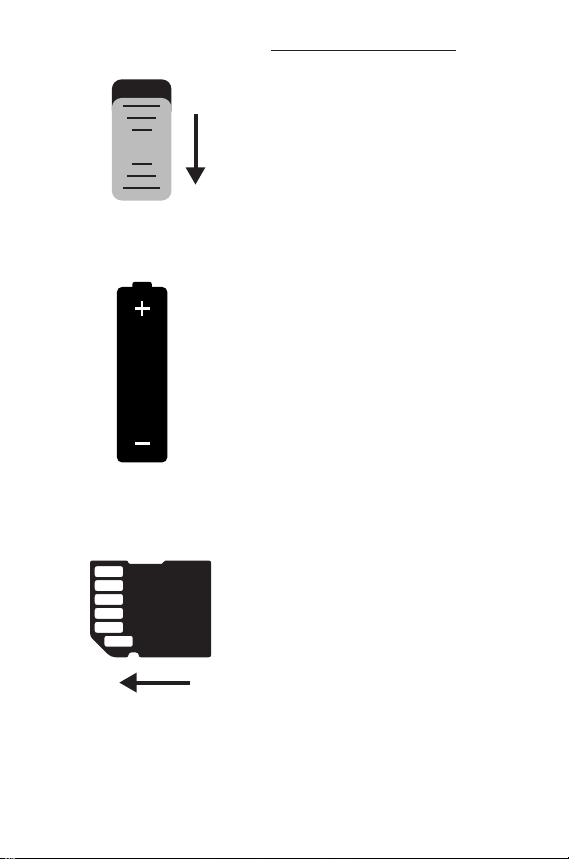

1. Make sure camera power
switch is in the OFF position.
2. Install 6 AA batteries (lithium
or alkaline, lithium batteries are
recommended).
3. Make sure the write-protect
switch on the side of the SD
card is “OFF” (not in the “Lock”
position.) Insert card (up to
512GB max). Do not insert or
remove an SD card with the
power switch in the ON position.
A “click” sound indicates the
card is installed properly.
QUICK START GUIDE
on
off
x6
7
4. Switch the power ON.
5. Set the date and time.
6. Mount the camera using the
tree strap.
on
off
Your camera is now ready to use at its default settings:
photo mode, 10 sec intervals between photos, medium
resolution, “Long Range” illumination mode. If you would like
to customize your settings, see the Settings Menu section.
If you have questions, call Customer Service: 800-423-3537
8
HELPFUL SETUP TIPS
LEARN YOUR CAMERA AT HOME FIRST
We highly recommend that you first spend some time indoors
with this manual and your camera to familiarize yourself with
the Settings Menu and various functions like Video capture,
as well as read the tips to help you mount it properly on a
tree (see Mounting & Positioning).
INSTALLING BATTERIES
To load or remove batteries, locate the Battery Release
Button. Press the button and the battery tray will release
from the bottom of the camera. The battery tray will stop
about ½ inch out of the device, this is a latch system to
prevent the tray from dropping onto the ground. Just apply
a little pressure when pulling and the tray will release. The
battery tray has six battery slots. Install a full set of 6
batteries. Be sure to insert each battery with correct polarity
(negative or “flat” end against the long spring of each battery
slot).
USING SD CARDS
Choosing A Card
Your camera requires a standard SD (Secure Digital) memory
card to save photos (.jpg format) and/or videos (.mp4 format).
It supports SD and SDHC (High Capacity) cards up to a
maximum 512GB capacity. We recommend high speed SD
cards (SanDisk® SDHC rated class 6 or higher) if you are
using the 1280x720 or 1920x1080 video settings.
Before Inserting
Make sure that the write-protect switch on the side of the
card is “Off” (not in the “Lock” position).
9
Inserting
Insert the SD card into the card slot with its label side facing
the front of the camera. A “click” sound indicates that the
card is installed successfully. If the wrong side of the card is
facing up, you will not be able to insert it.
Formatting
To assure the card is formatted to save images and video
correctly, format the SD card by using the “Format” option.
Removing
To remove the SD card, be sure the camera’s power is
switched OFF, then gently push the card in and release it
(do not try to pull it out without pushing in first). The card
is released from the slot and ready to be removed when you
hear the click.
CAMERA VIEWSCREEN
Check your viewscreen for the area your camera will see.
Note: maximum distance of your camera is listed in Technical
Specifications under Illumination Mode or on the box.
Use this option especially when a card
has been used in other devices.
10
MOUNTING & POSITIONING
After you’ve set up the camera’s settings to your
preferences, you’re ready start capturing images.
We recommend mounting the camera on a sturdy tree or
post with a diameter of about 6 in. To get the optimal picture
quality, the camera should be about 16-17 ft. away from the
place to be monitored, with the camera placed at a height of
3.5-5 ft. Also, keep in mind that you will get the best results
at night when the subject is within the ideal flash range, no
farther than 80’ and no closer than 10’ from the camera.
The height away from the ground for placing the device
should vary with the animal size appropriately. In general, 3
to 6 feet is preferred. You can avoid potential false triggers
due to temperature and motion disturbances in front of
the camera by not aiming it at a heat source or nearby tree
branches or brush (especially on windy days).
There are two ways to mount the camera:
• Using the provided adjustable belt: Push one end of the belt
through the two slots on the back of the trail camera. Thread
the end of the strap through the buckle. Fasten the belt
securely around the tree trunk by pulling the end of the strap
firmly so there is no slack left.
Strap Channel
Strap Buckle
11
USING A SOLAR PANEL ACCESSORY
You can connect an optional Solar Panel accessory
(model# 119986C) – please visit www.bushnell.com for
more information) to the “DC In” jack on the bottom of your
camera.
Other external power supplies should not be used, as the
camera and/or display may not function correctly. If the
solar panel is connected and AA batteries are installed, the
camera will be powered by the solar panel’s rechargeable lith-
ion battery, as long as it provides adequate voltage (if not,
the camera will switch to battery power). The solar panel’s
battery will power the camera at night.
• Using the tripod socket:
The camera is equipped with
a socket at the back (below
the strap brackets) to enable
mounting on a tripod or other
camera mounting accessories
that have a standard 1/4”-20
thread.
12
BUTTONS & FUNCTIONS OVERVIEW
Power Off
Function
• “Safe” mode when replacing the SD card or batteries.
• When transporting the camera.
• When connecting camera to a computer’s USB port to
download your photos/ videos.
• When storing the camera. NOTE: Remove batteries
before storing for a long time. In OFF mode, your camera
still consumes power at a very low level unless the
batteries are removed.
Power On
Function
• When you are ready for the camera to begin taking
photos or video. NOTE: After you switch the power ON,
the motion indicator LED will blink red for about 10
seconds. This allows time to close the front cover, lock
the latch, and leave the monitored area. The camera
will take photos or videos automatically according to its
current settings when the PIR sensors detect motion.
Menu
Function
• Press once to activate MENU options on view screen,
press again to go back to the home screen.
• Allows you to change your specific settings for date &
time, photos and videos. (See Settings Menu).
