Bushnell CELLUCORE 30 Manual de usuario

(COVER)



[BUSHNELLLOGO]



INSTRUCTIONMANUAL



[IMAGE–CELLUCORE30]



CELLUCORE30TRAILCAMERA



CELLUCORE30MODEL#119902,119902A,119902V







WELCOME



WelcometoyourBushnellTrailCamera!Thismanualhasalltheinstructionsyouneedtosetupyourcamera

andyouraccount,plusquickanswerstoyourquestions.



Ifyourcameradoesnotseemtobefunctioningproperlyorifyouarehavingimagequalityissues,pleasecheck

theTroubleshootingTipssection.



IfyourproblemcontinuesaftertryingthesolutionsinTroubleshootingTips,pleasecallBushnellCustomer

Serviceat(800)423‐3537.InCanada,call(800)361‐5702.



Note:ThisBushnelltrailcameraisnotdesignedor

intendedforoperationorsaleoutsideoftheUnitedStates.





TABLEOFCONTENTS



CameraOverview0

ViewscreenIndicators 0

QuickStartGuide0

SettingsMenu0

Mounting&Positioning 0

UsingAnExternalPowerSource 0

FrequentlyAskedQuestions 0

TechnicalSpecifications 0

TwoYearLimitedWarranty 0

CAMERAOVERVIEW





PIR Sensor

Antenna

LED IR Flash

Lens

Control

Panel Cover Latch

Lock Hole

Light Sensor Motion

Indicator

Battery Tray

SD Card Slot

FPO

Power On/Off Switch

Battery Panel

DC In

(For optional solar

panel accessory)

View

Screen

Left Right

Down

OK Button



VIEWSCREENINDICATORS





Current Image

Resolution (Megapixels)

Current Mode

Time

Stamp On

Battery Life

Countdown Timer

SD Card

Inserted

Current Images

Captured Image

Capacity Left



QUICKSTARTGUIDE



1. InstallthefreeBushnellWirelessTrophyCamapponyoursmartphonefromtheAppStore(iPhone®)or

GooglePlay®(Android®)



[IMAGE]



2. Opentheapp,thensigninorcreateanewaccount.



[IMAGE]



3. LoginandclicktheCameraiconatthebottomofthescreen,thenclick“+”toaddanewcamera.Scan

theQRcodeonthelabelinsideyourcameraagainormanuallyenteritsserial#toassociatethiscamera

withyouraccount



[IMAGE]



4. Removetheprotectiveplasticcoversfromthecameralens,PIRsensoranddisplayscreen,openingthe

latchesatthetopofthecameratoaccessthedisplayscreenontheinteriorcontrolpanel(seeParts

Guide).



[IMAGE]



5. Install12AAbatteries(Energizer®lithiumbatteriesarerecommended.Alkalinebatteriesmaybeused

butbatterylifewillbeshorter.Rechargeablebatteriesarenotrecommended).Besuretopositionthe

batteriesforcorrectpolarity(+/‐)wheninstalling



[IMAGE]



6. InstallanewSDcard,upto32GB.Highspeedcards(class6orhigher)arerecommendedifyouplanto

recordvideoclips.



[IMAGE]



7. Atthelocationwhereyouwillplacethecamera,movethepowerswitchtotheOnposition.The

camera’sdefaultsettingswerechosenfortypicalusageasascoutingcameraforhunters:photomodeat

2MPresolution,witha10secondintervalbetweenphotos,and“Medium”LEDflashpoweroutput.

Thesesettingsmaybeeasilychangedtosuityourindividualpreferencesorapplication(forexample,if

youwouldrathercapturevideos,orphotosatadifferentresolution,spacedfurtherapart),usingtheapp

onyoursmartphoneorhomecomputer.



8. Priortoclosingthecamera,ensurethecamerahasacquiredcellularsignalbycheckingthesignal

strengthmeterpicturedbelow.Lowersignalstrengthcancauseinterruptionsinserviceandshorter

batterylife.Mountthecamerausingtheprovidedtreestrapor1/4”‐20mountingsocket.Alevelingarm

toadjustthecamera’sangleisprovidednearthelowerrearofthecamera.



[IMAGE]



Yourwirelesscameraisnowreadytouse.Youcannowutilizethemobileapplicationor

managementwebsitetoreviewimages,changecamerasettings,monitorbatterylifeandother

functionsofthecamera.



Android®andGooglePlay®areregisteredtrademarksofGoogleInc.iPhone®isaregistered

trademarkofAppleInc.







SETTINGSMENU



SetClock

Setsthehour(24‐hrformatonly,“00”=midnight,“12”=noon),minute,year,month,anddate.



Mode

Selectstheformatyourcamerawillrecordin.

Camera:Forphotosonly.

Video:Forvideosonly.

Hybrid:Aphoto(multiplephotos,ifNUMPICSisset>1)followedbyavideoclipwillbecapturedfor

eachPIRtriggerevent.



ImageSize

Choosestheimageresolutionandsize.Note:Largersizesmeanhigherimageresolutionsthattakeup

morespaceontheSDcard.Mediumistherecommendeddefaultforgoodresolutionandsmallersize.



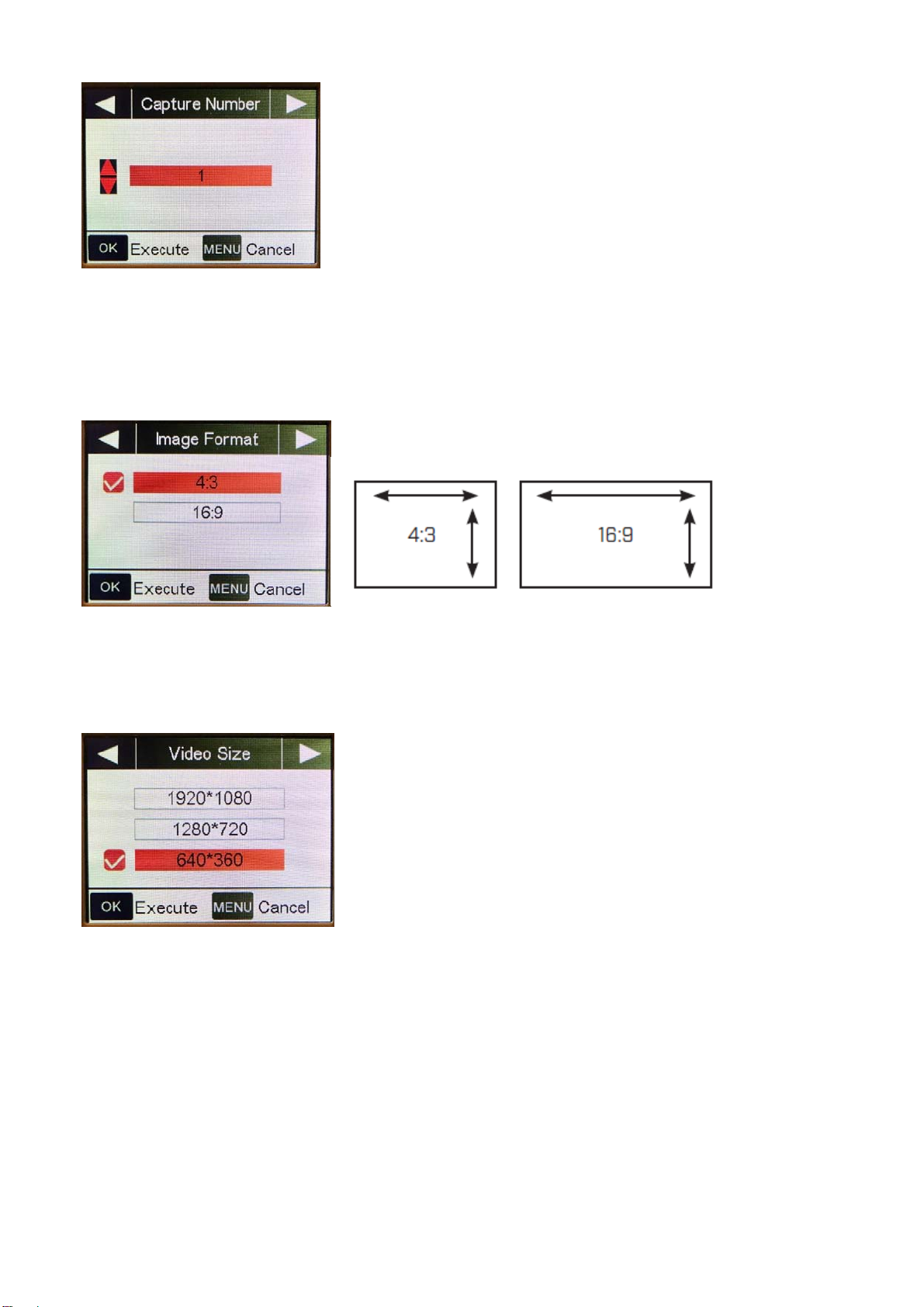

CaptureNumber

Selectshowmanyphotosaretakeninsequencepertrigger.Thissettingaffectsphotostakenin

Camera,Hybrid,andFieldScanmode.



ImageFormat

Selectstheaspectratioofyourphotos.



VideoSize

Selectsvideoresolution.

3840x2160:Maximumresolution,takesupthemostspaceonyourSDcard.

1920x1080:Therecommendeddefaultresolution,clearresolutionwithoutfillingupyourSDtoofast.

1280x720:Lowestresolution.Goodforvideoswhenresolutionisnotcritical.

Note:WerecommendSanDisk®SDHCclass10orhigher.



VideoLength

Setslengthpervideoclip.10secondsistherecommendeddefault.PressOKtoseeotheroptions.

Nighttimelimitof15secondswhenIlluminationMode=“LongRange”.The“Dynamic”settingprovides

avariablevideolength,basedonanimalactivitywithinPIRrangeandyourIntervalandIllumination

Modesettings.



CameraName

Allowsyoutoenteranameforyourcamerathatwillappearontheimagetimestamp.PresstheOK

buttontochoose“Input”andgotothenameinputscreen.Ifnecessary,selectthearrowintheupper

rightofthekeyboardtoerasethecurrentcameraname,thenenterthenewnameusingthearrow

buttonsandkeyboard.PresstheOKbuttontoselectaletter.

PressMENUtosavethenametomemory.



PIRDelay

Selectsthelengthoftimethatthecamerawill“wait”untilitrespondstoanyadditionaltriggersfrom

thePIR.Settingsbeginwith5seconddefaultwhenparameterisfirstselected.Tochooseother

intervals,pressOK,andselectbyusingthearrowbuttons.

Theshorteryourdelay,themoreimagesyou’llget.


