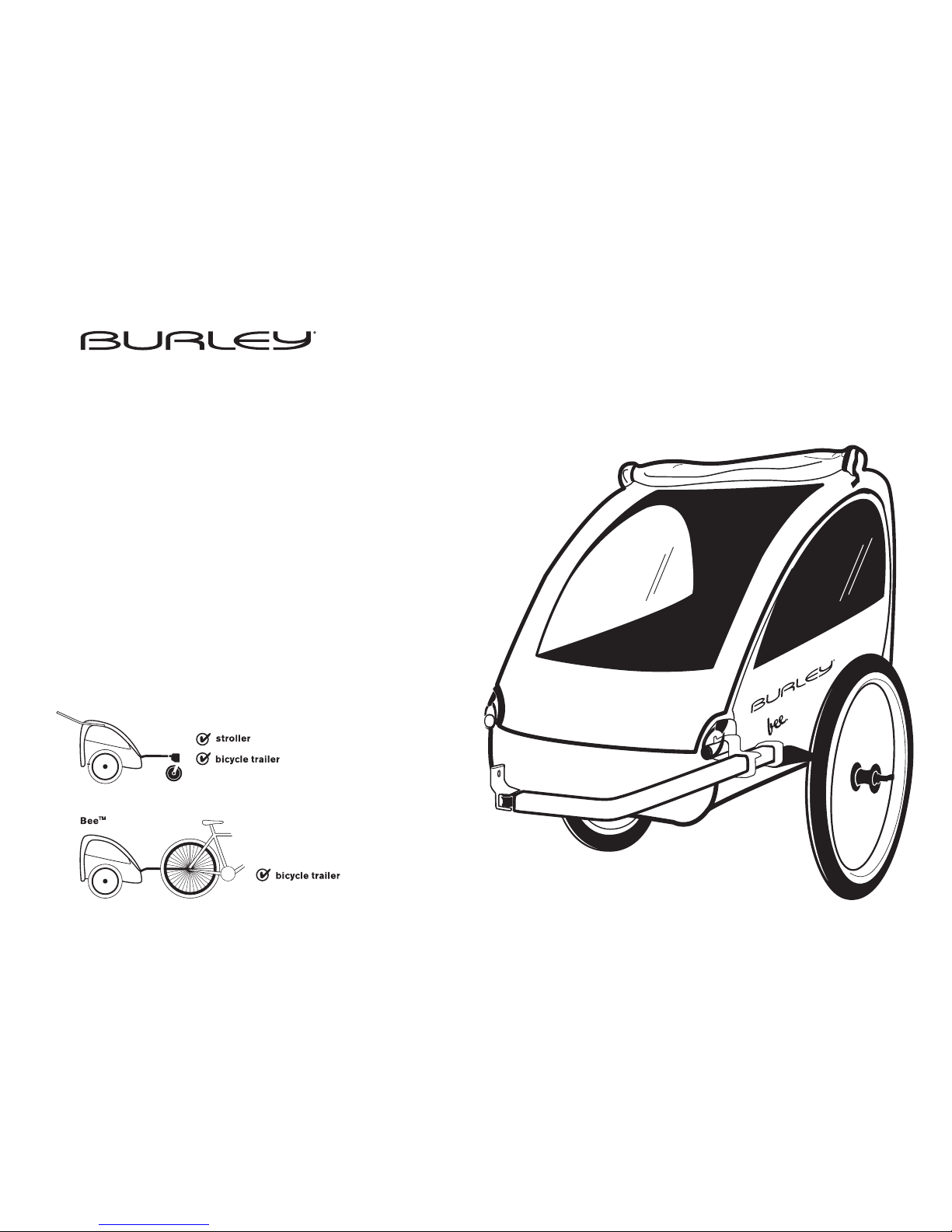

Burley Bee™and Honey Bee™

Owner’s Instruction and Safety Manual

Burley Bee™ model shown

Designed For One

Or Two Children

Honey Bee™

Contents

3Introduction

3Safety Guidelines

4Tool List

4Opening Your Trailer

5Attaching the Seat

5Mounting Reﬂectors

5Installing Wheel Guards

6Attaching Wheels

6Using Parking Brake (Honey Bee)

6Installing and Operating Tow Bar

7Using Stroller (Honey Bee)

8Attaching Handle (Honey Bee)

8Installing Safety Flag

8Installing Cover

9Using Seat Harness

9Hitching Trailer to Your Bicycle

10 Safety Checklists

10 Maintenance and Storage

11 Replacement Parts and Diagram

12 Warranty

child trailer

Burley Bee™and Honey Bee™

Owner’s Instruction and Safety Manual

Congratulations!

Your Burley®trailer is the leading choice of discriminating

bicycle trailer owners worldwide. Every effort has been made

to ensure your purchase is of top quality and proven design,

ready to provide you with many years and miles of happy,

safe trailering.

Please go to www.burley.com to register your

warranty information.

Introduction

Once you’ve done the initial assembly and read the safety

guidelines, you’re ready to go! Before trailering, be sure you have

the safety harness, seat belt, tow bar, trailer wheels and hitch

securely attached.

Note: Any reference to left or right is made in direction of travel,

as if you were sitting inside trailer, looking forward.

Safety Guidelines

1. Inspect and maintain your bicycle and trailer regularly.

See “Safety Checklists”.

2. Because of the trailer’s additional weight, a bicycle pulling a

trailer is heavier and less responsive. Avoid sudden swerving,

rocks and curbs. Experiment with the loaded trailer in an

uncongested area until you become familiar with it.

3. The minimum age for the cyclist is 16 years.

4. The maximum trailer load limit for children and/or cargo

is 100 lbs/40 kg (in Europe). Load children and/or cargo

securely in the center, forward of the axle and as low

as possible.

5. The trailer seat is intended for 1 or 2 children who are old

enough to wear helmets, sit upright and alone, and with

adequate neck strength to hold their heads upright while

trailering. A physician should evaluate anyone who is of

questionable developmental age for trailering.

6. The maximum age for passengers is 6 years (Honey Bee) or

3 years (Bee). Never carry a child whose sitting height (with

helmet) is above the roll bar.

7. Fasten the seat belt and shoulder harnesses so that each

child is held securely. Seat a single child in the center.

Periodically check the placement of the shoulder straps,

especially on sleeping children.

B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L |3

IT IS VERY IMPORTANT FOR YOU TO FAMILIARIZE YOURSELF WITH YOUR BURLEY BY

READINg THIS ENTIRE MANUAL BEFORE USE. IF YOU HAVE ANY qUESTIONS, PLEASE

CONTACT YOUR AUTHORIZED BURLEY DEALER.

IMPORTANT:

BICYCLINg WITH A TRAILER, AND BICYCLINg IN gENERAL, CAN BE HAZARDOUS.

FAILURE TO OBSERVE ANY OF THE SAFETY gUIDELINES IN THIS MANUAL COULD

RESULT IN ACCIDENT AND SERIOUS INjURY OR DEATH.

WARNING

4 |B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L

8. Make sure children cannot put a finger into the wheel

spokes.

9. Instruct children not to bounce or lean, as a weight shift

could cause trailer to tip over.

10. To protect children from flying debris, always use your cover.

Open or close the window cover to keep your children

comfortable. Never leave children unattended. Check

children frequently, especially during hot or cold weather.

11. Observe recommended speeds: a maximum of

15 mph/24km/h on smooth, straight roads and

5 mph/8km/h or less when turning or on uneven roads.

12. Use your parking brake (Honey Bee) or bring the trailer to a

complete stop before removing your children or cargo.

13. Never pull your trailer with a motorized vehicle.

14. Cyclist and passengers must wear helmets.

15. Only use factory-supplied wheels, with the tires inflated

to the pressure recommended on the tire side wall. Check

pressure before each use. Do not use higher-pressure or

knobby tires.

16. Clamp the hitch securely to the bicycle frame, and check for

a tight attachment before each ride.

17. Use the safety flag.

18. Do not make alterations to the trailer. Contact your

Authorized Burley Dealer for replacement of any damaged,

worn-out or missing parts.

19. Do not use your trailer on icy roads or when inclement

weather makes cycling hazardous.

20.The use of a mirror on your bicycle is recommended.

21. For emergencies, breakdowns or flat tires, pull completely off

the road and move your children to a safe area before

doing repairs.

Tool List:

Bee:™Phillips screwdriver

Honey Bee:™Phillips screwdriver

5mm hex wrench

25mm (or 1”) wrench

Opening Your Trailer

Rotate front tube upward and rear tube back until they meet on

plastic saddles. Figure 1 Rotate frame locks and snap

onto rear tube. Figure 2

TRAILERS CAN TIP OVER, CAUSINg DAMAgE TO TRAILER AND SERIOUS INjURY

TO PASSENgERS. AVOID CAUSES OF TIP OVER, ESPECIALLY:

•

CHILDREN LEANINg OR BOUNCINg

• HITTINg POTHOLES, CURBS, OTHER ROAD OBSTRUCTIONS

• TAkINg TURNS TOO FAST

• SUDDEN SWERVINg

• IMPROPER WHEEL INSTALLATION OR TIRE INFLATION

WARNING

CHECk THAT THE FRAME LOCkS ARE PROPERLY ENgAgED BEFORE USINg THE

TRAILER. FAILURE TO DO SO CAN RESULT IN SERIOUS INjURY.

WARNING

B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L | 5

Attaching the Seat

Attach hooks on seat sides to D-rings by windows. Always keep

these attached while trailering.

Mounting Reflectors

1. Snap posts on red reflectors (C) into bracket openings, and

screw together.

2. Loosen screws on reflector brackets. Slide bracket

clamps (A) onto rear side sections of main frame tube (B)

and tighten screws, with reflectors extending out past trailer

sides. Figure 3

Installing Wheel Guards

Match holes in wheel guards with holes on outside of lower side

frames. Install guards using (2) M6 x 35mm screws inserted

from inside the frame. Tighten securely. Figure 4

MAkE SURE REFLECTORS FACE OUTWARD. INCORRECTLY INSTALLED REFLECTORS CAN

REDUCE VISIBILITY AND CASE AN ACCIDENT OR SERIOUS INjURY.

IMPORTANT:

Figure 3

Mounts

horizontally

to frame

Figure 4

Wheel Guard

6 |B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L

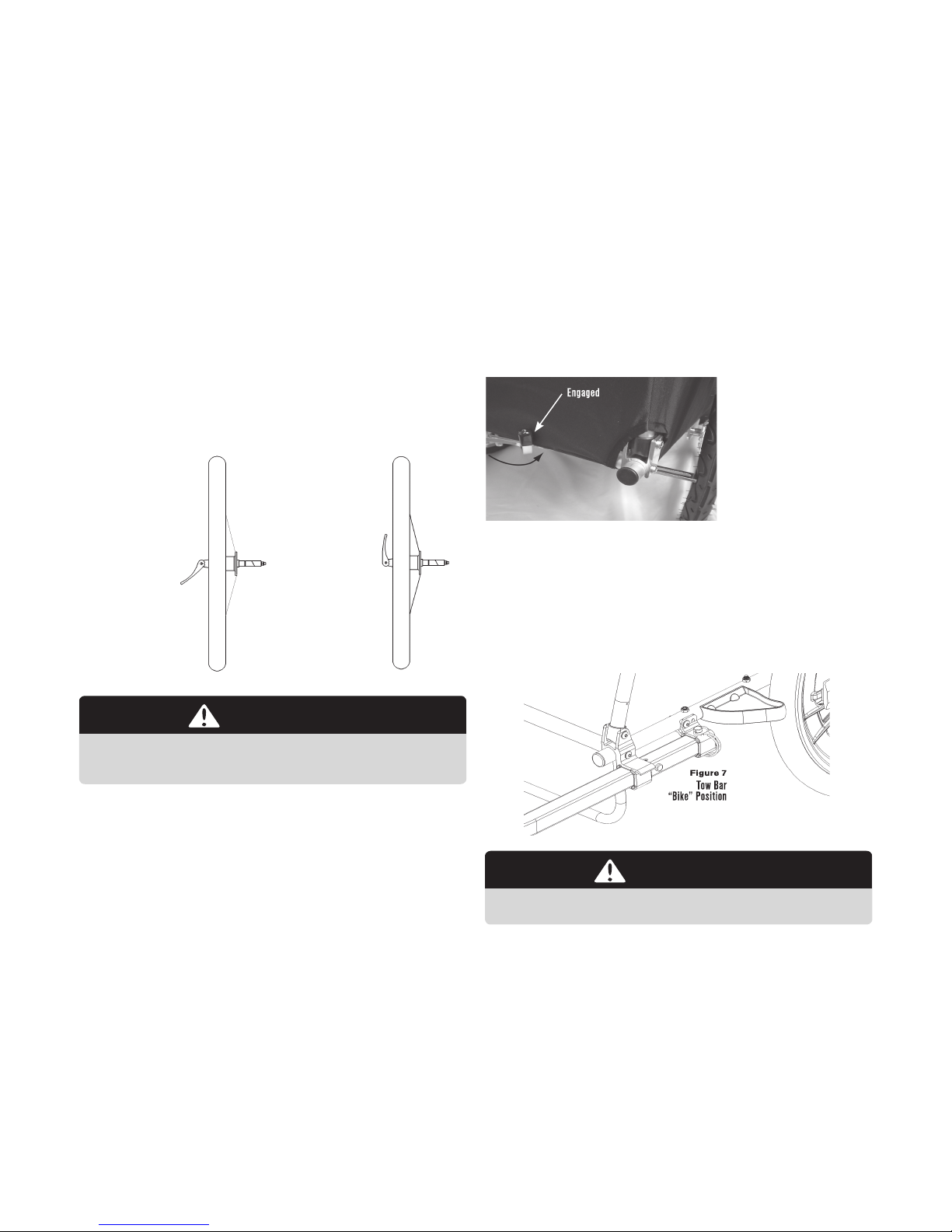

Attaching Wheels

Insert wheel axle assembly completely into trailer axle. Tighten

quick release lever, with lever in “CLOSED” position and aimed

at trailer rear. Verify that tires are inflated to pressure marked on

tire side wall. Figures 5 and 6

Using Parking Brake (Honey Bee)

Engage parking brake by pushing handle to the right. Photo 1

Installing and Operating Tow Bar

1. Slide tow bar through both receptacles on the LEFT side.

2. Line up BACK tow bar hole with rear receptacle hole.

3. Insert retaining pin through rear holes, and lock hoop

securely. Figure 7

4. Honey Bee: Engage parking brake and tighten knob to

secure stroller wheel in “Bike” position.

Using

WARNING

NEVER OPERATE TRAILER WITHOUT RETAINING PIN LOCKED IN PLACE. AN UNLOCKED

TOW BAR CAN LOOSEN OR DETACH, CAUSING ACCIDENT RESULTING IN SERIOUS INJURY.

WARNING

MAKE SURE WHEELS ARE HELD SECURELY, WITH WHEEL SHAFT FULLY INSERTED INTO

HOLLOW AXLE. YOU SHOULD NOT BE ABLE TO ROCK OR SHIFT WHEELS. IMPROPERLY

INSTALLED WHEELS CAN FALL OFF, CAUSING AN ACCIDENT OR SERIOUS INJURY.

Figure 5 Figure 6

Quick-release lever

in unlocked

“Open” position

Quick-release

lever in locked

“Closed” position

Photo 1

B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L | 7

Stroller (Honey Bee):

1. Engage parking brake.

2. Place stroller wheel in “Stroll” position and secure by

tightening knob.

3. Slide tow bar through both receptacles and line up FRONT

tow bar hole with rear receptacle hole.

4. Insert retaining pin through both holes and lock retaining

hoop securely. Figure 8

5. Test tracking adjustment by pushing trailer. Trailer should roll

straight.

Note: For best results, adjust with trailer fully loaded.

To Adjust Honey Bee Stroller Wheel Tracking:

1. Tighten knob to secure stroller wheel in “Stroll” position.

2. Loosen bolt using 5mm hex wrench.

3. Turn bushing using 25mm (or 1”) wrench so that stroller

wheel is vertical when viewed from front.

4. Fine tune as necessary, so that trailer rolls straight.

5. Tighten bolt. Figure 9

8 |B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L

Attaching Handle (Honey Bee)

1. Slide handle into lower handle bar receivers and tighten

knobs. To change height position, flip handle over. Figure 10

2. Around center of handlebar, slide tether strap end through

small loop on other end of strap and tighten securely. Photo 2

Installing Safety Flag

Bee

Join two flag sections together. On outer left side of trailer,

insert flag pole into flag pocket.

Honey Bee

Insert flag pole into hole in top of LEFT handle bar receiver. Figure 10

Installing Cover

Bee: Snap cover onto top of frame.

Honey Bee: At top of frame, stretch elastic loops around

handlebar mounts.

Both: Attach cover to trailer front and back with fastener strips

and O-rings.

DO NOT USE TRAILER WITHOUT SAFETY FLAg.

IMPORTANT:

Handlebar

Flag

Flag Installation

Hole

Knob

Handlebar

Installation

Photo 2

B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L | 9

Using Seat Harness

One passenger:

1. Place child in seat center.

2. Snap shoulder straps into Y-buckle, with

buckle positioned at child’s sternum.

Adjust straps so that child cannot move

too far forward in seat.

3. Fasten and adjust lap belt snugly. Figure 11

Two passengers:

For two children, use both shoulder

harnesses and two outer crotch straps.

1. Seat first child on one side of seat.

2. Snap shoulder straps into Y-buckle, with

buckle positioned at child’s sternum.

Adjust straps so that child cannot move

too far forward in seat.

3. Repeat for second child.

4. Fasten and adjust lap belt snugly. Figure 12

To remove children, release lap belt and

harness buckles.

Hitching Trailer to Your Bicycle

1. Remove quick release lever assembly from bike.

2. Match hole on flat side of hitch upper arm to left (non-chain

ring side) rear dropout hole.

3. Reassemble quick release assembly through hitch and

dropout loosely.

4. Slide hitch receiver end of tow bar between hitch side arms,

and match holes. Racks, bags, or fittings should not interfere

with hitch.

5. Open retaining pin and insert through holes. Rotate and close

spring clip.

6. Tighten and close

quick release lever,

with lever pointing

to rear

of bike.

7. Wrap safety strap

twice around inside

of chain stay and

then over hitch

body. Fasten hook

to D-ring on underside of tow bar end. Figure 13

8. To remove trailer from bicycle, unfasten D-ring and

retaining pin.

SINgLE PASSENgER: MUST BE SEATED IN CENTER POSITION.

IMPORTANT:

WARNING

ALWAYS SECURE CHILDREN WITH HARNESS AND LAP BELT DURINg USE. ONLY USE

THIS SEAT IF YOUR CHILD IS CAPABLE OF SITTINg UPRIgHT ALONE. FAILURE TO DO SO

COULD RESULT IN ACCIDENT AND SERIOUS INjURY OR DEATH.

qUICk RELEASE LEVER MUST BE IN CLOSED POSITION AND HITCH SAFETY STRAP

PROPERLY INSTALLED. HITCH MUST NOT INTERFERE WITH RACkS, BAgS OR FITTINgS.

INSPECT HITCH AND TOW BAR FREqUENTLY FOR DAMAgE OR LOOSE FASTENERS.

DAMAgED, IMPROPERLY INSTALLED OR INTERFERINg PARTS CAN CAUSE ACCIDENTS

RESULTINg IN SERIOUS INjURY.

WARNING

Adjust and tighten

Connect

Adjust and tighten

Connect

1 0 |B U R L E Y C H I L D T R A I L E R O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L

Safety Checklists

Before Each Ride:

lWheels tightly attached

lTires inﬂated to recommended pressure on side wall

lHitch properly secured with safety strap in place

lLocked retaining pin for tow bar

lMaximum load 100 lbs/40 kg (in Europe)

lBicycle safety check, especially brakes and tires

lHelmets for passengers and cyclist

lSafety ﬂag in place

lSeat fastened securely to trailer

lChildren properly secured with harnesses and lap belt

Monthly Checklist

lInspect tow bar, hitch, frame tubing, ﬂex connector

and hardware for damage

lInspect tires for wear and cracks

lInspect wheels for trueness and cracks

lInspect wheel bearings for wear

lInspect fabric parts for rips, abrasion, or missing or

damaged hardware

lContact your Authorized Burley Dealer for replacement of any

damaged or worn-out parts

Maintenance and Storage

Hitch and Tow Bar Maintenance

Store trailer indoors if possible. Do not use or store trailer at

temperatures below 32˚F (0° C), as hitch flex connector can

become brittle and possibly break, causing accident resulting in

serious injury.

Fabric Care

Hand wash fabric parts with mild soap or detergent and warm

water. For heavy soiling, use a nylon bristle brush. Do not use

bleach. Line-dry trailer cover. Polyester fabric will eventually

fade, especially when exposed to direct sunlight. Wipe dry

(to help avoid mildew) and store out of direct sunlight in a dry,

well-ventilated area, or use a Burley Trailer Storage Cover to

protect your trailer. Cover window may crack if trailer is stored

below 32°F (0°C). Replace any damaged parts.

Otros manuales para BEE

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para bicicletas de Burley

Burley

Burley Moose Rack Manual de instrucciones

Burley

Burley FLATBED Manual de instrucciones

Burley

Burley Moose Rack Manual de usuario

Burley

Burley Solo Jogger Manual de usuario

Burley

Burley child trailer Manual de instrucciones

Burley

Burley NOMAD RACK Manual de instrucciones

Burley

Burley ALTERNATIVE HITCH Manual de usuario

Burley

Burley COHO XC Manual de usuario

Burley

Burley BEE Manual de usuario

Burley

Burley PICCOLO Manual de instrucciones

Burley

Burley BEE Manual de instrucciones

Burley

Burley BARK RANGER Manual de instrucciones

Burley

Burley Hitch Flex Connector Manual de usuario

Burley

Burley Cub Manual de instrucciones

Burley

Burley d'lite ST Manual de instrucciones

Burley

Burley d'lite Guía de configuración

Burley

Burley Tail Wagon Manual de usuario

Burley

Burley Plus Trailercycle Bike Conversion Kit Guía de configuración

Burley

Burley ENCORE Manual de usuario

Burley

Burley SOLO Manual de instrucciones

Burley

Burley Travoy Manual de usuario

Burley

Burley FLATBED Manual de usuario

Burley

Burley D'Lite X Manual de instrucciones

Burley

Burley Ski Kit Manual de instrucciones

Manuales populares de Accesorios para bicicletas de otras marcas

Sigma

Sigma BC 16.16 Manual de usuario

Playcore

Playcore Dero Setbacks Manual de usuario

VDO Cyclecomputing

VDO Cyclecomputing x3dw Manual de usuario

Cateye

Cateye RAPID X2 Manual de usuario

buratti meccanica

buratti meccanica Clorofilla Trail Manual de usuario

Shimano

Shimano SG-8R20 Instrucciones de funcionamiento

BOB

BOB YAK Manual de usuario

APLIC

APLIC 303303/20190717TW012 Manual de usuario

SRAM

SRAM AXS BlipBox Manual de usuario

Garmin

Garmin EDGE 500 Manual de usuario

Shimano

Shimano FD-RX810 Manual de usuario

Cateye

Cateye V2C - Manual de instrucciones

KMART

KMART 43115907 Manual de usuario

SIGMA SPORT

SIGMA SPORT Buster 2000 Manual de usuario

NVO Components

NVO Components STEM Manual de usuario

DAXYS

DAXYS BP188 Manual de usuario

XLC

XLC BV-W17 Manual de usuario

Deda Elementi

Deda Elementi SUPERBOX Manual de usuario
