Burley d'lite Manual de instrucciones
Contents
Introduction 2
I. Hardware Bag Contents and Tool List 3
II. Mounting the Reflectors 3
III. Installing the Quick-Release Levers 4
IV. Attaching the Wheels 5
V. Unfolding and Folding Your Burley d’Lite 6
VI. Using the Seat Harness 11
VII.
Padded Seat & Shoulder Harness,
Child Seat Recliner™, Recessed Helmet
Pocket™, and Child Seat Divider™
13
VIII.Completing Assembly 15
IX. Hitching a Burley d’Lite to Your Bicycle 17
X. Trailer Maintenance and Care 18
XI. Safety Guidelines 19
XII. Safety Checklists 25
XIII.Parts List and Drawing 26
Warranty 28
d’Lite
Owner’s
Instruction
&
Safety
Manual
2
Burley d’Lite Owner’s Instruction and Safety Manual
Congratulations!
You’ve just purchased a Burley® trailer,the leading choice of discriminating
bicycle trailer owners worldwide.Every effort has been made to ensure your pur-
chase is of top quality and proven design,ready to provide you with many years
and miles of happy,safe trailering.
IMPORTANT: Because some of the features and guidelines for using
the Burley d’Lite merit close attention, it is very important that you
familiarizeyourselfwiththetrailerbyreadingthisentiremanualbefore
use. If you have any questions, we encourage you to contact your
authorized Burley dealer.
Introduction
Your Burley d’Lite is shipped almost completely assembled from the factory. This
manual is written sequentially to assist initial setup.You need only to:
- Install the quick-release levers
- Mount the reflectors
- Attach the wheels
- Unfold the trailer
- Install the safety flag and snap on the cover
Once you've read the safety guidelines,you're ready to go! Before trailering,
be sure you have a thorough understanding of the safety harness and of trailer
hitch operation.Practice folding and unfolding your trailer;it can easily be done
in less than a minute after practice,no tools required.Check to see that the trailer
wheels and hitch are securely attached. We again request that you read this
manual from start to finish before use,and then refer to it as necessary in the
future.
NOTE: Any reference to left or right is made in the direction of travel,
as if you were sitting in the child seat looking forward.
When Loaning or Selling Your Trailer
If you loan or sell your Burley d’Lite,supply the new user with this manual.They
must familiarize themselves with all sections—especially sections“XI.Safety
Guidelines”and“XII.Safety Checklists”prior to use.It is essential that they under-
stand the differences between riding a bicycle with a trailer and without one.It
is also essential that they understand correct wheel attachment,folding,and use
of the harness,safety flag,cover,and hitch.Always ensure that both adult and
children are wearing helmets.Never loan your trailer if it is need of maintenance
or repair.
3
Burley d’Lite Owner’s Instruction and Safety Manual
I. Hardware Bag Contents and Tool List
IMPORTANT: Please verify that you have received all of the contents
listed.Donotproceedwithassemblyifanypartsaremissing;contact
Burley immediately for replacement parts.
Hardware Bag Contents
Reflectors: Quick-Release Levers:
(2)Front reflector, clear (2) Quick-release lever
(2)Rear reflector, red
(4)Self-tapping screw, reflector
Envelope: Tools Required:
Trailer Checklist 5/16", 8mm or small adjustable wrench
Warranty Card Small, straight blade screwdriver
Burley d’Lite Owner’s Instruction & Safety Manual
II. Mounting the Reflectors
REAR REFLECTORS:
1. With the trailer side panels in
folded position locate one of the
black molded hinges (A) at the rear
trailer corner.
2. At the top of the hinge locate the
screw hole (B) and reflector locating
boss (C).Each reflector has a screw
hole (D) and a location stub (E).
3. Take a red reflector and screw it
to the hinge as shown in the figure
below.Line the reflector hole (D) up
with the hinge screw hole (B) and
the reflector stub (E) with the hinge
locating boss (C).
4. Repeat the procedure with the
second red reflector,on the other
rear trailer hinge.
A
B
D
E
C
4
Burley d’Lite Owner’s Instruction and Safety Manual
FRONT REFLECTORS:
1. Locate one of the front
tongue mounts (A). Locate
the screw hole (B) and the
locating boss (C) on the front
tongue mount. Each reflec-
tor has a screw hole (D) and a
location stub (E).
2. Position the back face of
the reflector onto the front
of the tongue mount. Line
up the tongue mount screw
hole (B) with the reflector
screw hole (D) and the reflec-
tor stub (E) with the tongue
mount locating boss (C).
3. Insert the mounting screw thought the screw hole (B) in the rear of the tongue
mount and then into the reflector screw hole (D). Tighten the screw until it is
snug. Do not overtighten.
4. Repeat for the other side of the trailer.
III. Installing the Quick-Release Levers
In the bag with the reflectors you’ll find two quick-release levers.Install these
through the hollow axle of the wheel.Make sure the lever is on the flat sideofthe
wheel,the thumb nut is on the deep-dished side,and the springs are mounted
on each side as shown in the illustration below.
The quick-release
lever must be on
flat side of wheel
and thumb nut on
deep-dished side.
This ensures that the
lever will be on the
outsidewhenwheel
is properly installed.
Deep Dish
Quick Release Lever
Thumb Nut
Flat
A
B
C
E
D
5
Burley d’Lite Owner’s Instruction and Safety Manual
IV. Attaching the Wheels
First,verify that the tires are inflated to 30–35 P.S.I.Next,tip the trailer frame on its
back end.If you are working on a rough or dirty surface,lay down a cloth or other
protective barrier to avoid damage to your trailer.Move the quick-release lever
to the unlocked position and place the wheels into the dropouts,making certain
that the axles go all the way into the slots.
IMPORTANT: Wheels are dished off-center and must be installed so
that tires are offset away from side panels, closest to outer frame.
Dished wheels are a unique feature from Burley; they create a wider
track, and thus a more stable trailer.
Once the wheels are fully seated in the dropout slots,the quick-release lever
should be positioned so that it operates in the fore and aft direction.The lever
is marked for open or closed positions.Tighten the right-hand wheel by moving
the lever from the front (open) to the rear (closed) position.Tighten the left-hand
wheel by moving the lever from the rear (open) to the front (closed) position.Use
the thumb nut to adjust for correct spacing of the quick-release lever.
When properly adjusted,you will feel resistance halfway through tightening the
lever (when the lever is pointing straight out away from the trailer).If you are
unfamiliar with the use of quick-release levers,contact your Burley dealer for a
demonstration.
Thequick-releaseleveroperatesin
fore-aft direction (with lever below
the axle). The drawing shows left-
hand wheel in the closed position.
Correct Wrong
open
closed
6
Burley d’Lite Owner’s Instruction and Safety Manual
Make sure wheels are held securely; you should not be able to rock
or shift wheels. Improperly installed wheels can fall off, causing ac-
cident and serious injury.
Only use dished, 20 x 1.75 wheels supplied with Burley d’Lite. Do not
operatewithtiresinflatedabove35P.S.I.Failuretocomplycancause
trailer tip over, resulting in accident and serious injury to cyclist or
passengers.
V. Unfolding and Folding
Your Burley d’Lite
Your Burley d’Lite is designed with a lightweight
aluminum frame,complete roll cage,and bright-
colored polyester software.Setting it up or fold-
ing it down is accomplished in a few easy steps
as follows:
Raise the Side Panels
With the trailer frame lying flat,unfold the two
side panels so that they are vertical.You will find
the roll bar lying against the left side panel.Raise
it to a horizontal position and pull it into the
right roll-bar receptacle at the top of the right
side rail.Slip the safety pin through the hole
in the roll-bar receptacle to lock the roll bar in
place.Refer to the illustration on the following
page showing the locked posi-
tion of the safety pin.Connect
the buckles at the back of
the child seat and tighten the
straps.
IMPORTANT:Alwaysfastenupper
and lower buckles behind child
seat when using trailer.
7
Burley d’Lite Owner’s Instruction and Safety Manual
Tongue Installation and Operation
The tongue is the structure that connects the trailer to the bicycle hitch. It is
designed to be removed for storage and to adjust for either trailer or stroller use.
Tip your trailer frame on its back end. If you are working on a rough or dirty
surface,lay down a cloth or other protective barrier to avoid damage to your
trailer. To insert the tongue,slide it through the front and rear tongue mounts as
shown below. Depress the safety button to allow the tongue to insert past the
front tongue mount. The safety button will spring back out once it is completely
behind the front tongue mount.
Both safety pins must be locked in place before using trailer, oth-
erwiseroll baror tonguecould shiftand causean accidentor serious
injury.
Trailer Use
For use as a trailer,line up the rearmost hole on the tongue with the hole in the
rear tongue mount. Insert the pin through both holes. Once inserted,rotate the
pin’s spring clip to engage the pin underneath the tongue mount. Always check
to ensure the tongue is properly installed before using trailer.
Front Tongue
Mount
Pin
Rear Tongue
Mount
Button
Trailer Pin
Hole
Stroller Pin
Hole
Open Locked
8
Burley d’Lite Owner’s Instruction and Safety Manual
Always check that the tongue is properly installed before each use.
Failure to do so can result in serious injury or death.
Stroller Use (requires optional Walk n’ Roller™ kit)
Your Burley d’Lite is
ready for stroller use
with the purchase
of the optionalWalk
‘n Roller™ kit from
your local bike shop.
For strolling,slide the
tongue back until the
stroller pin hole on the
tongue lines up with
the hole in the rear
tongue mount.Depress
the safety button a
second time to allow the tongue to slide past the rear tongue mount.Be sure to
replace the pin through the rear tongue mount and the tongue,and then en-
gage the pin’s clip.This option brings the stroller wheel closer to the main body
to stroller easily in tight spaces.
DO NOT attempt to attach the bicycle with the tongue in the
stroller position. There will not be adequate clearance for a bicycle
wheel.
Tongue in Trailer
position
Pin locked through
Rear Tongue Mount
and Trailer Pin hole
9
Burley d’Lite Owner’s Instruction and Safety Manual
Installation and Use of the Handle
Your Burley d’Lite comes with a two-position handle that allows for easier ma-
neuvering of the trailer when it is not attached to your bicycle. The handle is also
an important part of the optional Burley Jogger Kit ™ and the optional Walk‘n
Roller™ kit. Both of these accessories are available at your local bike shop.
The handle for the d’Lite is installed quite easily. Simply depress the buttons on
either side of the handle and slide the handle into the handle bar receivers as
shown in the illustration below. The handle is designed for either a high or low
position depending on the height and comfort of the user. This position can be
changed by flipping the handle over and installing it as described above.
Parking Brake Operation
The pre-installed parking brake on your Burley d’Lite is used to keep the trailer
stationary when you park your bike or when using the optional Burley Jogger
Kit™ or BurleyWalk‘n Roller Kit™.
To engage the brake,
move the handle to
the left.
Simply move the
handle to the right to
disengage the brake.
10
Burley d’Lite Owner’s Instruction and Safety Manual

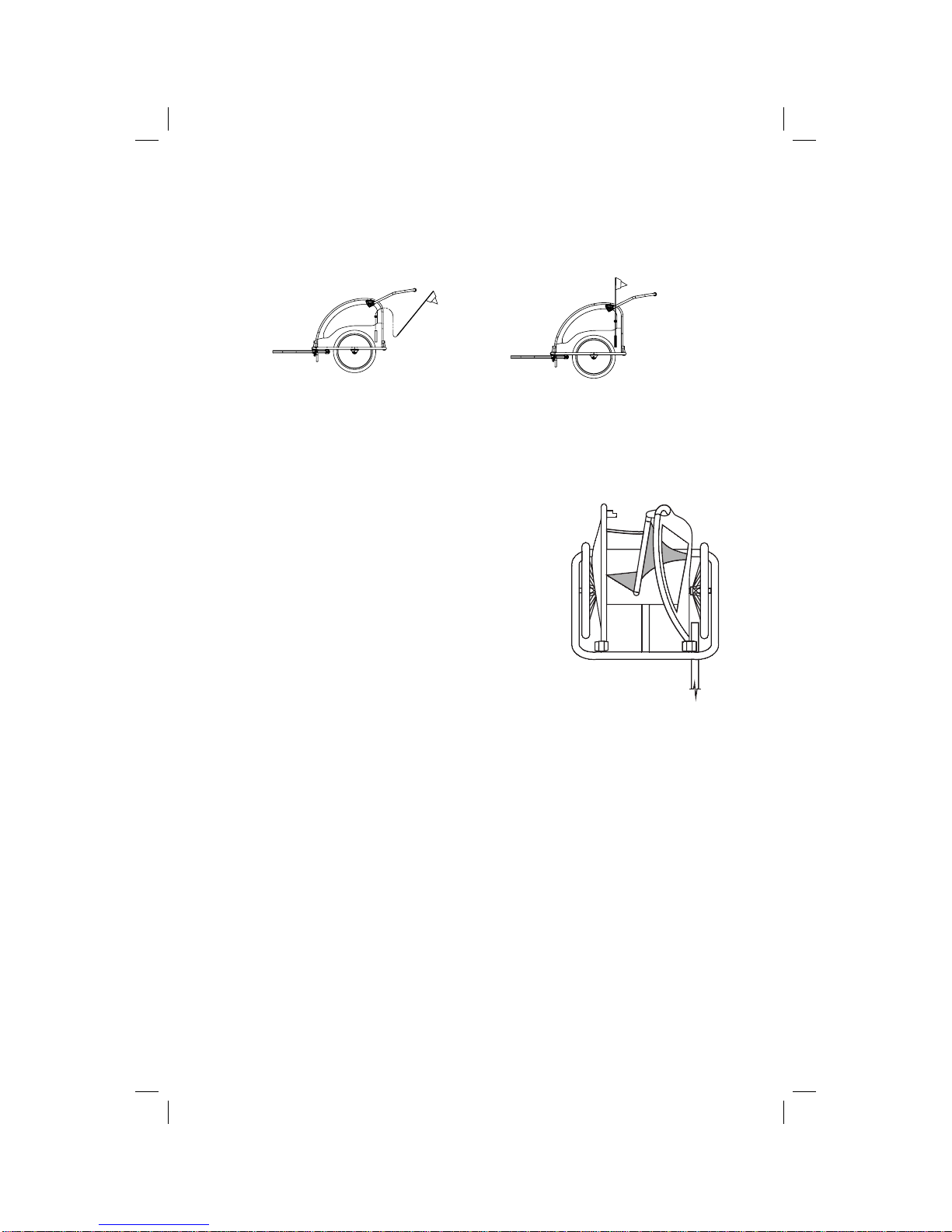

Installing the Safety Flag
Insert the safety flag pole through the loop of ½”webbing on the outside of the
trailer and into the flag pocket at the bottom left hand corner of the trailer as
shown below. DO NOT USEYOURTRAILERWITHOUTTHE SAFETY FLAG IN PLACE.
Folding Your Burley d’Lite
Folding your Burley d’Lite is basically the reverse of unfolding it.Familiarize your-
self with unfolding the trailer as outlined above.To fold your trailer:
1. Remove the safety flag and the handle.
2. Remove the safety pin at the roll bar and discon-
nect the two buckles at the back of the child seat.
Fold the roll bar against the side panel. Fold the left
side panel first, then the right side panel.
3. Remove the wheels and store them in a safe area
with the handle.
4. Remove the safety pin at the rear tongue lock.
5. Depress the safety button and slide the tongue
out of the trailer.
We recommend reinserting the safety pins in their receptacles for storage or
transport to avoid snagging.
You can partially fold your Burley d’Lite as needed.Your options are to fold only
the side panels,remove only the tongue and hitch,remove the quick-release
wheels,or any combination of the above. Do not operate your Burley d’Lite in a
partially folded condition.
Otros manuales para d'lite
6
Tabla de contenidos
Otros manuales de Accesorios para bicicletas de Burley
Burley
Burley NOMAD RACK Manual de instrucciones
Burley
Burley COHO XC Manual de usuario
Burley
Burley Tail Wagon Manual de usuario
Burley
Burley THRU AXLE Manual de usuario
Burley
Burley NOMAD RACK Manual de instrucciones
Burley
Burley ENCORE Manual de usuario
Burley
Burley BEE Manual de instrucciones
Burley
Burley Trailer Manual de usuario
Burley
Burley NOMAD RACK Manual de instrucciones
Burley
Burley KAZOO Guía de configuración
Burley
Burley NOMAD RACK Manual de instrucciones
Burley
Burley SOLO Manual de instrucciones
Burley
Burley child trailer Manual de instrucciones
Burley
Burley Cub X Manual de instrucciones
Burley
Burley COHO XC Manual de instrucciones
Burley
Burley Tail Wagon Manual de instrucciones
Burley
Burley Solo Jogger Manual de usuario
Burley
Burley PICCOLO Manual de usuario
Burley
Burley Ski Kit Manual de instrucciones
Burley
Burley DASH FM Manual de instrucciones
Manuales populares de Accesorios para bicicletas de otras marcas
Sigma
Sigma BC 16.16 Manual de usuario
Playcore
Playcore Dero Setbacks Manual de usuario
VDO Cyclecomputing
VDO Cyclecomputing x3dw Manual de usuario
Cateye
Cateye RAPID X2 Manual de usuario
buratti meccanica
buratti meccanica Clorofilla Trail Manual de usuario
Shimano
Shimano SG-8R20 Instrucciones de funcionamiento
