Bticino 344163 Polyx Memory Display Manual de usuario

344163

Polyx Memory Display

User guide

09/10-01 PC

User guide

1 Introduction and basic functions 6

1.1 General information 6

1.2 Your Polyx Memory Display: use it now! 6

1.2.1 Video door entry function keys 7

1.2.2 Navigation keys 7

1.2.3 Key for answering machine functions 7

1.3 Menu functions 8

1.3.1 Volume adjustment 10

1.3.2 Monitor adjustment (day/night) 11

1.3.3 Date/Time 12

1.3.4 Camera swing 13

1.3.5 Bells adjustment 14

1.3.6 Paging 15

1.4 Answering Machine 16

1.4.1 Message display 16

1.4.2 Record a "Memo" message 17

1.4.3 Record a Welcome message 18

1.4.4 Delete all messages 19

1.4.5 Settings 19

2 Trouble shooting 22

2.1 Push to Talk mode 22

3 Video door entry system functions 26

3.1 Activation 26

3.2 Intercommunication 26

3.3 Camera 27

3.4 Cycle cameras 27

3.5 Staircase lights 28

3.6 Call exclusion 28

4 Home automation functions 30

4.1 Scenarios 30

4.2 Alarms 31

4.3 Sound system 32

4.4 Temperature control 33

5 Services 36

5.1 The “Settings” menu 36

5.2 Services 37

5.2.1 Professional studio 37

5.2.2 Hands free 37

5.2.3 Door state 38

5.2.4 Alarm messages 38

5.3 Messages 39

Polyx Memory Display

IMPORTANT WARNING

On the rights of people involved in the taking of pictures and the recording of sounds.

• The Polyx Memory Display which you have purchased contains technological devices

which allow the taking of lms.

• The lms, sounds, voice and names are personal data – sometimes sensitive – and can be

the subject of copyright or other rights of intellectual ownership by third parties.

• Consequently, anyone using the equipment is obliged to respect:

– legislation regarding the protection of personal data;

– data security obligations;

– picture and portrait rights, as well as the regulations on copyright and

intellectual and industrial property.

• BTicino is not responsible for the illegitimate use of its equipment by its customers.

Polyx Memory Display

Introduction and basic functions

1.1 General information 6

1.2 Your Polyx Memory Display: use it now! 6

1.3 Menu functions 8

1.4 Answering Machine 16

User guide

1 Introduction and basic functions

The Polyx Memory Display offers the normal video door entry and

Video door entry system functions and can also interact with your

My Home system.

Fitting in with My Home

• Scenarios:

Runs the scenarios saved in the Scenario module.

• Alarms:

Signals the last alarm events which have occurred and the division

of the system.

• Sound system:

Manages the BTicino digital sound system.

• Temperature control:

Displays and adjusts the temperature in the various zones of the

home and the state of the control unit.

1.1 General information 1.2 Your Polyx Memory Display: use it now!

* It lights up when the bell volume is set to 0.

LCD screen note

The LCD screen has been manufactured using advanced high

precision technology. It is however possible that sometimes up to

5 small black or coloured dots (red, blue, green) may appear on the

LCD screen. This is an absolutely normal result of the manufactur-

ing process and is not indicative of a malfunction and/or fault.

1 - Microphone

2 - LCD 3.5” colour display

3 - Navigation keys

4 - Entrance panel and cycling

switching ON key

5 - Connection key

6 - Loudspeaker

7 - Door lock key

8 - Pushbutton for

enabling/disabling the

answering machine function

9 - Call exclusion LED *

Please note:

Incorrect use of the Polyx Memory Display and of all the devices

connected to it excludes any guarantee!

For cleaning only use a damp or antistatic cloth. Avoid the use of

alcohol or chemical detergents.

Polyx Memory Display

User guide

1.2.1 Video door entry function keys 1.2.2 Navigation keys

1.2.3 Key for answering machine functions

Activation Entrance Panel/Cycling

It activates the switching on of the associated

Entrance Panel and, if present, allows the cycling dis-

play of the other Entrance Panels/cameras.

Connection key

Activates/deactivates the audio connection.

When a call has been received the LED flashes; press

once to answer: the LED shines steadily.

At rest activates the paging function (if enabled).

Door lock key

When there is a call it opens the door lock of the

Entrance Panel from which the call was made, at rest

that of the associated Entrance Panel. The LED signals

that it is activated.

OK key

Allows access to the menu; confirms the selection

made.

C key

Returns to the previous screen, if already on the rst

screen, it can be used to turn the display o; during a

call, it can be used to switch from day to night mode,

and vice versa (see paragraph 1.3.2).

keys

Inside the menu they select the previous or next item.

- + keys

Inside the menu they change the value set.

In audio/video connection they allow rapid access to

the volume and monitor settings.

ON/OFF (if enabled by the installer)

Enable/disable the video door entry answering

machine (the red LED indicates activation).

NOTE 1: all answering machine functions are managed

by menù, access by a dedicated icon on menù.

NOTE 2: inside one single apartment,it is possible to

activate ONLY ONE answering machine.

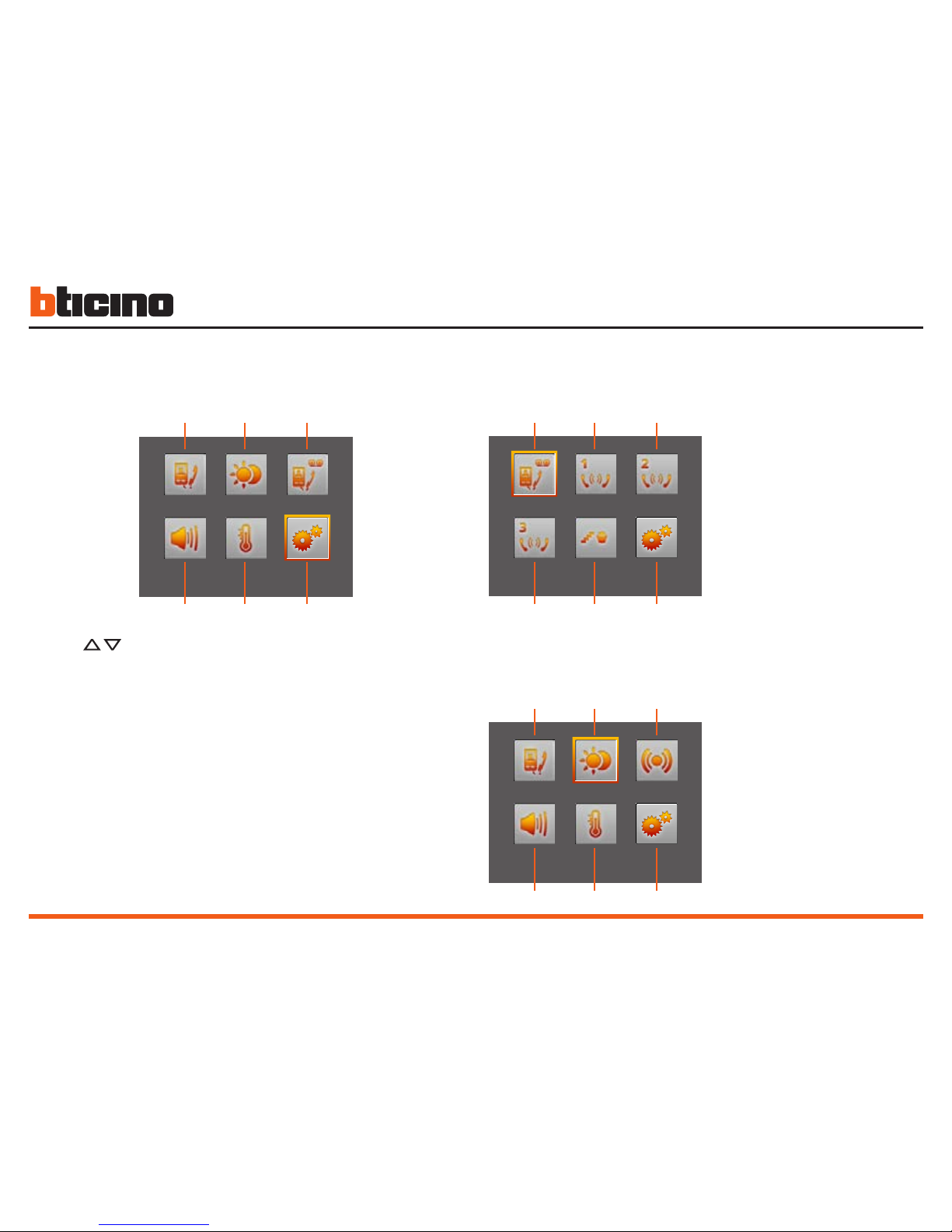

Three possible solutions for drawing up the main menu are given

below:

• menu with COMMUNICATION functions;

• menu with HOME AUTOMATION functions;

• CUSTOMISED menu.

Use the keys to select the functions from those available:

1 - Submenu and commands

2 - Use the settings icon to access a series of adjustments/services de-

scribed below

1 1 1

1 1 2

COMMUNICATION

Main menu example with programming of just the communication

commands.

HOME AUTOMATION

Main menu example with communication and home automation

submenu.

1.3 Menu functions

Use the OK key to access the main menu:

1 2 2

2 3 4

1 2 3

1 - Answering machine

2 - Intercommunication

3 - Staircase lights

4 - Settings

1 - Communication

2 - Scenarios

3 - Alarms

4 - Sound system

5 - Temperature control

6 - Settings

1 Introduction and basic functions

SCENARIOS

SETTINGS ANSW. MACHINE

4 5 6

Polyx Memory Display

User guide

The installer has given the exact configuration of your Polyx Memory

Display the tables below; if he has not filled it in ask for it.

COMMUNICATION

FUNCTIONS DESCRIPTION

HOME AUTOMATION

SUB-MENU SYSTEM FOUND

SCENARIOS

ALARMS

SOUND SYSTEM

TEMPERATURE CONTROL

CUSTOMISED MENU

The customised menu allows more intuitive use of the Polyx Memory

Display functions. In fact the menu only displays the functions in your

My Home system and the text of each command can be customised in

the installation phase.

Using the customised menu also lets you:

• Have the PROFESSIONAL STUDIO, HANDS FREE and ANSWERING

MACHINE functions, which otherwise can only be called from the

SETTINGS menu, in the main page or in another page.

1 2 3

4 5

1 - Communication

2 - Professional studio

3 - Hands free

4 - Answering machine

5 - Settings

SETTINGS

NOTE: During a video door entry call you can access the Adjustments

menu directly by pressing the - or + key.

1.3.1 Volume adjustment

Select

Adjustments

Press OK to access

the menu

Inside the menu

select one of the

items (e.g. Bells)

Adjust the volume

to the level required.

EP SOUND = sound volume when talking to the entrance panel.

Press OK

to confirm

INTERCOM = sound volume when holding an intercom conver-

sation.

BELLS = volume level for all the bells.

1 Introduction and basic functions

ADJUSTMENTS

VOLUME

BELLS
