Briggs & Stratton 020306-3 Guía de configuración

Model No. 020306-3 (2550 PSI (175.8 BARS) Pressure Washer) Manual No. 205301A Revision - (03/19/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

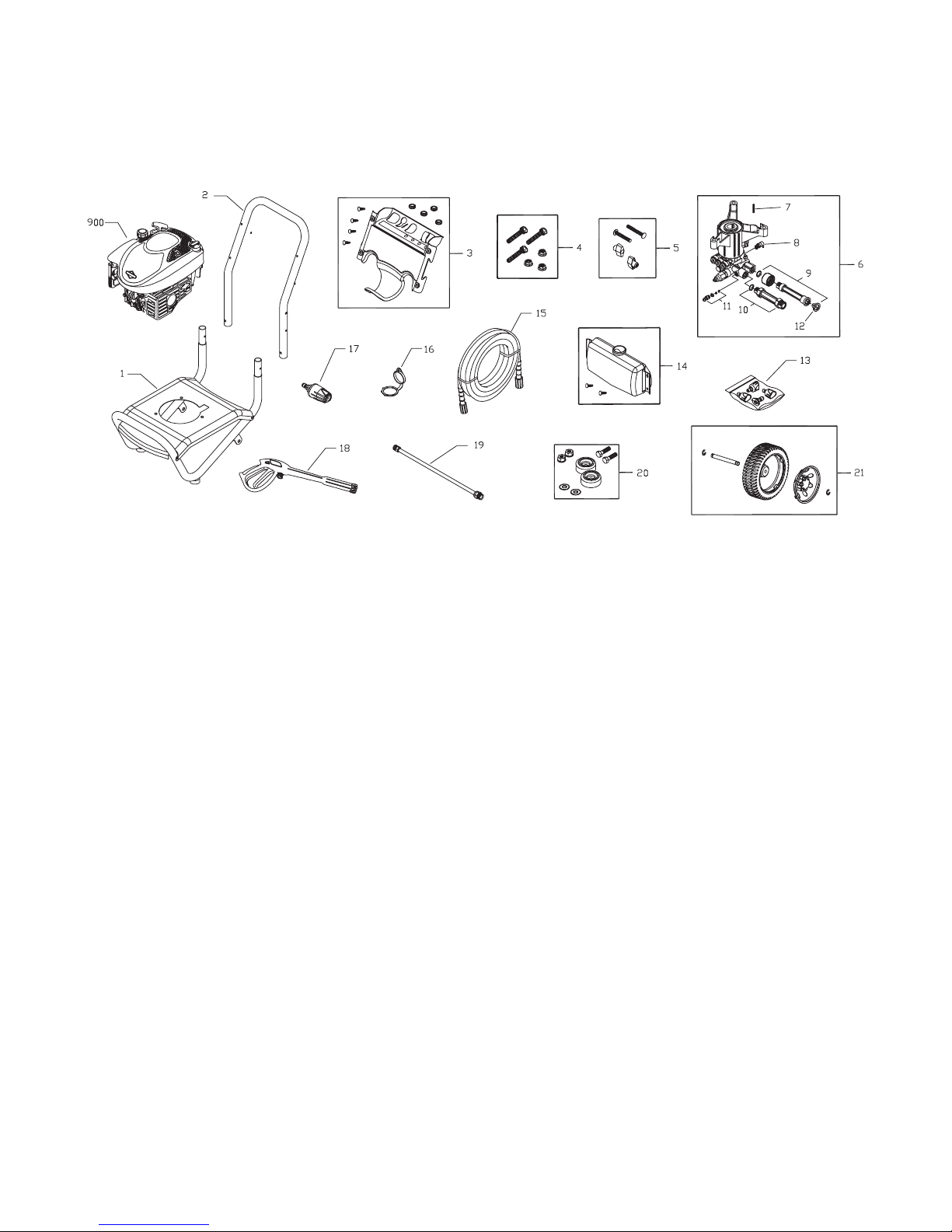

Exploded View and Parts List — Main Unit

tem Part # Description

1 202481GS BASE, w/Vibration Mounts

2 J199110GS HANDLE

3 202762GS KIT, Billboard Assy, w/Decals & Clips

195964GS Clip

30809GS Grommet

4 203526GS KIT, Pump Mounting Hardware

5 B2203GS KIT, Handle Connector

6 202274GS ASSY, Pump

7 23139GS Key

8 194298GS Valve, Thermal Relief

9 201496GS Kit, Water Inlet

10 201497GS Kit, Water Outlet

11 192914GS Kit, Hose Tail

12 B2384GS Filter, Inlet

13 202181GS KIT, Nozzle

201580RGS Nozzle, Project Pro, Yellow

201580XGS Nozzle, Project Pro, Orange

201580AEGS Nozzle, Project Pro, Red

198841GS Nozzle, Plastic, Soap

14 205369GS ASSY, Chemical Tank

192980GS Kit, Valve

195964GS Clip

15 202017GS HOSE

16 B3222EGS CAP, Chemical Container

17 198730GS ASSY, Turbo Max

Item Part # Description

18 204627GS GUN

19 200595GS EXTENSION

20 192310GS KIT, Vibration Mount

21 202483GS KIT, Wheel

203872GS Axle

200520GS Hubcap

192050GS E-Ring

900 § ENGINE

Items Not Illustrated:

205301GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

87815GS GOGGLES

A1040NGS HOSE, Chemical

794693 LABEL, Warning

794706 COVER, Static/Label Assy

200672GS DECAL, Caution, Hearing

202215GS DECAL, Eng, Shroud

195015GS KIT, Tag Warning, English/French

Optional Accessories

6039 PUMP SAVER

6048 KIT, O-Ring Maintenance

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.
