Model No. 020274-1 (3000 PSI (206.8 BARS) Pressure Washer) Manual No. 203768A Revision - (04/01/2008)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

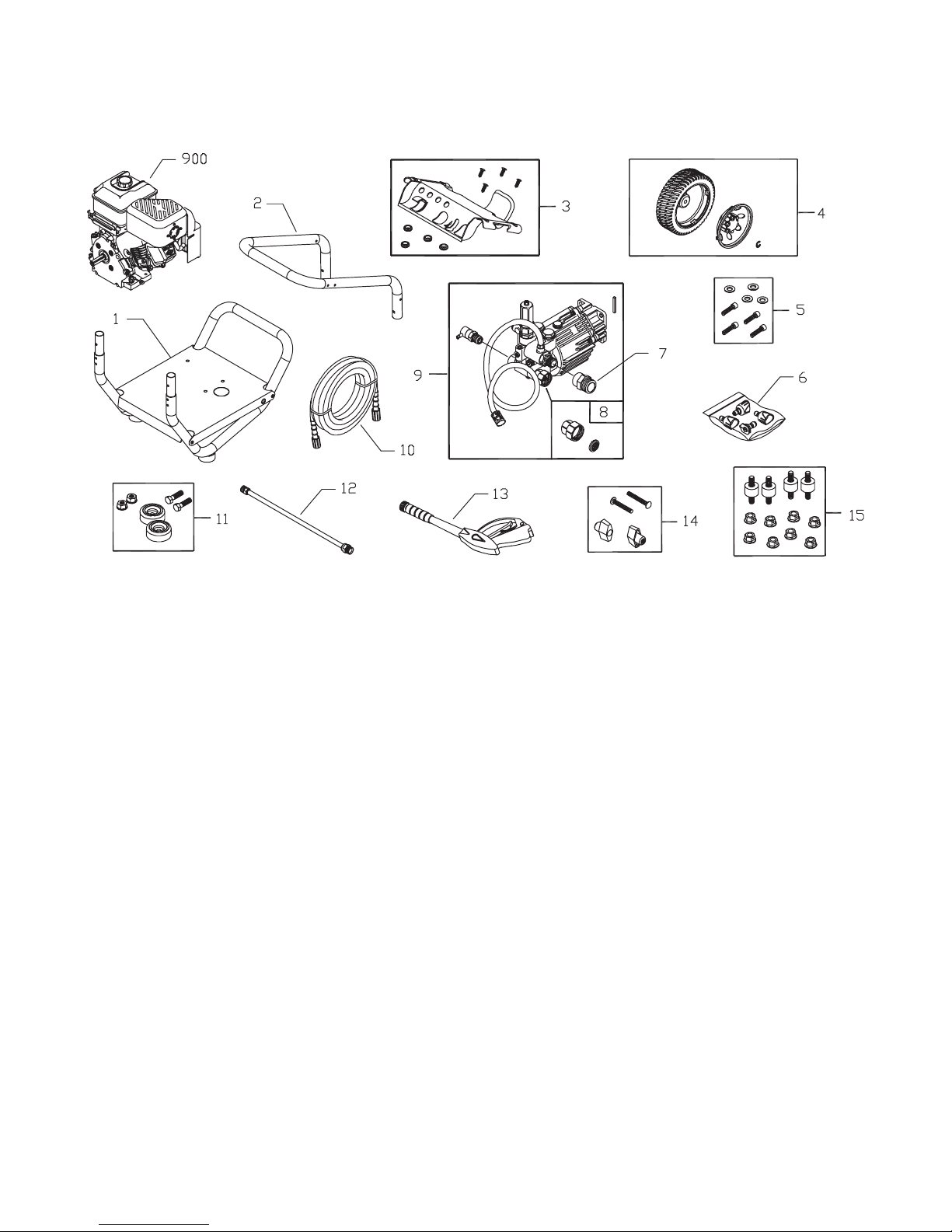

Exploded View and Parts List — Main Unit

Item Part # Description

1 203081GS BASE, w/Mounts

2 Y201499GS HANDLE

3 203082GS KIT, Billboard/Decals, w/Clips

195964GS Clips, Tree

30809GS Grommet

4 203083GS KIT, Wheel

200520GS Hubcap

192050GS E-Ring

5 192131GS KIT, Pump Mounting Hardware

6 202182GS KIT, Nozzle

201580RGS Nozzle, QC, Project Pro, Yellow

201580XGS Nozzle, QC, Project Pro, Orange

201580AAGS Nozzle, QC, Project Pro, Red

198841GS Nozzle, Plastic, Soap

7 95457GS ADAPTER

8 194004GS KIT, Inlet, Grdn Hose

9 202005GS ASSY, Pump

194298GS Valve, Thermal Relief

23139DGS Key

10 202634GS HOSE

11 192553GS KIT, Vibration Mount

12 200595GS EXTENSION, QC

Item Part # Description

13 199990GS GUN

14 B2203GS KIT, Handle Fastening

15 192134GS KIT, Engine Mounting Hardware

900 § ENGINE

Items Not Illustrated:

203768GS MANUAL, Operator’s

87815GS GOGGLES

BB3061BGS OIL BOTTLE

201314GS AXLE

695755 KNOB, Throttle

202494GS DECAL, Engine

202495GS DECAL, Air Cleaner

200658GS DECAL, Recoil

194256GS KIT, Tag Warning, w/Clip

Optional Accessories

6048 KIT, O-Ring

6039 PUMP SAVER

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

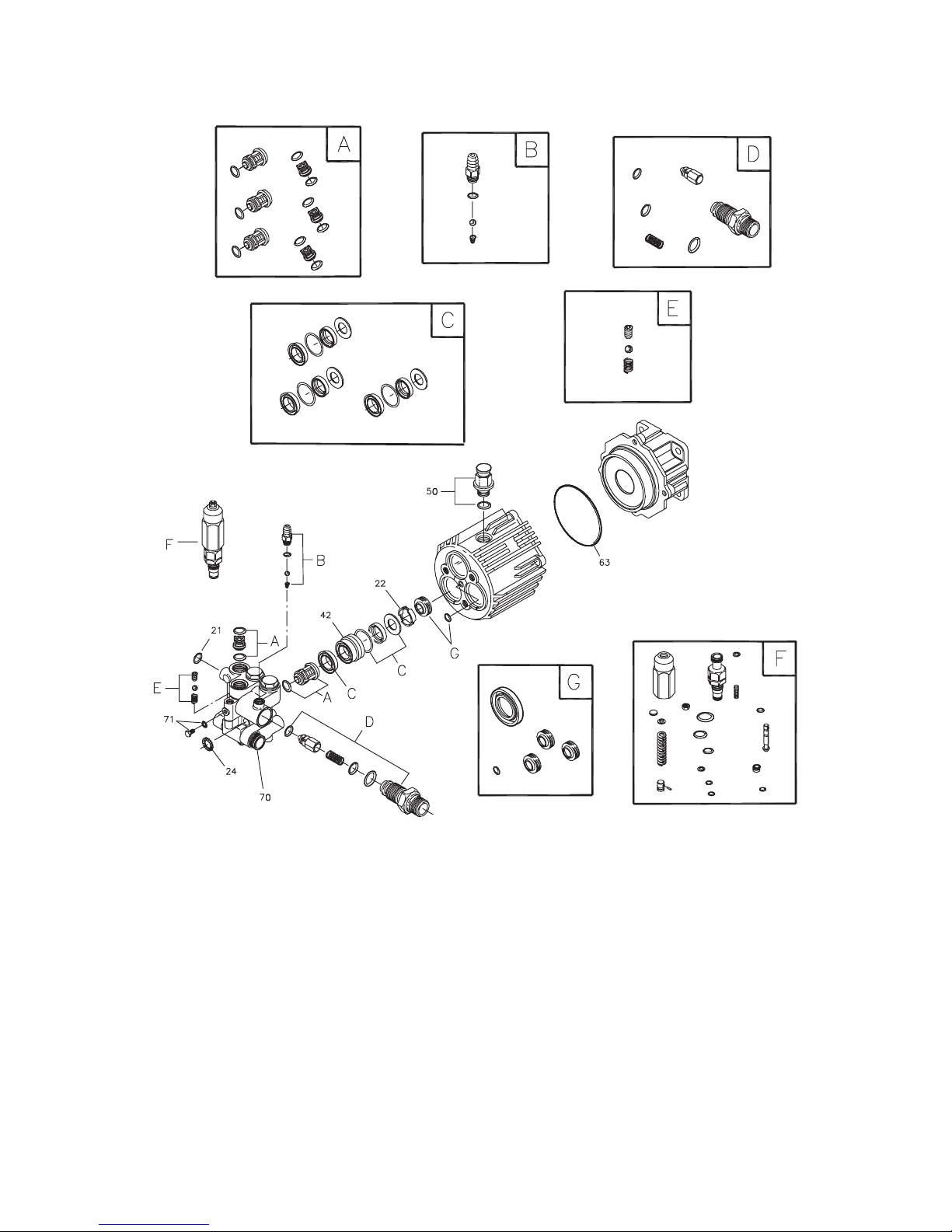

Exploded View and Parts List — Pump

Item Part # Description

21 194434GS O-RING

22 190639GS SPACER

24 190640GS WASHER

42 190646GS PISTON, Guide

50 198160GS VENT CAP, with O-Ring

63 194435GS O-RING

70 190654GS PUMP HEAD

71 190655GS GRUB SCREW & WASHER

A 190657GS KIT, CHECK VALVE

B 192914GS KIT, CHEMICAL INJECT

C 190660GS KIT, SEAL WATER

D 194426GS KIT, INJECTOR

Item Part # Description

E 194427GS KIT, BALL & SPRING

F 193126GS KIT, UNLOADER

G 194425GS KIT, SEAL OIL

Parts Not Illustrated

190585GS OIL BOTTLE

B2384GS FILTER, Inlet

NOTE: Item letters A - G are service kits and include all parts

shown within the box.
