Briggs & Stratton 20273 Guía de configuración

Manual No. 205755A Revision A (02/25/2008)

Illustrated Parts List

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

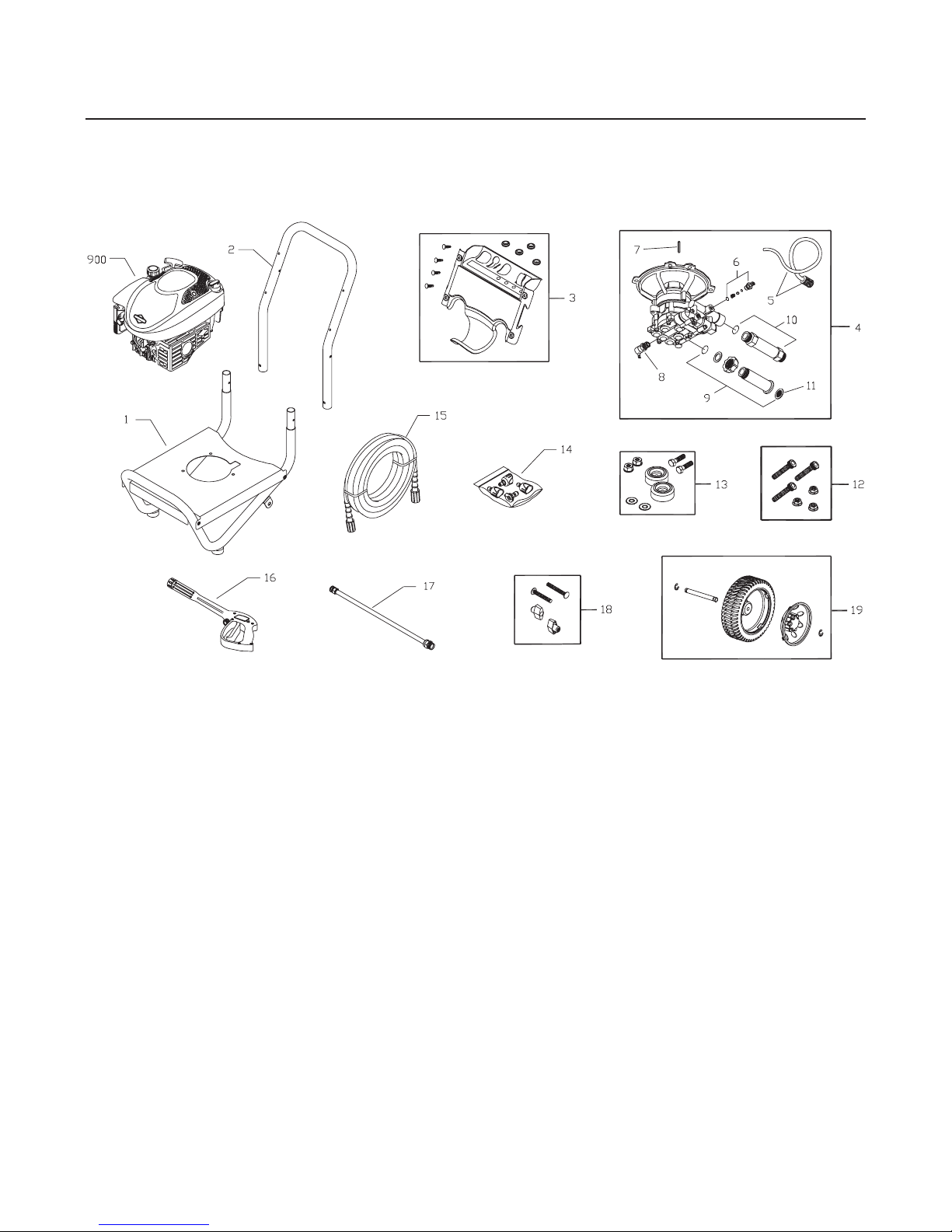

EXPLODED VIEW AND PARTS LIST — MAIN UNIT

Item Part # Description

1 202791GS BASE, w/Mounts

2 Y199110GS HANDLE

3 203075GS ASSY, Billboard w/Decals & Clips

195964GS Clip

30809GS Grommet

4 202605GS ASSY, Pump

5 189971GS Kit, Chemical Hose

6 190593GS Kit, Chemical Injection

7 23139GS Key

8 194298GS Valve, Thermal Relief

9 190632GS Kit, Water Inlet

10 190634GS Kit, Outlet

11 B2384GS Filter

12 192529GS KIT, Pump Mounting Hardware

13 192310GS KIT, Vibration Mount

14 202181GS KIT, Nozzle

201580RGS Nozzle, Project Pro, Yellow

201580XGS Nozzle, Project Pro, Orange

201580AEGS Nozzle, Project Pro, Red

198841GS Nozzle, Plastic, Soap

15 202017GS HOSE

Item Part # Description

16 204627GS GUN

17 200595GS EXTENSION, QC

18 B2203GS KIT, Handle Connector

19 202483GS KIT, Wheel

201313GS Axle

200520GS Hubcap

192050GS E-Ring

900 § ENGINE

Parts Not Illustrated

205755GS MANUAL, Operator’s

BB3061BGS OIL BOTTLE

87815GS GOGGLES

794693 LABLE, Warning

793943 COVER, Static/Label Assy

202502GS DECAL, Eng, Shroud

194256GS KIT, Tag Warning

Optional Accessories

6039 PUMP SAVER

6048 KIT, O-Ring Maintenance

Exploded Views and Parts List

Copyright © 2008 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

2BRIGGSandSTRATTON.COM
