Boya BY-WM4 PRO Manual de usuario
BY-WM4 PRO
Dual-Channel Digital Wireless Microphone
Thank you for purchasing BOYA BY-WM4 PRO system!
Designed for videographers on a limited budgetand
video hobbyists, BY-WM4 PRO is a new generation
2.4GHz wireless microphone system, dual-Channel
for capturing audio with dual subjects to your
smartphones, tablets, DSLR cameras, consumer
camcorders, PCs etc.
The BY-WM4 PRO system is suitable for a wide range
of wireless applications such as interviews, mobile
journalisms, reporting, vloggings, podcasts and more.
The BY-WM4 PRO system is a expandable evolution
system that allows the user to mix and match
different kinds of receivers while using with the
TX4 Pro transmitter.
Instruction Manual
1
2
BY-WM4 Pro consists of one body-pack
transmitter(TX4 Pro), a portable receiver
(RX4 Pro), and their accessories as
following:
Transmitter(TX4 Pro) Receiver(RX4 Pro)
Lavalier/lapel microphone 3.5mm to TRS audio output cable
3.5mm to TRRS audio output cable
Microphone Holder clipWind screen
Cold-shoe mount
3
BY-WM4 Pro-K2 consists of two body-pack
transmitters(TX4 Pro), a portable receiver
(RX4 Pro), and their accessories as
following:
Transmitter(TX4 Pro) x2 Receiver(RX4 Pro)
Lavalier/lapel microphone x2 3.5mm to TRS audio output cable
3.5mm to TRRS audio output cable
Microphone Holder clip (x2)Wind screen (x2)
Cold-shoe mount
4
BY-WM4 Pro-K3 is specially designed for
Lightning iOS Devices.
It consists of one body-pack transmitter
(TX4 Pro), wireless receiver with a Lightning
connector (BY-WM4 PRO RXD),and their
accessories as following:
Receiver(BY-WM4 PRO RXD) Transmitter(TX4 Pro)
Lavalier/lapel microphone
Microphone Holder clip
Wind screen
Pairing Pin
5
BY-WM4 Pro-K4 is specially designed for
Lightning iOS Devices.
It consists of two body-pack transmitter
(TX4 Pro), wireless receiver with a Lightning
connector (BY-WM4 PRO RXD),and their
accessories as following:
Receiver(BY-WM4 PRO RXD) Transmitter(TX4 Pro) x2
Lavalier/lapel microphone x2
Microphone Holder clip x2
Wind screen x2
Pairing Pin
6

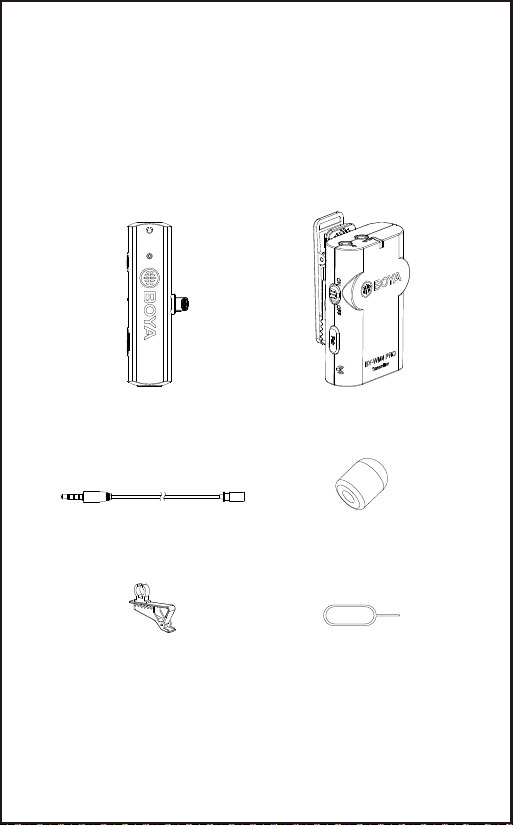

BY-WM4 Pro-K5 specially designed for
Andriod and other Type-C devices.
It consists of one body-pack transmitter
(TX4 Pro), wireless receiver with a USB
Type-C connector (BY-WM4 PRO RXU),and
their accessories as following:
Receiver(BY-WM4 PRO RXU) Transmitter(TX4 Pro)
Lavalier/lapel microphone
Microphone Holder clip
Wind screen
Pairing Pin
7

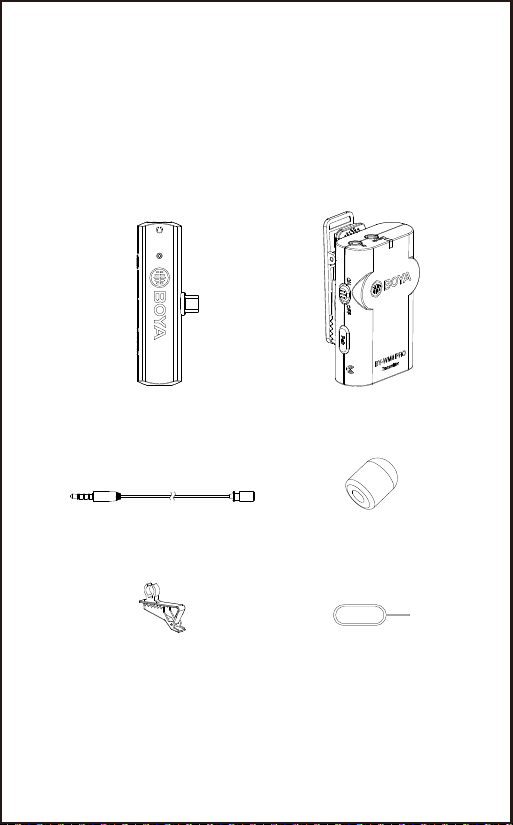

BY-WM4 Pro-K6 specially designed for
Andriod and other Type-C devices.
It consists of two body-pack transmitter
(TX4 Pro), wireless receiver with a USB
Type-C connector (BY-WM4 PRO RXU),and
their accessories as following:
Receiver(BY-WM4 PRO RXU) Transmitter(TX4 Pro) x2
Lavalier/lapel microphone x2
Microphone Holder clip x2
Wind screen x2
Pairing Pin
①②
③
④
⑧
⑤
⑥⑦
8

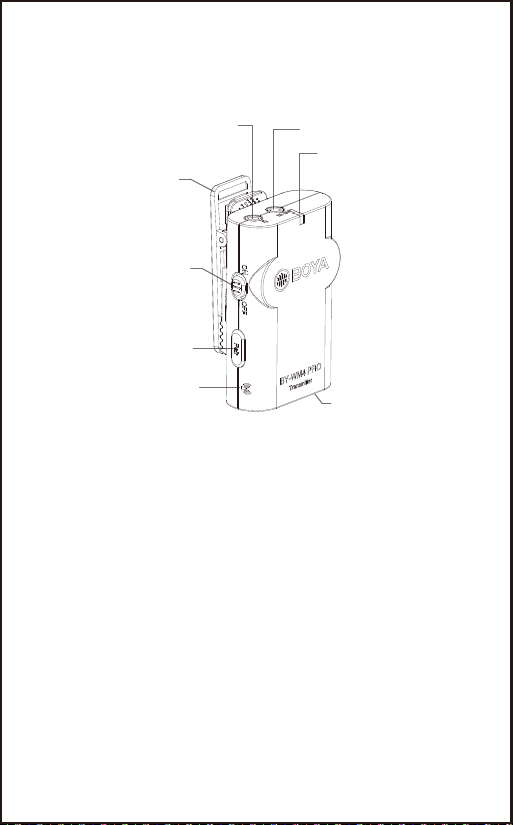

1. Microphone input
- Connect the supplied lavalier microphone here.
- Fully insert the microphone’s 3.5mm plug and
make sure it clicks into place.
2. Line In
3. Power LED
1) The power LED flash blue when the unit is on.
2) The power LED glows red when low power.
Transmitter (TX4 Pro)
Please don’t touch here during using, otherwise, it
will effect signal.
7. Battery compartment
Accommodates two pieces of AAA batteries.
For more details, please see “Installing batteries”
on page 11.
For more details, please see “Installing or
uninstalling clip” on page 15.
8. Clip
9
For more details about LED indicator, please refer to
as following:
Status Receiver Transmitter
Stays blue
Flashes continually
every 1 second.
Flashes in blue
Flashes in redLow power
Off
Flashes in blueOff
Flashes continually
every 2.5 seconds.
The transmitter and the receiver connects.
The transmitter and the receiver disconnects.
Receiver unit is turned OFF(Transmitter is still ON)
Transmitter unit is turned OFF(Receiver is still ON)
Flashes continually
every 1 second.
4. Power OFF/ON
5. Pair
This botton is for connecting signal.
For details, please see “How to connect transmitter
and receiver” on page 13.
6. Antenna
