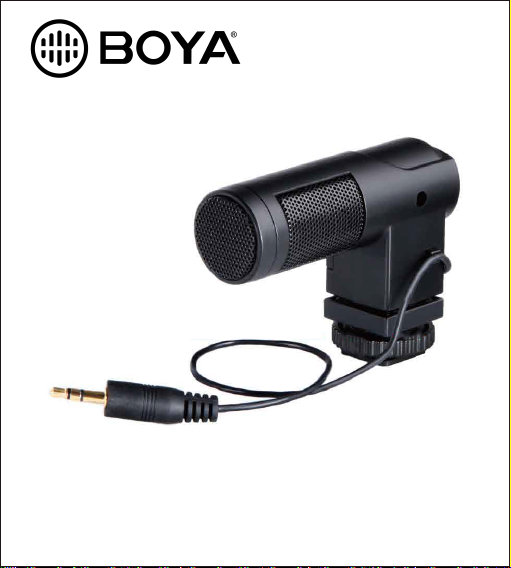

Boya BV-V01 Manual de usuario

BV-V01

MikrofonStereo Mini

Panduan

Terima kasih telah memilih BOYA!

BOYA BY-V01 merupakan mikrofon kondenser stereo yang akan mengakap suara

berkualitas lebih baik dibandingkan dengan mikrofon pada kamera anda. Terdapat

tombol switch area rekam 90

dan 120

untuk kebutuhan anda.

BY-V01 compact dan ringan, mudah dipasang pada shoe kamera maupun alat

rekam lain untuk perekaman suara stereo berkualitas. Termasuk juga

windscreen yang akan mengurangi kebisingan lingkungand an angin, juga

suara penggunaan kamera seperti suara lensa autofocus.

1) Microphone

Lock knob

Mounting foot with threaded ¼" -20 threaded socket

Cable Slot

Power OFF

Power ON (90

/120

)

Battery compartment

2) Shock mount

Adjust the directional angle of the microphone by hand according to the

sound source.

When picking up a sound with a narrow soundstage, or a distant sound

(conversation, solo instruments, etc.)

When picking up a sound with a wide soundstage, or a nearby

sound (concert, theatrical performance, etc.).

The above table is a rough standard.

Choose the pickup pattern depending on your preference.

120

sound

The compact and lightweight microphone allows you to use conveniently for most

of DSLR cameras, Audio cameras, Audio recorders etc. Among the benefits you'll

enjoy:

•

Compact stereo microphone

•

Selectable pickup patterns 90

or 120

•

Integrated cold-shoe mount and foam windshield

•

Light weight and easy to use

•

Includes fur windscreen

•

Integrated shock mount and shoe mount with threaded ¼" socket

Catatan Penting

Please read and follow these instructions and refer to this manual in

case of questions. Keep this manual in a safe place.

. Keep product away from water and flammable gasses or liquids.

. Do not attempt to disassemble or repair this product yourself.

. Handle this product with care.

. Clean this product with a soft, dry cloth.

. Before use, make sure this product is intact and that there are no

missing parts.

. Do not leave the batteries in this product for long periods of non-use.

Batteries can leak and damage the microphone.

Menghubungkan Mikrofon ke Kamera

In order to record with the BOYA BY-V0l, it must be connected to the camera

or recorder.

Make sure the power on the BY-V01 is turned off.

Connect the BY-V0l by plugging the 3.5mm mini-plug into the AUDIO IN jack

of the camera or recorder.

If using a boom pole, you will need an extension cable (sold separately).

Recording with the BV-V01

Once the BY-V01 is securely attached to the camera or recorder, turn

the microphone on by pressing the POWER button to the ON position.

Based on your need, selecting 90

or 120

TROUBLESHOOTING

Problem Solution

No sound

is being

recorded

Make sure a fresh LR44 battery is installed and is in the

proper orientation in the battery compartment. Make sure

the power buttons is the "ON" position. Make sure the

3.5mm mini jack is plugged into the correct AUDIO INPUT

jack on the device to which you are recording.

Make sure your video camera, DSLR camera, or audio

recorder is in record mode and the record level is

properly set if necessary.

Problem Solution

Too much

ambience

is being

recorded

When using a stereo X/Y microphone, the microphone may be

picking up too much unwanted noise from the surrounding

environment or from an empty room. This is a normal

occurrence.

Make sure the microphone is as close to the subject as

possible.

The record level on the video camera, DSLR camera, or

recorder may be set too high. Turn down the record level to

minimize the sound from everything except the subject.

The

microphone

Make sure the locking wheel is fully loosened.

is stuck in

the camera's

shoe mount

Important: the microphones should easily mount and

dismount. Do not apply force by trying to pull the

microphone off the camera. You could damage the

microphone and camera.

Spesifikasi:

•

Microphone : Stereo X/Y condenser mic

•

Frequency Response:35-20,000HZ+/-3dB

•

Signal/Noise: 74dB

•

Sensitivity: -40dB +/- ldB / 0dB=lV/Pa, lkHz

•

Case: ABS Construction

•

Power: LR44 battery (included)

•

Connector: 3.5mm mini-jack output plug

•

Include: foam windscreen, fur windshield, pouch

•

Dimensions: 73mmx26mmx57mm

•

Weight: 55g

www.boya-mic.com

SOYA AUDIO EQUIPMENT (SHENZHEN) CO., LIMITED

Add: A16 buildlng, New Mater!al Industrial Park of Silicon Valley Power, Guan!an Town, Shenzhen, China Tel:

(86)0755



28435910

Email: [email protected]
