CM430S

RS485 LAN To Ethernet

Converter Module

Rev 1.2

The CM430S allows you to extend the control panels RS485S LAN across a local network. Table 1: shows the panel

and panel ﬁrmware which are compatible with the CM430S converter module. MENU 7-7-0, Option 5 (Extend LAN

Fail) must be set when using the CM430S.

CM430S Compatibility

Panels Supported Version

Solution 6000 V2.29 or higher

Table 1: CM430S Compatibility

Note

MENU 7-7-0, Option 5 (Extend LAN Fail) must be set when

using the CM430S.

LED Status

The following LED indicators are provided on the CM430S module.

LED Colour Activity Description

Active Green / Blue Blue Data sent from Ethernet to Serial

Green Data sent from Serial to Ethernet

LINK Green/Blue Blue Connection Established

Green Ethernet Cable connected

Power RED Oﬀ Power OFF

On Power ON

Table 2: LED Indicators

Initial Setup

Using a stand alone computer (your PC must have an Ethernet port), you can connect your computer directly to

the CM430S using a crossover Ethernet cable. Otherwise, connect both the computer and CM430S using straight-

through Ethernet cable to a hub or switch.

(Ensure computers adapter is set to the same base address, ie: 192.168.1.1 See page 7 - Windows IP Conﬁguration)

Quick Setup With Fixed IP

The CM430S has the following default settings.

Option Default Setting

IP Address (Factory) 192.168.1.200

IP Address (Default Switch) 192.168.1.254

Subnet Mask 255.255.255.0

Gateway 192.168.1.1

Primary DNS 192.168.1.3

Connection Mode TCP Server

Connection Port Number 5000

Remote Host IP Address 0.0.0.0

Table 3: Quick Setup With Fixed IP

CM430S - RS485 LAN To Ethernet

Converter Module

P/N: CM430SIRG Rev 1.2 Page 3

CM430S Conﬁguration (Point to Point)

Connect a module to your computer and power the module using 12VDC.

Open your browser and enter 192.168.1.200 (Factory set) and press [Enter].

If the unit is reset by the user, then its default address will be 192.168.1.254

A window will be displayed prompting you to enter the password (default = 123456).

After entering the password, the web browser page will be displayed.

Note

Please do not modify ADVANCED SETTINGS from default

values.

Figure 1: Point to Point - Location 1

Figure 2: Point to Point - Location 2

The CM430S module at the panel (Location 1) has to be set to ‘TCP Server’, and the CM430S module at the destina-

tion (Location 2) is to be set as‘TCP Client’.

The table below is an example of conﬁguring the Client and Server modules.

Option Location 1

SERVER

Location 2

CLIENT

Device IP 192.168.1.5 192.168.1.6

Subnet Mask 255.255.255.0 255.255.255.0

Gateway 192.168.1.5 192.168.1.5

Primary DNS 168.95.1.1 168.95.1.1

Work Mode TCP SERVER TCP CLIENT

Destination Port 4196 4196

Destination IP/DNS 192.168.1.5 192.168.1.5

IP Mode Static Static

Table 4: Example Point to Point Conﬁguration

After all settings have been complete, click‘Apply’and the changes will take eﬀect. Note: It is best to power cycle the

module after any changes.

Connection Diagram - Point to Point Conﬁguration

A pair of CM430S modules is required for each link as shown below. Remote locations will require a local power

supply wih backup battery to maintain connectivity during power outages. A CM720 1 amp or CM723 5 amp power

supply module would be suitable for this task.

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.6

Connection Mode: TCP Client

Location 2

RS232

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.5

Connection Mode: TCP Server

Location 1

RS232

Not Used

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

PANEL LAN

BA -+

Not Used

Reset Protect RS232

Module LAN

BA -+

Not Used

Local

Power Supply

/ Battery

Figure 3: Sample Point to Point Wiring

Note

LAN A OUT, LAN B OUT and the Protect Switch are for Future

Use

P/N: CM430SIRG Rev 1.2 Page 5

CM430S Star Conﬁguration

An array of 17 x CM430S modules (1xServer, 16x Clients) can be used if more then one location is needed. This con-

ﬁguration will need to go through a LAN switch that has a backup power supply. Each Remote location will require a

local power supply with backup battery to maintain connectivity during power outages.

A CM720, 1 amp or CM723, 5 amp power supply module would be suitable for this task.

Figure 4: Sample Star Conﬁguration - Location 1

Figure 5: Sample Star Conﬁguration - Locations 2...17

Option Location 1

SERVER

Location 2

CLIENT

Location 3

CLIENT

Location 4

CLIENT

Device IP 192.168.1.5 192.168.1.6 192.168.1.7 192.168.1.8

Subnet Mask 255.255.255.0 255.255.255.0 255.255.255.0 255.255.255.0

Gateway 192.168.1.5 192.168.1.5 192.168.1.5 192.168.1.5

Primary DNS 168.95.1.1 168.95.1.1 168.95.1.1 168.95.1.1

Work Mode TCP Server TCP Client TCP Client TCP Client

Destination Port 4196 4196 4196 4196

Destination IP/DNS 192.168.1.5 192.168.1.5 192.168.1.5 192.168.1.5

IP Mode Static Static Static Static

Table 5: Star Conﬁguration Example Settings

Connection Diagram - Star Conﬁguration

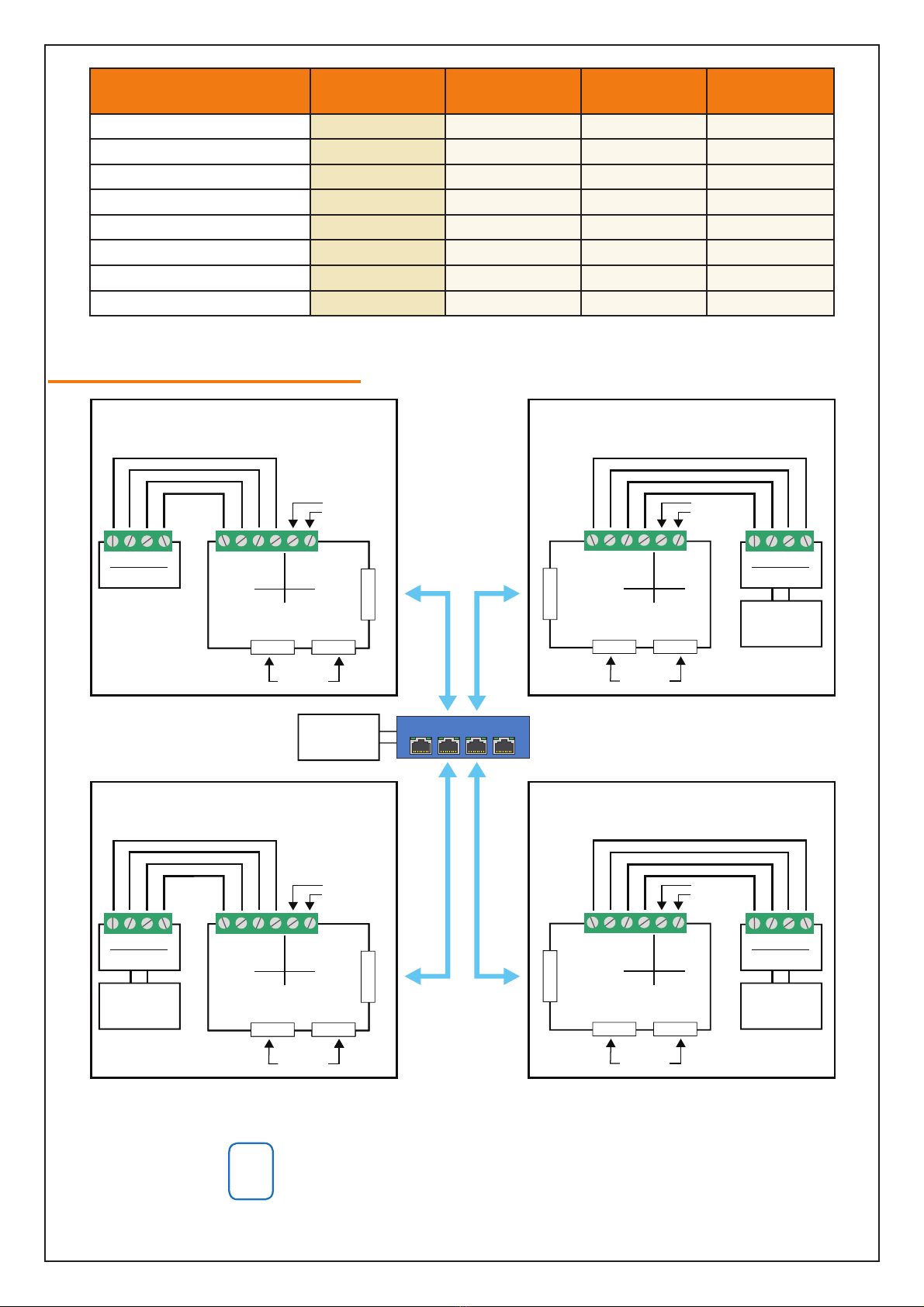

Figure 6: Sample Star Conﬁguration Wiring

Note

LAN A OUT, LAN B OUT and the Protect Switch are for Future

Use

LAN Switch

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.6

Connection Mode: TCP Client

Location 2

RS232

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.5

Connection Mode: TCP Server

Location 1

RS232

Not Used

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

PANEL LAN

BA -+

Not Used

Reset Protect RS232

Module LAN

BA -+

Not Used

Local

Power Supply

/ Battery

Local

Power Supply

/ Battery

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.7

Connection Mode: TCP Client

Location 3

RS232

Module LAN

BA -+

Not Used

Local

Power Supply

/ Battery

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect

Type: Static IP

IP Address: 192.168.1.8

Connection Mode: TCP Client

Location 4

RS232

Not Used

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

Ethernet

GND

+12V

LAN A

LAN B

IN OUT

Module LAN

BA -+

Not Used

Reset Protect RS232

Local

Power Supply

/ Battery

P/N: CM430SIRG Rev 1.2 Page 7

Windows IP Conﬁguration

Click on Start button and choose Settings.

1. Choose Network & Internet.

2. Click on Ethernet -> Change adapter options. ...

3. Click Internet Protocol Version 4 (TCP/IPv4), and then click Properties. ...

Warning:

Before changing any of the numbers, ensure you take note of the original settings, as

this will disconnect you from your normal network connection.

Digiﬂex does not take any responsibility for your PC conﬁguration, if you are

not experienced in networking, please contact your IT person.

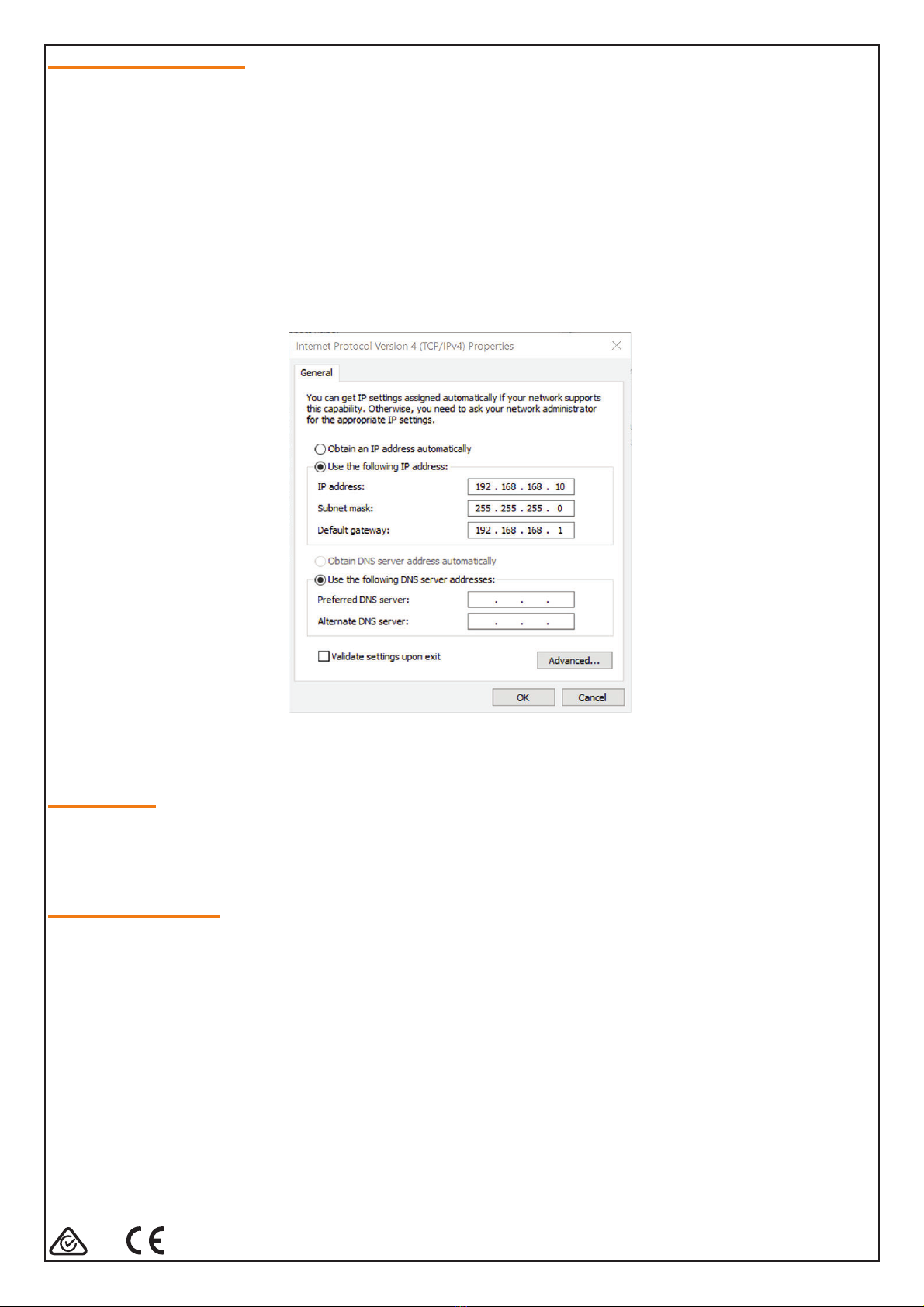

Figure 7: Windows PC IP Conﬁg Setup Page

CM430S Reset

The CM430S modules can be reset whilst powered up by using a thin screwdriver and sliding the Reset switch from

OFF to ON position, then after 2-3 seconds, back to the OFF position. This will reset the device IP to 192.168.1.254

CM430S Speciﬁcations

Part Number: CM430S - RS485 LAN To Ethernet Module - Supporting Star Conﬁguration

Operating Voltage: 10.5V D.C - 14.5V D.C. @ 150mA Max

Module Connection:

(RS485 LAN)

Ethernet Interface: 10 / 100Base-T, Half / Full Duplex

RS485 Signal: 2 wire Data+/-

Operating

Environment: 0˚ to 55˚C RH 5 to 80% at 30˚C non-condensing.

Certiﬁcation: EN55032:2012, EN55024: 2010.A1:2015,

EN61000-3-2:2014, EN61000-2-2:2013

Warranty: 3 years from date of manufacture (return to base).

In the interest of ongoing product development this

document is subject to change without notice.

P/N : CM430SIRG

DIGIFLEXPTY LTD

Unit 5, 8 Millennium Court

Silverwater NSW 2128

AUSTRALIA

Phone: (+612) 97417000

Facsimile: (+612) 97417042

www.digiflex.com.au

Our Vision Is Your Peace Of Mind
