Bolymedia SG550M-12mHD Manual de usuario
Infrared Mobile Digital Scouting Camera
User’s Manual
SG550M-12mHD
Content
1 Instruction..............................................................1
1.1 Camera Body Interfaces................................1
1.2 General Description......................................1
1.3 Remote Control............................................ 2
1.4 Shooting Information Display..................... 3
1.5 MMS/GPRS Function.................................. 4
1.6 Cautions....................................................... 4
2 Quick Start Guide ................................................. 6
2.1 Power Supply ............................................... 6
2.2 Insert the SD card and SIM card................. 7
2.3 Do the Camera Settings............................... 7
2.4 Enter into Test Mode ..................................8
2.5 Custom Settings .......................................... 9
2.6 Enter into On Mode .................................... 9
2.7 Power Off................................................... 10
3 Item Settings........................................................ 11
3.1 Camera Menu ............................................. 11
3.2 Default Setting .......................................... 16
3.3 Playback Mode .......................................... 18
3.4 Laser Pointer ............................................. 19
4 Trouble Shooting ................................................20
5 PIR Detection Zone............................................. 21
6 Technical Specifications ..................................... 22
7 Parts List ............................................................. 23
SG550M-12mHD 1 Instruction
Page 1
1 Instruction
1.1 Camera Body Interfaces
1.2 General Description
This camera, a digital scouting camera with black IR
and communication function, is a digital infrared
surveillance camera, triggered by any movement of
humans or animals monitored by a high sensitive
Passive Infrared (PIR) motion sensor, and then
automatically captures high quality pictures or
records video clips according to default settings or
preset customer settings. It will then send the
pictures instantly to your mobile device or e-mail
via GSM/GPRS network. You’ll be alerted just when
the camera is triggered or per custom settings.
There is a 1.5” color LCD display screen on the
SG550M-12mHD 1 Instruction
Page 2
camera and a sound recorder embedded in the
camera. A laser pointer is used to help target the
photo area of the camera.
It is resistant against water and snow. The camera
can also be used as a portable digital camera.

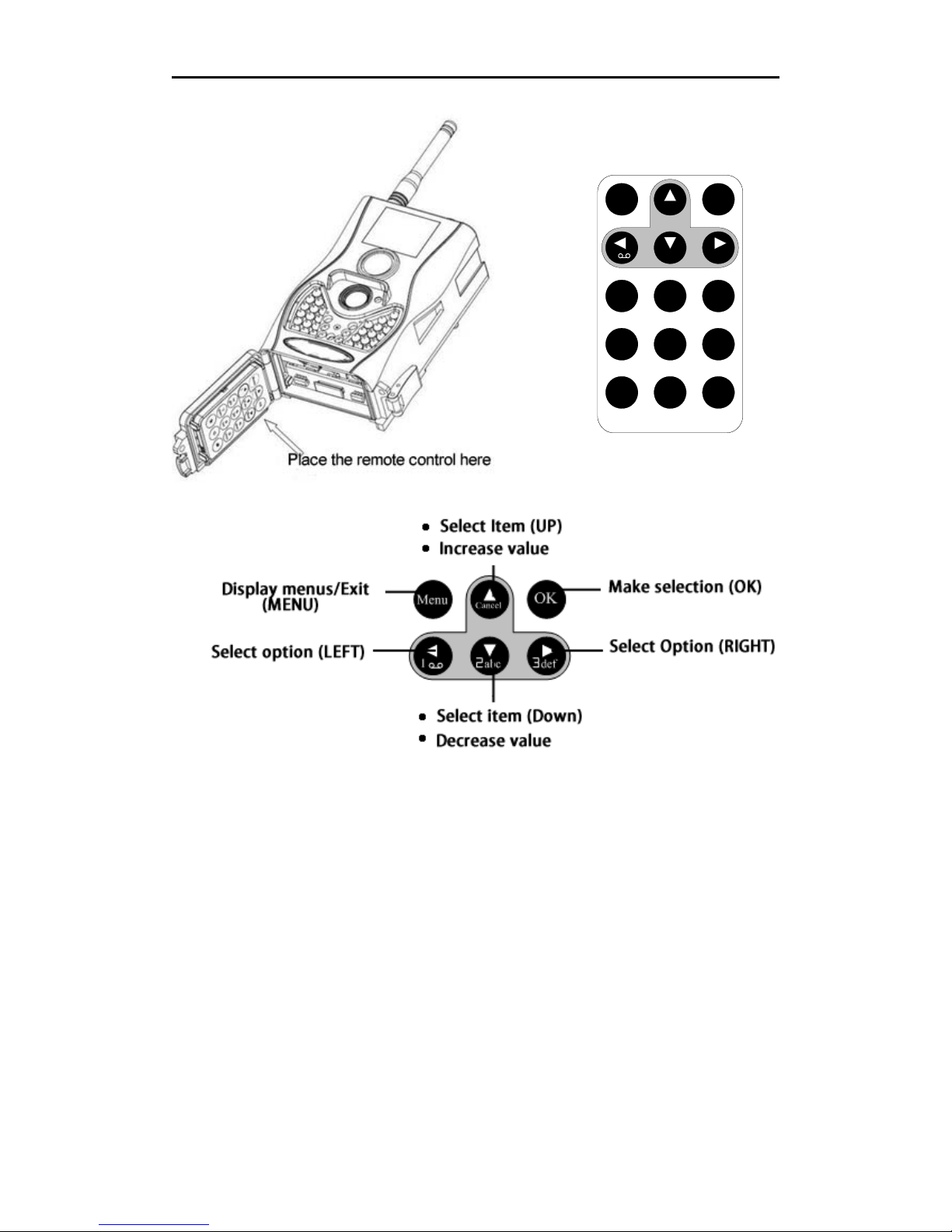

1.3 Remote Control
The remote control is the input device for the
camera and is primarily used for customer settings.
This is an infrared type wireless remote control. The
maximum remote distance is about 30 feet.
Note:
The remote will not work properly without the
antenna attached.
When power on the camera, allow approximately
10-20 seconds for the camera to acquire a signal.
The remote will not function properly until the
camera has acquired a signal. You can determine
that the camera has acquired a signal by locating
the signal icon on the LCD screen.
Press the punctuation “*” for laser pointer.
SG550M-12mHD 1 Instruction
Page 3
1.4 Shooting Information Display
When the camera is turned on (power switch is slid
to TEST position), the current settings will be
displayed on the screen.
Menu Cancel
OK
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
*
0
#
Menu Cancel
OK
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
*
0
#
SG550M-12mHD 1 Instruction
Page 4
1.5 MMS/GPRS Function
This camera can send pictures instantly to your
mobile device via GSM/GPRS network. You’ll be
alerted just when a picture or video has been taken.
The camera sends MMS message through GPRS
network, so before using this function, you need to
open GPRS service from your service provider. It
supports GSM with 850MHz, 900MHz, 1800MHz
and 1900MHz.
SIM card Icon：There are two SIM card icons which
stand for different installation situations. means
the SIM card is inserted and it works well.
means the MMS function can’t work correctly
because of loss of signal or other communication
issues.
1.6 Cautions
★The working voltage of the camera is 6V.The
camera is supplied by 8 AA batteries or DC power
SG550M-12mHD 1 Instruction
Page 5
adapter with output of 6V. Please install batteries
according to shown polarity.
★Please insert the SD card when the power switch
is in the OFF position before testing the camera.
The camera has no internal memory for saving
images or videos. If no SD card is inserted, the
camera will shut down automatically after a
continuous indication beep.
★Please do not insert or take out the SD card when
the power switch is in the ON position.
★It is recommended to format the SD card by the
camera when used for the first time.
★The camera will be in USB mode when connected
to a computer. In this case, the SD card function
is as a removable disk.
★In TEST mode, the camera will shut down
automatically after 3 minutes if no operation is
done. Please turn on the power again if you want
to continue to work with the camera.
SG550M-12mHD 2 Quick Start Guide
Page6
2 Quick Start Guide
2.1 Power Supply
To supply power for the camera, four or eight size
AA batteries are needed.
1. High-density and high-performance alkaline
batteries (Recommended)
2. Rechargeable alkaline batteries
3. RechargeableNiMHbatteries
When in a low-battery state, the camera will be
automatically shut down after two indication
sounds. Please change the batteries at this time. If
you have set the MMS function, it will send you a
SMS or Email to indicate the low battery situation.
Caution: Risk of explosion if battery is replaced by
an incorrect type. Also dispose of used batteries
according to the instructions.
Correct Disposal of this product. This marking
indicates that this product should not be disposed
with other household wastes throughout the EU. To
prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
SG550M-12mHD 2 Quick Start Guide
Page7
2.2 Insert the SD card and SIM card
Open the bottom cover. Insert SD card and SIM
card into the card slot. Please note that the SD card
is on the “write” (not locked) position otherwise the
camera will not function correctly.
2.3 Do the Camera Settings
Down load the camera setup software
(BMC_config.zip) with a simple instruction from
our website.
The specified website is written in the
last page of the manual.
SG550M-12mHD 2 Quick Start Guide
Page8
First, select your country and carriers (step1)
according to your SIM card and input your receiving
phone number in “administrator number” and
receiving e-mail address in “Receive Email 1”
(step3). For first time use, we suggest you to use
default settings (step2), any settings you want to
change, please click “Change Setting”
Please note save the txt file in the root directory of
GSM folder of SD card after all settings being done
(step4), the file will automatically disappear once
camera is turned on.
2.4 Enter into Test Mode
Slide the power switch to the TEST position and
