Black Box LES301A-KIT Manual de usuario

LES301A quick start guide

BL A C K B OX®

Quick Start Guide

Access a serial RS-232 or RS-422/485 device over a 10- or 100-Mbps

network.

1-Port 10/100 Device Server RS-232/422/485 DB9 M

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

LES301A

LES301A-KIT

LES301AE-KIT

724-746-5500 | blackbox.com

Page 2 LES301A quick start guide

This quick-start guide provides brief descriptions of the LES301A to help you get started. For detailed information, refer to the

user’s manual on the product CD.

QS.1. What’s Included

Your package should contain the following items. If anything is missing or damaged, contact Black Box Tech Support

at 724-746-5500 or info@blackbox.com.

LES301A-KIT and LES301AE-KIT:

• (1) Ethernet Serial Server

• (1) CD-ROM containing configuration utility and a user manual in PDF format

• (2) wallmounting screws

• (1) power adapter (PS012 for LES301A-KIT); (PS012E for LES301AE-KIT)

• (1) 3-pin Phoenix connector

• This printed quick-start guide

LES301A:

• (1) Ethernet Serial Server

• (1) CD-ROM containing configuration utility and a user manual in PDF format

• This printed quick-start guide

QS.2 Optional Accessories

• DIN Rail Kit (LES30X-DR)

• DB9 to TB5 Adapter (LES30X-TB5)

QS.3 Hardware Setup

Interfaces

NOTES:

1. The RS-232/422/485 interface does not support isolation.

2. Press the LES301A’s reset button to reset the settings to the default values.

Figure QS-1 shows the interface.

1-Port 10/100 Device Server RS-232/422/485 DB9 M Quick Start Guide

724-746-5500 | blackbox.com

Page 3

LES301A quick start guide

1-Port 10/100 Device Server RS-232/422/485 DB9 M Quick Start Guide

DB9 male serial port

DC 9–30 V

Reset

button

RJ-45

10-/100-Mbps

port

DIN rail screw hole

Wallmount screw hole

Figure QS-1. LES301A interface.

Indicators

Table QS-1 describes the indicators on the LES301A.

Table QS-1. LED indicators.

LAN LED Message Description

Off Ethernet disconnected

Blinking green Data is transmitted on Ethernet at 100 Mbps

Blinking orange Data is transmitted on Ethernet at 10 Mbps

COM Port LED Message Description

Off No data is transmitted on COM port

Blinking Data is transmitted on COM port

RUN LED Message Description

On Jumper JP1 Pin 1 and Pin 2 are shorted to disable AP firmware running

Blinking (rate: 0.5 sec.) AP firmware is running normally

724-746-5500 | blackbox.com

Page 4 LES301A quick start guide

1-Port 10/100 Device Server RS-232/422/485 DB9 M Quick Start Guide

Installation Steps (LES301A-KIT and LES301AE-KIT)

1. Connect an LES301A to the included power supply (PS012 or PS012E) or to a 9–30 VDC source.

2. Connect an LES301A to your Ethernet network. Use a standard straight-through Ethernet cable to connect it to a hub/switch.

Use a crossover cable to connect it to a PC’s Ethernet port.

NOTE: If you connect the PC to the LES301A, make sure that the PC is in the same subnetwork as the LES301A.

3. Connect the LES301A‘s serial port to a serial device.

NOTE: You may need an adapter (LES30X-TB5) for RS-485 or RS-422 applications.

4. You can mount the LES301A to a wallplate (mounting screws are included) or a DIN rail using the DIN rail kit (LES30X-DR).

QS.4 Software Setup

Table QS-2. Software default settings.

Default Network Setting Default User Name/Password

IP: 10.0.50.100 User name: admin

Gateway: 10.0.0.254 Password: null (leave it blank)

Subnet: 255.255.0.0 —

Auto IP (Dynamic IP):

A DHCP server can automatically assign the IP address and network settings. The LES301A supports the DHCP function. By

default, the DHCP function on the LES301A is disabled; you can use SerialManager.exe to enable this function (see Figure QS-2).

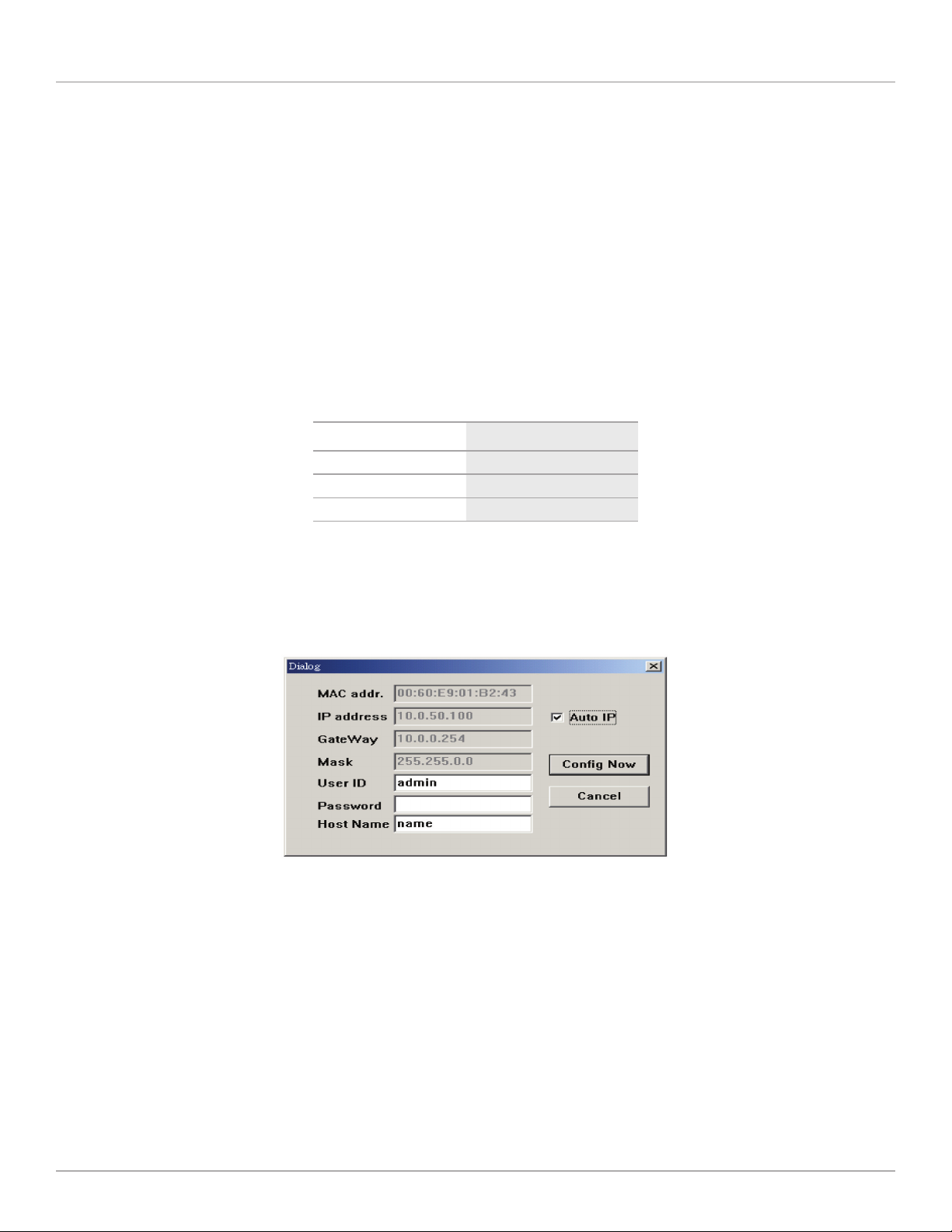

Figure QS-2. SerialManager.exe utility Dialog Window.

Assign a Static IP address by: Using Telnet, SerialManager.exe utility, or Web browser

Using Telnet

1. Telnet to the LES301A using the DOS command “Telnet IP_address.” Example: telnet 10.0.50.100

2. The LES301A’s network, link mode, and COM ports settings can be configured in the telnet window.

724-746-5500 | blackbox.com

Page 5

LES301A quick start guide

1-Port 10/100 Device Server RS-232/422/485 DB9 M Quick Start Guide

Using SerialManager.exe Utility

Use SerialManager.exe (included on the product CD) to automatically search for all LES301A units connected to your local area

network. Then select the desired LES301A to configure the network setting individually.

Using Web Browser

1. Make sure your PC is located on the same network subnet as LES301A.

2. Open a Web browser, then type in the IP address of the LES301A to be configured. The default user name is “admin” and the

default password is null (leave it blank).

3. The LES301A’s network, link mode, and COM ports settings can be configured in different Web pages.

4. Click on “Save Configuration” to save settings.

5. Click on the ”Restart” button to make the change effective if necessary.

QS.5 Pin Assignments

The pin assignments of the DB9 connector on LES301A are shown in the following table:

Table QS-3. DB9 connector pin assignments.

Number RS-232 Full-Duplex

2-Wire RS-485

Half-Duplex

RS-422/4-Wire RS-485

Full Duplex

1DCD N/A N/A

2RXD N/A (reserved) TXD+

3TXD DATA+ RXD+

4DTR N/A N/A

5SG (Signal Ground) SG (Signal Ground) SG (Signal Ground)

6DSR N/A N/A

7 RTS DATA- RXD-

8CTS N/A (reserved) TXD-

9N/A N/A N/A

NOTE: Use an LES30X-TB5 adapter for RS-485 to RS-422 applications.

724-746-5500 | blackbox.com

Page 6 LES301A quick start guide

1-Port 10/100 Device Server RS-232/422/485 DB9 M Quick Start Guide

The LES30X-TB5 terminal block pin assignments are shown in Table QS-4.

Table QS-4. Terminal block pin assignments.

Number

RS-422/4-Wire

RS-485

Full Duplex

2-Wire RS-485

Half-Duplex

1T+ Not connected

2T- Not connected

3R+ Data+

4R- Data-

5SG (Signal Ground) SG (Signal Ground)

9N/A N/A

724-746-5500 | blackbox.com

Page 7

LES301A quick start guide

NOTES

724-746-5500 | blackbox.com

BLACK BOX®

Black Box Tech Support: FREE! Live. 24/7.

Tech support the

way it should be.

Great tech support is just 30 seconds away at 724-746-5500 or blackbox.com.

LES301A Quick Start Guide, version 1

About Black Box

Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks

and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support

available in 30 seconds or less.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
