Give your high-density wiring closets

additional ports.

Give your high-density wiring closets

additional ports.

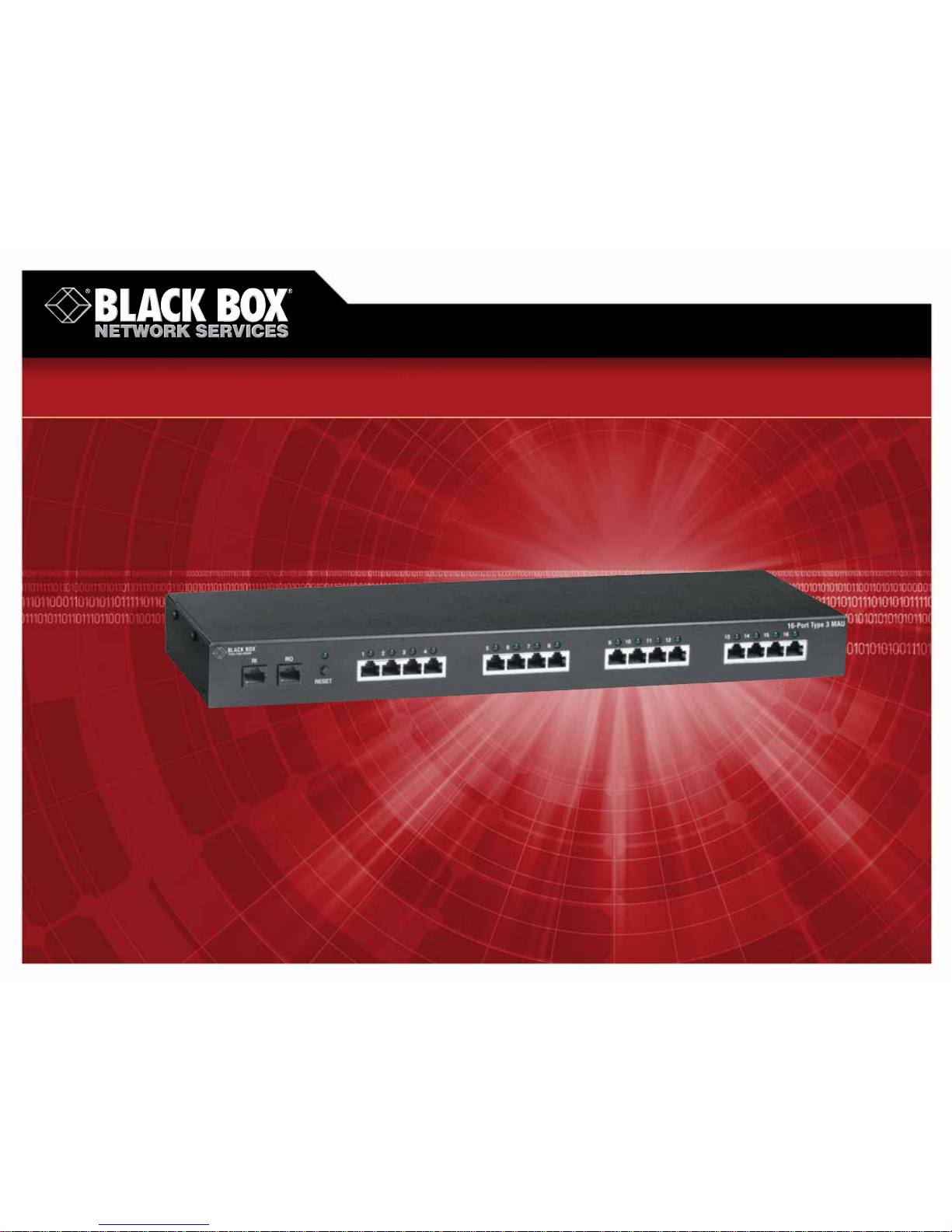

16-Port Type 3 MAU

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 2

10/10/2007

#12812

724-746-5500 blackbox.com

FEATURES

• Serves as a wiring concentrator for

your Token Ring.

• 16 lobe ports in a single 1U-high chassis.

• Compatible with IBM 8228 MAUs.

• Test lobes with port reset button. LEDs

show port status.

• No external relay tool required.

• Ring-In, Ring-Out auto wrap.

• Nonpowered, so you can put it where

you want it!

Three MAUs are connected together to form the main ring.

OVERVIEW

Need additional twisted-pair Type 3 ports in your Token

Ring LAN? Choose the 16-Port Type 3 MAU. It functions as a

wiring hub, so you can create a star wiring configuration from

the main ring to individual Token Ring workstations.

Like the IBM 8228 MAUs, this MAU features Ring In (RI)

and Ring Out (RO) connections on the front panel.

This MAU provides up to 16 additional ports for high-

density applications and does so without the need for AC

power and the use of a costly insertion tool for installation.

Since no AC power is required, the MAU provides flexibility

when deciding where to locate the wiring installation, which

may include non-air-conditioned areas, such as warehouses

and closets.

A long-life lithium battery provides power to a circuit that

allows the manual reset of all lobe circuits. Simply press a

button to reset the ports. This eliminates the need for an

insertion tool during installation.

Status LEDs are powered by the attaching Token Ring

adapters and provide a visual indication of connect status.

The MAU automatically detects cable removal and wraps

the RI or RO port, so there’s no network downtime!

Shielded RJ-45 connectors on the lobe ports provide

support for UTP or STP 100-ohm cable. Use UTP cabling for

TECH SPECS

Compliance — FCC Class A; CE

Standard — IEEE 802.5

Speed — 4 or 16 Mbps

Connectors — (16) shielded RJ-45, (1) Ring In, (1) Ring Out

Indicators — LEDs: (16) Port Status, (1) Reset

Temperature Tolerance — Operating: 32 to 122°F (0 to 50°C)

Humidity Tolerance — Up to 95%, noncondensing

Power — Nonpowered; reset button powered by lithium battery (included)

Size — 1.7"H x 17.2"W x 6"D (4.3 x 43.7 x 15.2 cm)

Weight — 3.5 lb. (1.6 kg)

Item Code

16-Port Type 3 MAU LT2060A

cheaper cabling costs. Or, use 100-ohm STP cabling for

greater distances.

The MAU operates at 4 or 16 Mbps. No configuration

switches are required.

Choose the mounting method you prefer—flush or

recessed rackmount, wall- or shelf-mounted. Rack ears, along

with a RI/RO loopback cable, are included with the MAU.

16-PortType 3 MAU

(LT2060A)

16-PortType 3 MAU

(LT2060A)

16-PortType 3 MAU

(LT2060A)

PCs

PCs PCs

PCs
