Black Box LB9017A-R4 Manual de usuario

October, 2006

Express

Ethernet Switch:

LB9017A-R4

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S. : Call 877-877-BBOX ( outside U.S. call 724-746-5500 )

Free technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

Express Ethernet Switch : LB9017A-R4

FCC Statement

The FCC (Federal Communications Commission) restricts

the amount of radio frequency emission and radiation coming

from computer equipment.

The equipment introduced in this manual has been tested

and found to comply with the limits for a Class A digital

device pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment.

This equipment generates, uses, and can radiate radio

frequency energy, and if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user is required

to correct the interference at his/her own expense.

Any changes or modifications not expressly approved by the

manufacture would void the user’s authority to operate the

equipment.

Trademarks

Product names mentioned in this manual may be trademarks

or registered trademarks of those products.

All trademarks or brand names mentioned are properties of

their respective companies.

Express Ethernet Switch : LB9017A-R4

Preface

This manual describes how to install and use the 16 Ports Smart

Ethernet Switch. The TX ports of the switch introduced here auto-

negotiates the presence of 10/100Mbps and full/half-duplex mode

and auto-MDIX. In addition, it allows an optional 100BaseFX

multi-mode or single-mode fiber module, enabling long distance

connection.

To get the most out of this manual, you should have an

understanding of networking concepts such as bridging, IEEE

802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX/FX Fast

Ethernet, and local area networks (LANs).

For more information about these topics, please refer to the

Appendices.

In this manual, you will find:

•Introduction on the Switch

•Product features

•Illustrative LEDs functions

•Installation instructions

•Specifications

Express Ethernet Switch : LB9017A-R4

Table of Contents

FCC STATEMENT 2

TRADEMARKS 2

PREFACE 3

TABLE OF CONTENTS 4

PRODUCT OVERVIEW 6

FRONT VIEW .................................................................................... 6

PACKAGE CONTENTS........................................................................ 6

PRODUCT FEATURES ........................................................................ 7

FRONT PANEL DISPLAY..................................................................... 8

PHYSICAL PORTS.............................................................................. 9

Understanding Front Panel Design 9

INSTALLATION 10

SELECTING A SITE FOR THE EQUIPMENT........................................... 10

INSTALLATION AND PLACEMENT INSTRUCTIONS................................. 11

Mounted to 19-inch standard rack 11

Desktop or any flat surface 11

OPTIONAL FIBER MODULE INSTALLATION.......................................... 12

CONNECTING TO POWER................................................................. 13

CONNECTING TO YOUR NETWORK ................................................... 13

Cabling 13

Network Segmentation 14

SWITCH CONFIGURATION 15

SETTING UP WEB-BASED BROWSER INTERFACE ............................... 15

LOGGING ON TO THE ETHERNET SWITCH.......................................... 15

Switch IP Address 15

ID 16

Password 16

MAIN MENU.................................................................................... 17

System Change 18

IP Configuration 19

Port 20

Express Ethernet Switch : LB9017A-R4

VLAN 21

Trunking 22

QoS Mode 23

QoS Priority 24

Load Default 25

Firmware Update 26

TECHNICAL SPECIFICATIONS 27

PHYSICAL SPECIFICATIONS 28

CONNECTOR PINOUTS 29

ORDERING INFORMATION 30

Express Ethernet Switch : LB9017A-R4

Product Overview

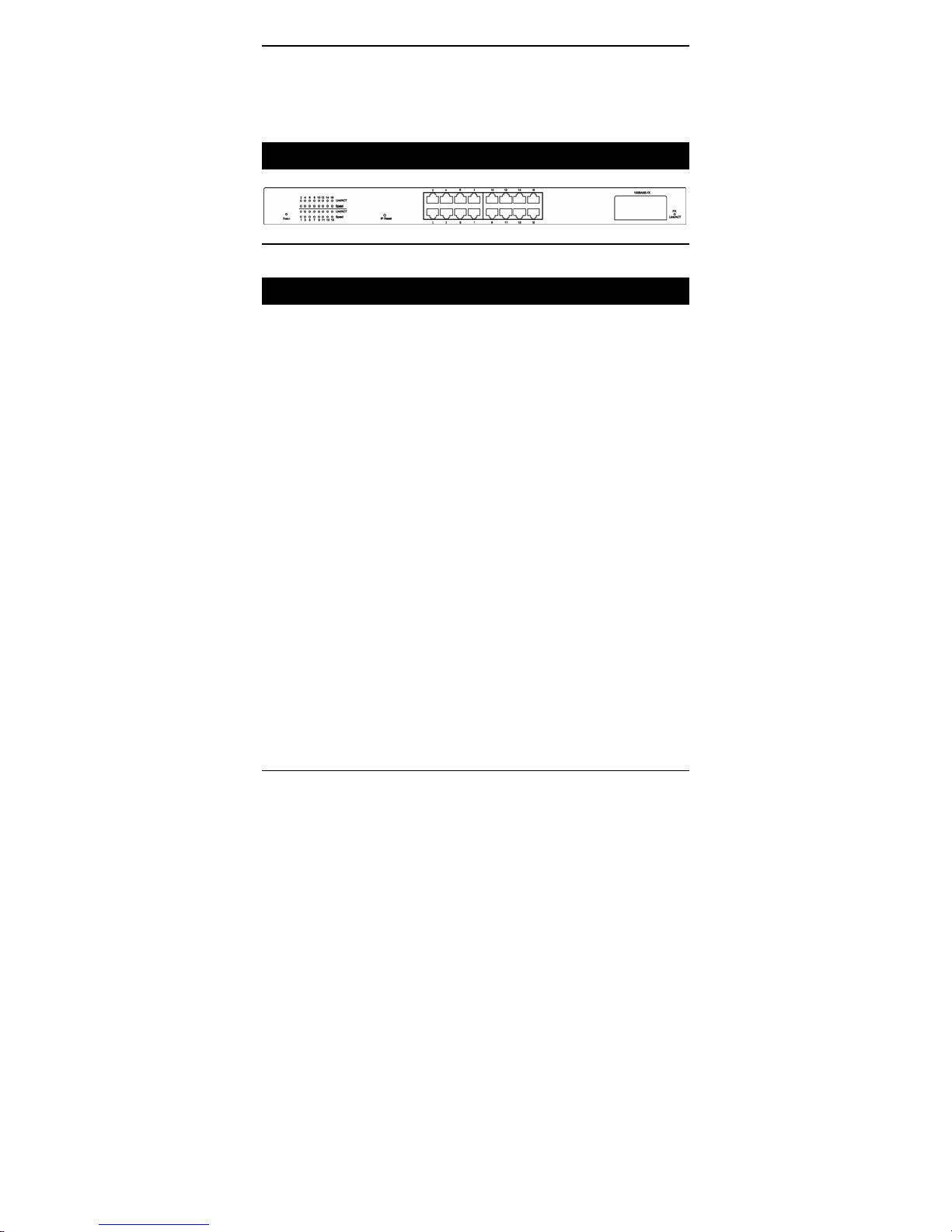

Front View

Figure 1: 16 Ports Smart Ethernet Switch

Package Contents

When you unpack the product package, you shall find these items

listed below.

The 16 Ports Switch

3One AC power cord

User’s Manual

Please inspect the contents, and report any apparent damage or

missing items immediately to your authorized reseller.

Express Ethernet Switch : LB9017A-R4

Product Features

♦PROVIDES 16 ×10/100MBPS PORTS USING RJ-45

CONNECTORS

♦AN OPTIONAL SINGLE-PORT FIBER MODULE ALLOWS:

-100BASEFX MULTI-MODE FIBER WITH SC, ST, MT-RJ, VF-45 OR LC

CONNECTOR

-100BASEFX SINGLE-MODE FIBER WITH SC OR ST CONNECTOR

-100BASEFX WDM SINGLE-MODE FIBER WITH SC CONNECTOR

♦AUTO-NEGOTIATION FOR SPEED AND DUPLEX MODE ON TX

PORTS

♦AUTO-MDIX FOR ALL TX PORTS

♦4K MAC ADDRESSES,1.5M BITS BUFFER MEMORY

♦STORE-AND-FORWARD MECHANISM

♦TRUE NON-BLOCKING ARCHITECTURE

♦FULL WIRE SPEED FORWARDING RATE

♦BROADCAST STORM FILTERING CONTROL

♦BACK-PRESSURE AND IEEE 802.3X COMPLIANT FLOW

CONTROL

♦SYSTEM,IP CONFIGURATION,PORT,PORT-BASED VLAN,

TRUNKING,QOSMODE,AND QOSPRIORITY SETTINGS

THROUGH THE WEB-BASED BROWSER.

♦PRESS THE FRONT PANEL IP RESET PUSH BUTTON TO RESET

THE ETHERNET SWITCH BACK TO THE DEFAULT SYSTEM

AND IP ADDRESS SETTINGS.(THE PORT,VLAN,

TRUNKING,QOSMODE,AND QOSPRIORITY SETTINGS

WILL REMAIN THE SAME AS WHEN THEY WERE LAST SAVED).

♦FRONT PANEL PORT AND POWER STATUS LEDS

♦STANDARD 19” RACKMOUNT SIZE,ONE-UNIT IN HEIGHT

Express Ethernet Switch : LB9017A-R4

Front Panel Display

The LED indicators on the front panel provide you with instant

feedback on each port status, and help you monitor and

troubleshoot the switch.

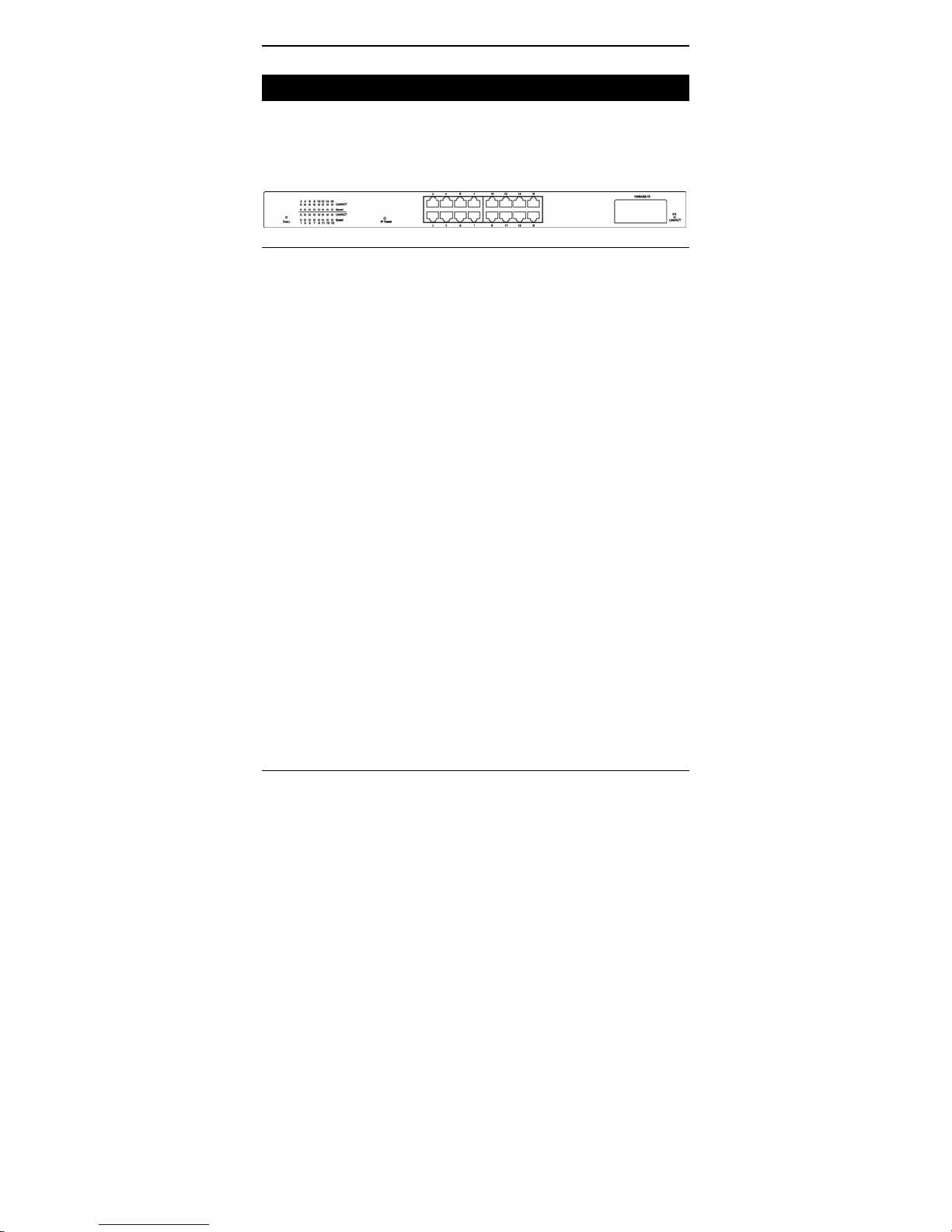

Figure 2: Front Panel LEDs

Power

This LED comes on when the switch is properly connected to power and

turned on.

IP Reset Push Button

Press the Front panel IP Reset push button to reset the Ethernet Switch

back with the default User Login ID, User Login Password, IP Address,

Netmask, and Gateway settings.

Port Status

The RJ-45 ports are numbered from 1 to 16 on the 16-Port Switch.

The LEDs are located on the front panel of the switch, displaying status for

each respective port. Please refer to the table below for more information.

Consult the following table for details.

LBefore you use this table for troubleshooting, make sure the switch is

properly connected to power and turned on.

Express Ethernet Switch : LB9017A-R4

Physical Ports

The 16 Ports Switch has sixteen 10/100Mbps ports using RJ-45

connectors and provides one slot for the optional single-port fiber

module. The optional module allows fiber type (multi-mode,

single-mode, or WDM single-mode fiber) and connector (SC, ST,

MT-RJ, VF-45, or LC) at user’s discretion.

UNDERSTANDING FRONT PANEL DESIGN

On Power feeding in

Power switched off

Power LED Off Improper connection

On A valid network connection

Flashing Transmitting or receiving data

ACT stands for ACTIVITY

Link/ACT

Off Neither connection nor activity

On A valid 100Mbps connection

Port LED

Speed

Off A valid 10Mbps connection

On A valid network connection

Link Off No connection

Flashing Transmitting or receiving data

ACT stands for ACTIVITY

100FX

Port LED

ACT

Off Neither transmitting nor receiving

data

Express Ethernet Switch : LB9017A-R4

Installation

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where

it will not be subjected to extreme temperatures, humidity, or

electromagnetic interference. Specifically, the site you select

should meet the following requirements:

- The ambient temperature should be between 32 and 113

degrees Fahrenheit (0 to 45 degrees Celsius).

- The relative humidity should be less than 90 percent,

non-condensing.

- Surrounding electrical devices should not exceed the

electromagnetic field (RFC) standards for IEC 801-3, Level 2

(3V/M) field strength.

- Make sure that the equipment receives adequate ventilation.

Do not block the ventilation holes on each side of the switch or

on the rear of the equipment.

-The power outlet should be within 6 feet (1.8 meters) of the

switch.
