Black Box LB300A-R3 Instrucciones de instalación y funcionamiento

Manual and installation guide for LB300A-R3

LB300A-R3, Ethernet Extender introduced here provides one channel for Ethernet over VDSL. The

following description provide as installation guide and manual.

Product Overview

Product Features

yOne 10/100BaseTX (TX) Ethernet port with RJ-45 connector

yAuto negotiation of speed and duplex mode on TX port

yAuto MDIX on TX port

yComplies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards

yOne Ethernet Extender port with RJ-11 connector

yEthernet Extender port auto senses the speed of 1/3/5/10/15/20/25/30/40/50Mbps

yOne DIP switch for configuring Ethernet Extender local or remote mode

yStatus LEDs

yExternal AC to DC power adapter

yUsed as a stand-alone device or with a chassis

yHot-swappable when used with a chassis

Packing List

When you unpack this product package, you will find the items listed below. Please inspect the contents, and report

any apparent damage or missing items immediately to Black Box.

LB300A-R3, Ethernet Extender

Installation Manual Guide

AC to DC Power Adaptor

VDSL Mode Settings

VDSL mode settings are made very simple by means of a switch at the rear panel of the VDSL Extender. The

switch has two positions for VDSL mode settings. Refer to the table below for more details. One device must be

set to Loc and the other to Rmt when two devices are connected.

Loc Rmt

The device operates in local mode The device operates in remote mode

CUSTOMER Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web Site: www.blackbox.com yE-mail: [email protected]

CUSTOMER Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX

SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web Site: www.blackbox.com yE-mail: [email protected]

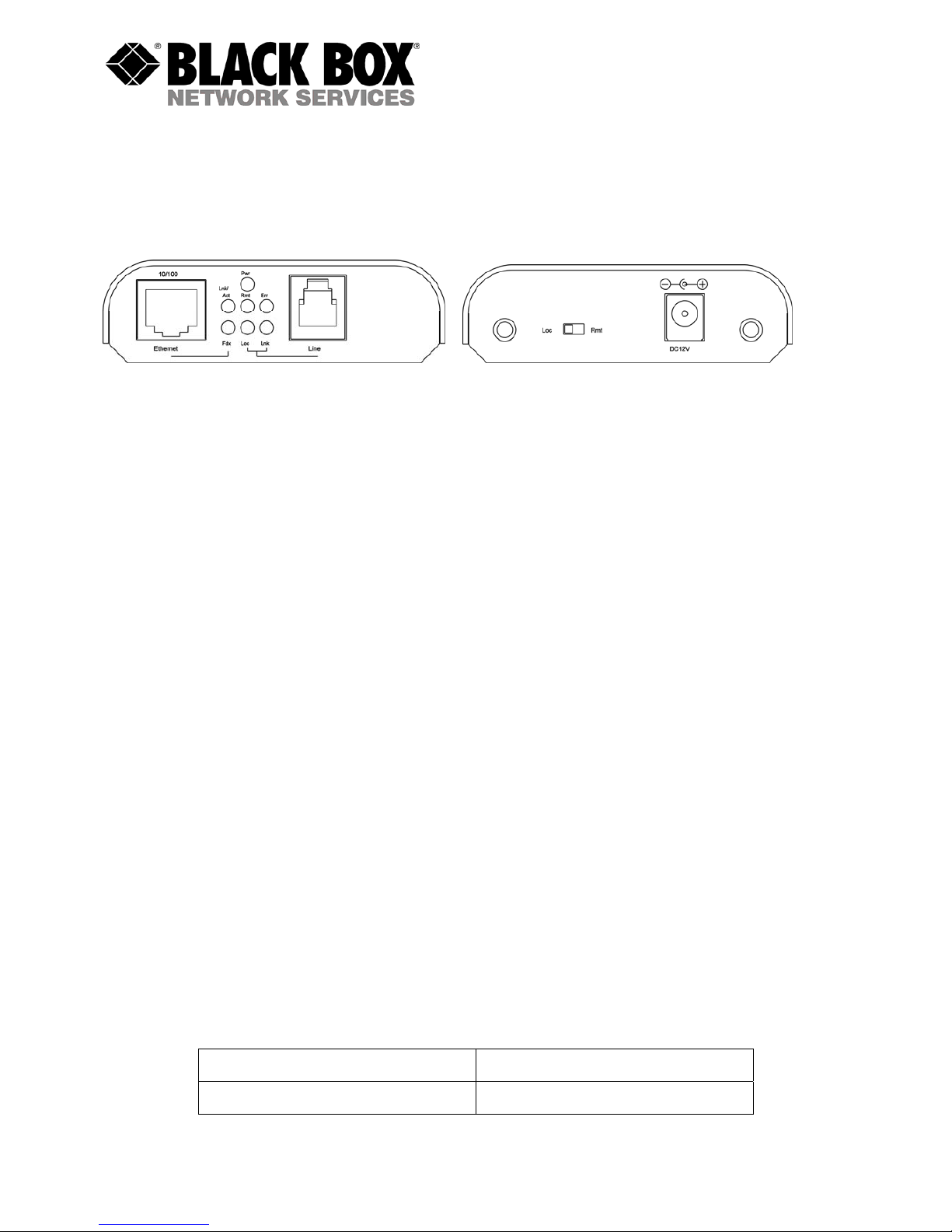

Front Panel & LEDs

The LED indicators give you instant feedback on status of the Ethernet Extender:

LEDs State Indication

Steady Power on, Pwr stands for POWERPwr

Off Power off

Ethernet

Steady A valid Ethernet connection established, Lnk stands for LINK

Flashing Transmitting or receiving Ethernet data, Act stands for ACTIVITY

Lnk/Act

Off Neither valid Ethernet connection established nor transmitting/receiving Ethernet data

Steady Ethernet Connection in full duplex mode, Fdx stands for FULL-DUPLEXFdx

Off Ethernet Connection in half-duplex mode

Ethernet Extender

Green The Ethernet Extender port transmitting/receiving at 1Mbps, up to 1900M

Amber The Ethernet Extender port transmitting/receiving at 3Mbps, up to 1800M

Green The Ethernet Extender port transmitting/receiving at 5Mbps, up to 1600M

Amber The Ethernet Extender port transmitting/receiving at 10Mbps, up to 1400M

Green The Ethernet Extender port transmitting/receiving at 15Mbps, up to 1200M

Amber The Ethernet Extender port transmitting/receiving at 20Mbps, up to 1000M

Green The Ethernet Extender port transmitting/receiving at 25Mbps, up to 800M

Amber The Ethernet Extender port transmitting/receiving at 30Mbps, up to 700M

4 + 2 Amber The Ethernet Extender port transmitting/receiving at 40Mbps, up to 600M

4 + 3 Amber The Ethernet Extender port transmitting/receiving at 50Mbps, up to 300M

Rmt Steady The device operates in remote mode

Loc Steady The device operates in local mode

Err Steady Error occurred

Lnk Steady A valid connection established

Connecting to Power

This Ethernet Extender is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle

on the rear panel of the Ethernet Extender, and then attach the plug into a standard AC outlet.
