Black Box IC402A-R2 Manual de usuario

STEP X - Name of Step

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BL ACKBOX.COM

IC402A-R2

USB 2.0

EXTENDER

QUICK START GUIDE

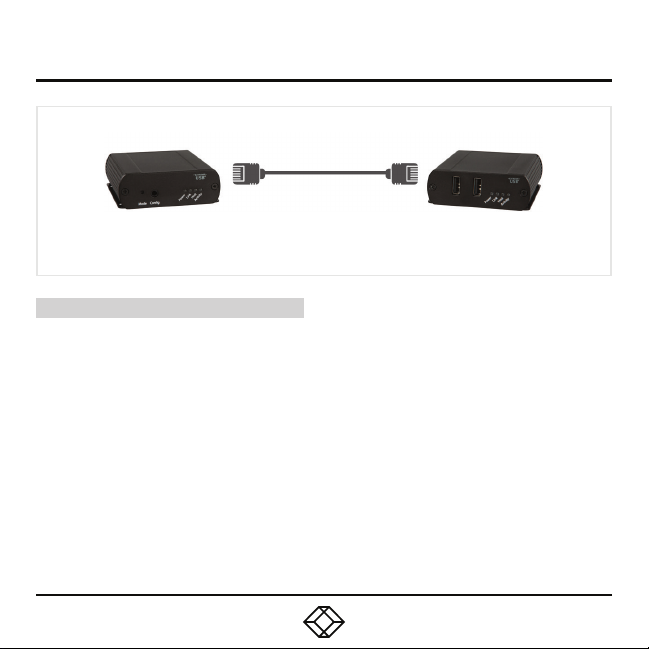

STEP 1 - Connect Local to Remote via CAT5e/6/7 cable

CONNECT LOCAL TO REMOTE

Place the units where desired, and connect

the CAT5e/6/7 (solid core) extension link

cabling into the Link ports (RJ-45)

of the Local and Remote Extenders.

LOCAL EXTENDER,

FRONT VIEW

CAT5E/6/7 CABLE

(NOT INCLUDED)

MAXIMUM LENGTH:

330 FEET (100 M) REMOTE EXTENDER,

FRONT VIEW

STEP 2 - Connect the power adapter

Connect the power adapter into your desired

unit—Local Extender or Remote Extender.

NOTE: Plug the power adapter into either

the Local or Remote unit, not both units.

LOCAL EXTENDER,

FRONT VIEW

OR

REMOTE EXTENDER,

FRONT VIEW

CAT5E/6/7 CABLE

(NOT INCLUDED)

MAXIMUM LENGTH:

330 FEET (100 M)

PLUG THE POWER ADAPTER INTO

EITHER THE LOCAL OR REMOTE UNIT

STEP 3 - Connect the Local Extender to your computer

Connect the Local Extender into your

computer using the included USB 2.0

cable.

LOCAL EXTENDER,

BACK VIEW

COMPUTER

USB CABLE

USB TYPE A

CONNECTOR

USB TYPE B

CONNECTOR

STEP 4 - Attach the USB device to the Remote Extender

OPTIONAL: DOWNLOAD USER MANUAL

For product specifications and regulatory information,

refer to the User Manual. You can download this

document from our web site.

1. Go to www.blackbox.com

2. Enter the part number (IC402A-R2) in the search box.

3. Click on the product in the “Product Results” page.

4. Click on the “Support” tab on the product page,

and select the document you wish to download.

If you have any trouble accessing the Black Box

site to download the manual, you can contact

our Technical Support at 877-877-2269

or inf[email protected]

REMOTE EXTENDER,

FRONT VIEW

USB TYPE A

CONNECTORS

USB CABLES

Attach your USB device(s) to the Remote

Extender.

NOTE: These USB cables are NOT included.

STEP X - Name of Step

COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
