BIXOLON SRP 770 - B/W Direct Thermal Printer Manual de usuario

JE68-00131B

Rev. 1.05

USER’S MANUAL

SRP-770

LABEL PRINTER

www.samsungminiprinters.com

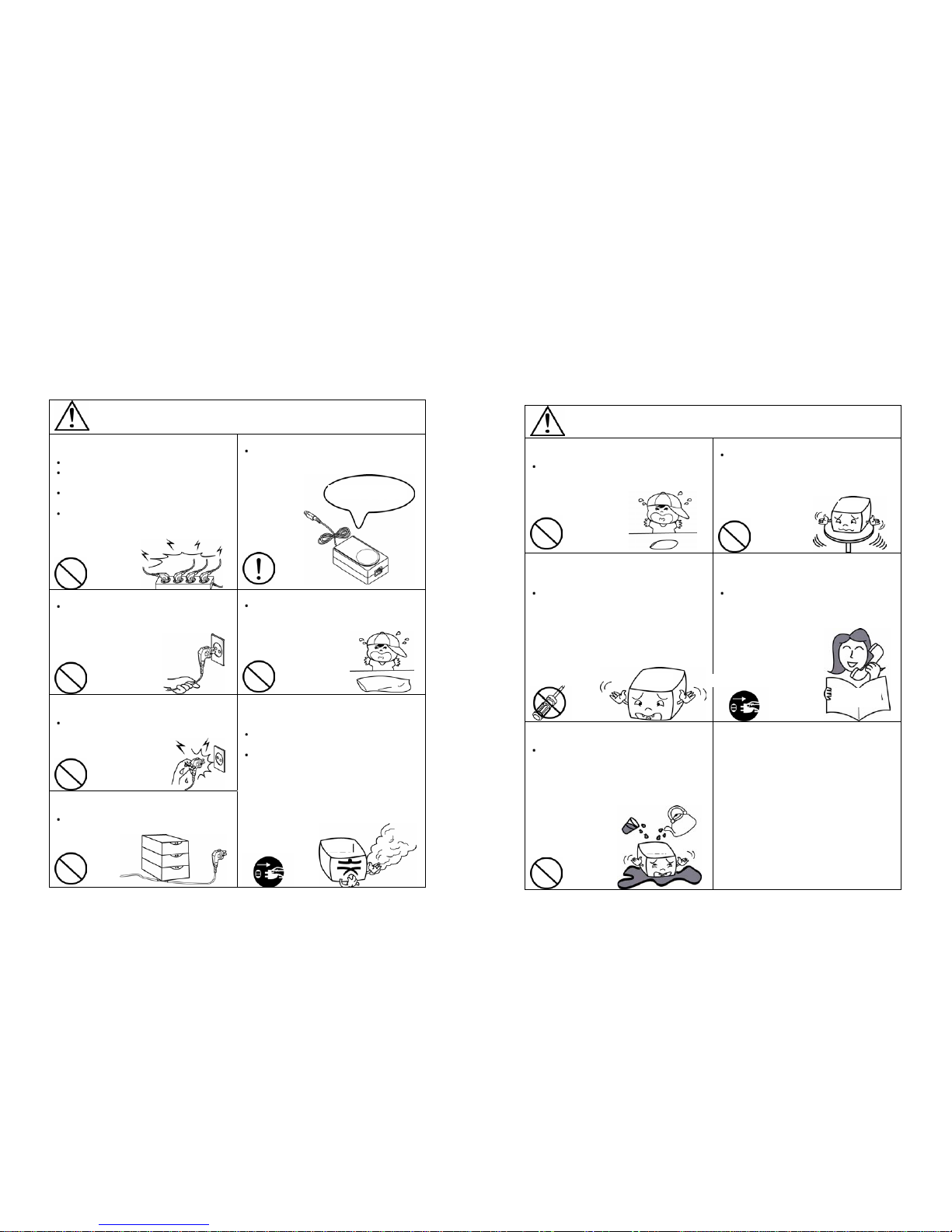

Safety Precautions

In using the present appliance, please keep the following safety

regulations in order to prevent any hazard or material damage.

Violating following instructions can cause serious injury or death.

Do not plug several products in one

multi-outlet.

This can provoke over-heating and a fire.

If the plug is wet or dirty, dry or wipe it

before usage.

If the plug does not fit perfectly with the

outlet, do not plug in.

Be sure to use only standardized

multi-outlets.

You must use only the supplied adapter.

It is dangerous to use other adapters.

Do not pull the cable to unplug.

This can damage the cable, which is the

origin of a fire or a breakdown of the printer.

Keep the plastic bag out of children’s reach.

If not, a child may put the bag on his head.

Do not plug in or unplug with your hands

wet.

You can be electrocuted.

Do not bend the cable by force or leave it

under any heavy object.

A damaged cable can cause a fire.

If you observe a strange smoke, odor or

noise from the printer, unplug it before

taking following measures.

Switch off the printer and unplug the set

from the mains.

After the disappearance of the smoke, call

your dealer to repair it.

WARNING

PROHIBITED

ONLY SUPPLIED ADAPTER

PROHIBITED

TO UNPLUG

PRINTER

Violating following instructions can cause slight wound or damage the appliance.

Keep the desiccant out of children’s

reach.

If not, they may eat it.

Install the printer on the stable surface.

If the printer falls down, it can be broken

and you can hurt yourself.

Use only approved accessories and do

not try to disassemble, repair or remodel

it for yourself.

Call your dealer when you need these

services.

Do not use the printer when it is out of

order. This can cause a fire or an

electrocution.

Switch off and unplug the printer before

calling your dealer.

Do not let water or other foreign objects

in the printer.

If this happened, switch off and unplug the

printer before calling your dealer.

WARNING

PROHIBITED PROHIBITED

PRINTER

PRINER

DISASSEMBLING

PROHIBITED

PRINTER

PROHIBITED

PRINTER

DEALER

TO UNPLUG

Table of Contents

1. Unpacking & Repacking......................................................................... 5

2. Samsung Label Printer ...................................................................6

3. Connecting the Power Supply...................................................... 7

4. Connecting the Interface Cable ..................................................8

5. Installing or Replacing the Paper Roll......................................9

6. Setting the Dip Switches .............................................................10

7. The Self Test.....................................................................................11

8. The Peel-off ......................................................................................12

9. Using Fan Fold Paper.....................................................................13

10. Auto Cutter (Option)................................................................... 14

11. Cleaning Head ...............................................................................15

12.

Install and Uninstall Windows Driver

...........................................16

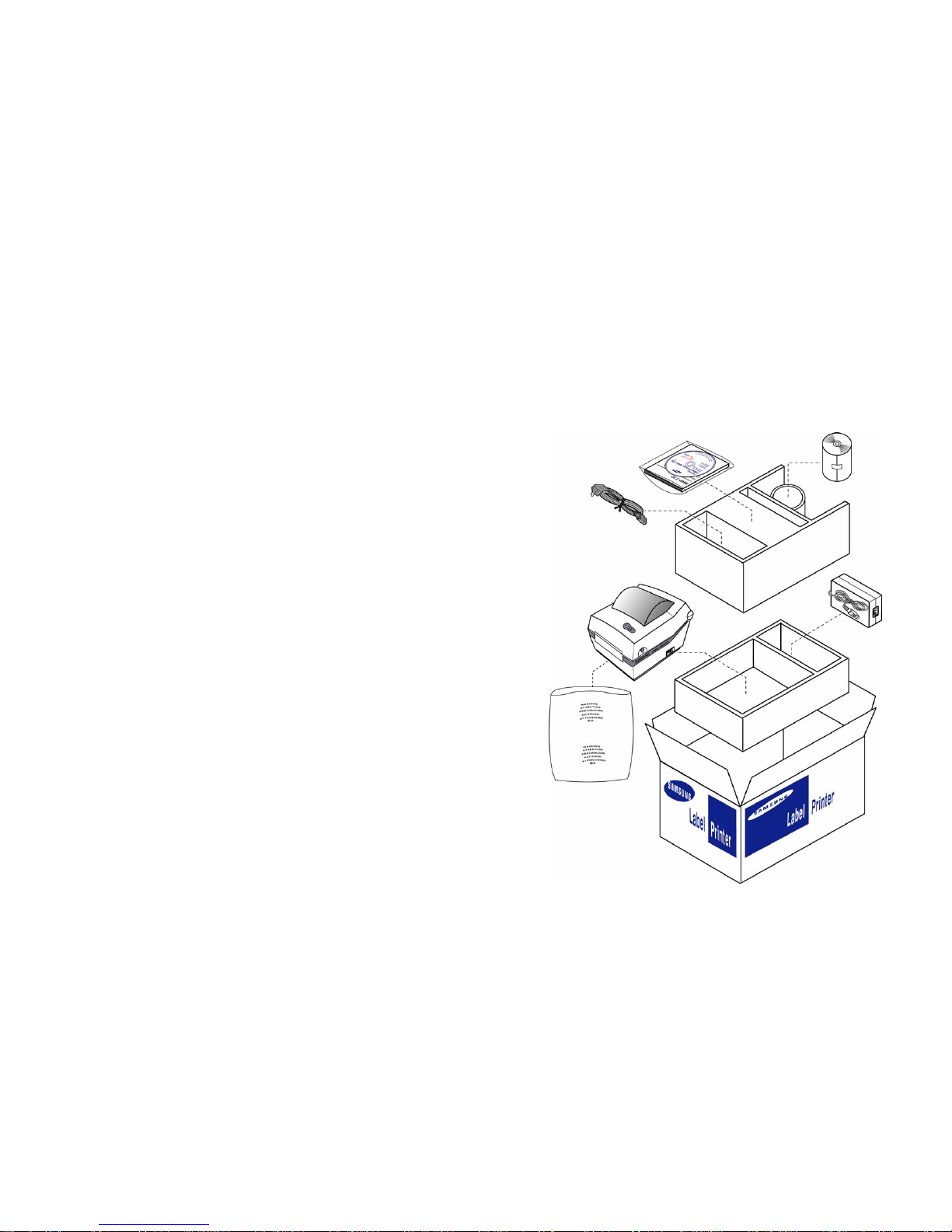

1. Unpacking & Repacking

Your printer box should include these items. If any items are damaged or missing,

please contact your dealer for assistance.

Note : Please keep the packing materials(①,②,④,⑥) for future repacking to send

a printer for repairs.

⑧Operator’s Manual & CD

⑨Label

(Paper)

⑦Power Cord

⑤Printer (SRP-770)

③Power Supply

④Pe-bag

①Printer Box

②Cushion

(

Bottom

)

⑥Cushion

(

)

※You can repack the printer package in above numeric order(①~⑨)

2. Samsung Label Printer

Feed Button

Cover Peel-off

Status Indicator

Cover Open/Close

Power Switch

Printer Head

Paper Holder

Paper Guide

Peel-off Sensor

Paper(gap) Sensor

Paper Adjuster

Power Connector

Interface Connectors

[RS-232C, IEEE1284, USB]

Dip Switch

(Option)

Auto Cutter

3. Connecting the Power Supply

CAUTIONS:

When connecting or disconnecting the power supply from the printer, make sure that

the power supply is not plugged into an electrical outlet. And the power supply’s

rated voltage and your outlet’s voltage do not match, contact your dealer for

assistance. Then do not plug in the power cord. Otherwise, you may damage the

power supply or the printer.

1. Make sure that the printer’s power switch is turned off, and the power supply’s

power cord is unplugged from the electrical outlet.

2. Check the label on the power supply to make sure that the voltage required by the

power supply matches that of your electrical outlet.

3. Plug in the power supply’s cable as shown below. Notice that the flat side of the

plug faces down.

4. Connecting the Interface Cable

Universal Serial Bus

(USB) Serial Interface

RS-232 default

setting is 19200 baud,

no parity, 8 data bits

and 1 stop bit

Parallel Interface

Installing or Replacing the Paper Roll

①Open Cover ②Open Guides

③Install Roll

⑤Close Cover

④Close Guides to the Width of the paper

6. Setting The Dip Switches

6-1. Setting the Dip Switches

The Dip Switches are located on the bottom of the printer. The Dip Switches are used to

set the Printer to perform various functions. Follow these steps when changing Dip

Switches setting :

1. Turn the printer power switch off.

2. Remove the screw on the bottom

of the printer and open the bracket.

3. Flip the Dip Switches using tweezers

or another narrow-ended tool.

Switches are off when up and on

when down in the Figure below.

4. The new setting takes effect

when you turn on the printer.

Note : Always change Dip Switch settings

only when the printer is turned off.

6-2. Functions of Dip Switches

6-2-1. Dip S/W 1 6-2-2. Dip S/W 2

No Functions Details

2 1 Speed

Off Off 2.5 ips

Off On 3.0 ips

On Off 4.0 ips

1,2 Speed

Selection

On On 5.0 ips

4 3 Density

Off Off 0(Low)

Off On 7

On Off 13

3,4 Density

Selection

On On 20(High)

Off Normal mode

5 Exhibition

Selection On Demo mode

Off Label Paper

6 Media

Selection On Normal Paper

Off Without Auto Cuter

7 Auto Cutter

On With Auto Cutter

Off Move to Cutting PositionPosition

Selection On Move to top of next page

Off Back Feeding printing

8 With

AutoCutter On Continuous printing

No Functions Details

2 1 Baud Rate

Off Off 9,600 bps

Off On 19,200 bps

On Off 57,600 bps

1,2 Baud

Rate

On On 115,200 bps

Off Detect Gap only

3 Media

Detection On Detect Gap and

Black-mark

Off SRAM

Memory

Selection for

Image Store On Flash Rom

Off SAMSUNG command

5 Emulation

On Emulation

6~8 Developer

Mode Default --- off

. The Self Test

The self-test checks whether the printer has any problems. (You cannot perform this

procedure if using the printer’s label peel-off option) If the printer does not function

properly, contact your dealer. The self-test checks the following;

1. Make sure that paper roll has been installed properly.

2. Turn on the power while holding(2sec) down the FEED button. The self-test begins.

3. The self-test prints the current printer status, which provides the control ROM version

and the DIP switch setting.

8. The Peel-off

Printers can Peel-off a single label.

You must remove the label before the printer prints the next label.

Open the peel①-off cover and turn on peeler switch.

Remove the one a paper and Adjust the paper guides and close the cover.②③

insert the paper through slot.

remove

9. Using Fan Fold Paper

Insert paper through both the rear slot and guides.

Adjust holders and guides to the width of the paper.

Open the Dust Cover

and Insert paper

Dust Cover

Adjust holders papers and paper Fixed Adjust Guides

Paper Fixed

10. Auto Cutter (Option)

Auto cutter should be used for continuous paper only. ( i.e. roll paper)

1. Open the Dip switch cover, and make the switch 1 number 7 “On”.

(Refer to printer mode setting at Chapter 6.)

2. Put a paper roll into the printer and close the cover.

Caution (Partial cut)

: Once the printer cut the paper, remove the receipt in order for next printing.

Otherwise the receipt could be back into the printer and the cutter would

cut it again.

11. Cleaning Head

Paper dust on the heating elements may lower the printer quality. In this case, clean the

print head as follows :

Cautions 1. Turn Off the printer power before cleaning.

2. Note that the thermal head becomes very hot during normal operation,

creating the danger of burn injury. Be sure to wait for about 2~3 minutes

after turning printer power off before beginning the cleaning.

1. Open the printer cover.

2. Clean the thermal element (the area which is marked a thin black line) of the thermal

head with a cotton swab moistened with a alcohol solvent (ethanol, methanol, or IPA).

3. After confirming that the alcohol solvent has been dried up completely, close the

cover-open.

Note 1. Never touch the thermal element with your hand,

then the thermal element can be damaged.

2. Don’t scratch the printer head.

䧎Clean it up when you replace every roll of paper to prevent the quality

deterioration.

12.

Install and Uninstall Windows Driver

12.1 Download install-program from Website

(1) Execute web-browser.(Ex: Internet Explorer)

(2) Type http://www.samsungminiprinters.com

(3) Connect website.

(4) In “Quick menu”, click download button.

(5) Download “SRP-770_V3.X.X.exe” in SRP-770 section.

12.2 Install Windows Driver

12.2.1 Serial Parallel interface

(1) Double click “SRP-770_V3.X.X.exe” file.

(2) Click “Next” Button.

(3) Click “Install” Button.

(4) Select operating system type.

(5) Select interface (port) type.

(6) Please reboot computer.

12.2.2 USB interface

A. Windows 95/98/ME

(1) Double click “SRP-770_V3.X.X.exe” file.

(2) Click “Next” Button.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Etiquetadora de BIXOLON

BIXOLON

BIXOLON SPP-L3000 Manual de usuario

BIXOLON

BIXOLON SLP-D420 Manual de usuario

BIXOLON

BIXOLON SRP-382II Instrucciones de instalación

BIXOLON

BIXOLON XD Series Manual de instrucciones

BIXOLON

BIXOLON XD5-43t Manual de usuario

BIXOLON

BIXOLON XD Series Instrucciones de instalación

BIXOLON

BIXOLON SLP-DL410 Manual de usuario

BIXOLON

BIXOLON XT2-40 Series Manual de usuario

BIXOLON

BIXOLON SRP-770IIE Manual de usuario

BIXOLON

BIXOLON XT5-40 Series Instrucciones de instalación

BIXOLON

BIXOLON SRP-770 Manual de usuario

BIXOLON

BIXOLON SRP-770II Manual de usuario

BIXOLON

BIXOLON XD5-40DK Manual de usuario

BIXOLON

BIXOLON SLP-DX220B Manual de usuario

BIXOLON

BIXOLON SLP-DX220 Manual de usuario

BIXOLON

BIXOLON BXLLIBX.CAB Manual de usuario

BIXOLON

BIXOLON XT5-40 Series Manual de usuario

BIXOLON

BIXOLON XQ-840 Series Manual de usuario

BIXOLON

BIXOLON SLP-TX40xR Series Manual del propietario

BIXOLON

BIXOLON XT5-43 Manual de usuario

BIXOLON

BIXOLON SLP-TX220 Manual de usuario

BIXOLON

BIXOLON SLP-T400II Manual de usuario

BIXOLON

BIXOLON XT5-43S Manual de usuario

BIXOLON

BIXOLON SLP-DL413KV Manual de usuario

Manuales populares de Etiquetadora de otras marcas

Brother

Brother P-Touch 2420PC Manual de usuario

newell

newell Dymo LabelManager 210D Manual de usuario

Brother

Brother TD-4000 Manual de usuario

U-Line

U-Line BROTHER H-8754 Manual de usuario

Tharo Systems

Tharo Systems H-435+ Manual de usuario

Brother

Brother E300 Manual de usuario

Godex

Godex RT700 SERIES Manual de usuario

ID Technology

ID Technology 252 Manual de usuario

Labelmate

Labelmate MC-11 Manual de usuario

CAB

CAB XD4M/300 Manual de usuario

Avery Dennison

Avery Dennison Pathfinder 6057 Manual de servicio

Brother

Brother P-touch PT-9700PC Manual de usuario

TSC

TSC PEX1000 Series Manual de usuario

Adkins

Adkins Label Master Manual de usuario

Epson

Epson LabelWorks LW-400 Manual de usuario

Primera

Primera 510212 Manual de usuario

Brady

Brady BradyPrinter S3100 Manual de usuario

DuraLabel

DuraLabel LabPRO Manual de usuario
