BIXOLON SLP-D420E Manual de usuario

True Font Downloader Manual

Label Printer

Rev. 1.01 SLP-D420 / D420E

SLP-D423 / D423E

http://www.bixolon.com

SLP-D42**

Rev. 1.01 - 2 -

■Table of Contents

1. Manual Information........................................................................................................3

2. Operating System (OS) Environment...........................................................................3

3. Set font download utility ...............................................................................................3

4. To download new True type font to the printer ...........................................................4

SLP-D42**

Rev. 1.01 - 3 -

1. Manual Information

BIXOLON Font Downloader makes it possible to convert and download True Type ASCII

fonts to the printer. The downloaded fonts can be used like the internal printer fonts by Text

command. Please refer to the following explanation of each function for more information.

We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and

quality of all our products. In following, product specifications and/or user manual content

may be changed without prior notice.

2. Operating System (OS) Environment

The following operating systems are supported for usage.

Microsoft Windows 2000

Microsoft Windows XP (32bit/64bit)

Microsoft Windows 2003 Server (32bit/64bit)

Microsoft Windows VISTA (32bit/64bit)

Microsoft Windows 2008 Server (32bit/64bit)

Microsoft Windows 7(32bit/64bit)

3. Set Font Download Utility

While the Windows driver installs, you can install the font download utility.

After installation, there is a “BIXOLON Font Downloader” icon on the desktop.

SLP-D42**

Rev. 1.01 - 4 -

4. To download a new True type font to the printer

1) Double-click the “BIXOLON Font Downloader” icon.

2) Click on the “New” icon to make a new project file. This file contains the information

about memory card type and font to be downloaded.

SLP-D42**

Rev. 1.01 - 5 -

3) Press the Save button after selecting the memory card type and typing the file name.

4) Input the description and press the OK button.

SLP-D42**

Rev. 1.01 - 6 -

5) Click on the “Fonts-Add” to select font to be downloaded.

6) Specify the properties of the font and press the OK button.

SLP-D42**

Rev. 1.01 - 7 -

7) Now you can see the information of the font to be downloaded.

8) Press the Characters button to select characters to be downloaded.

SLP-D42**

Rev. 1.01 - 8 -

9) Press OK button after font selection.

Available: Available font list

Selected: Selected font list to be downloaded

>>: Add all available fonts

>: Add selected fonts

<: Delete selected fonts from the selected list.

<<: Delete all fonts from the selected list.

<>: Exchange fonts with each other.

10) Press OK button

SLP-D42**

Rev. 1.01 - 9 -

11) Press Yes button to start downloading fonts.

12) Downloaded font is shown on the Fonts list after download is completed.

SLP-D42**

Rev. 1.01 - 10 -

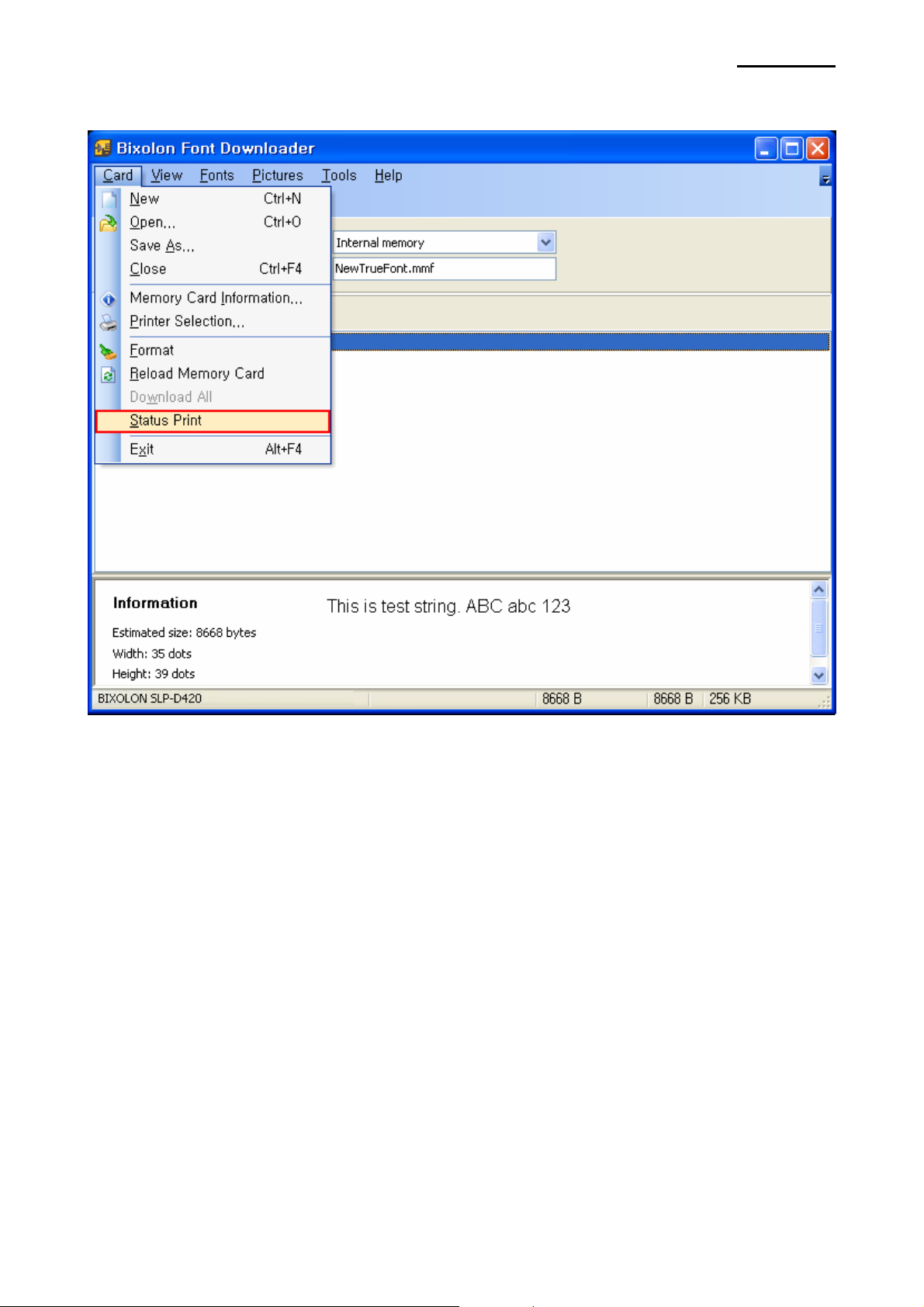

13) Card-Status printer menu tells the printer to print out the downloaded font list.
