Billy Goat P / N 440120 Manual de usuario

Part No 440021 Form No F101706A

FORCE BLOWER Owner’s Manual

Patent Pending

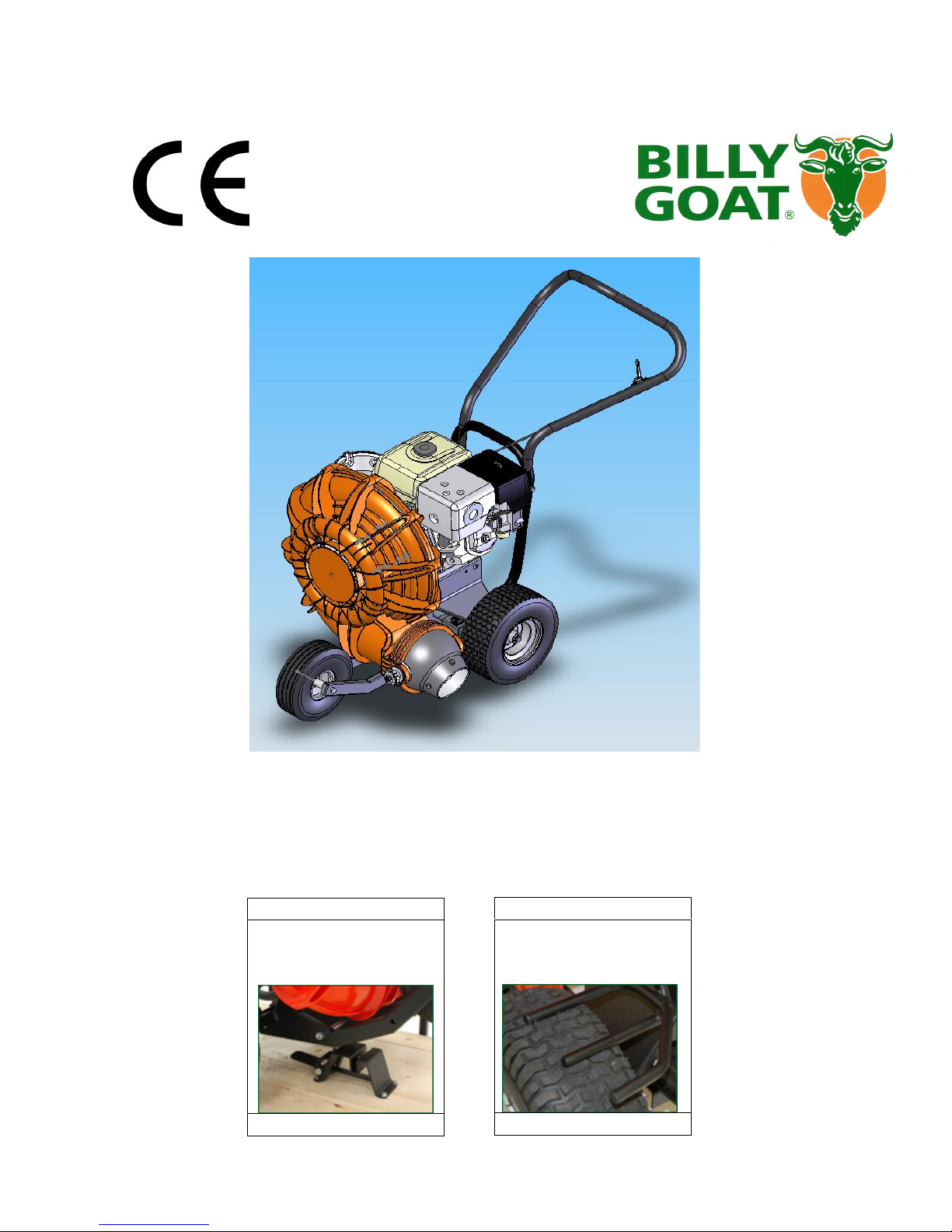

BILLY GOAT FORCE BLOWER

Owner's Manual

Accessories

PARKING BRAKE

Effective and Easy to

use to prevent blower

from rolling.

P/N 440140

HOLD DOWN KIT

To secure blower for

transportation on

trailer floors.

P/N 440120

Part No 440021

Form No F101706A

FORCE BLOWER Owner’s Manual

ABOUT THIS MANUAL

THANK YOU for purchasing a BILLY GOAT

FORCE Blower. Your new machine has been carefully designed and

manufactured to provide years of reliable and productive service. This manual provides complete operating and

maintenance instructions that will help to maintain your FORCE Blower in top running order. Read this manual

carefully before assembling, operating, or servicing your equipment.

CONTENTS

SERIAL PLATE DATA AND SPECIFICATIONS 3

GENERAL SAFETY 4-5

SOUND AND VIBRATION 6

INSTRUCTION LABELS 7

PACKING CHECKLIST 8

ASSEMBLY

OPERATION 10-11

MAINTENANCE 12

TROUBLESHOOTING AND WARRANTY PROCEDURE 13

ILLUSTRATED PARTS LIST 14

PARTS LIST 15

MAINTENANCE RECORD 16

Part No 440021 Form No F101706A

FORCE BLOWER Owner’s Manual

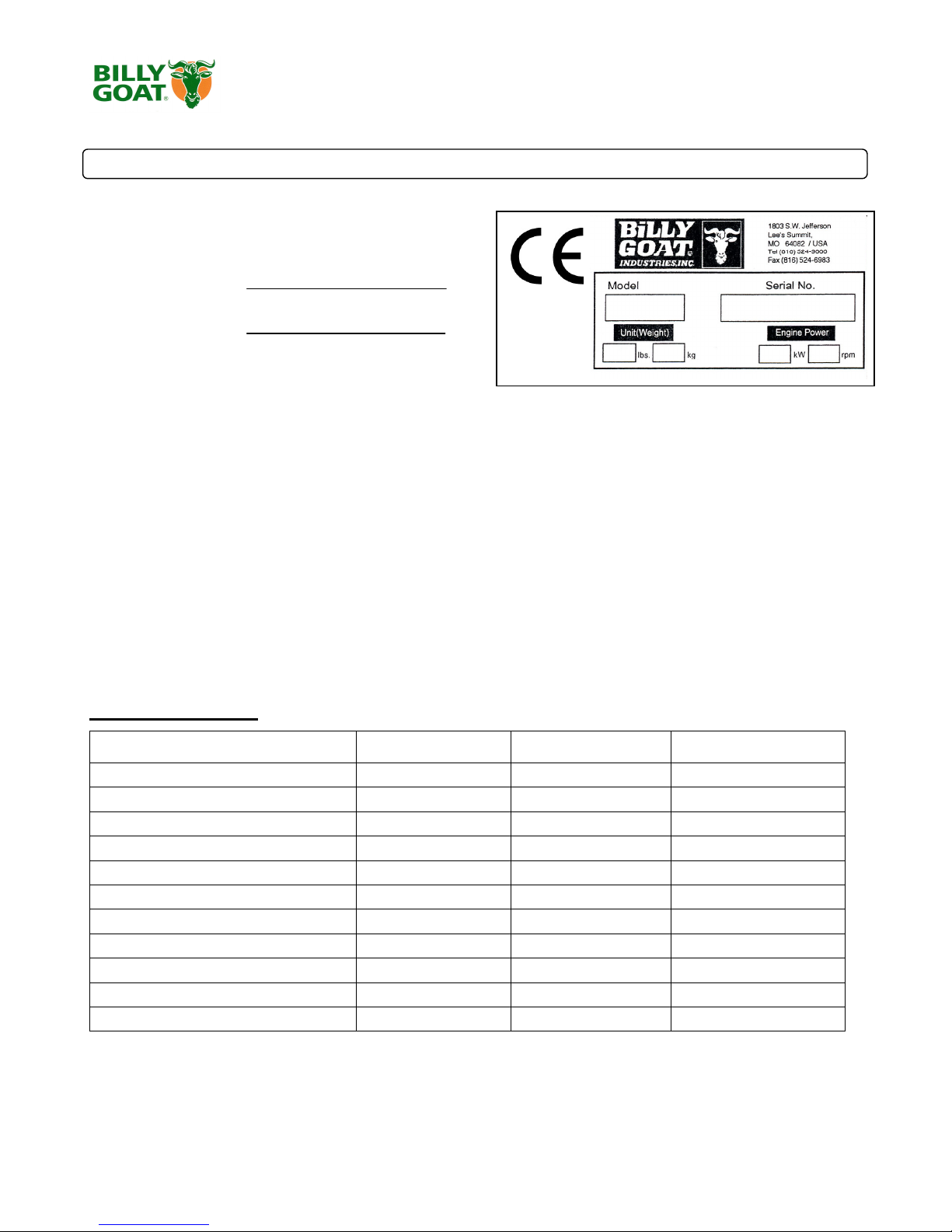

SERIAL PLATE DATA

Record the model number, serial number, date of

purchase, and where purchased.

Purchase Date:

Purchased From:

Specifications F900S F900H F1300H

Engine: HP 9.0 HP (6.6kW) 9.0 HP (6.6kW) 13.0 HP (9.6kW)

Engine: Model EX270D50021 GX270K1QA2 GX390K1QAA2

Engine: Type SUBARU OHC HONDA OHV HONDA OHV

Engine: Fuel Capacity 6.4 qt. (6.1L) 6.3 qt. (6.0L) 6.5 qt. (6.1L)

Engine: Oil Capacity 1.05 qt. (1.0L) 1.16 qt. (1.1L) 1.16 qt. (1.1L)

Total Unit Weight: 138 # (62.6Kg) 143 # (64.8Kg) 160 # (72.6Kg)

Overall Length: 58"(1.43m) 58"(1.43m) 58"(1.43m)

Overall Width 29.25” (0.74m) 29.25” (0.74m) 28" (0.71m)

Overall Height 45" (1.14m) 45" (1.14m) 45" (1.14m)

In compliance with 2000/14/EEC standards 107dB(a) @3340 rpm 109dB(a) @ 3660 rpm 110dB(a) @ 3640 rpm

Sound at Operator’s ears 87dB(a) @ 3340 rpm 89dB(a) @ 3660 rpm 90dB(a) @ 3640 rpm

Vibration at operator position .96 g (9.44 m/s

) 1.05 g (10.30 m/s

) .81 g (7.96 m/s

)

Part No 440021

Form No F101706A

FORCE BLOWER Owner’s Manual

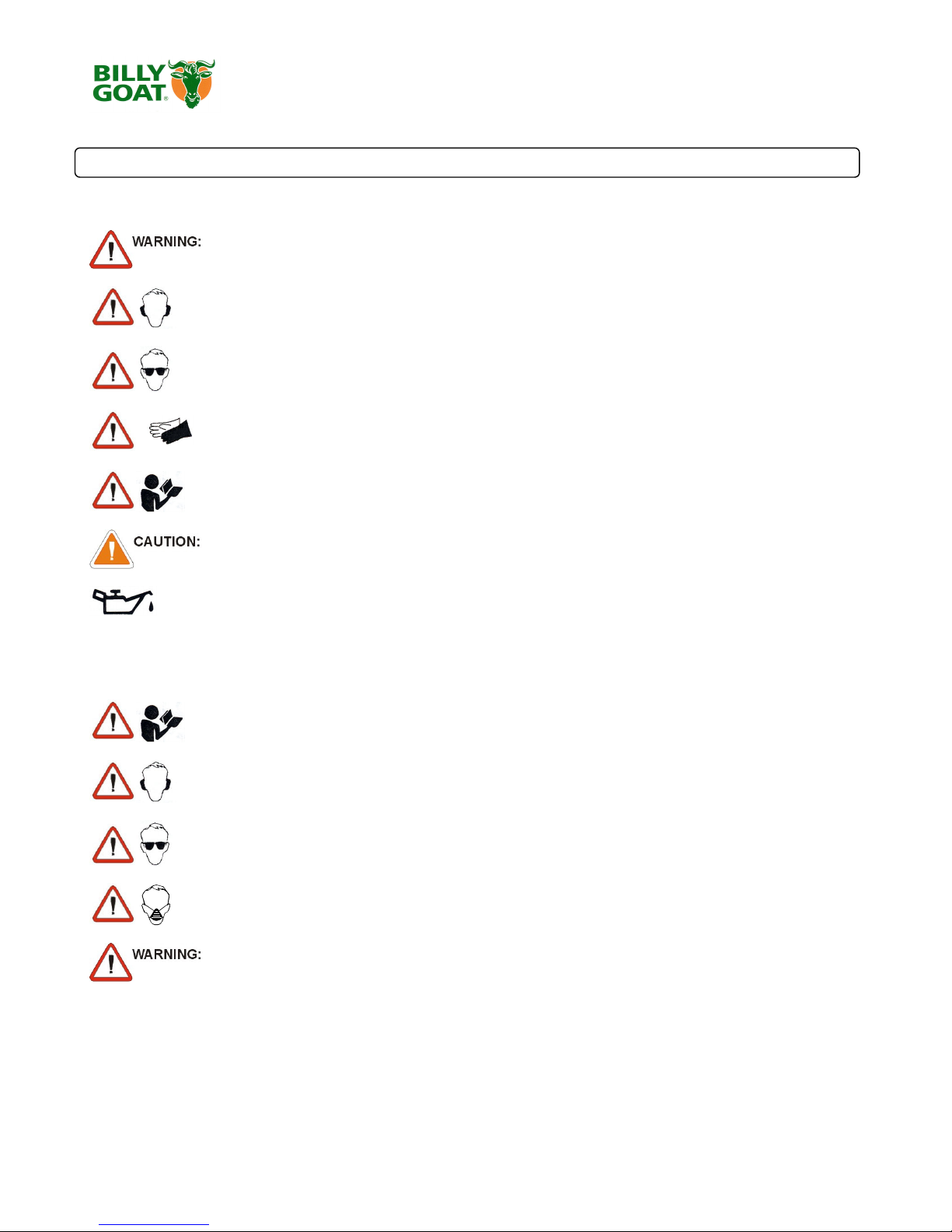

GENERAL SAFETY INSTRUCTIONS and SYMBOLS

The safety symbols shown below are used throughout this manual. You should become familiar with them before

assembling, operating, or servicing this equipment.

This symbol indicates important information that will prevent injury to yourself or others.

This symbol indicates ear protection is recommended when operating this equipment.

This symbol indicates eye protection is recommended when operating this equipment.

This symbol indicates gloves should be worn when servicing this equipment.

This symbol indicates that this manual and the engine manufacturer’s manual should be read

carefully before assembling, operation, or servicing this equipment.

This symbol indicates important information that will prevent damage to your BILLY GOAT

FORCE Blower.

This symbol indicates the engine oil level should be checked before operating this

equipment.

Read and make sure you thoroughly understand the following safety precautions before assembling, operating or

servicing this equipment:

READ this manual and the engine manufacturer’s manual carefully before assembling,

operating, or servicing this equipment.

EAR PROTECTION is recommended when operating this equipment.

EYE PROTECTION is recommended when operating this equipment.

BREATHING PROTECTION is recommended when operating this equipment.

EXHAUST from this product contains chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

DO NOT operate this equipment on any unimproved forested, brushy, or grass covered land

unless a spark arrester is installed on the muffler as required by Section 4442 of the

California Public Resources Code. The arrester must be maintained in good working order.

Other states may have similar laws. Federal laws apply on federal lands.

DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an

odorless and possibly fatal poison.

Part No 440021 Form No F101706A

FORCE BLOWER Owner’s Manual

DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is

recommended.

DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least

two minutes before refueling.

DO NOT store gasoline near an open flame.

DO NOT remove gas cap while engine is running.

DO NOT start or operate engine if strong odor of gasoline is present.

DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until

gasoline has completely evaporated.

DO NOT smoke while filling the fuel tank.

DO NOT check for spark with spark plug or spark plug wire removed. Use an approved spark

tester.

DO NOT operate engine without a muffler. Inspect muffler periodically and replace if

necessary. If equipped with muffler deflector, inspect deflector periodically and replace if

necessary.

DO NOT operate engine with grass, leaves or other combustible material near the muffler.

DO NOT touch muffler, cylinder, or cooling fins when hot. Contact with hot surfaces may

cause severe burns.

DO NOT leave equipment unattended while in operation.

DO NOT park equipment on a steep grade or slope.

DO NOT operate equipment with bystanders in or near the work area.

DO NOT allow children to operate this equipment.

DO NOT operate equipment with guards removed.

DO NOT operate equipment near hot or burning debris or any toxic or explosive materials.

DO NOT operate equipment on slopes greater than specified in Specifications section of this

manual.

ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting.

ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.

ALWAYS keep hands and feet away from moving or rotating parts.

ALWAYS store fuel in approved safety containers.

WARNING: Important

Do not run this machine without director cone attached or with improper air director cone.

DO NOT run this machine with a cracked or damaged impeller under any circumstances.

Part No 440021

Form No F101706A

FORCE BLOWER Owner’s Manual

SOUND

SOUND LEVEL 90 Db(a) at Operators Position

Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 5-17-

2006 under the conditions listed below.

Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on

the unit for the sound power level for your model.

VIBRATION DATA

VIBRATION LEVEL 1.05g (10.30m/s

)

Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using

calibrated vibration test equipment. Tests were performed on 5-17-2006 under the conditions listed below.

INTENDED USE

This machine is designed for cleaning outdoor surfaces, where the debris can be effectively blown into a

consolidated area for convenient pickup and removal.

Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check

for damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note:

See parts list for proper impeller bolt torque specifications. (See trouble shooting section on page 13).

General Conditions: Sunny

Temperature: 79.7

F (26.5

Wind Speed: 1.7 mph (2.8kph)

Wind Direction: South Southwest

Humidity: 31.2%

Barometric Pressure: 29.9Hg (101.25kpa

)

General Conditions: Sunny

Temperature: 86.5

F (30.3

Wind Speed: 2.5 mph (4.1kph)

Wind Direction: South Southwest

Humidity: 56.4%

Barometric Pressure: 29.9Hg (101.25kpa

)

Part No 440021 Form No F101706A

FORCE BLOWER Owner’s Manual

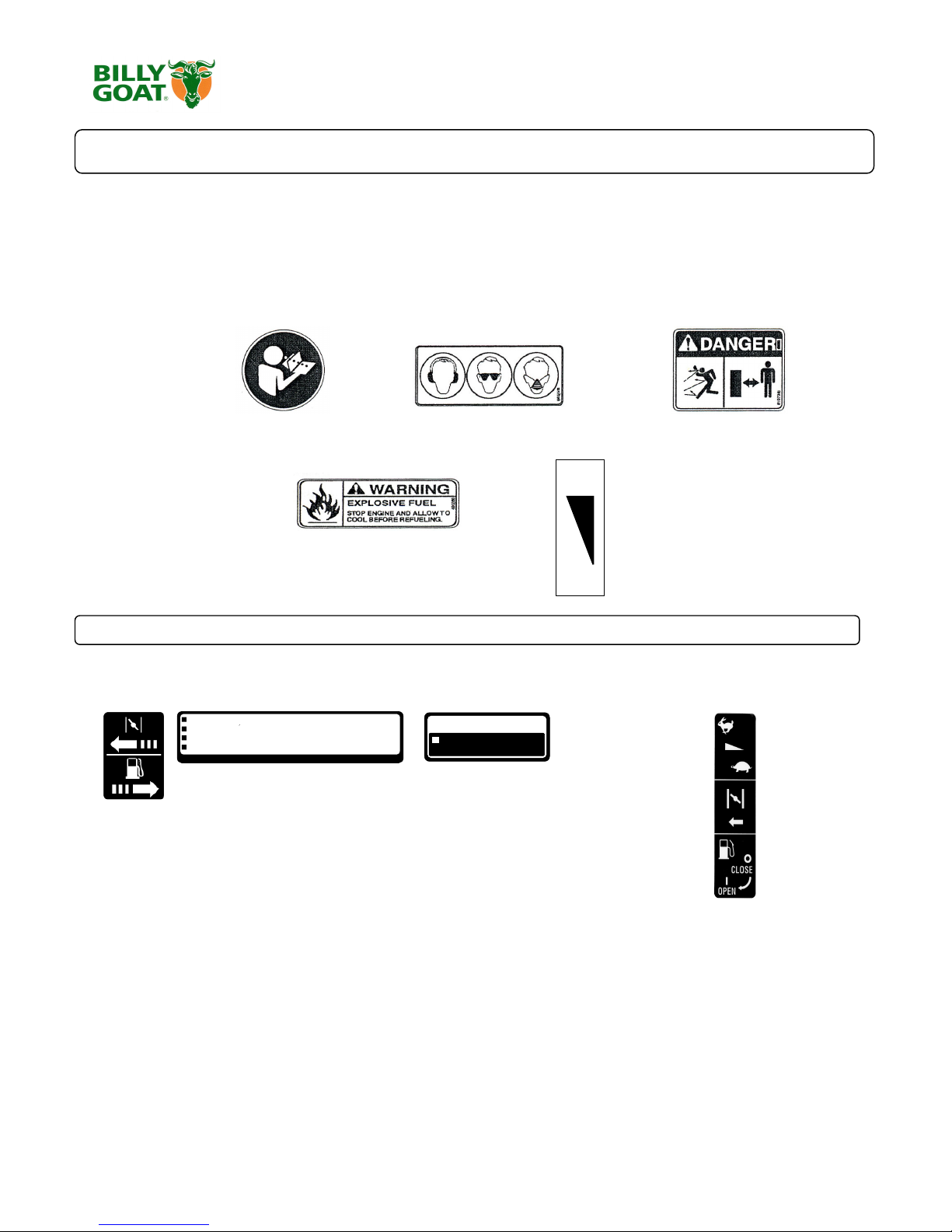

INSTRUCTION LABELS

The labels shown below were installed on your BILLY GOAT

FORCE Blower. If any labels are damaged or

missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part

numbers are provided for convenience in ordering replacement labels. The correct position for each label may be

determined by referring to the Figure and Item numbers shown.

LABEL READ OWNERS MANUAL LABEL EAR EYE BREATHING DANGER FLYING DEBRIS

ITEM #44 P/N890301 ITEM# 45 P/N890254 ITEM # 46 P/N 810736

LABEL EXPLOSIVE FUEL LABEL THROTTLE CONTROL

ITEM # 43 P/N 400268 ITEM # 42 P/N 810656

ENGINE LABELS

HONDA MOTOR CO. , LTD. MADE IN JAPAN

READ OWNER’S MANUAL BEFORE OPERATION.

LIRE LE MANUEL D UTILISATEUR AVANT USAGE.

VOR INBETRIEBNAHME UNBEDINGHT BEDIENUNGSANLEITUNG DURCHLESEN.

NO UTILIZAR SINANTES NO HABER LEIDO EL MANUAL

WHEN OIL LEVELLOW,

ENGINE STOPS IMMEDIATELY.

OIL ALERT

HONDA SUBARU

STOP

START

Part No 440021

Form No F101706A

FORCE BLOWER Owner’s Manual

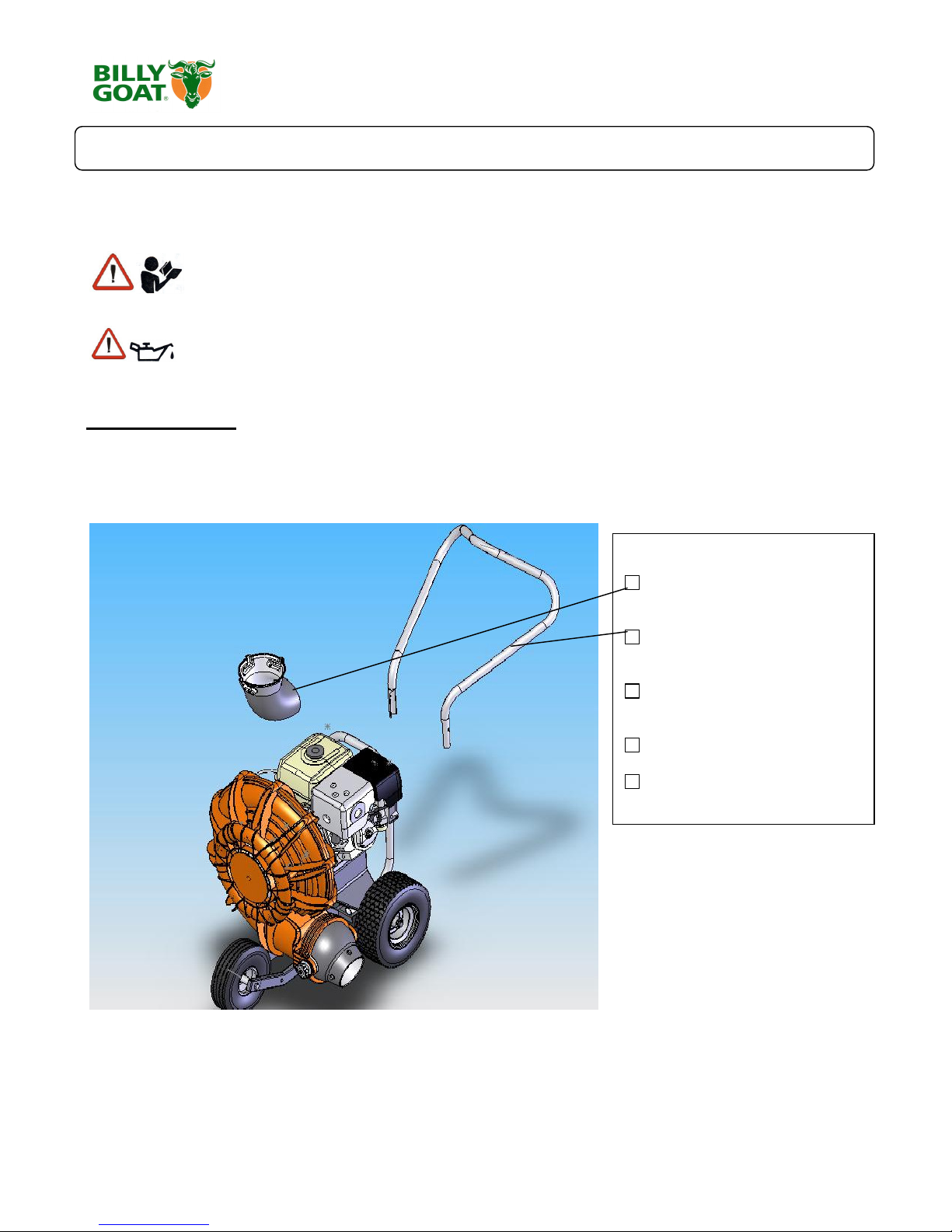

PACKING CHECKLIST

These items should be included in your carton. If any of these parts are missing, contact your dealer.

Your BILLY GOAT

FORCE Blower was shipped in one carton, completely assembled except for the Upper Handle

Assembly and Front Diverter. Mounting hardware for the Upper Handle Assembly can be found in the parts bag.

READ all safety instructions before assembling unit.

TAKE CAUTION when removing the unit from the box the Handle Assembly is attached to the

unit by cables.

PUT OIL IN ENGINE BEFORE STARTING

Boxing Parts Checklist

Front Air Diverter

Item#38 P/N-440045

Handle Upper Assembly

Item #30 P/N-440035

Parts Bag & Literature Assy

P/N-440020

Honda 9 or 13 hp

Subaru 9 hp

PARTS BAG &

LITERATURE ASSY

Warranty card P/N

400972, Owne

r’s Manual P/N

440021,

Declaration of Conformity P/N

440022,

Handle

Hardware

Items #10, #11, and #36

Part No 440021 Form No F101706A

FORCE BLOWER Owner’s Manual

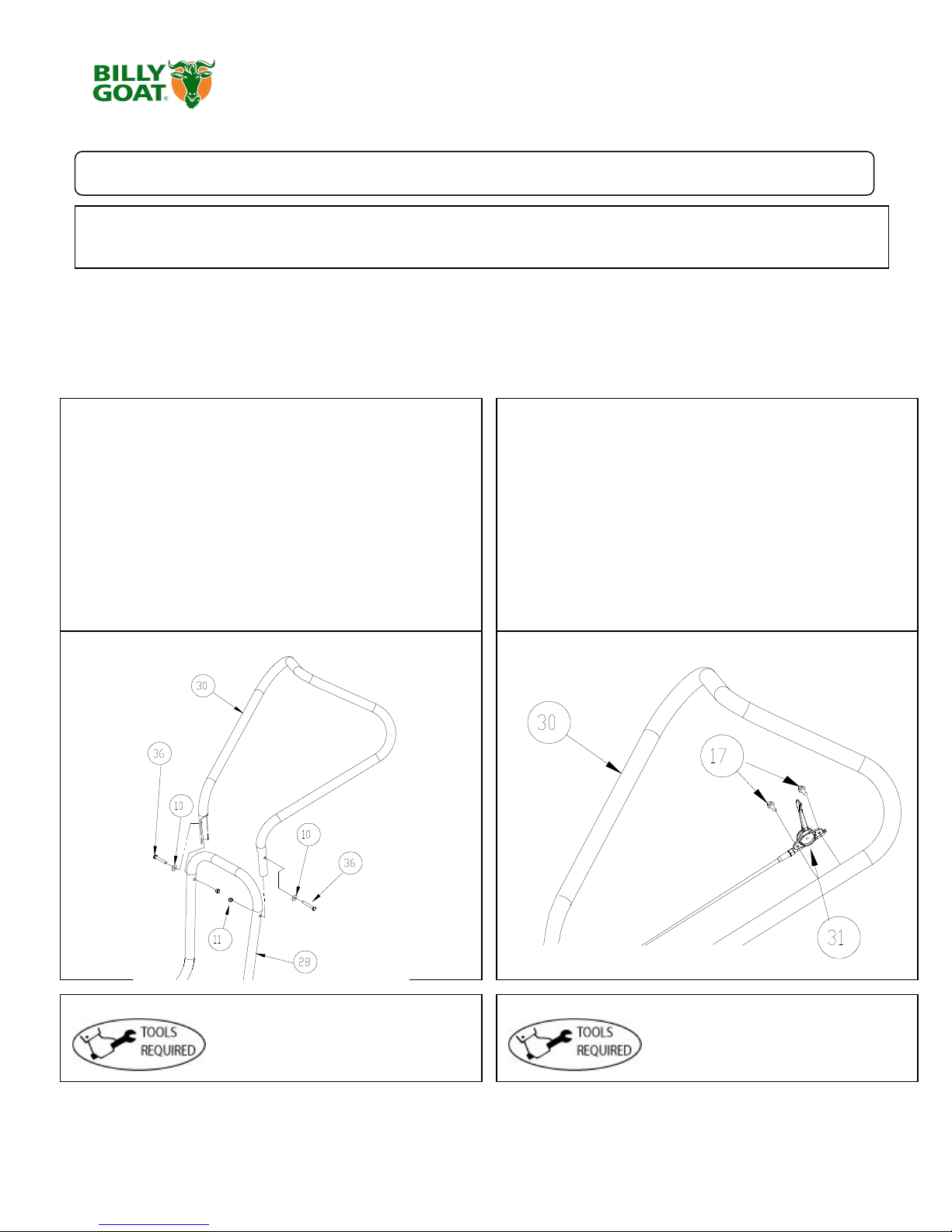

ASSEMBLY

Figure A Figure B

.Follow the steps in figures A and B, then securely tighten all hardware shown.

2.Connect spark plug wire.

The hardware for attaching the upper handle to the lower

is in the parts bag. Install upper handle (item 30), to

preassembled

lower handle (item 28) by sliding the upper

over and down the outside of the lower handle. Using bolt

(item #36), washers (item #10) & lock nut (item #11) to

install upper handle to lower handle. Finish installing the

other side of the upper handle assembly using screw and

lock nut provided.

The throttle control will be attached to the throttle arm on

the engine and wrapped around the engine for shipping.

Unwrap and secure throttle control (item #31) to upper

handle with screws (item #39). Screws will already be

mounted in handle, simply remove and use to mount the

throttle control.

Two ½” open ended wrenches

One 3/8 open ended wrench

Part No 440021

Form No F101706A

FORCE BLOWER Owner’s Manual

OPERATION

Like all mechanical tools, reasonable care must be used when operating machine.

Inspect machine work area and machine before operating. Make sure that all operators of this

equipment are trained in general machine use and safety.

PUT OIL IN ENGINE BEFORE STARTING

STARTING

ENGINE: See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be

level when checking and filling oil and gasoline.

FUEL VALVE: Move fuel valve to "ON" position (when provided on engine).

STOP SWITCH: Located on the engine. "ON" position.

CHOKE: Operated with choke lever on side of engine.

THROTTLE: Controlled by throttle lever on the handle. Move remote throttle control to fast position. Pull starting

rope to start engine.

ENGINE SPEED: Under normal conditions, operate at minimum throttle to accomplish your current cleaning task.

IF YOUR UNIT FAILS TO START:

See Troubleshooting on page 13.

HANDLING & TRANSPORTING:

Using two people to lift machine is recommended. Lift holding the handle and handle brace. Secure in place d

uring

transportation. See F900 and F1300 series specifications on page 3 for unit weight.

Do not use the front grill as an anchor point when securing the unit for transport.

Never lift the machine while the engine is running.

BLOWING OPERATION

Your Billy Goat Force blower is equipped with an air director cone to allow the operator to direct the air stream up

or down as required to assist in moving debris. This feature is extremely useful when debris has piled up to the

point that it cannot be blown any farther. The air stream can be directed upward to blow the top of the debris pile

over and allow the operator to continue moving more debris farther.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Soplador de Billy Goat

Billy Goat

Billy Goat FORCE F601V Manual de usuario

Billy Goat

Billy Goat QUIET BLOW QB554HC Manual de usuario

Billy Goat

Billy Goat QUIET BLOW QB501CE Instrucciones de instalación

Billy Goat

Billy Goat QUIET BLOW QB553 Instrucciones de instalación

Billy Goat

Billy Goat F902S Manual de usuario

Billy Goat

Billy Goat QUIET BLOW QB881 Manual de usuario

Billy Goat

Billy Goat QUIET BLOW QB551 Manual de usuario

Billy Goat

Billy Goat 440021 Manual de usuario

Billy Goat

Billy Goat F902SPH Manual de usuario

Billy Goat

Billy Goat EX17D50012 Manual de usuario

Billy Goat

Billy Goat F902S Manual de usuario

Billy Goat

Billy Goat Z FORCE FZ1300H Manual de usuario

Billy Goat

Billy Goat F1302H Manual de usuario

Billy Goat

Billy Goat F601S Manual de usuario

Billy Goat

Billy Goat FORCE F601V Manual de usuario

Billy Goat

Billy Goat F1801V Manual de usuario

Billy Goat

Billy Goat QUIET BLOW QB554HC Instrucciones de instalación

Billy Goat

Billy Goat F091907A Manual de usuario

Billy Goat

Billy Goat MV650H PUSH Manual de usuario

Billy Goat

Billy Goat HURRICANE X3000 Manual de usuario

Billy Goat

Billy Goat F1002V Manual de usuario

Billy Goat

Billy Goat FORCE 602V Manual de usuario

Billy Goat

Billy Goat F1002SPV Manual de usuario

Billy Goat

Billy Goat QB883, QB883H, QB1103, QB1103H Instrucciones de instalación

Manuales populares de Soplador de otras marcas

Weed Eater

Weed Eater VS2000BV Manual de usuario

KRAUSMANN

KRAUSMANN U37020-00 Manual de usuario

Bosch

Bosch ALB 36 LI Manual de usuario

Cub Cadet

Cub Cadet HB425 Manual de usuario

GreenWorks Pro

GreenWorks Pro BLB482 Manual de usuario

ARIETE

ARIETE 2768 Manual de usuario

NuTone

NuTone 331H Manual de usuario

GÜDE

GÜDE GLB 200 18 Li-Ion Manual de usuario

I.VA.CO.

I.VA.CO. SC Series Instrucciones de funcionamiento

DeWalt

DeWalt DCE100 Manual de usuario

Becker

Becker SV 7.330 Manual de usuario

Metabo

Metabo AG 18 Pro Manual de usuario

Desa

Desa GA3650TB Manual de usuario

Echo

Echo Power Blower PB-230LN Manual de usuario

Echo

Echo PB-413H Manual de usuario

Black & Decker

Black & Decker BV3100 Manual de usuario

Ryobi

Ryobi RY08570 Manual de usuario

Haaga

Haaga 355 Manual de usuario
