Billion BiPAC 5100S Manual de usuario

BIPAC-5100S

ADSL Modem/Router

with Single Ethernet Port

Quick Start Guide

Billion BIPAC-5100S ADSL Modem/Router

Package Contents

BIPAC-5100S ADSL Modem/Router

CD-ROM containing the online manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

AC-AC power adapter (9VAC, 1A)

This Quick Start Guide

 Do not use the BIPAC-5100S in high humidity or high

temperatures.

 Do not use the same power source for the BIPAC-5100S as

other equipment.

 Do not open or repair the case yourself. If the BIPAC-5100S is

too hot, turn off the power immediately and have it repaired at a

qualified service center.

 Avoid using this product and all accessories outdoors.

Warning

 Place the BIPAC-5100S on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

For more detailed instructions on configuring and using

the ADSL Modem/Router, please refer to the on-line

manual.

Quick Start Guide

The Front LEDs

LED Meaning

1 PPP : Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL: Lit when successfully connected to an ADSL DSLAM (“linesync”).

3 LAN Port :

Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

4 SYS : Lit when the system is ready.

5 PWR : Lit when power is ON.

5 41

3 2

Billion BIPAC-5100S ADSL Modem/Router

The Rear Ports

Port Meaning

1 POWER Connect the supplied power adapter to this jack.

2 RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you can not login to the router, e.g. forgot the password)

3 LAN Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to the LAN ports

when connecting to a PC or an office/home network of 10Mbps or

100Mbps.

4 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

Quick Start Guide

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

Billion BIPAC-5100S ADSL Modem/Router

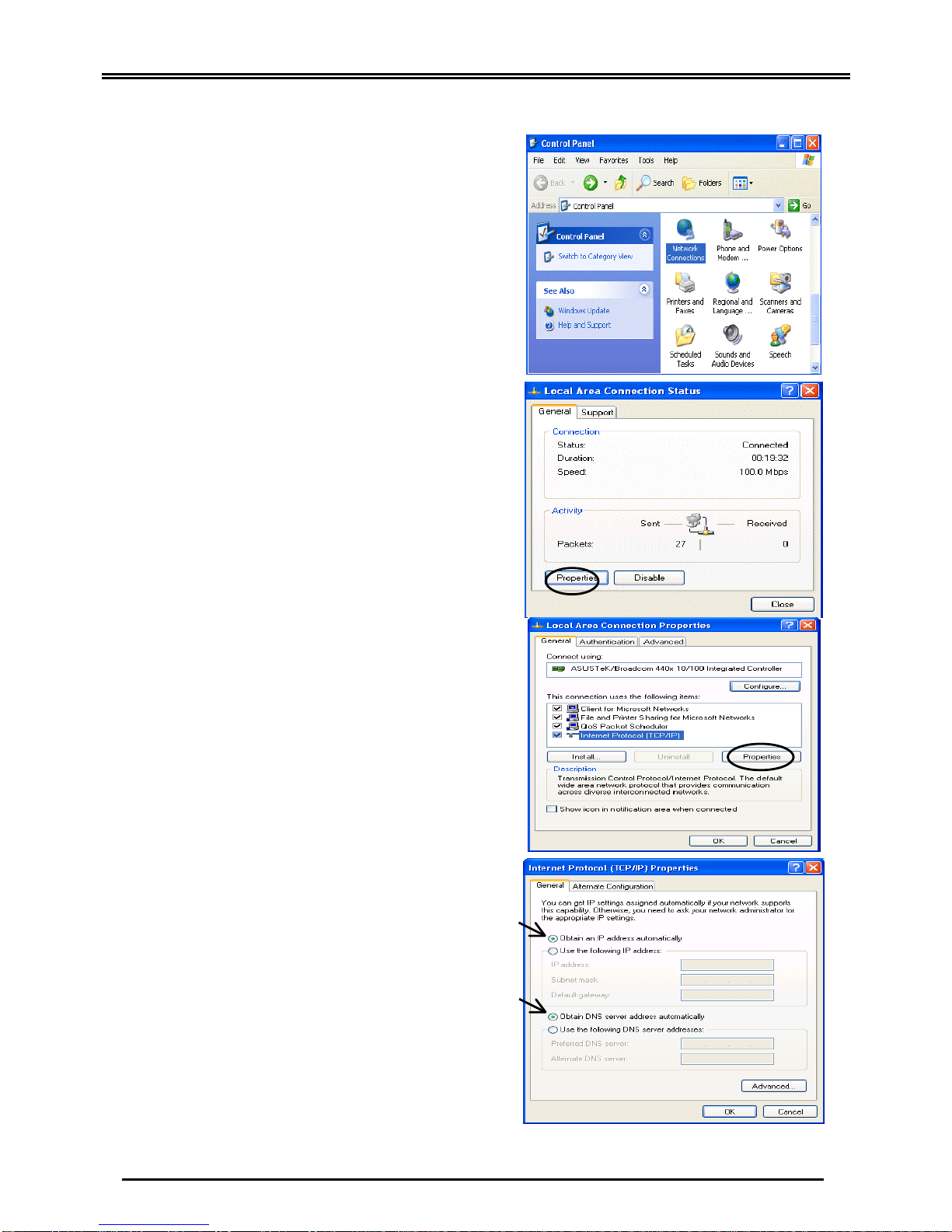

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and Dial-up

Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BIPAC-5100S ADSL Modem/Router

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Protocols tab.

2. Select TCP/IP Protocol and click

Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
