Introduction

User Manual

USB Clip-On Hub

Table of Contents

Introduction

Features .........................................................................................................................................1

Package Contents .....................................................................................................................2

Technical Specifications ........................................................................................................2

Installation ...........................................................................................................................................3

Information .........................................................................................................................................5

Introduction

Introduction | 01

Congratulations and thank you for purchasing the Belkin USB Clip-On Hub. This

innovative Hub offers a compact design and clip-on mechanism for quick attachment

to the edge of a desk, coffee table, or nightstand. The rounded clip also makes it easy

to clasp the Hub onto a bundle of device cords for an extraordinary cable-management

solution.

Belkin’s unique design includes two easy-access top-loading and two rear USB ports.

These downstream ports provide backward-compatible connections for all USB devices

(either USB 1.1 or 2.0). Use them for scanners, printers, mass-storage drives, and high-

resolution cameras. Self-powering lets you cascade devices with additional hubs, and

link up to 127 USB devices through a single port. For power-hungry USB devices, use the

included power supply.

Please take a moment to review this manual completely to ensure that you get the most

from your new USB Clip-On Hub.

Features

• Two top and two rear-loading USB ports

• Flexible clipping mechanism to hold cables and table edges

• Compliant with Universal Serial Bus specification 2.0 (data rate 1.5/12/480Mbps)

• Backward-compatible with Universal Serial Bus specification 1.1 (data rate1.5/

12Mbps)

• Compatible with Windows® 98 SE, Me, 2000, XP, and Vista™

• Approved by USB Implementers Forum (USB-IF)

• Support for Plug-and-Play specifications

• Support for “hot swapping” of USB devices

• Individual port-status-indicator LEDs

• Four 480Mbps downstream ports

• Fully compatible with USB 1.1 and USB 2.0 devices

Package Contents

• USB Clip-On Hub

• AC Power Adapter

• User Manual

• USB 2.0 Mini-B Device Cable

Technical Specifications

Upstream Ports: 1

Downstream Ports: 4

Per-Port Voltage: DC +5V

Per-Port Current: 500mA (max) (self-powered mode)

Power Mode: Self-powered/bus-powered

Operating Temperature: 5° C ~ 40° C

Storage Temperature: -20° C ~ 60° C

Power Supply:

Output: DC 5V, 2.6A

Plug Size: 3.5mm (outer)

1.0mm (center)

Plug Polarity: Center-pin positive

Main-Power-LED Color Definitions

Off: Not operational

Green: Operational

Introduction | 02

Introduction

Installation | 03

Important Note: Please do not connect any USB devices to the Hub until instructed to

do so in step 5 of this installation procedure.

1. Position your Hub in a desired location at the edge of your desk or table, or around a

cable bundle.

WARNING: The Hub’s clip has a one-inch tolerance. Opening the clip mechanism

beyond this may damage the unit. Please use caution not to strain or exceed the clip

limits.

2. Plug the AC adapter into a wall outlet or surge protector. Plug the DC connector into

the DC power jack found on the rear of the Hub.

Note: The Hub may be used without the power supply when connecting low-power

devices such as keyboards and mice.

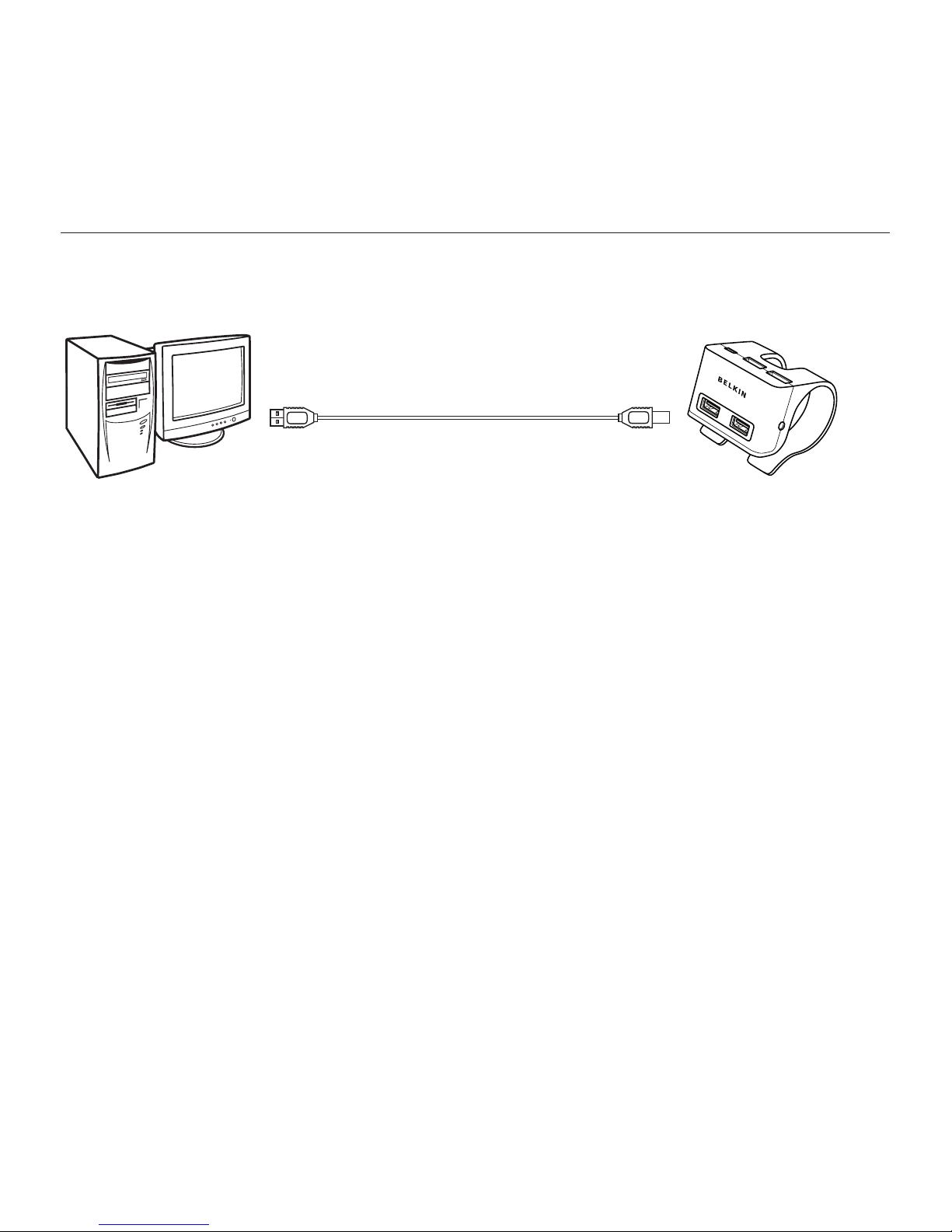

3. Plug the flat end of the provided USB device cable into the downstream port of your

computer, or downstream port of another hub, then plug the mini-USB connector on

the device cable into the upstream port on the rear of the Hub.

Important Note: The Hub must be connected to a USB 2.0-compliant host in order

to function in high-speed mode (480Mbps data rate). If the Hub is connected to

a USB 1.1-compliant host, it will operate only in low-speed or full-speed mode

(1.5Mbps/12Mbps).

Installation

| 04

4. If your computer is on, Windows will now detect your Hub and install the required

driver support. (The Windows “Install New Hardware Wizard” may prompt you to

provide your Windows Installation CD to complete the driver installation process.)

5. Plug the USB A connector of your USB device, or an additional hub, into any of the

downstream ports of the Hub.

Important Note: When moving a device from one port on the Hub to another, it may

be necessary to reinstall the USB drivers for that device.

Information | 05

Information

FCC Statement

DECLARATION OF CONFORMITY WITH FCC RULES FOR

ELECTROMAGNETIC COMPATIBILITY

We, Belkin International, Inc., of 501 West Walnut Street, Compton, CA 90220, declare

under our sole responsibility that the product:

F5U416

to which this declaration relates:

Complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation. This equipment may only be operated indoors. Operation outdoors is in

violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties.

CE Declaration of Conformity

We, Belkin International, Inc., declare under our sole responsibility that the F5U416,

to which this declaration relates, is in conformity with Generic Emissions Standard

EN55022:1998 Class B, EN50081-1, and with Generic Immunity Standard EN50082-1:1992.

Belkin International, Inc., Limited Lifetime Product Warranty

What this warranty covers.

Belkin International, Inc. (“Belkin”) warrants to the original purchaser of this Belkin

product that the product shall be free of defects in design, assembly, material,

or workmanship.

What the period of coverage is.

Belkin warrants the Belkin product for the lifetime of the product.

Information

| 06

What will we do to correct problems?

Product Warranty.

Belkin will repair or replace, at its option, any defective product free of charge (except

for shipping charges for the product).

What is not covered by this warranty?

All above warranties are null and void if the Belkin product is not provided to Belkin

for inspection upon Belkin’s request at the sole expense of the purchaser, or if Belkin

determines that the Belkin product has been improperly installed, altered in any way, or

tampered with. The Belkin Product Warranty does not protect against acts of God (other

than lightning) such as flood, earthquake, war, vandalism, theft, normal-use wear and

tear, erosion, depletion, obsolescence, abuse, damage due to low voltage disturbances

(i.e. brownouts or sags), non-authorized program, or system equipment modification or

alteration.

How to get service.

To get service for your Belkin product you must take the following steps:

1. Contact Belkin International, Inc., at 501 W. Walnut St., Compton CA 90220,

Attn: Customer Service, or call (800)-223-5546, within 15 days of the Occurrence.

Be prepared to provide the following information:

a. The part number of the Belkin product.

b. Where you purchased the product.

c. When you purchased the product.

d. Copy of original receipt.

2. Your Belkin Customer Service Representative will then instruct you on how to

forward your receipt and Belkin product and how to proceed with your claim.

Information | 07

Information

Belkin reserves the right to review the damaged Belkin product. All costs of shipping the

Belkin product to Belkin for inspection shall be borne solely by the purchaser. If Belkin

determines, in its sole discretion, that it is impractical to ship the damaged equipment

to Belkin, Belkin may designate, in its sole discretion, an equipment repair facility to

inspect and estimate the cost to repair such equipment. The cost, if any, of shipping the

equipment to and from such repair facility and of such estimate shall be borne solely by

the purchaser. Damaged equipment must remain available for inspection until the claim

is finalized. Whenever claims are settled, Belkin reserves the right to be subrogated

under any existing insurance policies the purchaser may have.

How state law relates to the warranty.

THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN. THERE ARE NO OTHER

WARRANTIES, EXPRESSED OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE

IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY, ARE LIMITED IN

DURATION TO THE TERM OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the

above limitations may not apply to you.

IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT,

CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST

BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT,

EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

This warranty gives you specific legal rights, and you may also have other rights, which

may vary from state to state. Some states do not allow the exclusion or limitation of

incidental, consequential, or other damages, so the above limitations may not apply

to you.
