Belkin F1U125-KIT Manual de usuario

Windows NT/2k/XP

Before you install the Belkin Bitronics software, you must first make sure that each

device works properly on its own with each computer.

1. Check your BIOS and make sure that the printer port on your computers is set to

ECP mode.

Note: Please consult your computers manufacture’s manual, tech support, or

website for information on how to set your printer port to ECP mode.

2. Log in as Administrator

3. Verify that the software and driver’s for each device that will be shared is

installed properly on all computers.

4. Download the NT/2k/Xp Bitronics Switch software from Belkin’s download page

on the website.

Bitronics Switch Kit

User Manual

READ THIS MANUAL IN ITS ENTIRETY

BEFORE ATTEMPTING TO CONNECT

DEVICES, THE BITRONICS SWITCH, OR

INSTALLING THE SOFTWARE. IMPROPER

SETTINGS OR CONFIGURATIONS CAN

CAUSE DATA CORRUPTION

When connected online you can

click on any Belkin logo like this

one to be connected directly to

Belkin’s internet information site.

I. Introduction

Thank you for purchasing the Belkin Components Bitronics Auto Switch Kit! Now,

you and your colleagues can share between one parallel device from your desktop.

Plus, if you are using Windows 95 or 98, you will take advantage of Virtual Port

Software, which allows you to print automatically!

The Bitronics Auto Switch gives you the ability to auto switch between two printers

at any time. Also, it allows you to switch so that you can use either device through

the switching software.

II. Package Contents

•Bitronics Auto Switch, 1-2 or 2-1 F1U125 or F1U126

Or 1-4 or 4-1.

•1 x IEEE 1284 compliant cable F2A047-06

•User manual P

•Registration card P72009

III. Windows



95 / 98

BEFORE YOU INSTALL THE BELKIN BITRONICS SOFTWARE, YOU MUST FIRST

MAKE SURE THAT EACH DEVICE WORKS PROPERLY ON ITS OWN WITH EACH

COMPUTER

Make sure that the printer port on your computer is set to ECP mode. To do this, you must go into

your computer’s BIOS or CMOS setup. Instructions on how to do this differ from one computer to

the next. Please consult your computer manufacturer’s manual, tech support, or website for

information on how to do this. Please do not call Belkin Tech Support on this because each

computer’s BIOS setup routine is different.

Make sure that the software and drivers for the devices to be shared are properly installed on any

Windows® 95 /98 computers. If you are sharing two printers between two computers, make sure

that the printer drivers for both printers are installed and working properly on your computer. If

you are sharing a Zipdrive and a scanner between two computers, make sure that the software

and drivers of each device are installed and working properly on both computers.

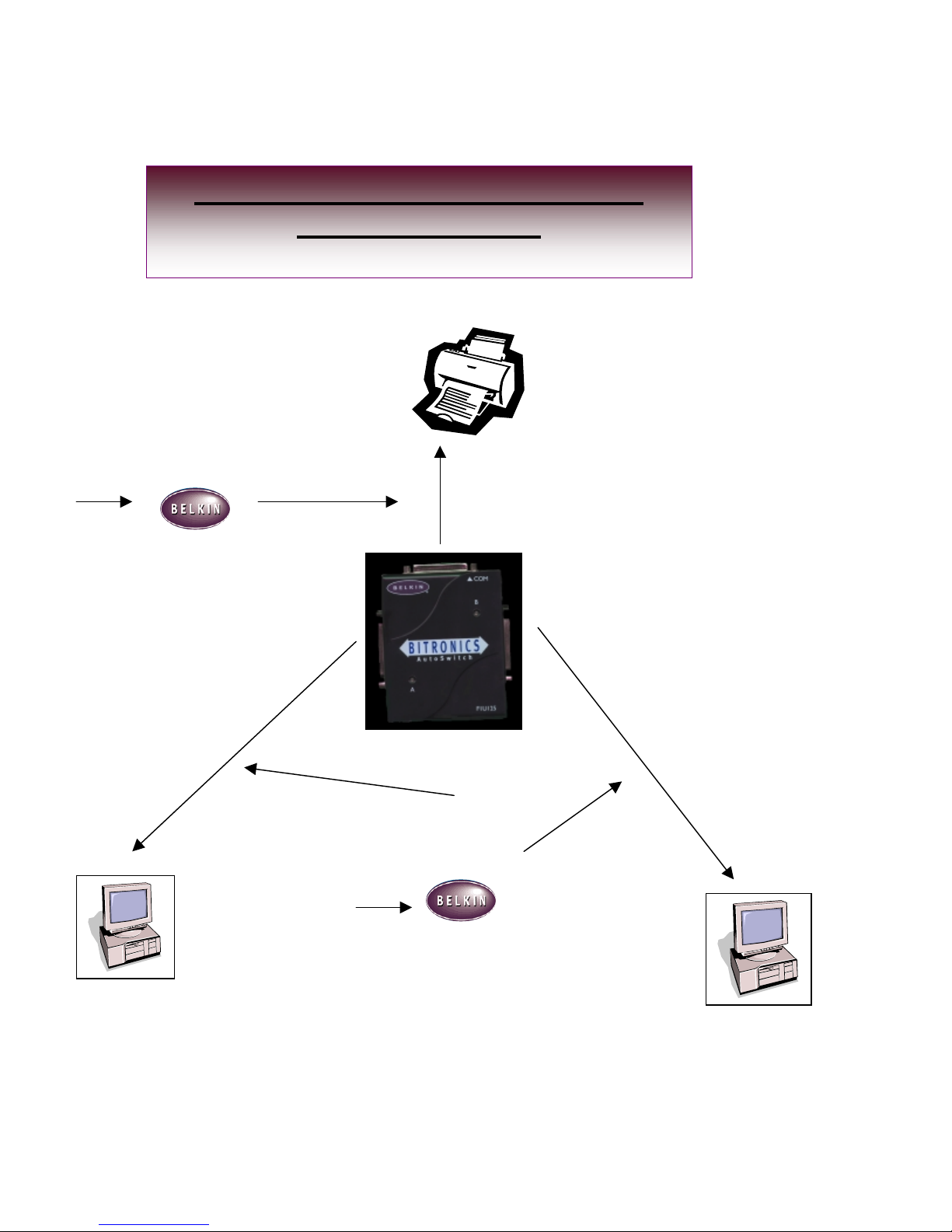

Connect the two computers, and the device to be shared to the Bitronics Switch as shown below.

The cables from the computers to the Bitronics switch are included in the package. Take note of

which port each device is connected to:

IV. Hardware setup

Click here for

information about

this cable

Then type

Cable model

number:

F3D111

F2A047

Your Computer

One Computer to Share Between

Two Parallel Devices:

Click here for

information about this

cable

Then type

Cable model number:

F2A046

Two Computers Sharing One

Parallal Device:

Click here for

information about this

cable

Then type

Cable model number:

F2A046

Click here for

information about

these cables

Then type

Cable model number:

F2A047

F3D111

V. Details

Please take note of the dip switch settings on the bottom of the autoswitch.

VI. Software Installation

1.a. Download the file BITRONICS.exe from Belkin’s download page on the web

site.

SW2 SW3 Time Out Setting

ON ON 5 seconds

ON OFF 10 seconds

OFF ON 20 seconds

OFF OFF 40 seconds

Click on

in order to download

this file.

F1U125

F1U126

Dip Switch 1

ON (down) 1 to 4 mode

OFF (up) 4 to 1 mode

Dip Switch 1

ON (up) 1 to 2

OFF (down) 2 to 1

1.b. You can either download it onto your hard drive( usually C:\).

1.c. Or download it onto a blank floppy disk( usually A:\ ).

2. Put the disk into your floppy drive. Click on START, then RUN. Enter

A:\BITRONIX.exe, substitute C: for A: if it is on your hard drive, then click OK

3. You will see the following window. Click SETUP.

4. Close all other running applications so that the software installation can proceed

quickly and smoothly. Click NEXT.

5. Select the model of Bitronics Switch you have, which is the F1U125 or F1U126. Click

6. Select destination folder. The default folder is recommended. Click NEXT.

7. Select Program Folder. The default is the recommended. Click NEXT.

8. When done installing, the program will ask you to restart your computer. You must restart in

order to activate the software properly. Click FINISH.

9. Once your computer has rebooted, the Bitronics icon will appear in your system tray.

10. Double-click on the icon to open up the setup program:

11. Click on SETTINGS. Here, we have to tell the software what devices are connect to which

port:
