B9Creations B9Clean Manual de usuario
USER MANUAL
B9Clean
B9Clean Operating Manual
© 2019 B9Creations, LLC
All Rights Reserved. “B9Creations” is a registered trademark of B9Creations, LLC, used under a temporary license granted by
B9Creations, LLC. Neither B9Creations, LLC, nor any of its affiliates is responsible for the manufacturing of the product(s). No
parts of this work may be reproduced in any form or by any means – graphic, electronic, or mechanical, including photocopying,
recording, taping, or information storage and retrieval systems – without the written permission of the publisher.
Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
The publisher and the author make no claim to these trademarks.
While every precaution has been taken in the preparation of this document, the publisher and the author assume no
responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from
the use of programs and source code that may accompany it. In no event shall the publisher and the author be liable for any
loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this document.
For reference, write the following information from the Product
Information Label located on the back of your new device here:
Model #________________________ Serial #__________________________
Table of Contents
B9Clean General Information ................................................................................ 5
1.1 Declaration of CE Conformity ........................................................................................................... 5
1
Instructions for Safe Use ............................................................................ 6
1.1
Explanation of Symbols ..................................................................................................................... 6
2.2 Transport Damage .............................................................................................................................. 6
2.3 Operator’s Obligations ...................................................................................................................... 7
2.4 Operations and Maintenance Log Book ........................................................................................... 7
2.5 Safety Information .............................................................................................................................. 7
3 Intended Use and Proper Operation .......................................................... 9
3.1 Intended Use ....................................................................................................................................... 9
3.2 Proper Operation ................................................................................................................................ 9
4 Scope of Delivery ....................................................................................... 10
4.1 Scope of Delivery ............................................................................................................................. 10
5 Identification and Interface ....................................................................... 11
5.1 Product Identification ...................................................................................................................... 11
5.2 Control Interface ............................................................................................................................... 11
6 Transport and Installation ......................................................................... 11
6.1 Transport ........................................................................................................................................... 12
6.2 Hardware Setup ................................................................................................................................ 12
7 Operation .................................................................................................... 13
7.3 Positioning the inner container drain plug. ................................................................................... 15
7.4 Placing the parts in the inner container ......................................................................................... 15
7.5 Configuring the cleaning cycle settings ........................................................................................ 16
7.6 Overview of starting, stopping or adjusting the cleaning cycle. ..................................................... 16
7.7 Starting the Cleaning Cycle ................................................................................................................. 17
7.7.3 17
7.7.8 18
7.8 B9Clean Cleaning Procedure .......................................................................................................... 18
8 Safety .......................................................................................................... 18
8.1 Isopropyl Alcohol Draining .................................................................................................................. 18
8.2 Isopropyl Alcohol Containment .......................................................................................................... 18
DO NOT USE Acetone in the B9Clean. Acetone will rapidly destroy acrylic material of containers
and pump. Warranty is void with even single use of Acetone. .................................................... 18
9 Maintenance, Care and Cleaning .............................................................. 18
9.1.1 Unit Cleaning .................................................................................................................................... 18
9.1.2 Build Table Cleaning ........................................................................................................................ 19
9.2 Isopropyl Alcohol ............................................................................................................................. 19
9.2.1 Replacement ..................................................................................................................................... 19
9.2.2 Disposal .............................................................................................................................................. 19
9.3 Non-Repairable Items ...................................................................................................................... 19
10 Technical Data ............................................................................................ 20
10.1 B9Clean Technical Specifications .................................................................................................. 20
10.2 Operating conditions ....................................................................................................................... 20
10.3 Information on Manufacturer and Electrical Specification – Product Label ............................... 21
11 Troubleshooting Guide ............................................................................. 21
12 Service ........................................................................................................ 24
13 Quick Reference ......................................................................................... 24
14 Tips .............................................................................................................. 24
15 Document History ...................................................................................... 25
B9Clean General Information
B9Clean is a 3D print cleaning system supplied by B9Creations, LLC, Rapid City, SD, USA.
For proper cleaning of 3D printed articles, this unit utilizes isopropyl alcohol. Isopropyl alcohol is
utilized to maintain part geometry, properly and sufficiently clean parts, and leave no known
harmful residue on 3D printed articles. Design considerations have been implemented to
significantly reduce the possibility of spills and vapors.
In harmony with the inherent implemented design precautions, the OPERATOR MUST:
• Fully read and understand these Instructions For Safe Use
• Handle and store isopropyl alcohol with extreme care, adhering to standard laboratory
and statutory standards, practices and laws
• Operate the B9Clean at a safe distance from all open flames, sparks, and heat sources.
NEVER operate the B9Clean with the top cover removed or not properly seated
• NEVER operate the B9Clean in an unsafe manner
• Operate the B9Clean ONLY according to the intended use
These working instructions apply to:
Type of machine
Description
B9Clean
Enclosed isopropyl alcohol agitator
for cleansing resin-based 3D printed
parts of excess uncured resin
The B9Clean is an easily operated, laboratory-grade 3D print cleaning unit to be used in accordance with
the manufacturer’s instructions, cleaning 3D printed parts that are cured from resin and within the
supported part size range.
The B9Clean has an integrated controller installed inside the base casing. The firmware required for all the
operations is pre-installed and ready for use. The provided AC/DC power supply (XP Power Verus 120-JA
and acceptable alternate Triad Magnetics WSX 120-2000) has been tested and is considered part of the
cleaning equipment.
1.1 Declaration of CE Conformity
B9Clean is a 3D print cleaning unit designed, manufactured, and certified according to the following
directives, regulations and standards:
§ RoHS
§ FCC
§ LOW VOLTAGE DIRECTIVE 2014/35/EU
• EN61010-1
§ ELECTROMAGNETIC COMPATIBILITY DIRECTIVE 2014/30/EU
• EN55014-1
• EN55014-2
We, B9Creations, LLC, herewith declare that this device fulfills the basic safety requirements of mentioned
standards, regulations and directives. In any case of non-authorized modification, abnormal use, or misuse
of this device or document B9Creations, LLC, is not liable for any injury that may occur.
1
Instructions for Safe Use
1.1
Explanation of Symbols
2.2
Transport Damage
Upon receipt of the equipment, check the unit for transport damage. If damage is found to either the
equipment or its shipping container, accept the unit with caution. Report the potential damages to the
shipper and B9Creations, LLC, ([email protected]) within 24 hours after receiving the unit.
Symbol
Accompanying
word(s)
Explanation
CAUTION
This symbol indicates safety-relevant paragraphs and
sections in these working instructions.
NOTE
This symbol indicates information within the working
instructions that optimizes the use of the unit.
WARNING
This symbol warns of the dangers of electric voltage.
Failure to comply with safety guidelines and
procedures can result in electrical shock that may
lead to injury or death.
FLAMMABLE
This symbol warns of the dangers of flammable
compounds. Failure to comply with safety guidelines
and procedures can result in combustion that may
lead to injury or death.
DISCONNECT FROM
MAINS
This symbol indicates danger of electric shock when
unit enclosure is opened. Unplug the unit before
opening it.
READ/REFER TO USER
MANUAL
This symbol directs the operator or service agent to
read the User Manual for the equipment to find
important information.
DC POWER
This symbol indicates the equipment utilizes DC
Power.
DC JACK POLARIZED
This symbol indicates that the DC power input jack
for the equipment is polarized. In particular, the DC
power input jack’s outer conductor is the “negative”
conductor and the inner conductor is the “positive”
conductor.
START BUTTON
This symbol indicates start of programmable clean
cycle.
CAUTION
Do not work with a damaged unit under any circumstances.
2.3 Operator’s Obligations
In addition to complying with the statutory regulations specified by the manufacturer, the operator must
ensure the statutory obligations are observed and implemented at the work place, i.e. the operator must
train personnel and comply with industrial safety legislation and any other regulations or laws in force.
For working at and with the unit, the operator must draw up written instructions in an understandable
form and give these to the employees in their own language. These instructions must be based on the
B9Clean User Manual and shall be written considering the work to be performed.
The B9Clean is intended to be used strictly in a laboratory setting where personnel operating the
equipment are held to a high standard of process control and safety procedure.
2.4 Operations and Maintenance Log Book
B9Creations, LLC recommends the operator keeps a log book for the B9Clean. All tests on the equipment,
necessary or suggested compliance testing, and essential works (e.g. repair work, modifications) should be
documented in this book.
2.5 Safety Information
Safety concerning the protection of persons, the environment, and the material to be processed mainly
depends on the behavior of the persons operating the unit.
WARNING
No modifications of this equipment are allowed.
CAUTION
Prior to operation, read the B9Clean User Manual carefully. Adhere to the information provided to avoid
errors, equipment damage, and injury to the operator.
In addition to the information in these work instructions, relevant national laws and guidelines must be
observed for setting up and operating this unit (technical connection requirements of the electrical supply
companies, etc.).
CAUTION
The connecting power supply cable and plug must be checked for damage prior to operation. If any
damage exists, the unit must not be connected to the mains. A damaged mains power supply may only
be replaced by a mains power supply of the same type.
Failure to comply increases risk of electrical shock and serious harm of operator or third parties.
FLAMMABLE
Isopropyl alcohol, the intended cleaning solvent, is highly flammable in both liquid and vapor states. The
operating environment must be free of open flame, sparks, other ignition sources or excessive heat.
Failure to comply increases risk of combustion and serious harm of operator or third parties.
CAUTION
Isopropyl alcohol, the intended cleaning solvent, can be damaging to the human body through ingestion,
inhalation, and bodily contact. Read and adhere to the safety information detailed on the isopropyl
alcohol container’s label or contact the organization responsible for your local hazardous materials
regulations for more information.
Mandatory safety equipment:
• Eye protection
• Suitable gloves (see chemical protective gloves, category 3, EN 374)
• Clothing that covers exposed skin
• Fire extinguisher
• Ventilation hood (air circulation in closed room/loop prohibited, free exhaust air into environment
only)
WARNING
To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective
earth.
WARNING DISCONNECT FROM MAINS
Maintenance and repair of the electrical equipment of the device must only be performed by
B9Creations, LLC, in the “safe” condition (voltage cleared, and device unplugged from mains). Service
agents must observe the safety instructions when performing service to the electrical equipment.
Removal of protective enclosure components for ANY purpose voids equipment warranty.
CAUTION
Proper function and safety of the device are only guaranteed if the required tests, maintenance, and
repair work have been performed by B9Creations, LLC or trained and authorized service staff.
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the User Manual, may cause harmful interference
to radio communications. However, there is no guarantee that the interference will not occur in an
individual installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
If this equipment is receiving interference that affects the B9Clean, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the unit or emitting equipment.
• Increase the separation between the cleaning device and emitting equipment.
• Connect the unit into an outlet on a circuit different from that of the emitting equipment.
• Isolate the unit and emitting equipment from each other, setting up in separate rooms if possible.
3 Intended Use and Proper Operation
3.1 Intended Use
The B9Clean is an automated cleaning system that utilizes an agitated, contained volume of isopropyl
alcohol (isopropanol) to clean excess uncured 3D printing liquid material from 3D printed parts (“parts”).
Cleaning of parts and unit use shall be done by trained professionals in 3D printing laboratory
environments.
The unit is not suitable nor intended for any purpose other than cleaning in these stated industries or
recreations.
3.2 Proper Operation
CAUTION
The unit is suitable to be set up and operated in clean laboratory environments. The unit has been
designed for continuous operation.
• Only 3D printed parts made of cured resin shall be washed in the B9Clean. Cleaning anything that is
not a resin-based, 3D-printed part will void the warranty.
• Do not excessively clean a 3D printed part by continuing to expose it to isopropyl alcohol past the
point of removing the uncured resin. Over exposure may lead to structural degradation by
weakening the part’s cured resin.
• Ensure that the outer container, inner container, inner container plug, hanging arm, Build Table,
and lid are all secured in their proper positions before starting a cleaning cycle.
NOTE
Isopropyl alcohol is the only solvent suitable to be used in the B9Clean. Using any other substance as the
solvent will void the warranty.
NOTE
Do not modify the firmware and hardware of device if not authorized by B9Creations, LLC.
D
4 Scope of Delivery
Check that all components are in good condition upon delivery of the unit. If items are missing or
damaged, contact your supplier.

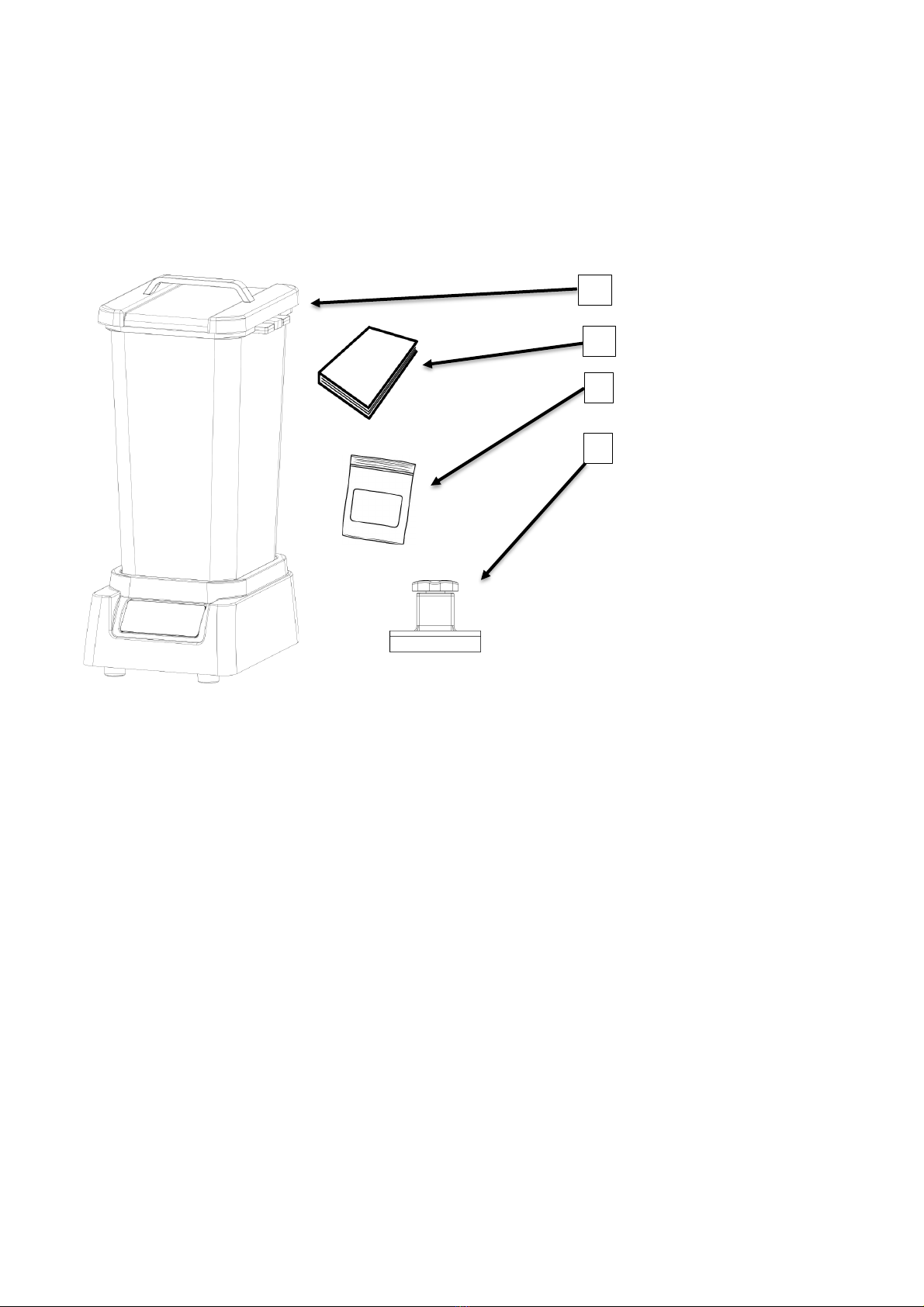

4.1 Scope of Delivery
*Build Table included for B9 Core Series owners only.
A. B9Clean Unit
B. Quick Start Guide
C. Accessory Kit
D. Build Table *included for B9 Core Series owners only.
A
C
B
Otros manuales para B9Clean
1
Tabla de contenidos
Otros manuales de Impresora 3D de B9Creations
