Easy Start

(Read Me First)

Version 1.0

DSL500U

ADSL USB Modem

Contents...

About this Easy Start ................................................... 2

Safety Guidelines ......................................................... 2

Package...................................................................... 2

Minimum System Requirements .................................... 3

LED Indicators ............................................................ 3

Step 1: Connecting Your DSL500U ADSL USB Modem ... 4

Step 2: Installing Your DSL500U ADSL USB Modem

Driver ............................................................ 5

2.1 For Windows® 98 Second Edition .......... 5

2.2 For Windows® Me ............................... 8

2.3 For Windows® XP ............................... 10

2.4 For Windows® 2000 ........................... 12

Step 3: Dial-Up to the Internet .................................... 14

Technical Support ....................................................... 15

All manuals and user guides at all-guides.com

all-guides.com

DSL500U ADSL USB Modem Easy Start

Package

If you found any missing items, please contact your dealer immediately.

(The actual cables that are included with your package may differ in appearance from country to

country)

Telephone extension cable

this Easy Start

USB cable

Installation CD

Product warranty does not apply to damage caused by lightning, power surges or wrong voltage.

ËÌ

ÍÎ

DSL500U

ADSL USB

Modem

Safety Guidelines

•Keep the modem away from fluid, direct sunlight and excessive heat.

•During times of lightning strike/thunderstorm, do not use the modem.

•This product is for use only in UL Listed computers.

•To reduce the risk of fire, use only No. 26 AWG or larger telecommunication

line cord.

About this

Easy Start

This booklet contains information on setting up your

DSL500U ADSL USB Modem. It touches on the key

installation procedures to help you setup your modem !

ÏMicro-Filter (optional) 1

On commonly asked questions or for problems encountered during

the setting up / running of your modem, please refer to theFrequently

Asked Questions located in the \Manuals folder on your Installation

CD.

1 Micro-Filter can be purchased separately from your dealer.

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

LED Indicators

The LED indicators show the status of the following:

Power :Lights up when power is supplied via the USB port from your PC

ADSL :Lights up when the ADSL line is established

Data :Blinks when the modem is transmitting/receiving data

Minimum System Requirements

•IBM PC-based computer with Pentium® 233 processor MMX

•32MB RAM

•20MB hard disk space (system files and modem driver only)

•A free USB Port

•CD-ROM drive

•Windows® 98 Second Edition / Windows® Me / Windows® XP /

Windows® 2000

Power ADSL Data

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

Step 1: Connecting Your DSL500U

ADSL USB Modem

With the "Hot Swap" feature in this modem, you can connect your modem to your

computer without having to power off your system!

Carry out the connections as illustrated.

ÊConnect one end of the USB cable ( ) to the USB Port on the

modem and the other end ( ) to the USB port of your computer.

ËConnect one end of the telephone extension cable to the LINE Jack on the

modem and the other end to a Telephone wall socket.

ÌConnect a Micro-Filter2(can be purchased separately from your dealer) to the

TEL Jack on the modem. Connect your Telephone Set to the Micro-Filter.

(The optional connection to the telephone set provides easy access to the phone while

working near the modem. The connection to the Micro-Filter is not required if you

are not connecting to a Telephone Set).

2 For details on the usage of the Micro-Filter, please refer to the Frequently Asked Question, 'Do

I need to use Micro-Filter when using ADSL ?' on the Installation CD (\manuals folder).

Telephone set

Telephone

wall socket

Telephone

extension cable

USB port

USB Port

TEL jack

LINE jack

USB cable

rear view of a PC

Micro-Filter2

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

Power on your computer (if it is not powered on during connection). If you have

connected the USB cable from your computer to your modem as illustrated in Step

1, you will be prompted with the following window to install the driver.

Step 2: Installing Your DSL500U

ADSL USB Modem Driver

The screen shots, screens information and steps illustrated in this

manual serve only as a guide. The exact information and steps you

see on your system may vary, depending on your system

configurations. For any dissimilarities, follow closely to the

instructions as prompted on your PC screen.

2.1 For Windows® 98 Second Edition

ii. Select Search for the best

driver for your device

(Recommended) and click

Next.

You may be prompted for your Windows CD-ROM during the driver

installation. Have it ready by your side.

i. Place the Installation CD into your CD-ROM Drive and click Next.

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

iii. Click Specify a location.

Enter your CD-ROM drive letter in the text box and click Next.

iv. Click The updated driver

(Recommended)

DSL500U ADSL USB

Modem and click Next.

v. Click Next again to

proceed installation with

the specified driver.

vi At the Copying Files prompt, place your Windows CD-ROM in your CD-

ROM Drive. Enter the path of your Windows CD-ROM and click OK.

All manuals and user guides at all-guides.com

all-guides.com

DSL500U ADSL USB Modem Easy Start

vii. Click Finish to complete the driver installation.

viii. Restart your system at the prompt.

ix. After Windows rebooted, system will proceed with the setup. You will be

prompted for your Windows CD-ROM again. Place your Windows CD-ROM

in your CD-ROM Drive. Enter the path of your Windows CD-ROM and click

OK.

x. Restart you system again.

xi. Upon successful installation, you will see a DSL Test and a DSL500U ADSL

USB Modem Dial-Up shortcut icons generated on your desktop. You may now

proceed with Step 3 - Dial-Up to the Internet.

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

2.2 For Windows® Me

i. Place the Installation CD into your CD-ROM Drive.

ii. Select Specify the location of the driver (Advanced) and click Next.

iii. Click Specify a location.

Enter your CD-ROM drive

letter in the text box and

click Next.

iv. Click Next again to proceed installation with the specified driver.

v. Click Finish to complete

the driver installation.

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

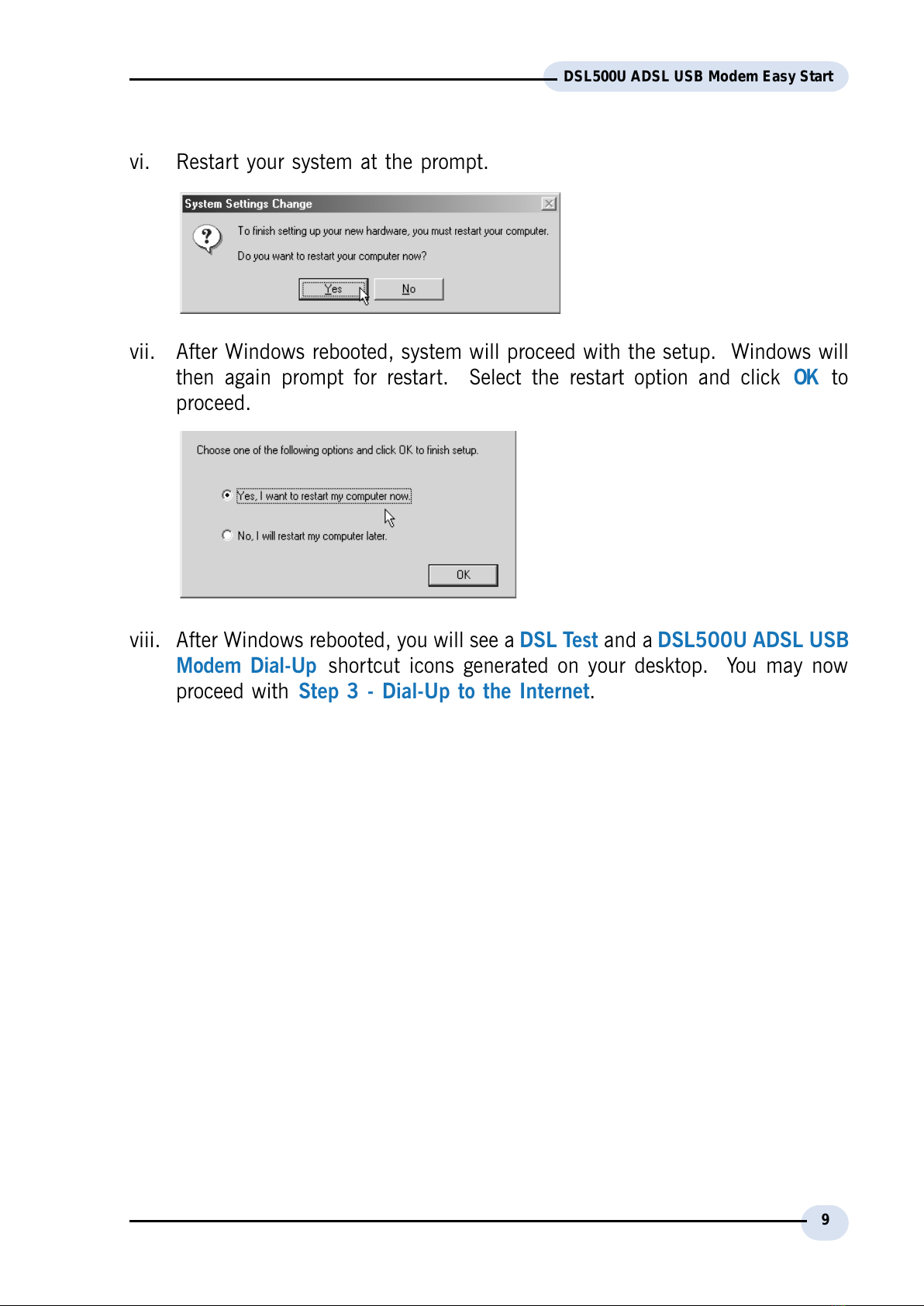

vi. Restart your system at the prompt.

vii. After Windows rebooted, system will proceed with the setup. Windows will

then again prompt for restart. Select the restart option and click OK to

proceed.

viii. After Windows rebooted, you will see a DSL Test and a DSL500U ADSL USB

Modem Dial-Up shortcut icons generated on your desktop. You may now

proceed with Step 3 - Dial-Up to the Internet.

All manuals and user guides at all-guides.com

DSL500U ADSL USB Modem Easy Start

2.3 For Windows® XP

i. Place the Installation CD into your CD-ROM Drive.

ii. At the following prompt, select Install from a list or specific location (Advanced)

and click Next.

iii. Click Include this location in the search.

Enter your CD-ROM drive letter in the text box and click Next.

iv. At the prompt stating that the

modem has not passed

Windows Logo testing, click

Continue Anyway. (This

happens when Windows detects

your driver as a new version).

The installation will progress.

v. Restart your system at the

prompt.

All manuals and user guides at all-guides.com
