Aztech MDP3880SP-U Manual de usuario

PCI 56K MODEM

Users Manual

Version 1.1

MDP3880SP-U

Preface .......................................................................

Introduction ................................................................

Before you begin ..........................................................

2.1 Minimum System Requirements ...............................................

2.2 Safety Precaution ...................................................................

2.3 Installation Notes ...................................................................

Setting Up the Modem Card .........................................

3.1 Installing the Modem Card ......................................................

3.2 Connecting the Modem Card...................................................

Installing the Modem Driver ..........................................

4.1 For Windows®95 ..................................................................

4.2 For Windows®98 ..................................................................

4.3 For Windows NT®4.0 .............................................................

Testing the Modem Card................................................

5.1 For Windows®95/98 .............................................................

5.2 For Windows NT®4.0 ............................................................

Contents

○○○○○○○○○○○○○○○○○○○○

Frequently Asked Questions ..........................................

A.1 Technical Terms ....................................................................

A.2 Common Questions ...............................................................

Technical Specifications ................................................

TAD Connection .........................................................

P/N: 040-512410-111

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 1  Introduction

Preface

This manual gives you a step-by-step guide of the following:

1. Installing your modem card to your computer

2. Connecting to the phone line for Internet

3. Installing the modem driver required to run the modem

4. Testing the modem

The section - Frequently Asked Questions (FAQ) will explain some of the

technical terms used in this manual, as well as the possible solutions for some of

the commonly asked questions by users.

For further technical details on your card, you may refer to the ReadMe.txt file

found in your MDP3880 Installation CD.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 1  Introduction

Introduction

Congratulations on your purchase of 56K PCI Modem!

With the 56K PCI Modem alone, you can perform a comprehensive range of modem-

related functions including data communications, sending and receiving of faxes, as

well as telephone / speakerphone operations.

The intensive demands of todays Internet applications will no longer be a bottleneck.

Using the 56K PCI Modem, you can now download graphic intensive web pages, high

bandwidth audio and video files as well as large file size software programs at speeds of

up to 56Kbps.

○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 2  Before You Begin

2.1 Minimum System Requirements

•IBM PC-based computer with Pentium®166 processor

•PCI Bus slot

•16MB RAM

•10MB hard disk space (system files and modem drivers only)

•CD-ROM drive

•Windows®95/98 / NT®4.0

2.2 Safety Precaution

•Do not remove your card from its protective bag until you are ready to

install it.

•Always try to hold your card by its edges. Avoid touching any electronic

components on your card.

•Static electricity can cause permanent damage to your card. To prevent

such a damage, you must ground yourself during the installation:

Before You Begin

This chapter contains information that your need to know before installing your

modem card. They are the basic system requirements needed for your modem card to

run, the safety rules to follow, as well as the installation guidelines.

○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 2  Before You Begin

»Use a grounding strap - a coiled wire with a clip at one end and an

elastic strap at the other. Wear the strap around your wrist and attach

the clip to any non-painted metal surface of your computer chassis.

»If you do not have a grounding strap, touch any non-painted surface

of your computer chassis before you begin installation, and again

every minute or so until the installation is completed.

2.3 Installation Notes

•The graphics and illustrations shown in this manual may differ from what

you see in your system, but the steps still apply.

•A Philips screwdriver is required.

•The documentation for your computer should come in handy during the

installation. Have it ready by your side.

•If you have an existing non Plug-and-Play modem installed in your computer,

you must first un-install its modem drivers before you remove the card.

Refer to the documentation of your existing modem for details.

If your existing modem is Plug-and-Play, you may proceed to install your

new modem.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 3  Setting Up the Modem Card

3.1 Installing the Modem Card

You need to remove any existing modem installed in your computer.

If your modem is non Plug-and-Play, you need to un-install its

modem drivers before you remove it. Check your existing modem

documentation for details on this.

Power off your computer and any connected devices before installing

your modem!

¶Remove the cover of your

computer.

Setting Up Your Modem Card

This chapter provides information on how to install and connect the modem card to

your computer.

○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 3  Setting Up the Modem Card

·Select an available PCI

Bus slot and remove its

cover plate. Keep the

mounting screw to

secure your card later.

PCI Bus Slot

Cover Plate

Mounting Screw

¸Align your card with

the selected PCI Bus

slot and firmly push it

into the slot. If the card

does not slide in, do

not force it. Make sure

that the card is lined up

properly and try again.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Chapter 3  Setting Up the Modem Card

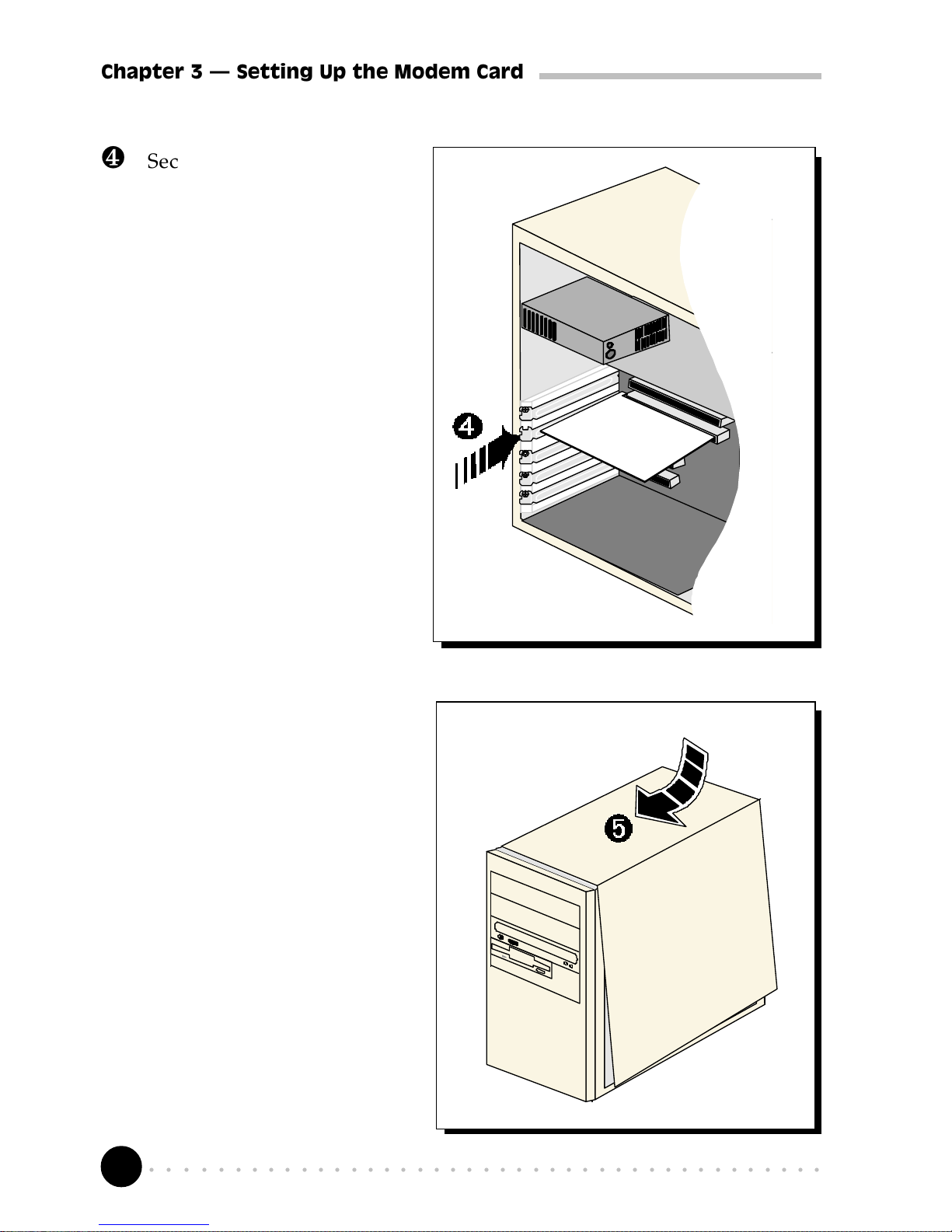

¹Secure your card to your

computer chassis with the

mounting screw.

ºReplace the cover of your

computer.
