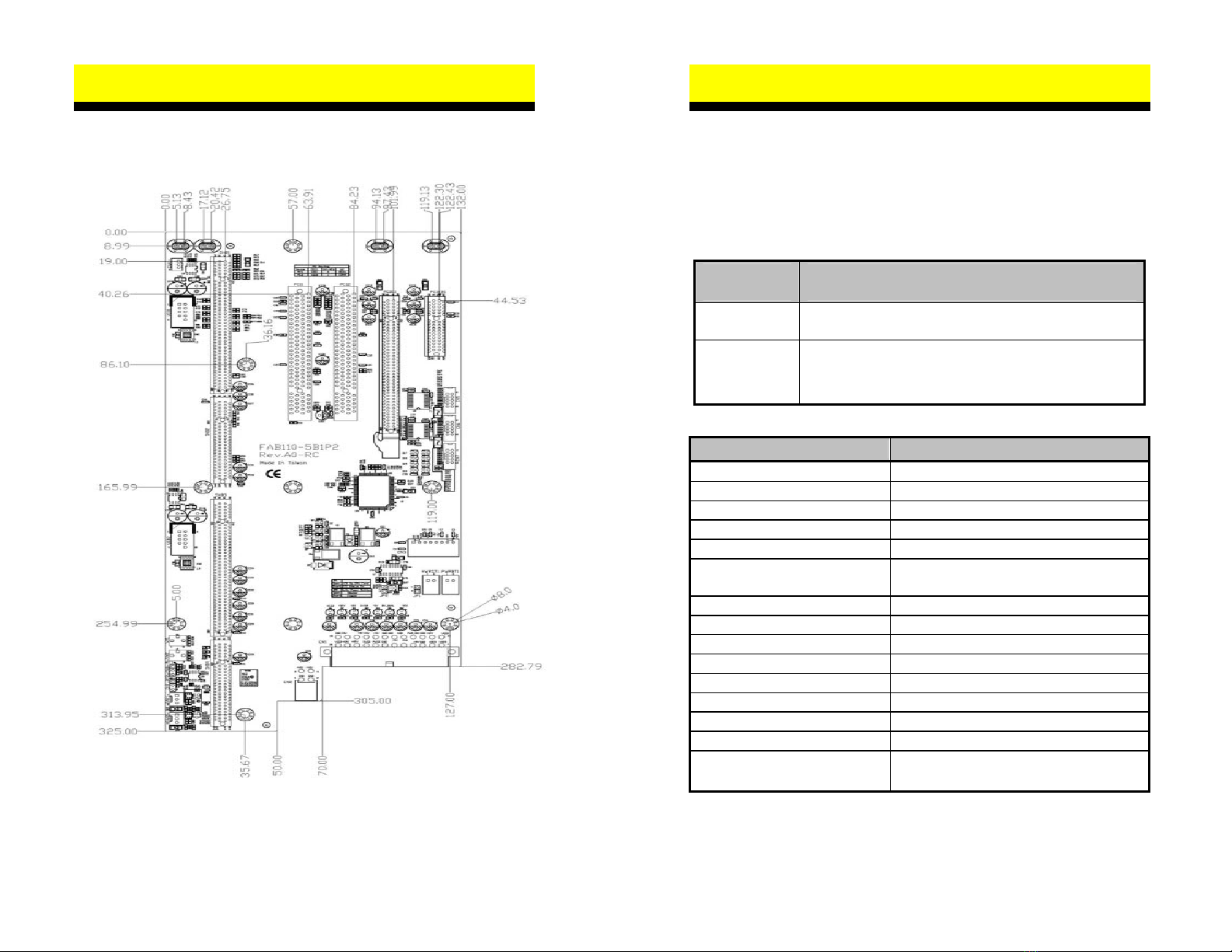

Board Dimensions

FAB110-5B1P2 Quick Installation Guide

Version A1 Apr 2010

Printed in Taiwan

9419B110010E

I. Checklist

9FAB110-5B1P2 5-Slot ATX-Supported

PICMG 1.3 Bus Backplane x 1

9Quick Installation Guide x 1

Note 1: Please contact your local vendors if any damaged or missing items.

DO NOT apply power to the board if any damaged components.

II. Jumper List

Jumper Description

JP1 Open : ATX by CPU Card

Short : ATX Power Always On

JP2

(Reserved)

Auto Power Button Function (Optional)

Open : Disable

Short : Enable

III. Connectors

Connector Description

CN1 ATX Power Connector

CN2 12V 4Pin(+12V Auxiliary Power Connector)

CN3 8-Pin Power Connector for thermal board

CN4 SM Bus Connector

CN5,CN6,CN7(Reserved) COM Ports and DIO Connector(Optional)

CN8,CN9(Reserved) Thermal sensor Connector For FAN1 & FAN2

(Optional)

USB1,2 USB 0,1,2,3

PWRBT1 ATX Power button connector

HWRST1 Hardware Reset Connector

FAN1;FAN2 FAN Connector

SHB1 – SHB4 PICMG 1.3 Full-SIZE SBC Slot

PCI1-PCI2 PCI Slots 32-bit/33MHz

PCIE1 X16 PCIe Slot

PCIEB1 X4 PCIe Slot (Note 2)

VR1,VR2 (Reserved) Temperature Selection For FAN

Control(Optional)

FAB110-5B1P2 Quick Installation Guide

Version A1 Apr 2010

Printed in Taiwan

9419B110010E

24-Pin ATX Power Connector (CN1)

Pin Signal Cable

Color Pin Signal Cable

Color

1 3.3V Brown 13 3.3V Brown

2 3.3V Brown 14 -12V Blue

3 GND Black 15 GND Black

4 5V Red 16 PS_ON Green

5 GND Black 17 GND Black

6 5V Red 18 GND Black

7 GND Black 19 GND Black

8 PWOK Orange 20 -5V White

9 5VSB Purple 21 5V Red

10 12V Yellow 22 5V Red

11 12V Yellow 23 5V Red

12 3.3V Brown 24 GND Black

4Pin +12V Auxiliary Power Connector (CN2)

Pin Signal Cable

Color Pin Signal Cable

Color

1 GND Black 3 12V Yellow

2 GND Black 4 12V Yellow

Power Output Connector (CN3)

Pin Signal Pin Signal

1 GND 5 -5V

2 GND 6 5V

3 5VSB 7 -12V

4 3.3V 8 12V

FAB110-5B1P2 Quick Installation Guide

Version A1 Apr 2010

Printed in Taiwan

9419B110010E

SM Bus Connector (CN4)

Pin Signal

1 SM_CLK

2 SM_DAT

3 GND

Power ON/OFF Push Button Connector (PWRBT1)

Pin Signal

1 PWR_BT

2 GND

Hardware Reset Connector (HWRST1)

Pin Signal

1 HW_RST

2 GND

FAN Connector (FAN1, FAN2)

Pin Signal

1 GND

2 +12V

3 N.C or Rotation

Detection (Reserved)

USB Connectors (USB1, USB2)

Pin Signal Pin Signal

1 USB Power 2 USB Power

3 USB P0- 4 USB P1-

5 USB P0+ 6 USB P1+

7 USB GND 8 USB GND

10 GND

Note 2: Follow by PICMG1.3 standard, The ports for the B[3:0] link was

configured to one x4 PCIe(PCIEB1 slot on BP), The x4 PCIe link is

able to support x1 and x4. If the x4 PCIe slot can not support x4

PCIe card, please contact your SBC Card vender first.
