AXIOMTEK AX93295 Manual de usuario

4 94193295000E

Version A1 May 2016

Printed in Taiwan

How to Use

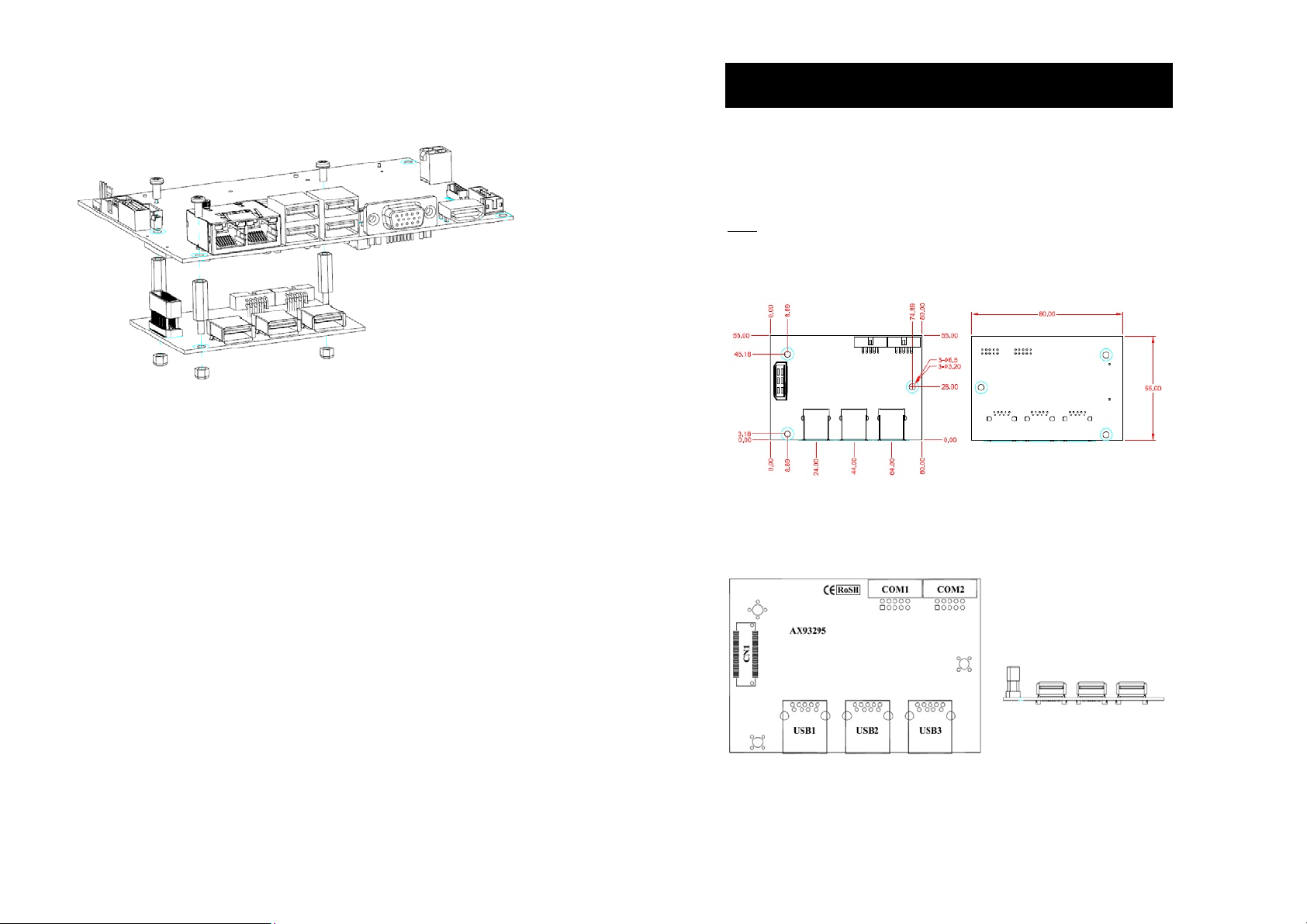

Gently insert ZIO module into 3.5” SBC’s ZIO connector, see figure above.

Align assembly holes and use screws to firmly secure ZIO module to CPU

board. Be careful not to over-tighten the screws.

Then, after installing OS, please also install USB3.0 driver whose file name

is RENESAS-USB3-Host-Driver-30230-setup from utility CD to enable

USB2 and USB3.

AX93295

AX93295 Quick Installation Guide

94193295000E 1

Version A1 May 2016

Printed in Taiwan

Checklist

I/O board x1 Screw pack x1

Quick installation guide x1

Utility CD x1

COM cable x2

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the module if there is any damaged component.

Dimension and Fixing Holes

Module Layout

AX93295 ZIO Module

2 94193295000E

Version A1 May 2016

Printed in Taiwan

Connectors

Connector Description

COM1 COM1 Connector

COM2 COM2 Connector

USB1 USB3.0 Port 1

USB2 USB3.0 Port 2

USB3 USB3.0 Port 3

COM Connectors (COM1 and COM2)

This module comes with two box headers which are compliant with Molex

78046-1020, 2x5-pin p=2.00mm for COM1 and COM2. Moreover, both of

them are RS-232 at 2KV isolation.

USB3.0 Ports (USB1~USB3)

This module comes with three high rise double-deck Universal Serial Bus

(compliant with USB 3.0 (5Gb/s)) connector on the rear I/O which are for

installing USB peripherals such as keyboard, mouse, scanner, etc.

Note: USB1 as USB3.0 port is subject to which 3.5” SBC are installed. If

the 3.5” SBC can’t support USB1 as USB3.0 port, USB1 is USB2.0 port.

Pin Signal Pin Signal

1 DCD 2 DSR

3 RXD 4 RTS

5 TXD 6 CTS

7 DTR 8 RI

9 GND 10 N.C.

Pin Signal

1 USB_VCC (+5V Power)

2 USB_Data0-

3 USB_Data0+

4 GND

5 SSRX0-

6 SSRX0+

7 GND

8 SSTX0-

9 SSTX0+

94193295000E 3

Version A1 May 2016

Printed in Taiwan

ZIO Expansion Connector (CN1)

The CN1 is for connecting ZIO expansion module to 3.5” SBC with ZIO

connector.

Pin Signal Pin Signal

A1 +12V B1 GND

A2 +5VSB B2 GND

A3 +5VSB B3 GND

A4 +3.3VSB B4 GND

A5 +3.3VSB B5 RSVD

A6 RSVD B6 RSVD

A7 RSVD B7 RSVD

A8 SMB_CLK B8 RSVD

A9 SMB_DATA B9 GND

A10 GND B10 PCI-E TXP4

A11 PCI-E RXP4 B11 PCI-E TXN4

A12 PCI-E RXN4 B12 WAKE_N

A13 RSVD B13 PCI-E CLKP

A14 USBP_0P B14 PCI-E CLKN

A15 USBP_0N B15 GND

A16 No Use B16 CLK_33M

A17 No Use B17 SERIRQ

A18 GND B18 LAD0

A19 SSTX+ B19 LAD1

A20 SSTX B20 LAD2

A21 PLTRST_N B21 LAD3

A22 SSRX+ B22 L_FRAME

A23 SSRX B23 GND

A24 GND B24 No Use

A25 No Use B25 No Use

A26 No Use B26 No Use

A27 No Use B27 No Use

A28 No Use B28 GND

A29 GND B29 No Use

A30 No Use B30 No Use
