Avocent SwitchView Manual de usuario

The following instructions will help you

connect your SwitchView unit.

Should you require further assistance, please

contact Avocent Technical Support.

Powering the SwitchView unit

Powerdown all computers that will be attached to your

SwitchView unit. Plug the supplied powercord into the

power socket on the rear of the SwitchView unit. Plug

the other end into an appropriate AC powersource.

Connecting the peripheral devices

Plug yourVGA monitorinto the port labeled CONSOLE

on the back of the SwitchView. If you plan to use a

PS/2 keyboard ormouse locally, plug them into the

labeled ports on the front of the unit.

NOTE: PS/2 local peripherals will work with USB

or PS/2 computers.

Connecting the first computer

To connect a computer using the PS/2 ports:

Locate an industry standard KVM to KVM cable.

Attach one end to the corresponding connectors on

the first computer to be attached to the SwitchView.

Route the cable to the SwitchView and attach the

remaining connectors to an available port set.The

port sets are labeled PC1-PC4 to correspond with

the channels on the unit.

To connect a computerusing the USB port: Attach

an industry standard USB cable between an available

USB port on the rear of the SwitchView and the

computer you are attaching.

Connecting the remaining computers

Repeat step 3 to connect additional computers.

Connecting USB devices

Plug any USB devices orperipherals into the SwitchView

using the USB ports on the front of the unit.

Powering the SwitchView unit and

attached computers

Powerthe SwitchView. Next to each port is a blue

LED. A blinking LED indicates that the attached

computer is not powered.

Power the first attached computer. Wait until it

has completely booted before switching to the

next computer and repeating the process.

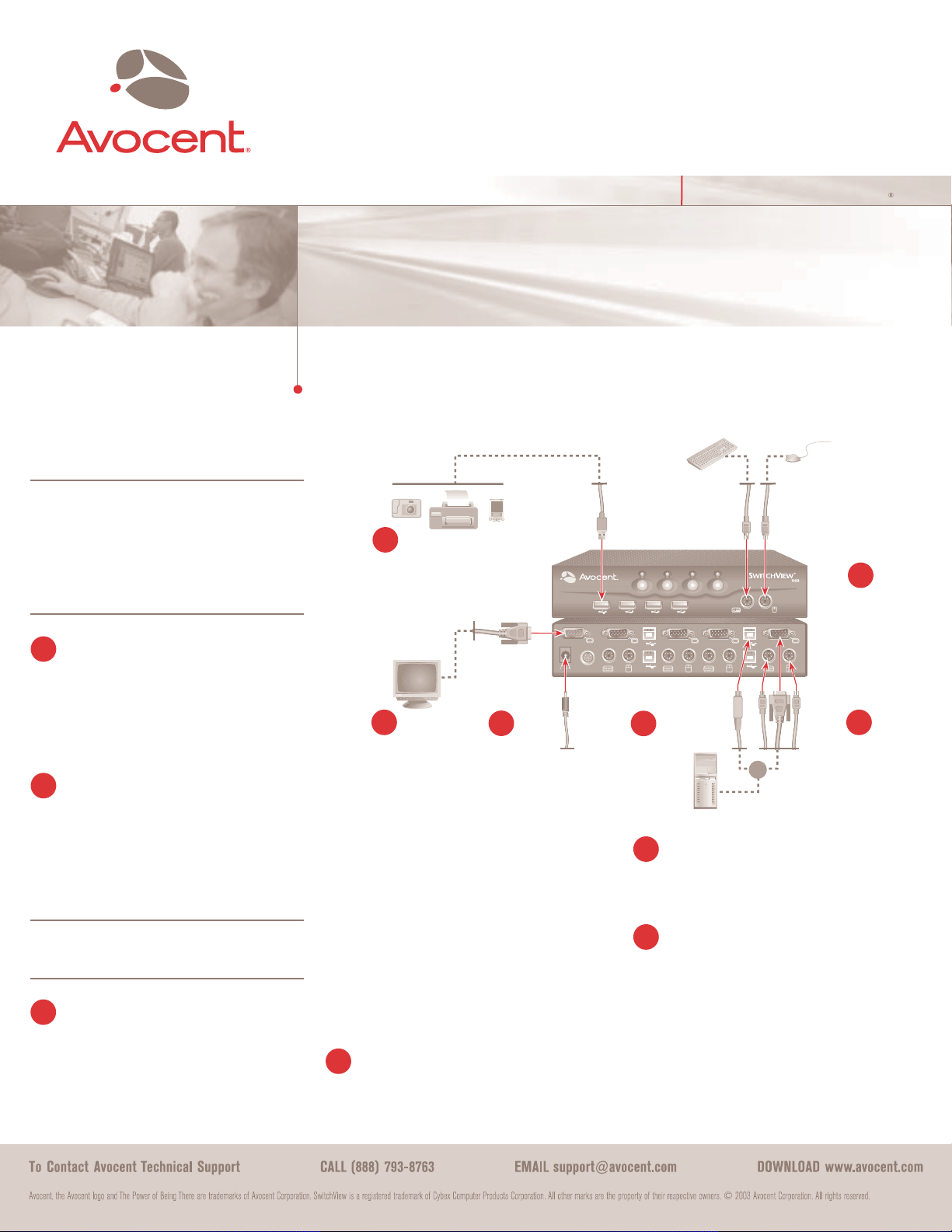

Quick Installation Guide

SwitchView USB

UPGRADE

CONSOLE

DC 12V, 1A

PC3

PC4 1

PC1

PC2

Plug in the remaining

computers to the

SwitchView unit.

The Power of Being There

To connect a SwitchView USB

Plug in the monitor,

followed by

the keyboard

and mouse.

NOTE: All drivers necessary for the SwitchView

are built into the unit. If you are installing the unit

with a Windows operating system and are

prompted for drivers, press NEXT until the

configuration is complete.

Attach USB

devices to the

front ports of the

SwitchView unit.

Power up the

SwitchView unit

and all attached

computers.

590-345-001A

1 2 3 4

Power down your

computers and attach

the appropriate

power cord.

1Connect the first

computer to the

SwitchView unit.

Selecting a channel

A channel may be selected in one of the following ways:

• Pressing the button corresponding to the

relevant computer

• Using hotkey commands

When you change channels, the mouse will stop moving

for one to two seconds as the signals are synchronized.

Using SwitchView with

USB-connected Systems

When USB devices are attached to the SwitchView, they

can be shared with any attached computer. Up to 126

USB devices can be connected by attaching additional

hubs to the unit.

Your SwitchView incorporates a USB 1.1B compliant hub

with four ports.The hub can be switched to any of the

attached computers in conjunction with, or separately

from, the PS/2mouse/keyboard and the video connections.

NOTE: Firmware updates can be installed using the

UPGRADE port. For instructions and the latest firmware,

visit www.avocent.com.

The following instructions will help you

operate your SwitchView unit.

Should you require further assistance, please

contact Avocent Technical Support. Using Hotkey Commands

NOTE: Hotkey switching cannot be performed with

USB keyboards.

A hotkey command can be used by pressing a series of

key sequences:

• <CTRL><CTRL> <X*> switches the keyboard,

mouse, video and all USB hubs simultaneously to

another system.

• <CTRL><CTRL> <LEFT ARROW> toggles scan

mode on or off.

•<CTRL><CTRL> <UP ARROW> <X*> switches

the keyboard, mouse and video to anothersystem

separately from the USB hub.

• <CTRL><CTRL> <DOWN ARROW> <X*>

switches the USB hub to another system separately

from the PS/2keyboard/mouse and video.

* <X> = the port number of the attached

computer or USB hub

NOTE: <SCROLL LOCK><SCROLL LOCK> can be

substituted in any hotkey sequences that use

Quick Installation Guide

SwitchView USB

To operate a SwitchView unit

The Power of Being There
