Avalue Technology LPC-1232 Manual de usuario

Part No. E2017L220A0R

LPC-1232/1532

12.1"/15" 6th Gen Intel® Core™ SoC ULT Processor i7/i5/i3

Touch Panel PC

Quick Reference Guide

1st Ed –28 March 2016

LPC-1232/1532

2 LPC-1232/1532 Quick Reference Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

Quick Reference Guide

LPC-1232/1532 Quick Reference Guide

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

LPC-1232/1532

4 LPC-1232/1532 Quick Reference Guide

Content

1. Getting Started ........................................................................................................5

1.1Safety Precautions....................................................................................................5

1.2 Packing List...............................................................................................................5

1.3 System Specifications...............................................................................................6

1.4 System Overview......................................................................................................8

1.4.1 Top View.................................................................................................................................. 8

1.4.2 Bottom View............................................................................................................................. 8

1.5 System Dimensions ................................................................................................10

1.5.1 LPC-1232 Front and Rear side.............................................................................................. 10

1.5.2 LPC-1532 Front and Rear side.............................................................................................. 11

2. Hardware Configuration .......................................................................................12

2.1 LPC-1232/1532 connector mapping........................................................................13

2.1.1 Serial port 1/2 connector (COM1/2)....................................................................................... 13

2.2 Installing Hard Disk & Memory (For LPC-1232) .......................................................14

2.3 Installing Hard Disk & Memory (For LPC-1532) .......................................................16

Quick Reference Guide

LPC-1232/1532 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x LPC-1232/1532 Panel PC

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

—Chipset drivers and utilities

1 x Power Adapter

1 x Stand for Panel PC (optional)

LPC-1232/1532

6 LPC-1232/1532 Quick Reference Guide

1.3 System Specifications

Component

Model

LPC-1232

LPC-1532

Mother Board

EBM-SKLU

CPU

Onboard 6th Gen Intel® Core™ SoC i7/i5/i3 BGA Processor

Memory

One 260-pin DDR4 SODIMM Socket Supports Up to 32GB DDR4 2133 SDRAM

Adapter

+12 Vdc / 5 A (60W)

Wireless LAN

Optional USB/MPCIe WiFi module

TPM

Optional TPM 2.0 & 1.2

Storage

Hard Disk Drive

One 2.5" SATA HDD

Solid State Drive

Optional 2.5" SATA SSD

Other Storage Device

Optional mSATA

Panel

LCD Panel

12", 4:3, XGA

15", 4:3, XGA

B/L Inverter/Converter

Built in LED backlight

Touch Screen

5 Wires resistive

Touch Controller

Onboard USB (EETI)

External I/O

Serial Port

2 x RS-232/422/485

USB Port

4 x USB 3.0

Audio Port

1 x Line-out Realtek ALC233

LAN Port

1 x Intel I210AT GbE controller

1 x Intel I219LM Gigabit Ethernet PHY

Wireless LAN

Antenna

Reserved 1 for WiFi or 3G antenna

Speaker Output

N/A

2 x 1W

Indicator Light

LED for Power, HDD

Expansion Slots

2 x Mini PCIe

Mechanical

Power Type

AT/ATX

Power Connector

Type

DC in

Dimension

283 x 222 x 45 mm

351.5 x 272 x 52 mm

Weight

2.84 Kgs

4.2 Kgs

Color

Front Silver & Rear panel Black

Fanless

Yes

Reliability

Quick Reference Guide

LPC-1232/1532 Quick Reference Guide

EMI Test

Class B

Safety

CE FCC

Dust and Rain Test

IP65

Vibration Test

Random Vibration Operation: IEC 60068-2-64

Sine Vibration test (Non-operation): IEC 60068-2-6

Package vibration test: IEC 60068-2-64

Mechanical Shock

Test

Bump Test: IEC 60068-2-29

Drop Test

IEC-60068-2-32

Operating

Temperature

-10 to 50°C

Operating Humidity

5% ~ 90% relative humidity, non-condensing

Storage Temperature

-20 to 60°C

Note: Specifications are subject to change without notice.

LPC-1232/1532

8 LPC-1232/1532 Quick Reference Guide

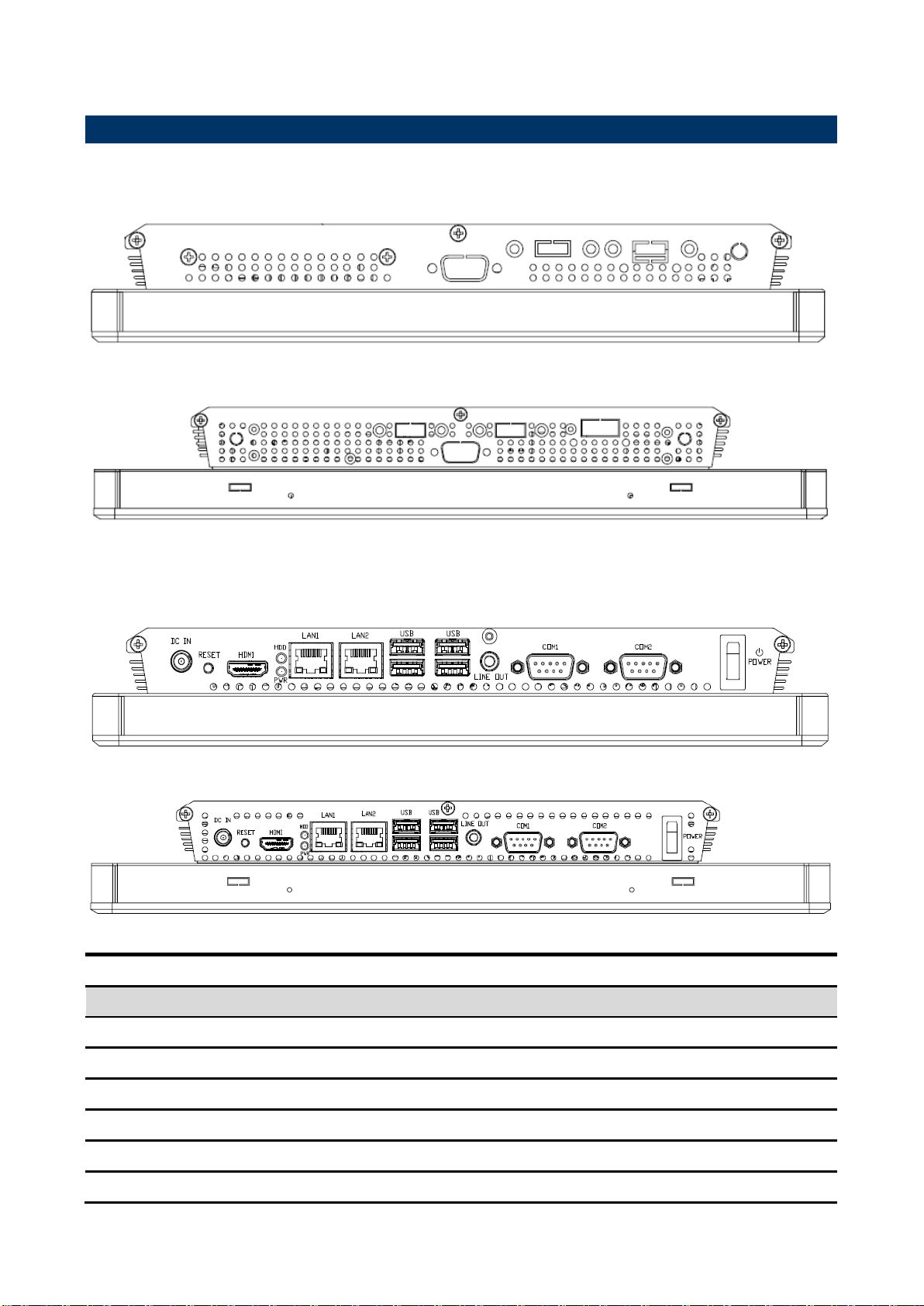

1.4 System Overview

1.4.1 Top View LPC-1232

LPC-1532

1.4.2 Bottom View LPC-1232

LPC-1532

Connectors

Label

Function

Note

POWER

Power on button

COM1/2

Serial port 1/2 connector

DB-9 male connector

LINE OUT

Line-out audio jack

USB

4 x USB 3.0 connector

Dock USB

LAN1/2

RJ-45 Ethernet connector 1/2

HDD

HDD indicator

Quick Reference Guide

LPC-1232/1532 Quick Reference Guide

PWR

System power indicator

HDMI

HDMI connector

RESET

Reset button

DC IN

DC Power-in connector

LPC-1232/1532

10 LPC-1232/1532 Quick Reference Guide

1.5 System Dimensions

1.5.1 LPC-1232 Front and Rear side

(Unit: mm)
