Avalue Technology FPC-08R1 Manual de usuario

Part No. E201708R1A0R

FPC-08R1

8" SVGA TFT RISC Panel PC with FreeScale IMX51

Quick Reference Guide

1st Ed –1 April 2013

FPC-08R1

2 FPC-08R1 Quick Reference Guide

CONTENT

1. Getting Started............................................................................................................3

1.1 Safety Precautions ................................................................................................3

1.2 Packing List...........................................................................................................3

1.3 System Specifications ...........................................................................................4

1.4 System Overview...................................................................................................5

1.4.1 Front & Top View ......................................................................................................................... 5

1.4.2 Right Side View............................................................................................................................ 5

1.4.3 Left Side View.............................................................................................................................. 6

1.4.4 Rear View..................................................................................................................................... 6

2. Hardware Configuration.............................................................................................7

2.1 Jumper & connector list.........................................................................................8

2.2 Jumper & connector settings.................................................................................9

2.2.1 Serial port connector (COM)........................................................................................................ 9

2.2.2 Boot Mode selector.................................................................................................................... 10

2.2.3 DC power-in connector (DC-IN)................................................................................................. 10

2.2.4 Debug port connector (Debug port)........................................................................................... 11

2.3 Installing SD Card (FPC-08R1) ...........................................................................12

Quick Reference Guide

FPC-08R1 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x 8”SVGA TFT RISC Panel PC System.

1 x CD/DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Win CE & Linux software (bootloader, Kernel, Image, BSP, SDK)

—iMX_AdvancedToolKit

—Mfgtools

1 x Quick Reference Guide

Other major components include the following:

—1 x Power Adapter(12V/5A)

FPC-08R1

4 FPC-08R1 Quick Reference Guide

1.3 System Specifications

Panel

Model

FPC-08R1-M51

FPC-08R1-M51W

LCD size

8 inch

Display type

SVGA TFT

Resolution

800(R.G.B) x 600

Color

262K

Pixel pitch

0.0675mm(W) x 0.2025mm(H)

Luminance

250cd/m²

Contrast ratio

400

Viewing angle

50(U), 70(D), 70(L), 70(R)

Response time

10 ms

Backlight

LED

Touch Type

4-Wire Resistive

Touch Light Transmission

80%

Integrated Module

Reserved

w/ WiFi Module

System

Board

RSC-IMX51

CPU

Freescale i.MX515 ARM Cortex-A8 800MHz

PMIC

Freescale MC13892AJVL

eMMC

Onboard 4GB eMMC

Memory

Onboard 512MB DDR2 SDRAM

SSD

SD socket support SDHC (eSDHC-2)

Rear Panel I/O

Serial Port

2 x DB9 connectors for 1 x RS-232/ 422/ 485 and 1 x Debug port

USB Host

2 x USB 2.0 connectors (Type A)

USB Client

1 x Mini-USB connector

Fast Ethernet

1 x RJ-45 connector (10/100 Base-TX)

Mechanical & Environmental

Color

Front & Rear panel Black

Power Requirement

+12 VDC Input

Operating Temperature

0°C to 40°C (32°F to 140°F)

Relative Humidity

0%~90% relative humidity, non-condensing

Storage Temperature

-20°C to 60°C

Mounting

Wall/Stand/VESA 75 mm X 75 mm

Dimensions

192mm x 150mm x 42.2mm

Weight

0.95Kgs

Quick Reference Guide

FPC-08R1 Quick Reference Guide

1.4 System Overview

1.4.1 Front & Top View

1.4.2 Right Side View

Connectors

Label

Function

Note

SD Card Slot

SD/SDHC card socket

Right side

OTG

USB on The Go connector

Mini USB connector

COM

Serial port connector

DB-9 male connector

FPC-08R1

6 FPC-08R1 Quick Reference Guide

1.4.3 Left Side View

1.4.4 Rear View

Connectors

Label

Function

Note

DC-IN

+12V DC power-in connector

Debug port

Debug target application

DB-9 male connector

LAN

RJ-45 Fast Ethernet connector

MODE SWITCH

Boot Mode selector

Power S/W

System power switch

RESET

Reset button

USB1~2

USB 2.0 connector 1~2

Quick Reference Guide

FPC-08R1 Quick Reference Guide

2.Hardware

Configuration

Jumper and Connector Setting

For advanced information, please refer to:

1- RSC-IMX51 Installation Guide or User’s Manual

2- AUX-MPCIE (Optional) Installation Guide.

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

FPC-08R1

8 FPC-08R1 Quick Reference Guide

2.1 Jumper & connector list

Connectors

Label

Function

Note

COM

Serial port connector

DB-9 male connector

DC-IN

+12V DC power-in connector

Debug port

Debug target application

DB-9 male connector

LAN

RJ-45 Fast Ethernet connector

MODE SWITCH

Boot Mode selector

OTG

USB on The Go connector

Right side

Power S/W

System power switch

RESET

Reset button

SD Card Slot

SD/SDHC card socket

Right side

USB

USB 2.0 connector 1&2

Quick Reference Guide

FPC-08R1 Quick Reference Guide

2.2 Jumper & connector settings

2.2.1 Serial port connector (COM)

RS232 mode

Signal

GND

RTS

CTS

GND

RS422 mode

Signal

TX-

RX+

TX+

RX-

GND

RS485 mode

Signal

DATA-

DATA+

GND

FPC-08R1

10 FPC-08R1 Quick Reference Guide

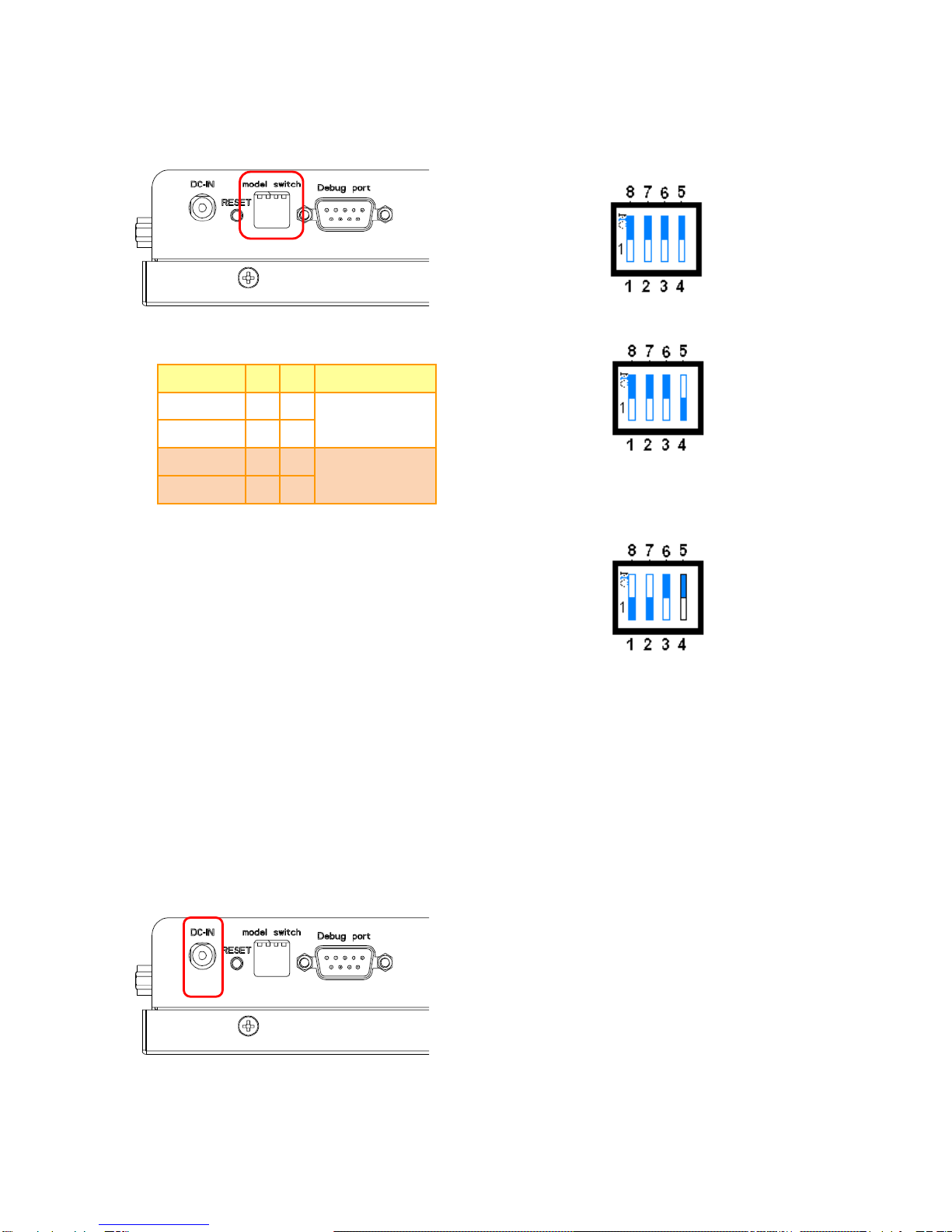

2.2.2 Boot Mode selector

Signal

BMOD1

+V2D775_BOOT

BMOD0

BT_SRC[1]

+V1D8_DIG1

BT_SRC[0]

Boot from onboard SD

Boot from SD socket

DIP ON ↓

USB OTG mode

DIP ON ↓

Please note:

DIP Switch setting:

0=Off, 1=On

When Position4 is switched On, the system is forced to power On as soon as power is applied. Switch to Off

mode for normal operation.

2.2.3 DC power-in connector (DC-IN)

DC-IN 12V
