Avalue Technology OPC-15W6 Manual de usuario

Part No. E201715W6A0R

Open Frame 15.6”

Series

OPC-15W6

Quick Reference Guide

1st Ed –23 August 2012

Open Frame 15.6” Series

2 Open Frame 15.6” Series Quick Reference Guide

Contents

1. Getting Started ........................................................................................................3

1.1 Safety Precautions....................................................................................................3

1.2 Packing List...............................................................................................................3

1.3 System Specifications...............................................................................................4

1.4 System Overview......................................................................................................6

1.4.1 Front View................................................................................................................................ 6

1.4.2 Rear IO View ........................................................................................................................... 7

1.4.3 Bottom IO View........................................................................................................................ 8

1.4.4 Side IO..................................................................................................................................... 9

1.5 System Dimensions ................................................................................................10

2. Hardware Configuration .......................................................................................11

2.1 Jumper and Connector Setting................................................................................12

2.1.1 Jumper Setting....................................................................................................................... 12

2.1.2 Connector Setting.................................................................................................................. 13

2.2 Hard Disk, Memory & Expansion Cards Installation................................................14

2.3 Turn on the System.................................................................................................18

2.4 Enter BIOS Menu, Select Booting Devices .............................................................18

2.5 System Integration & Mounting...............................................................................19

Quick Reference Guide

Open Frame 15.6” Series Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x OPC-15W6 Series Open Frame PC

1 x Quick Reference Guide

1 x DVD-ROM (For all drivers)

Other major components include the followings:

—1 x 19V/65W AC-DC Adapter

—1 x Power Cord

—2 x Screws (for hard disk drive bracket)

—1 x Sponge (to paste on hard disk drive)

Open Frame 15.6” Series

4 Open Frame 15.6” Series Quick Reference Guide

1.3 System Specifications

Model

OPC-15W6

System Type

Open Frame All-In-One System

Display

15.6” TFT-LCD

1920x1080 Resolutions

LED Backlight

300 cd/m2White Luminance

500:1 Contrast Ratio

Touch Screen

Projected Capacitive Touch

10-Point Multi-touch

EETI Controller

Main System

Customized QM67 Main board

- Processor

Intel® Processors

Core™ i7-2610UE (4M Cache, 1.50 GHz)

Core™ i3-2340UE (3M Cache, 1.30 GHz)

Celeron® 847E (2M Cache, 1.10 GHz)

Celeron®827E (1.5M Cache, 1.40 GHz)

- Chipsets

Mobile Intel® QM67 Express Chipset

- Memory

Dual channel DDR3 1066/1333MHz

Two SODIMM sockets

Maximum 16GB Capacity

- Audio

Realtek® ALC892 Audio CODEC

- Ethernet

Intel® 82579LM Gigabit Ethernet PHY

- Storage

2.5” SATA Hard Disk Drive Bay

I/O Interface

1 * RJ-45

1 * Display Port

1 * HDMI

4 * USB 2.0 (Type-A Female)

1 * Earphone

1 * Microphone

Optional I/O Interface

2 * RJ-45

4 * USB 2.0 (Type-A Female)

1 * RS-232

1 * RS-232/422/485

Optional Peripherals

1 * 1.3M Camera or 2.0M Auto Focus Camera

Speakers

2 * 2W Speakers

Mounting

VESA 75 (M6)

Power Requirement

12-19V Wide Range DC Input / Optional 12~24V Wide Range DC Input

Quick Reference Guide

Open Frame 15.6” Series Quick Reference Guide

Power Consumption

[email protected] , 26.98W

Accessory

19V 65W Adapter

Operating Temperature

0 ~40C (System Fanless)

Storage

Temperature

-20~70C

Chassis Material

SECC with Nickel Coating Treatment

Weight

4.53Kgs

OS Support

Windows XP & Windows XP Embedded (Not Multi-touch)

Windows 7 & Windows Embedded 7 (10-Point Multi-Touch)

Windows 8 & Windows Embedded 8 (10-Point Multi-Touch)

Open Frame 15.6” Series

6 Open Frame 15.6” Series Quick Reference Guide

1.4 System Overview

1.4.1 Front View

Functions

Descriptions

Note

1. 15.6”LCD

16:9 1920x1080 display

2. 15.6”PCAP Touch Screen

Multi-touch touch screen

3. Camera

1.3M / 2.0M Camera

Optional

4. Mounting Brackets

4 mounting brackets

Customizable

Quick Reference Guide

Open Frame 15.6” Series Quick Reference Guide

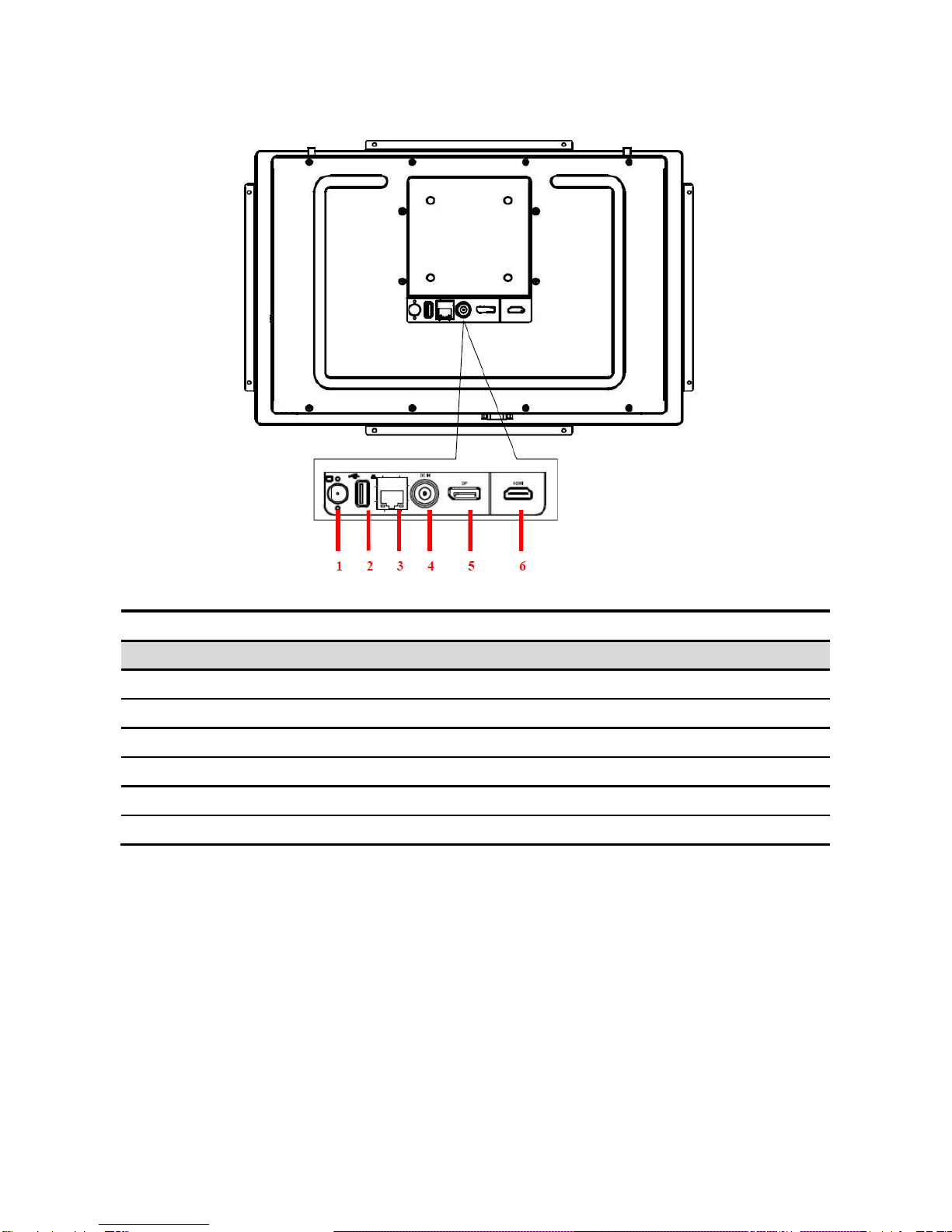

1.4.2 Rear IO View

Connectors

Label

Function

Note

1. TV

TV Antenna Connector

Optional

2. USB

USB 2.0 Type-A Female Connector

3. LAN

RJ-45 Connector

4. DC

DC Ø5.5x Ø2.5x9.5 mm Power Input Jack

5. DP

Display Port Output

6. HDMI

HDMI Output

Open Frame 15.6” Series

8 Open Frame 15.6” Series Quick Reference Guide

1.4.3 Bottom IO View

Connectors

Label

Function

Note

1~2. LAN

Extra LAN (RJ-45) through add-on card

Optional

3. COM

RS-232 (DB9)

Optional

4. COM

RS-232/422/485 (DB9)

Optional

5. EP

Earphone 3.5mm Jack

6. MIC

Microphone 3.5mm Jack

7~9. USB

Type-A Female Connector

10~11.USB

Type-A Female Connector

Optional

Quick Reference Guide

Open Frame 15.6” Series Quick Reference Guide

1.4.4 Side IO

Connectors

Label

Function

Note

1. USB

Right Side Type-A Female Connector

Optional

2. SPK

Right Channel 2W System Speaker

3. USB

Left Side Type-A Female Connector

Optional

4. PWR

Power button with green LED indicator

5. SPK

Left Channel 2W System Speaker

Open Frame 15.6” Series

10 Open Frame 15.6” Series Quick Reference Guide

1.5 System Dimensions

Dimensions (mm)

Descriptions

434.8 x 285.1 x 66

System dimension with mounting brackets

414.8 x 265.1 x 66

System dimension without mounting brackets

345.2 x 194.5

Display / Touch screen active area
