Avalue Technology BMX-T524 Manual de usuario
Part No. E2017B524A1R
BMX-T524
Mini ITX Barebone System with Intel® H110 Chipset
Quick Reference Guide
2nd Ed –27 November 2019
Copyright Notice
Copyright 2019 Avalue Technology Inc., ALL RIGHTS RESERVED.
BMX-T524
2 BMX-T524 Quick Reference Guide
FCC Statement
THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS
FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST
HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A
COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN
RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL
INTERFERENCE TO RADIO COMMUNICATIONS.
OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE
HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.
Copyright Notice
Copyright 2019 Avalue Technology Inc., ALL RIGHTS RESERVED.
No part of this document may be reproduced, copied, translated, or transmitted in any form
or by any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Disclaimer
Avalue Technology Inc. reserves the right to make changes, without notice, to any product,
including circuits and/or software described or contained in this manual in order to improve
design and/or performance. Avalue Technology assumes no responsibility or liability for the
use of the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties that
these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration
purposes only. Avalue Technology Inc. makes no representation or warranty that such
application will be suitable for the specified use without further testing or modification.
Quick Reference Guide
BMX-T524 Quick Reference Guide
3
CONTENT
1. Getting Started............................................................................................................4
1.1 Safety Precautions ................................................................................................4
1.2 Packing List...........................................................................................................4
1.3 System Specifications ...........................................................................................5
1.4 System Overview...................................................................................................8
1.4.1 Front/Rear View........................................................................................................................... 8
1.5 System Dimensions.............................................................................................10
2. Hardware Configuration...........................................................................................11
2.1 BMX-T524 connector mapping............................................................................12
2.1.1 Serial port 1~5 connector (COM1~5)......................................................................................... 12
2.1.2 VGA connector (VGA)................................................................................................................ 12
2.2 Installing Hard Disk & Memory, Mini-PCI-e devices (BMX-T524)........................13
BMX-T524
4 BMX-T524 Quick Reference Guide
1. Getting Started
1.1 Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not
make connections while the power is on. Sensitive
electronic components can be damaged by sudden power
surges. Only experienced electronics personnel should
open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution,
use a grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded
bag when they are not in the chassis.
1.2 Packing List
1 x BMX-T524 Barebone system
Accessories:
1 x 24V/5A 120W adapter
1 x Power Cord
HDD screws (4pcs. 6#32*5mm, 4pcs. M2*L4, and 8pcs. M3*4)
2 x 2.5”HDD mylar
Quick Reference Guide
BMX-T524 Quick Reference Guide
5
1.3 System Specifications
System
Mother Board
EMX-H110P-A1R
CPU
Intel® LGA1151 Socket Supports 6th Generation Core™ i7/ i5/ i3
Processors (Max. TDP at 65W depending on CPU cooler selection
(optional))
CPU Cooler (Type)
1U blow type cooler (35W: ACC-FAN-115-03R / 65W:
E1961121840000R)
Memory
2 x 260-pin DDR4 2133MHz SO-DIMM supports up to 32GB
Power Supply
DC to DC CONVERTER 120W 18~28V/10A
Adapter
120W 24V/5A Power Din Adapter
Storage
Hard Disk Drive
1 x 3.5" or 2 x 2.5” HDD bracket
External I/O
PS/2 KB & Mouse
1 x PS/2 KB or Mouse
Serial Port
4 x RS232, 1 x RS232 or 422/485(Optional)
USB Port
4 x USB 3.0 (Rear)
4 x USB 2.0 (Front x 2, Rear x 2)
Video Port
1 x HDMI, 1 x VGA (or DP)
Dual display
Audio Port
1 x Mic-in, 1 x Line-out, 1 x Line-in
LAN Port
1 x Intel® I219LM PCI-e Gigabit Ethernet PHY
1 x Intel® I211AT PCI-e Gigabit Ethernet
Switch
1 x Power Button with LED
Indicator Light
1 x HDD LED, 2 x LAN LED
Expansion Slots
1 x Full Size Mini-PCI-e Supports mSATA (SATA III)
1 x Half Size Mini PCI-e
Mechanical
Power Type
DC in 18~28V via power converter
Power Connector Type
Power din 4 pin
Dimension
205 x 205 x 75 mm (L x W x H)
8.07" x 8.07" x 2.95"
Weight
3.3lbs / 1.5 kg
Color
Black
OS Support
Win 7 (with Intel 6th Gen Mini-ITX motherboard only), Win 10.
Reliability
EMI Test
CE/FCC Class B design compatible
BMX-T524
6 BMX-T524 Quick Reference Guide
Safety
UL/CB design compatible
Vibration Test
Sine Vibration test (Non-operation)
Reference IEC60068-2-6 Testing procedures
Test Fc : Vibration sinusoidal
1 Test Acceleration : 2G
2 Test frequency : 5 ~ 500 Hz
3 Sweep：1 Oct/ per one minute. (logarithmic)
4 Test Axis : X,Y and Z axis
5 Test time :30 min. each axis
6 System condition : Non-Operating mode
Package Vibration Test
Reference IEC60068-2-64 Testing procedures
Test Fh : Vibration boardband random Test
1. PSD: 0.026G²/Hz , 2.16 Grms
2. Non-operation mode
3. Test Frequency : 5-500Hz
4. Test Axis : X,Y and Z axis
5. 30 min. per each axis
Random Vibration Operation
Reference IEC60068-2-64 Testing procedures
Test Fh : Vibration boardband random Test
1. PSD: 0.00050513G²/Hz, 0.5Grms
2. Operation mode
3. Test Frequency : 5-500Hz
4. Test Axis : X,Y and Z axis
5. 30 minutes per each axis
6. IEC 60068-2-64 Test: Fh
7. Storage : SSD or HDD or mSATA
Mechanical Shock Test
Bump Test
Reference IEC 60068-2-29 Testing procedures
Test Eb : Bump Test
1. Wave form：Half Sine wave
2. Acceleration Rate：3g for operation mode
3. Duration Time：11ms
4. No. of Shock：Z axis 300 times
5. Test Axis: Z axis
6. Operation mode
Drop Test
Packing Drop
Quick Reference Guide
BMX-T524 Quick Reference Guide
7
Reference ISTA 2A, Method : IEC-60068-2-32 Test:Ed Test Ea : Drop
Test
1. One corner , three edges, six faces
2. ISTA 2A, IEC-60068-2-32 Test:Ed
Operating Temperature
(w/HDD), ambient w/ air flow
0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Storage Temperature
-20°C ~ 75°C (-4°F ~ 158°F)
Note:
Specifications are subject to change without notice.
BMX-T524
8 BMX-T524 Quick Reference Guide
1.4 System Overview
1.4.1 Front/Rear View
Connectors
Label
Function
Note
Power
Power on button
HDD
HDD Indicator
LAN1/2
RJ-45 Ethernet 1/2
USB2.0
4 x USB2.0 connector
Quick Reference Guide
BMX-T524 Quick Reference Guide
9
USB3.0
4 x USB3.0 connector
COM1~5
Serial port 1~5 connector
DCIN
DC power-in connector
HDMI
HDMI connector
DP
DP connector
Line-out
Line-out audio jack
Line-in
Line-in audio jack
Mic-in
Mic-in audio jack
KB/MS
PS/2 keyboard & mouse connector
VGA
VGA connector
BMX-T524
10 BMX-T524 Quick Reference Guide

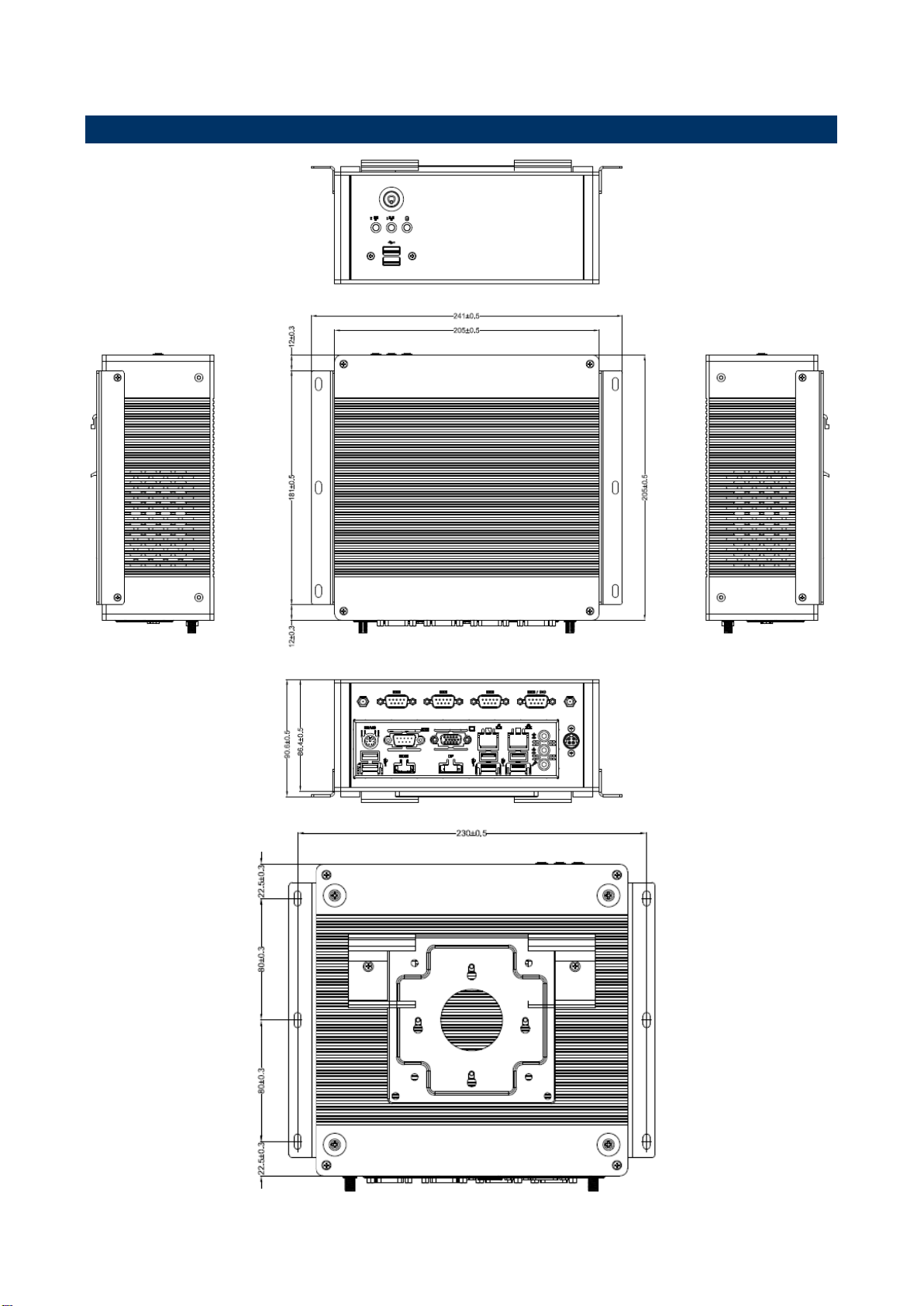

1.5 System Dimensions
(Unit: mm)
