Audiovox D1705 Manual de usuario

D1705

PORTABLE 7" LCD MONITOR AND DVD PLAYER

1286808

ELECTRONICS CORP .

WWW

.audiovox.com

For Customer Service

Visit Our Website At

Product Information, Photos,

FAQ’s Owner’s Manuals

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain patents and other intellectual prop-

erty rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other limited view-

ing uses only unless authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

A. Introduction

Thank you for selecting the D1705 portable DVD player. The main

features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices

or your home. The unit is constructed to provide years of reliable,

trouble-free service, and is compact so that you can take it with you

anywhere and is designed for quick and easy installation. Please

read the entire instruction manual supplied with this product prior to

operation. The documentation will assist you in installing the system

properly to obtain the best equipment performance. Please retain

this manual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D1705 is installed in accordance with the instruc-

tions and illustrations provided in this manual.

3. Object and Liquid

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other material.

4.Disassemble

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 7.0’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DC Adapter

3. 1 x Rechargeable Battery

4. 1 x Remote Control

5. 1 x Instruction Manual

6. 1 x Audio/Video Cable

7. 1 x Cigarette Lighter Adapter

D. Powering and installation

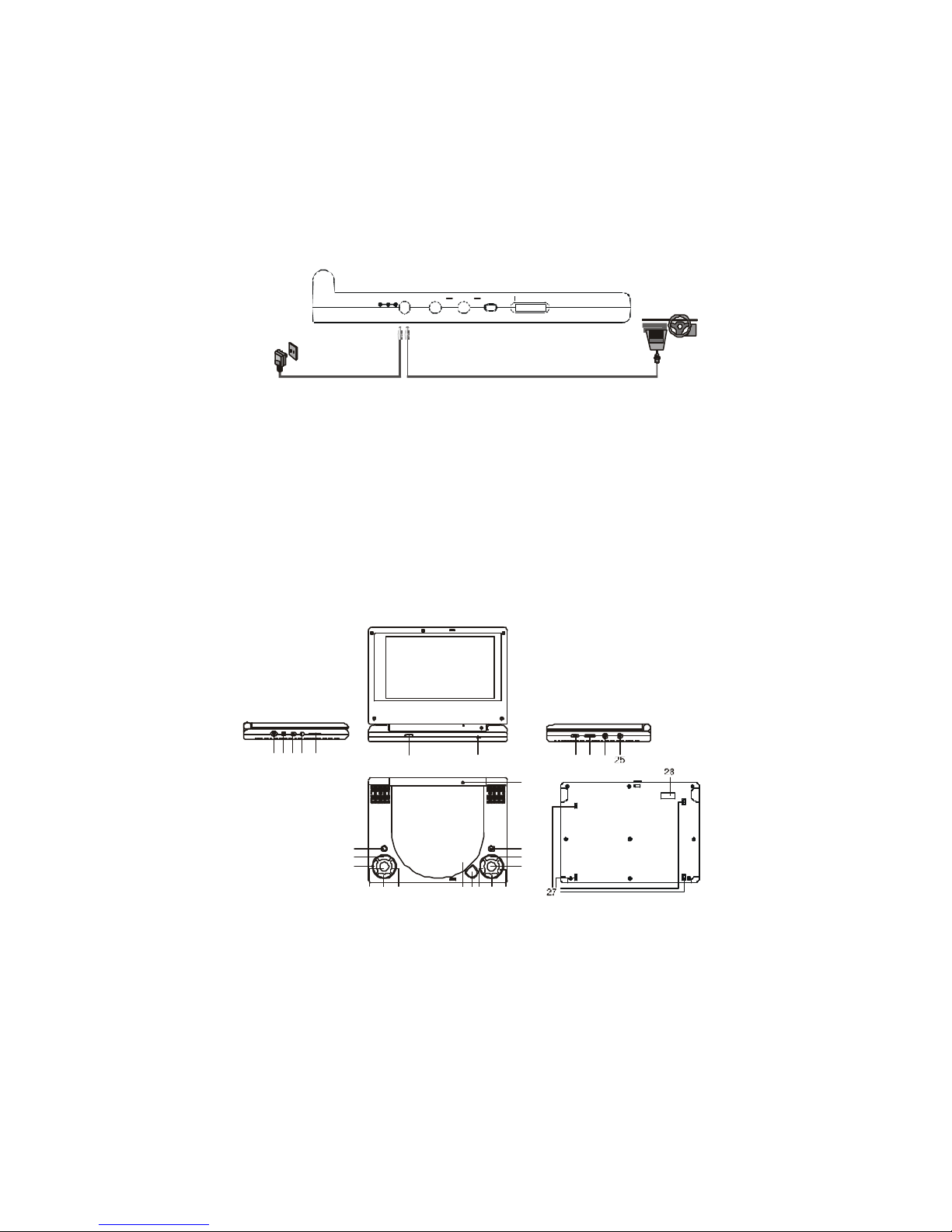

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack

on the left side of the main unit, then plug the other end into

the 110V AC power socket.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter into the

DC 9V jack on the unit, then plug the other end into

the cigarette lighter socket.

1 2

Figure 1

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

Figure 2

BRIGHT.

DC 9V VIDEOAUDIO IN OUT

4 5 6

18 2019 21

1) Menu

2) Up button

3) Left Button

4) OK Button

5) Down Button

6) Right Button

7) Close disc cover point

8) Open Button

9) Previous Button

10) Stop Button

11) Next Button

12) Play Button

13) Pause Button

14) Screen Mode ( wide) Button

15) Remote Control Sensor

16) Power LED

17) DC 9V Input Jack

18) Audio Jack (L+R)

19) Video Jack

20) AV Input /Output Switch

21) Brightness Up/Down Thumbwheel

22) Power On/ Off Switch

23) Volume Up/Down Thumbwheel

24) Hi-Fi Headphone Jack

25) Coaxial Jack

26) Power Saving Mode Switch (Screen closed shut off switch)

27) Battery Catch

28) Battery Port

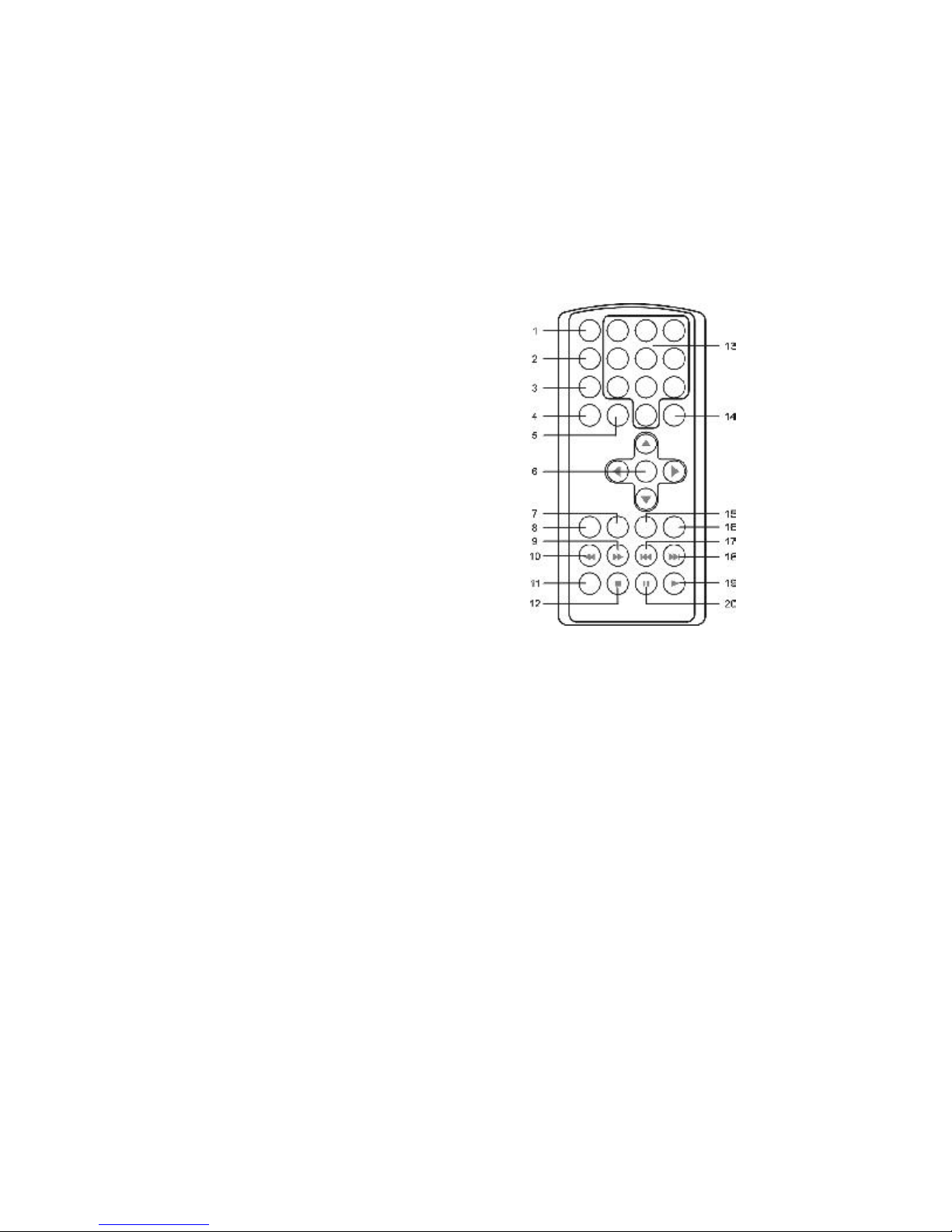

2. Remote Control View (Refer to Figure 3)

1) Display Button

2) Angle Button

3) Subtitle Button

4) Audio Button

5) Zoom Button

6) Up/Down/Left/Right/Enter Buttons

7) Return Button

8) A-B Button

9) Forward Button

10) Reverse Button

11) Slow Button

12) Stop Button

13) Number Buttons

14) Setup Button

15) Menu Button

16) Repeat Button

17) SKIP-

18) SKIP+

19) Play Button

20) Pause Button Figure 3

F. Loading and Playing a Disc

a. After connecting power to the unit, power on”DVD player” with

the power switch.

b. Open the disc tray by pressing OPEN , place a disc into the

tray with label side of disc facing up.

c. Close the tray by pressing “PRESS” button.The unit will load

the disc and go to the root menu. Start playback by pressing

“PLAY”.

d. Rotate the BRIGHT and VOLUME controls to adjust the picture

brightness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUP Menu on

the screen. Press ‘SETUP’ again to exit the SETUP Menu.

Figure 4. Main SETUP Menu Screen

1) Select ‘GENERAL SETUP’ using the Left /Right buttons, then

press ‘ENTER’ to enter the GENERAL Setup screen.

Figure 5. General SETUP Menu Screen

a)Select “SPDIF Output RAW” use this option to select the audio

signal output from”Coaxial”port.

* SPDIF OFF: the digital signal Audio output will be off.

* SPDIF/RAW: the signal output from “COAXIAL” is RAW.

* SPDIF/PCM: the signal output from “COAXIAL” is PCM.

b)Select TV DISPLAY using UP/DOWN, and then press RIGHT

to enter the submenu. Select the TV display mode on the

screen using UP/DOWN, and press ENTER to confirm the

setting. Press LEFT to return.

* NORMAL/PS: When the player is connected to a normal

TV, and a wide picture is shown on the full screen.

* NORMAL/LB: When the player is connected to a normal TV,

.. General Setup Page ..

Go To General Setup Page

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

.. General Setup Page ..

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

SPDIF Off

SPDIF/RAW

SPDIF/PCM

Setup SPDIF

and a wide picture is shown on the screen with a black strip

at both the top and bottom of the screen.

* WIDE: When the player is connected to a wide screen TV, a

wide picture is shown on the full screen.

Figure 6. TV DISPLAY Screen Display

c). Select ‘ANGLE MARK’ using UP/DOWN, and then press

the RIGHT button to enter the submenu. Choose Angle

Mark on or off displayed on the screen using the UP/DOWN

and then press ENTER to confirm the setting. Press the

LEFT button to return.

Figure 7. ANGLE MARK Screen Display

* ON: The screen will show angle mark.

(*If angle option is available)

OFF: The screen will not display the Angle Mark

d). Select ‘SCREEN SAVER’ using UP/DOWN key,

Figure 8. SCREEN SAVER Display

.. General Setup Page ..

Set TV Display Mode

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

Nomal/PS

Normal/LB

Wide

.. General Setup Page ..

Set Angle Mark

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off

Off

.. General Setup Page ..

Screen Saver

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off On

Off

*ON: screen saver on.

*OFF: screen saver off.

*NOTE The DVD player will enter the Screen Saver mode after 5

minutes if the image on the screen remains the same for more than 5

minutes.

e). Select “ Last Memory’ by Up/Down button

Figure 9. LAST MEMORY Screen Display

*on: The unit will retain the last position of playback in

memory. This feature is cancelled when power is turned off.

*off: The unit will not retain the last position of playback.

2) Select “Video quality” set up by using the left/right buttons, press

enter to enter the video quality set up page.

Figure 10. Main SETUP Menu VIDEO QUALITY

a).Select “Brightness by using the Up/Down buttons,then press

“Enter”. Adjust can change the Brightness by pressing the

left/right arrow buttons. When complete, press “Enter”

again to return to the “Video Quality” set up page.

.. Video Quality Setup ..

Go To Video Setup Page

Brightness

Hue

Contrast

Saturation 00

.. General Setup Page ..

Set Last Memory STATE

SPDIF Output RAW

Angle Mark Off

TV Display PS

Screen Saver Off

Last Memory Off On

Off

Tabla de contenidos

Otros manuales de Reproductor de DVD portátil de Audiovox

Audiovox

Audiovox D1830 Manual de usuario

Audiovox

Audiovox D1929B Manual de usuario

Audiovox

Audiovox D1800 Manual de usuario

Audiovox

Audiovox D1812PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox AVXMTG10U Manual de usuario

Audiovox

Audiovox VBP58 Manual de usuario

Audiovox

Audiovox D1501 Manual de usuario

Audiovox

Audiovox D705 Manual de usuario

Audiovox

Audiovox D1788 - DVD Player - 7 Manual de usuario

Audiovox

Audiovox DS9521PK Manual de usuario

Audiovox

Audiovox D7021 Manual de usuario

Audiovox

Audiovox D1830 Manual de usuario

Audiovox

Audiovox D2016 Manual de usuario

Audiovox

Audiovox DT85 Manual de usuario

Audiovox

Audiovox DS7521PK Manual de usuario

Audiovox

Audiovox PVS69701 Manual de usuario

Audiovox

Audiovox D1788PK Manual de usuario

Audiovox

Audiovox DS9443TPK Manual de usuario

Audiovox

Audiovox D1998PK - 9" Slim Line Portable DVD Player Manual de usuario

Audiovox

Audiovox D1530 Manual de usuario

Audiovox

Audiovox FLO TV DFL710 Manual de usuario

Audiovox

Audiovox D1708PK Manual de usuario

Audiovox

Audiovox D1809PK - DVD Player - 8 Manual de usuario

Audiovox

Audiovox DS9106 Manual de usuario

Manuales populares de Reproductor de DVD portátil de otras marcas

Philips

Philips PET718/77 Manual de usuario

Impecca

Impecca DVP775 Manual de usuario

NextBase

NextBase MULTI-VISION SET PRO Manual de usuario

Impecca

Impecca DVP-1017 Manual de usuario

Akura

Akura APDVD6008 Manual de usuario

TV Star

TV Star TD3 LCD COMBO Manual de usuario

LENCO

LENCO MES-202 Manual de usuario

Philips

Philips PET940/98 Manual de usuario

Philips

Philips PET702P Manual de usuario

Philips

Philips PD7016 Manual de usuario

Logik

Logik L7SPDVD11 Manual de usuario

LG DP650 Manual de usuario

Mustek

Mustek MVP850B Manual de usuario

Insignia

Insignia NS-MDDVD10 Manual de usuario

Philips

Philips PD9000/12 Manual de usuario

LENCO

LENCO DVP-1027 Manual de usuario

Philips

Philips PD7010/05 Manual de usuario

Technika

Technika PDVDTWINSS10 Guía del usuario
