User Manual

4K UHD

Video Distribution Amplier

Model 1398E

Table Of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Checking Package Contents . . . . . . . . . . . . . . . . . . . . . . 4

Getting the Best Results . . . . . . . . . . . . . . . . . . . . . . . . 5

Planning a Distribution System . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

On Sceen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Serial Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . 22

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4K UHD

Video Distribution Amplier

Model 1398E

Introduction

Thanks for purchasing a 4K distribution amplier from Audio Authority®. The

1398E with resolution tracking are designed to distribute 4K video signals to

multiple displays in a retail environment. The latest chipsets allow 4K video

signals to be scaled automatically to match each display’s optimal resolution

and video format. With this capability it is no longer necessary to divide TVs

on display into separate distribution systems, according to their resolution.

Link multiple distribution ampliers to create a hub-and-spoke layout for large

distribution systems.

Features

● Two HDMI inputs, eight HDMI outputs

● Port-by-port EDID management 4K to 1080p down-scaling and color space

conversion (4:4:4 to 4:2:0), independent HDCP management engine for each

output ensures stable performance

● Special “Group Mode” allows the 1398E to function as two independent 1×4

splitters in a single device

● Supports 4K resolutions up to 3840x2160@23/24/25/29/30/50/59/60Hz

and 4096x2160@23/24/25/29/30/50/59/60Hz

● HDCP 2.2 compliant

● Clock Speed: 300MHz~600MHz

● Video bandwidth: 18Gbps

● Support for eight internal EDIDs, eight external EDIDs copied from connected

devices, and two user provided EDIDs

● Supports CEC “active source” commands to periodically reset the input

selection on CEC-compatible connected displays

● Controllable via front-panel buttons, with OSD, and RS-232

● Supports all bitstream audio formats such as LPCM 7.1 Dolby Digital and DTS

● Mini-USB rmware update for expanding compatibility

Checking Package Contents

Before attempting to use this device, please check the packaging and make

certain the following items are contained in the shipping carton:

● Distribution amplier

● 5VDC power adapter

● User manual

Getting the Best Results

Many factors inuence the quality and reliability of HDMI signal distribution

installations. The following are the main factors to consider, and basic precautions

that will ensure the best possible performance.

● Port-by-Port EDID management - 4K to 1080p down-scaling and color space

conversion (4:4:4 to 4:2:0), independent HDCP management engine for each

output ensures stable performance so make sure port 1 is connected to a TV

with the highest resolution capability. Enable HDR on the high resolution outputs

using the OSD or RS-232.

● Source resolution and video/sound quality - Sources, such as satellite

receivers or cable boxes can output at low resolutions or deliver compressed

video material that may yield poor results. Consider the source when planning

and troubleshooting your system.

● Distance between the DA source and the displays - Use the shortest

cables possible, but premium certied high speed cables and advanced

HDMI extenders may be necessary for the longest runs.

● Connection cables - HDMI cable design and quality are extremely important

in long cable runs where capacitance can severely degrade performance. Use

premium certied high speed cables designed to handle 4K resolutions and 3D;

low quality cables are susceptible to interference. Always use good strain relief

methods to prevent cables from becoming loose over time.

● Interference from nearby electrical devices - RF emission can have an

adverse effect on signal quality. For example, older computer monitors often

emit very high electromagnetic elds that can interfere with the performance of

nearby video equipment.

Higher

Lower

Shorter Distance Longer Distance

Resolution

Refresh Rate

Bit Depth

● Each display should be tested with the source(s) being used to ensure basic

compatibility before connecting them to a distribution amp and/or switcher.

Not all HDMI components and displays are compatible with every feature

and format.

● Since HDMI connectors can sometimes become loose, mount the switcher

or distribution amplier to a at surface and add strain relief tie-downs a few

inches away from every HDMI cable connector.

1398E

4K 4K

1080p

EIGHT MIXED RESOLUTION TVS ON DISPLAY

4K PLAYER

1398E

PREMIUM CERTIFIED

HIGH SPEED HDMI

CABLES

OUTPUT 1

4K TV WITH

HDR

Installation

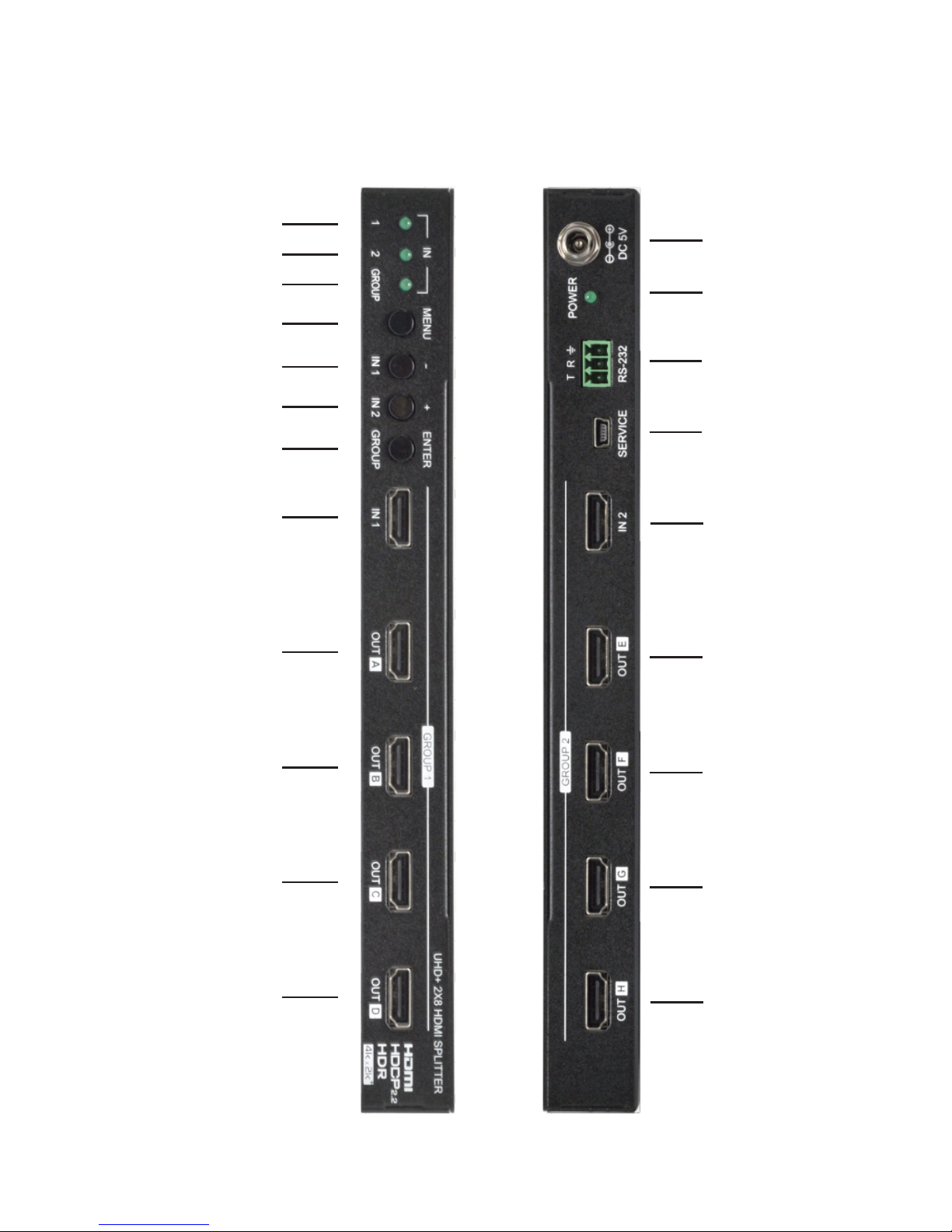

Study the picture below and become familiar with the controls, signal inputs,

outputs, RS-232, and power input.

OUTPUT C

OUTPUT B

OUTPUT A

INPUT 1

OUTPUT E

OUTPUT F

OUTPUT G

OUTPUT H

OUTPUT D

GROUP LED

INPUT 2

INPUT 1 LED

INPUT 1 / – SWITCH

INPUT 2 / + SWITCH

GROUP / ENTER

SWITCH

INPUT 2 LED

FIRMWARE

UPDATE

PORT

POWER

POWER LED

RS-232

FRONT PANEL REAR PANEL

Wiring the System

● Switch off all devices, including monitors.

● Connect a premium certied high speed cable from the HDMI source to the

input(s) of the 1398E. Cable lengths should be kept as short as possible.

● Connect the outputs of the 1398E to displays or other devices.

● Make certain that the HDMI cables are securely plugged into the source and

display devices as well as the 1398E. Always use premium certied high speed

cables, and the shortest length possible, for best results.

● Connect the power adapter to the AC source and then to the 1398E.

● The 1398E begins to function as soon as the AC adapter is connected to the

1398E and AC power. There is no power switch.

● Turn on the HDMI source and HDMI destination devices and observe the source

signal on the inputs of all of the destination devices.

Note: Proper operation of HDMI distribution ampliers depends on the use

of premium certied high speed HDMI cables with low loss, high bandwidth

signal handling capabilities.

Switch Settings

The 1398E can be controlled by using the front panel switches or when viewed

from the On Screen Display (OSD).

OSD FRONT PANEL

*MENU: Press to enter the On Screen

Display (OSD) menu, or to back out

from menu items.

Note: Press and hold the “MENU” button

for 3 seconds while connecting the

power adapter to reset all settings to

the factory defaults.

–: Press to move down or adjust

selections within the OSD menus.

Note: Pressing “MENU” and “−” together

will force Input 1 to use the internal

“FHD, 2CH” EDID.

INPUT 1: Press this button to switch to

Input 1.

+: Press to move up or adjust selections

within OSD menus.

Note: Pressing “MENU” and “+” together

will force Input 2 to use the internal

“FHD, 2CH” EDID.

INPUT 2: Press this button to switch to

Input 2.

*ENTER: Press to conrm a selection

within the OSD or to go deeper into a

menu item.

GROUP: Press this button to toggle Group

Mode on and off.

*Note: Press and hold the “MENU” and “ENTER” buttons together for 3 seconds

to lock or unlock the front panel.

On Screen Display Main Menu

All primary functions of the 1398E can be

controlled by using the On Screen Display

(OSD), which is activated by pressing the Menu

button on the front panel. Use the + (PLUS), −

(MINUS), and ENTER buttons to navigate the

OSD menu. Press the Menu button to back out

from any menu item, and press it again to close

the menu.

Note: All screen display setting examples

shown are the default setting.

Input Switch

● Switch to: Select the input to display when

Group Mode is disabled.

Note: Selecting an Input when Group

Mode is turned on will disable Group Mode.

● Auto Switch: Enable or disable the auto

switch function.

Note: Auto Switch works when Group Mode

is disabled.

● Group Mode: Enable or disable Group Mode.

Input Information

● Input 1 and Input 2: Current input’s vendor

name based on the source’s info-frame data.

Note: Some devices may not provide this

information.

● Name: The current input’s product name

based on the source’s info-frame data.

Note: Some devices may not provide this

information.

● Fmt: The video format of the current input.

● Reso: The resolution and framerate of the

current input.

● Freq: The signal frequency of the current input.

● Depth: The color bit-depth of the current input.

● Color: The color space of the current input.

● HDCP: The HDCP status of the current input.

● Audio: The audio format of the current input.

● HDR: The HDR status of the current input.

Input Switch

Input Information

Output 4k Converter

Output Information

EDID Control

HDCP Control

CEC Control

Remote Control

OSD Setting

System Setting

Return

Main Menu

Switch to Input 1

Auto Switch OFF

Group Mode OFF

Return

Input Switch

In 1 OPPO

Name UDP-203

Fmt HDMI

Reso 3840x2160p@59Hz

Freq 445.04MHz

Depth 12bit

Color YUV420

HDCP HDCP22 Active

Audio LPCM 2Ch

HDR No

Return

Input Information

Output 4K Converter

● All: Set the 4K conversion mode for all of the

outputs. Setting this to bypass will disable the

4K conversion function.

Note: Making changes to this setting will

overwrite the individual output’s settings.

● Out A-H: Set the 4K conversion mode to use for

each of the outputs individually.

Note: 4K conversion is only available with 4K

sources. Due to a chipset limitation, 4K sources

using the 4:2:2 color space may display with

incorrect colors when scaled to 1080p. If this occurs, partitioning the 1398E into

two 1x4 switchers may provide a solution in this case.

MAIN MENU LEVEL 2 LEVEL 3

Output 4K Converter All Bypass

YUV420

1080p

AUTO

Out A-H Bypass

YUV420

1080p

AUTO

Output Information

● Provides the connection status, resolution

and framerate for each output.

Note: See page 19 for a chart of supported

DVI and HDMI resolutions

EDID Control

● Input 1: Assign the selected EDID to Input 1*.

● Input 2: Assign the selected EDID to Input 2*.

*Note: Changing the EDID may result in the source changing resolutions and

blanking of the output for a couple seconds.

● Vndr: Provides the vendor name from the EDID used with the current Input.

● Name: Provides the monitor name from the EDID used with the current Input.

OutA 3840x2160p@59

OutB 3840x2160p@59

OutC 3840x2160p@59

OutD 3840x2160p@59

OutE 3840x2160p@59

OutF 3840x2160p@59

OutG 3840x2160p@59

OutH 3840x2160p@59

Return

Output Information

All Auto

OutA Auto

OutB Auto

OutC Auto

OutD Auto

OutE Auto

OutF Auto

OutG Auto

OutH Auto

Return

Output 4k Converter

Tabla de contenidos

Otros manuales de Amplificador de Audio Authority

Audio Authority

Audio Authority 1714 Manual de usuario

Audio Authority

Audio Authority 1394A Manual de usuario

Audio Authority

Audio Authority 1392 Manual de usuario

Audio Authority

Audio Authority AMP-1235 Manual del propietario

Audio Authority

Audio Authority 1185ci Manual de usuario

Audio Authority

Audio Authority 1398D Manual de usuario

Audio Authority

Audio Authority 1354 Manual de usuario

Audio Authority

Audio Authority Ascentic 1399 Manual de usuario

Audio Authority

Audio Authority 1374A Manual de usuario

Audio Authority

Audio Authority HDMI 1398B Manual de usuario

Audio Authority

Audio Authority DTV Manual de usuario

Audio Authority

Audio Authority SF-16M Manual de usuario

Audio Authority

Audio Authority SonaFlex SF-16M Manual de usuario

Audio Authority

Audio Authority 1398C Manual de usuario

Audio Authority

Audio Authority 985U Instrucciones de funcionamiento

Audio Authority

Audio Authority 1710A Manual de usuario

Audio Authority

Audio Authority HDMI 1398B Manual de usuario

Audio Authority

Audio Authority Distribution Amplifiers 985DTO Instrucciones de funcionamiento

Audio Authority

Audio Authority 1710 Manual de usuario

Audio Authority

Audio Authority High Definition Cat 5 Matrix AVX-562 Manual de usuario

Audio Authority

Audio Authority 1816 Manual de usuario

Audio Authority

Audio Authority 1805 Manual de usuario

Audio Authority

Audio Authority SF-16M Instrucciones de funcionamiento

Audio Authority

Audio Authority 1715 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
